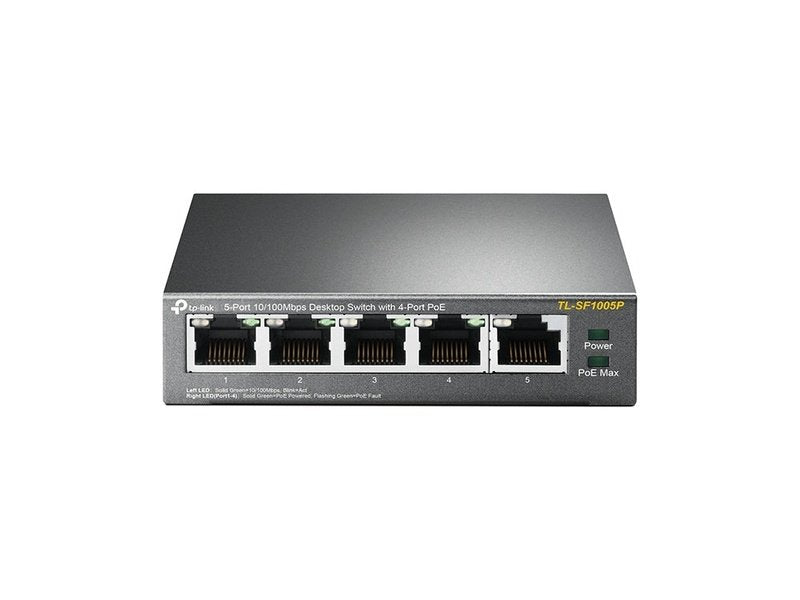

TP-Link TL-SF1005P 4-Port PoE 67W 10/100Mbps Desktop Switch with 1-Port RJ45

TP-LinkSKU: TL-SF1005P

  • Ports: 5× 10/100Mbps RJ45 ports
  • PoE Ports: 4× PoE+ ports
  • PoE Standards: IEEE 802.3af/at compliant
  • PoE Budget: 67W total, up to 30W per PoE+ port

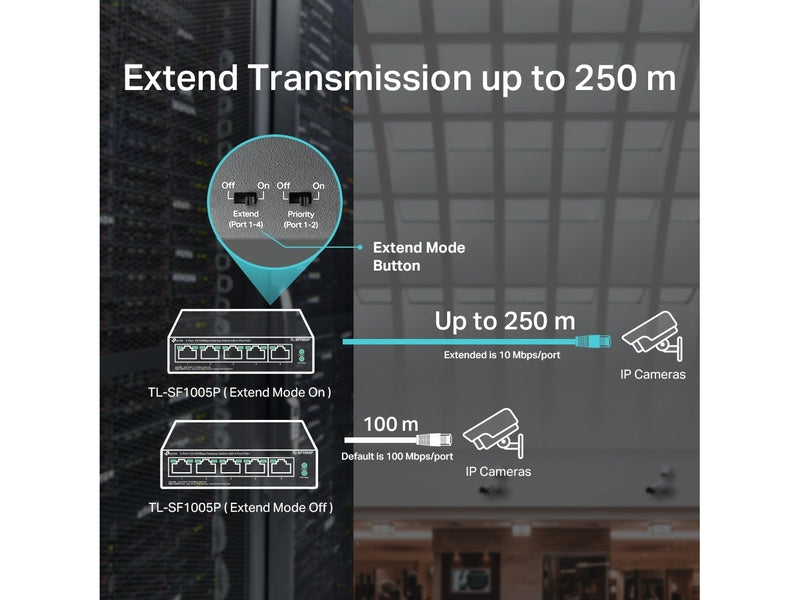

  • Extend Mode: Up to 250m data and power transmission distance
  • Priority Mode: Ports 1–2 prioritized for sensitive applications
  • PoE Auto Recovery: Automatically reboots dropped or unresponsive PoE devices

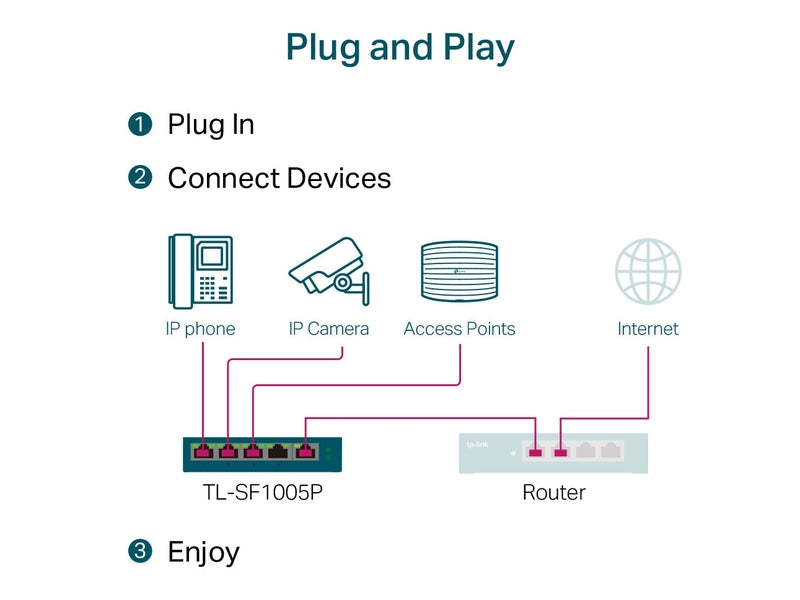

  • Deployment: Plug and Play with no configuration required

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$57.00
1

Estimate shipping

Description

TP-Link TL-SF1005P 4-Port PoE 67W 10/100Mbps Desktop Switch with 1-Port RJ45





Professional High-Power Switch with 4 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005P

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

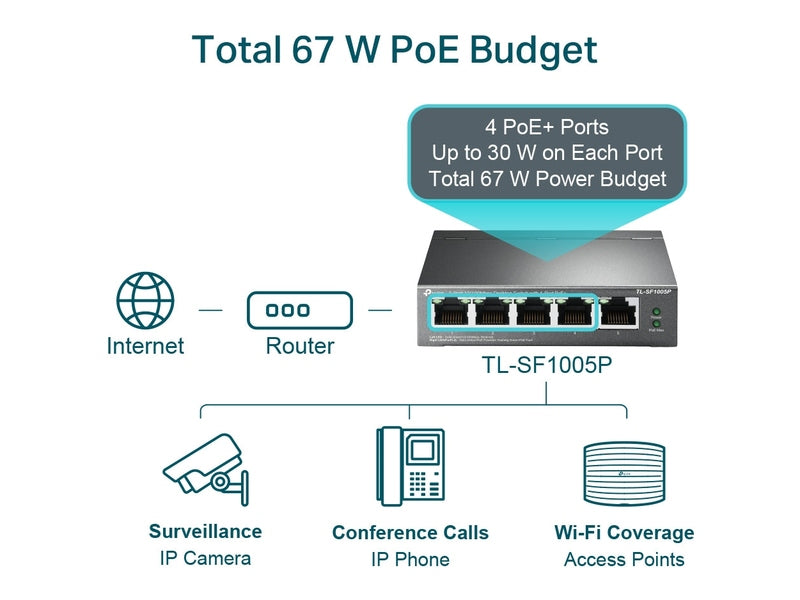

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

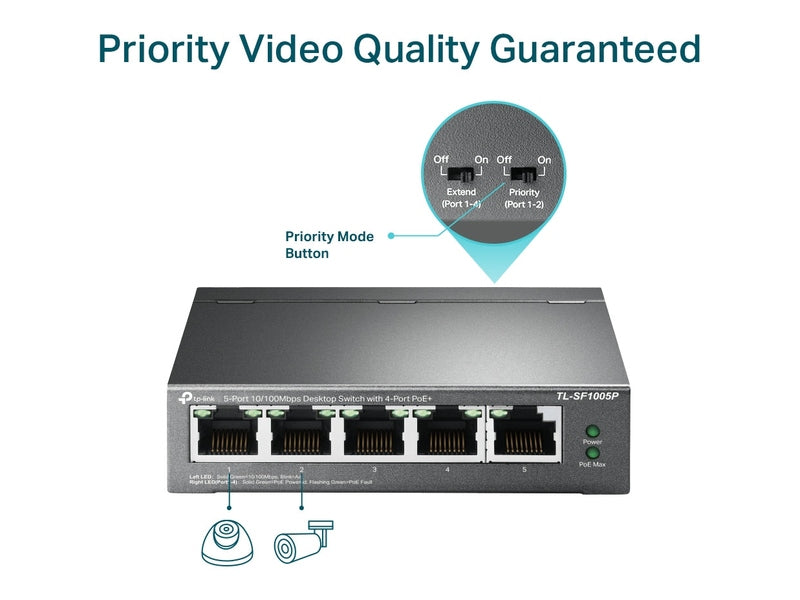

Priority Video
Quality Guaranteed

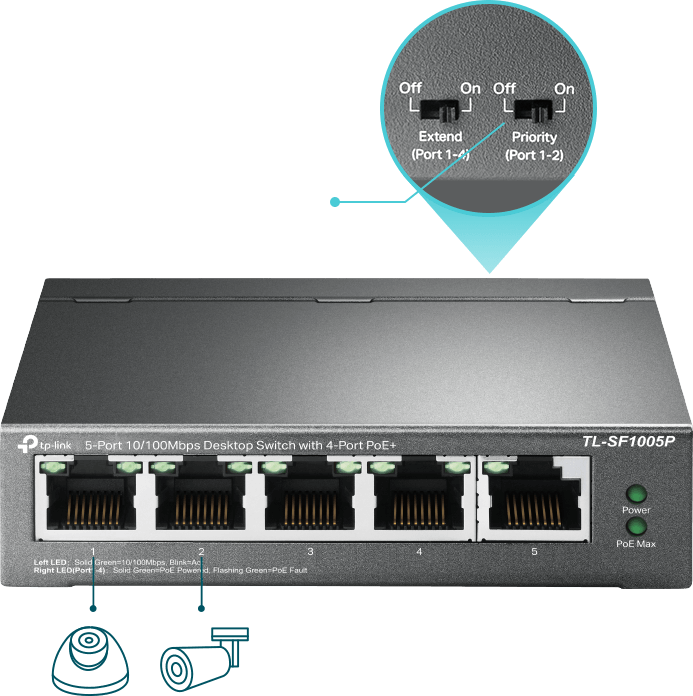

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Specifications

HARDWARE FEATURES
Interface

• 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (max 100m)

• EIA/TIA-568 100Ω STP (max 100m)

• 100BASE-TX: UTP category 5, 5e cable (max 100m)

• EIA/TIA-568 100Ω STP (max 100m)

Fan Quantity Fanless
Physical Security Lock Yes

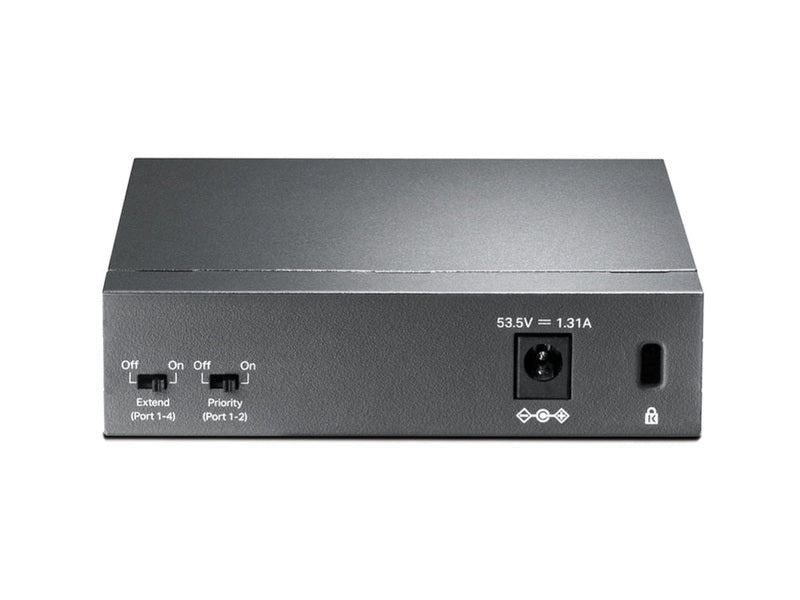

External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–4

• Power Supply: 67 W

MAC Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions (W x D x H) 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
Max Power Consumption

• 1.9 W (220 V / 50 Hz, no PD connected)

• 74 W (220 V / 50 Hz, with 67 W PD connected)

Max Heat Dissipation

• 6.48 BTU/h (no PD connected)

• 252.34 BTU/h (with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions

• Compatible With IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4)

• Priority Mode Button (Ports 1–2)

• MAC Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
Certification FCC, CE, RoHS
Package Contents

• TL-SF1005P

• Power Adapter

 • Installation Guide

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
