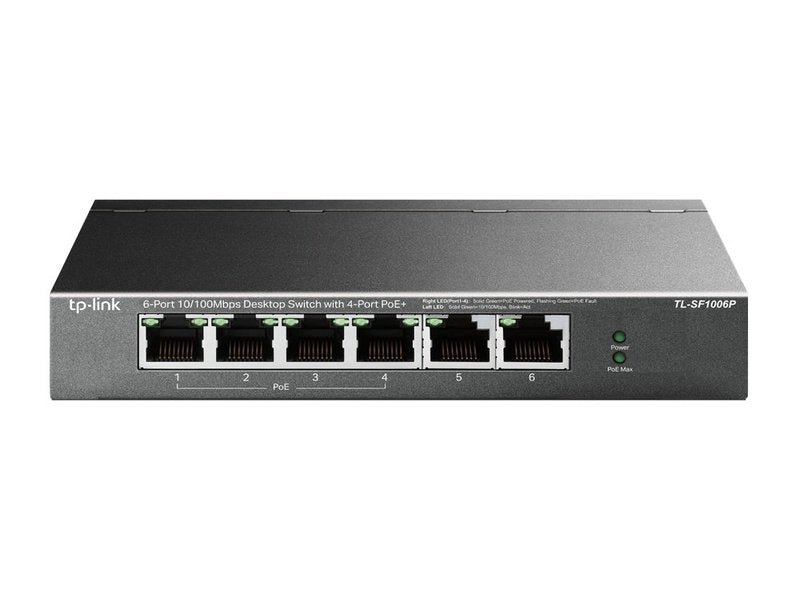

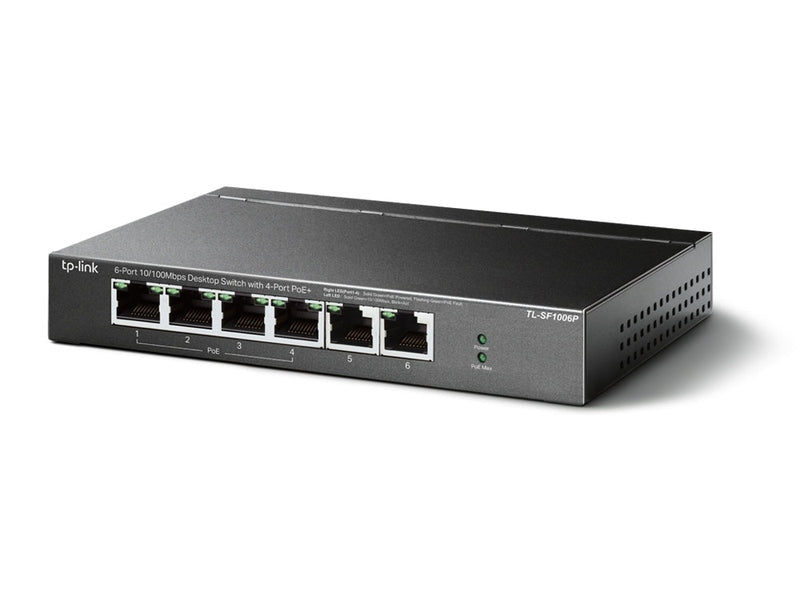

TP-Link TL-SF1006P 4-Port PoE+ 67W 10/100Mbps Desktop Switch with 2-Port RJ45

TP-LinkSKU: TL-SF1006P

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$78.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description


6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ [TL-SF1006P]


    • 6× 10/100 Mbps RJ45 ports

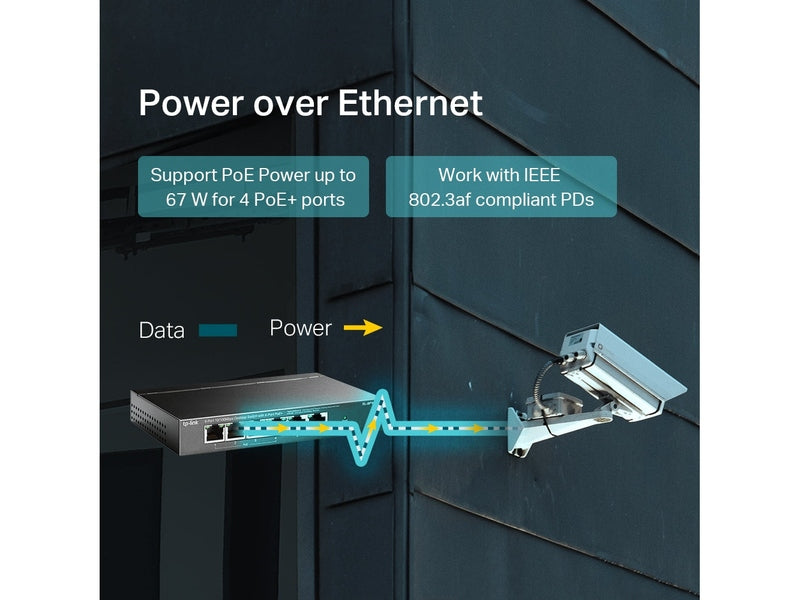

    • 4× PoE+ ports transfer data and power on individual cables
    • Works with IEEE 802.3af/at compliant PDs
    • Up to 250m data and power transmitting range under Extend Mode**
    • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

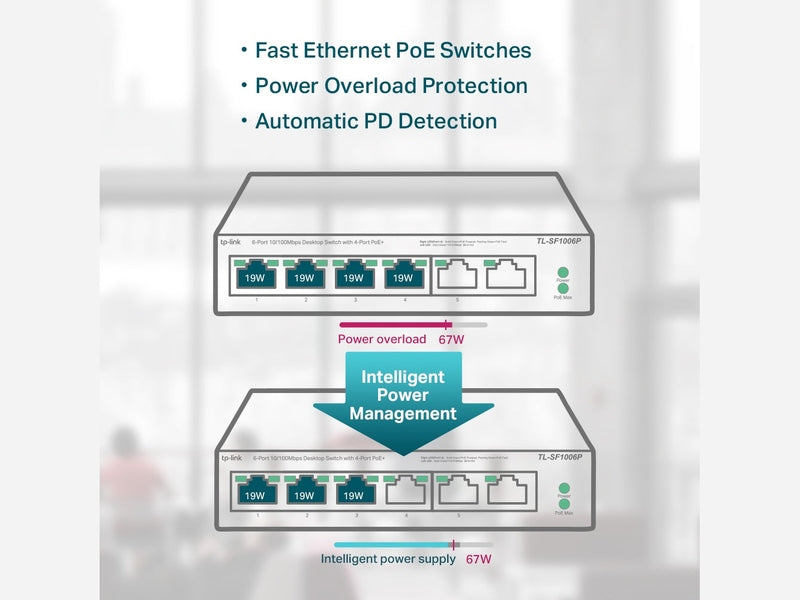

    • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
    • Supports PoE Power up to 30 W for each PoE port
    • Supports PoE Power up to 67 W for all PoE ports*

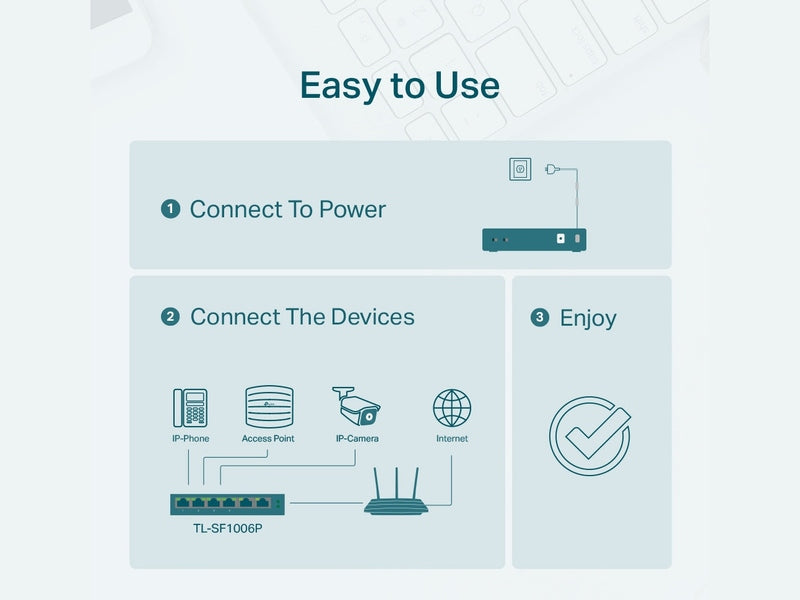

    • Plug and play with no configuration required



    Specifications

    HARDWARE FEATURES
    Interface • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
    • AUTO Negotiation
    • AUTO MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
    Packet Forwarding Rate 0.8928 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 67 W
    Mac Address Table 2K
    Jumbo Frame 2 KB
    Switching Capacity 1.2 Gbps
    Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
    Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
    • 74 W (220 V / 50 Hz, with 67 W PD connected)
    Max Heat Dissipation • 6.48 BTU/h(no PD connected)
    • 252.34 BTU/h(with 67 W PD connected)
    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
    • Extend Mode Button (Ports 1–4)
    • Priority Mode Button (Ports 1–2)
    • Mac Address Auto-Learning and Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SF1006P
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
