Description

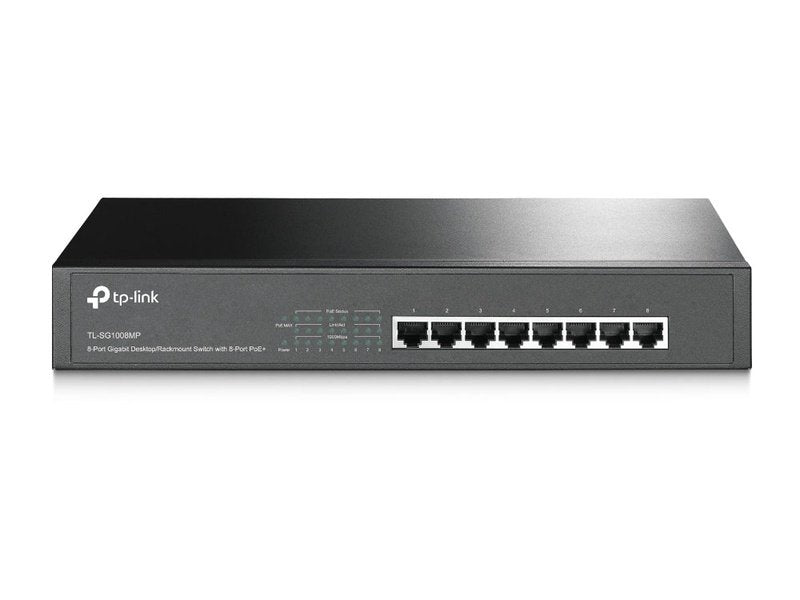

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ [TL-SG1008MP]
- 8× 10/100/1000Mbps RJ45 ports.
- Equipped with 8× PoE+ supported ports to transfer data and power over a single cable.
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks.
- Innovative energy-efficient technology reduces power consumption.
- Supports PoE+ standard with total power budget of 153W* and up to 30W per port.
- Up to 250m data and power transmitting range under Extend Mode**.
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Plug and play design, no configuration required.
Professional High-Power 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
Dedicated 8-Port PoE+ Switch for Wide Range of Applications with 153 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 153 W PoE power budget* for the 8× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
System Self-Healing
with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Plug and Play
Intelligent Power Management
When total power consumption exceeds 153 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1008MP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1008MP delivers switching performance you can depend on.
Specifications
HARDWARE FEATURES | |
---|---|
Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | 1 |
Physical Security Lock | No |

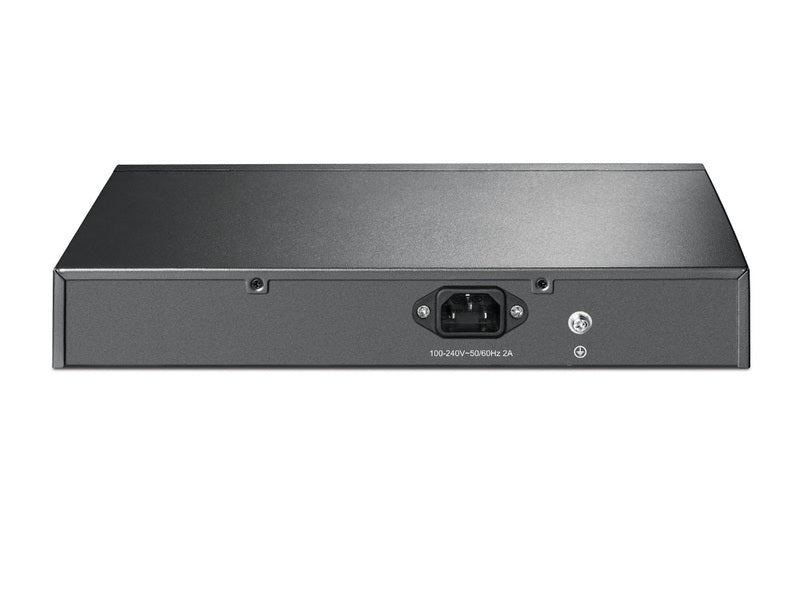

Power Supply | 100-240VAC, 50/60Hz |
Packet Forwarding Rate | 11.904 Mpps |
PoE+ Ports(RJ45) | Standard: 802.3af/at compliant PoE+ Ports: 8 Ports Power Supply: 153W |
Mac Address Table | 4K |
Buffer Size | 1.5Mbits |
Jumbo Frame | 16 KB |
Switching Capacity | 16Gbps |
Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
Mounting | Desktop/Rack Mountable |
Max Power Consumption | • 8.77 W(220V/50Hz. no PD connected) • 172.49 W(110V/60Hz. with 153W PD connected) |
Max Heat Dissipation | • 29.91 BTU/h(no PD connected) • 588.19 BTU/h(with 153W PD connected) |
SOFTWARE FEATURES | |
---|---|
Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Priority Function • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-8) |
Transfer Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
Environment | Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
