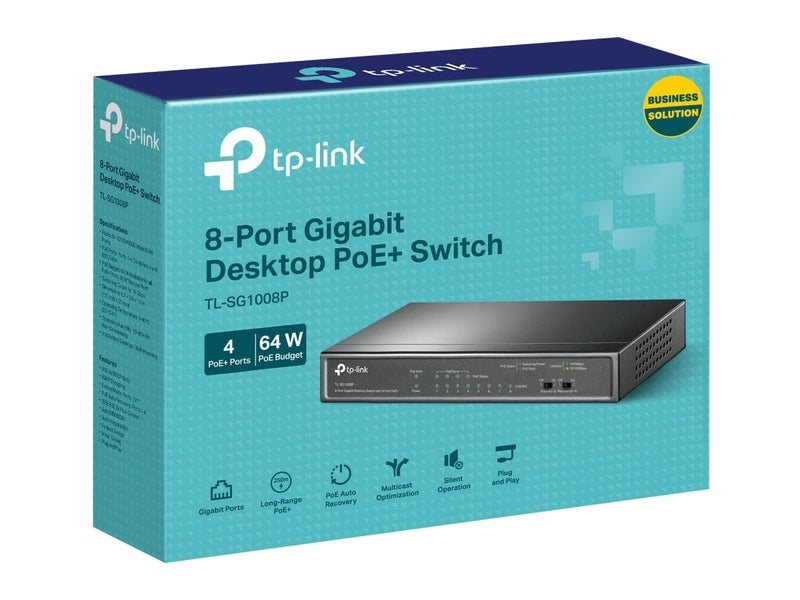

TP-Link TL-SG1008P 4-Port PoE 64W Gigabit Desktop Switch with 4-Port RJ45

TP-LinkSKU: TL-SG1008P

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$83.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

8-Port Gigabit Desktop Switch with 4-Port PoE [TL-SG1008P]

  • 8 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network

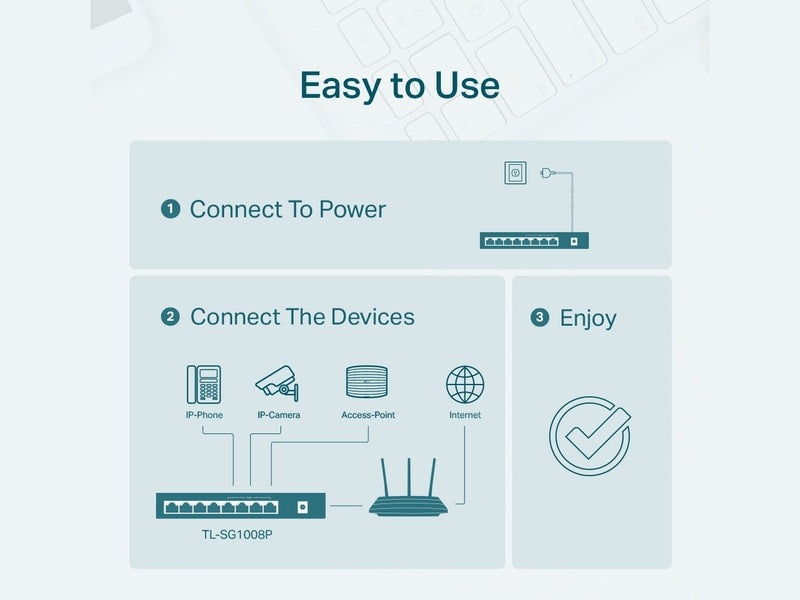

  • Requires no configuration and installation
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 64W for all PoE ports

    PoE Switches for Your Ultra Convenience

    8-Port Gigabit Desktop Switch with 4-Port PoE

    TL-SG1008P

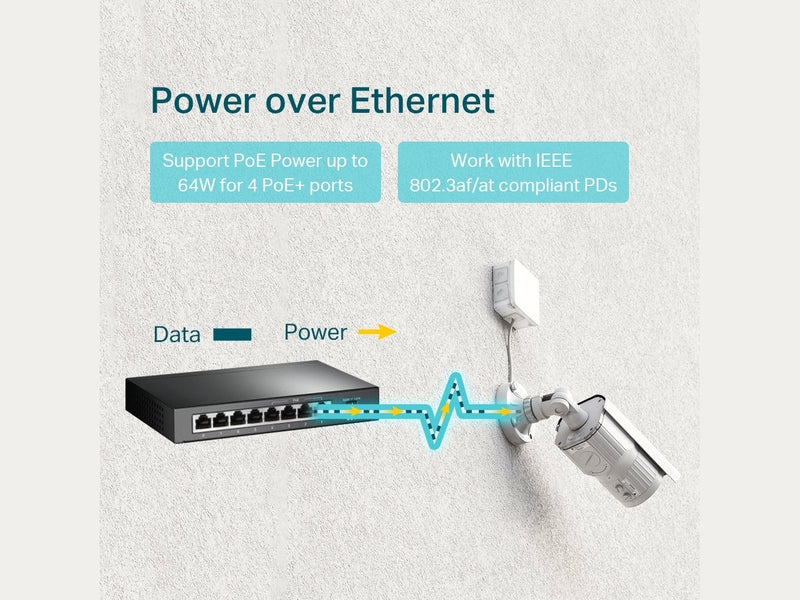

    Power over Ethernet

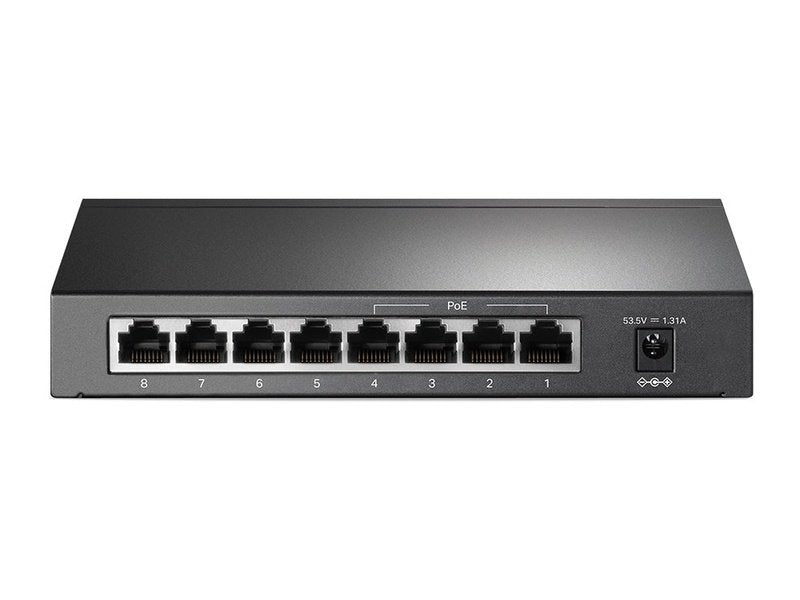

    4 of the switch's 8 Auto-Negotiation RJ45 ports (Port 1 to Port 4) support the Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af-compliant Powered Devices (PDs).

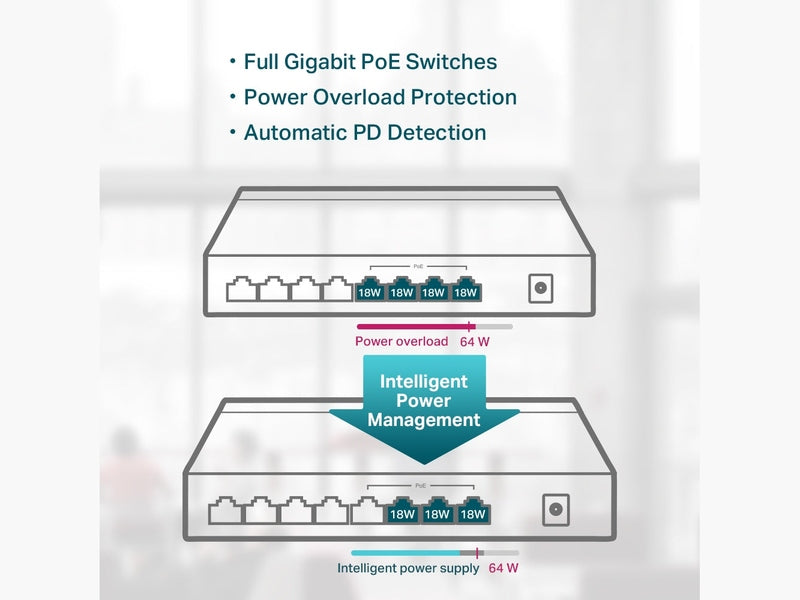

    Intelligent Power Management

    When total power consumption excels at 64W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

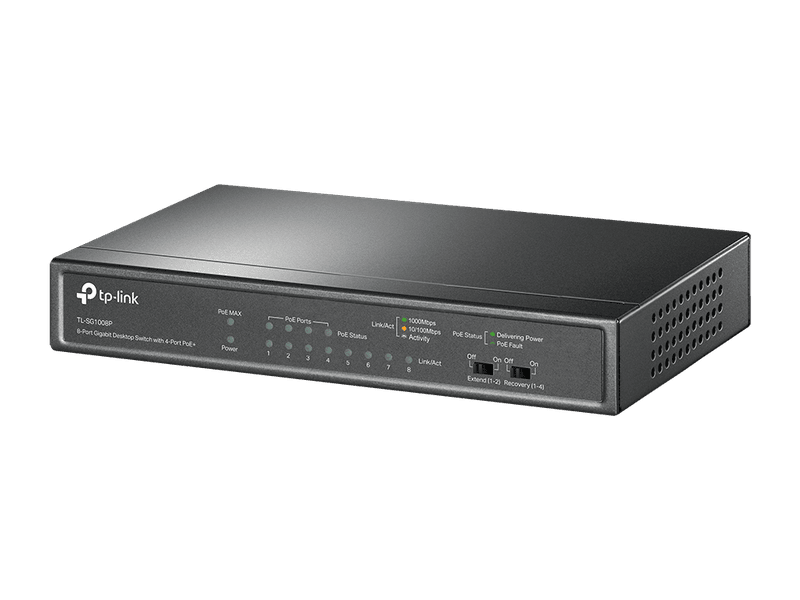

    Sturdy Metal Casing

    Sturdy, compact metal casing and shielded RJ45 ports, with desktop design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.

    Specifications

    HARDWARE FEATURES
    Interface • 8× 10/100/1000 Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
    Packet Forwarding Rate 11.904 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 64 W
    Mac Address Table 4K
    Jumbo Frame 16 KB
    Switching Capacity 16 Gbps
    Dimensions ( W x D x H ) 6.7×3.9×1.1 in (171×98×27 mm)
    Max Power Consumption • 5.39 W (220/50 Hz no PD connected)
    • 75 W (220/50 Hz with 64 W PD connected)
    Max Heat Dissipation • 18.38 BTU/h (no PD connected)
    • 225.75 BTU/h (with 64 W PD connected)
    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
    • IGMP Snooping
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control
    • 802.1p/DSCP QoS
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • TL-SG1008P
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
