Description

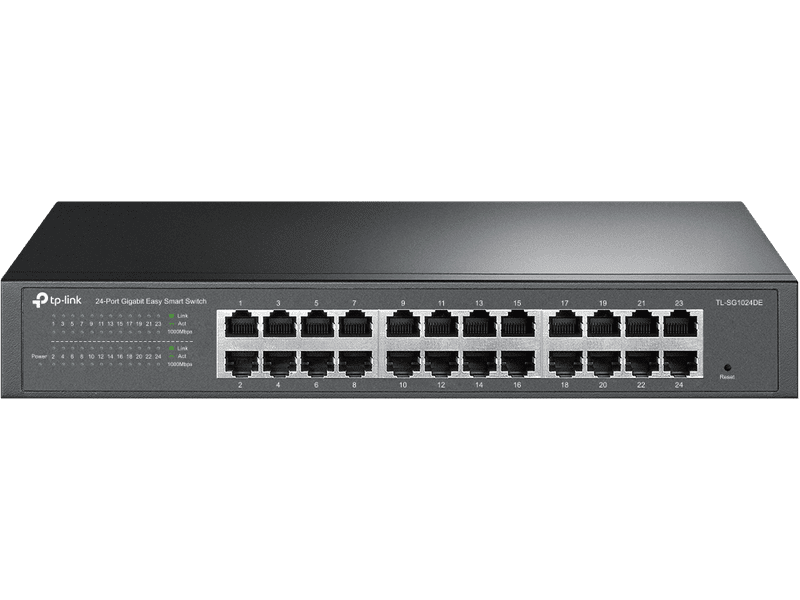

24-Port Gigabit Easy Smart Switch [TL-SG1024DE]
- 24 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Green technology reduces power consumption
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
- Plug and play
What This Product Does
The TL-SG1024DE 24-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1024DE offers Port-based/802.1p/DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1024DE can save power consumption, making it an eco-friendly solution for your business network.
Effective Management
TP-LINK’s Gigabit Easy Smart switch, TL-SG1024DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1024DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and Port/ 802.1p/ DSCP Priority Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1024DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1024DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG1024DE 24-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
Power Budget According to Cable Length
Easy to Use
TL-SG1024DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Specifications
Hardware Features | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interface | 24 10/100/1000Mbps RJ45 Ports |
AUTO Negotiation/AUTO MDI/MDIX | |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (max 100m) |
EIA/TIA-568 100Ω STP (max 100m) | |
100BASE-TX: UTP category 5, 5e cable (max 100m) | |
EIA/TIA-568 100Ω STP (max 100m) | |
1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m) | |
EIA/TIA-568 100Ω STP (max 100m) | |
Fan Quantity | Fanless |
Physical Security Lock | No |
Power Supply | 100-240VAC, 50/60Hz |
Dimensions (W x D x H) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 15.56W (220V/50Hz) |
Max Heat Dissipation | 50.06 BTU/h |
Performance | |
---|---|
Switching Capacity | 48Gbps |
Packet Forwarding Rate | 35.7Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mbit |
Jumbo Frame | 10KB |
Software Features | |
---|---|
Quality of Service | Support Port-based/802.1p/DSCP priority |
Support 4 priority queues | |
Rate Limit | |
Storm Control | |
L2 Features | IGMP Snooping V1/V2/V3 |
Static Link Aggregation | |
Port Mirroring | |
Cable Diagnostics | |
Loop Prevention | |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
MTU/Port/Tag VLAN | |
Transmission Method | Store-And-Forward |
Others | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SG1024DE |
Power Cord | |
Installation Guide | |
Rackmount Kit | |
Rubber Feet | |
System Requirements | Microsoft® Windows® for running Utility |
Environment | Operating Temperature: 0℃ |
Storage Temperature: -40℃ |
|
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
