Description

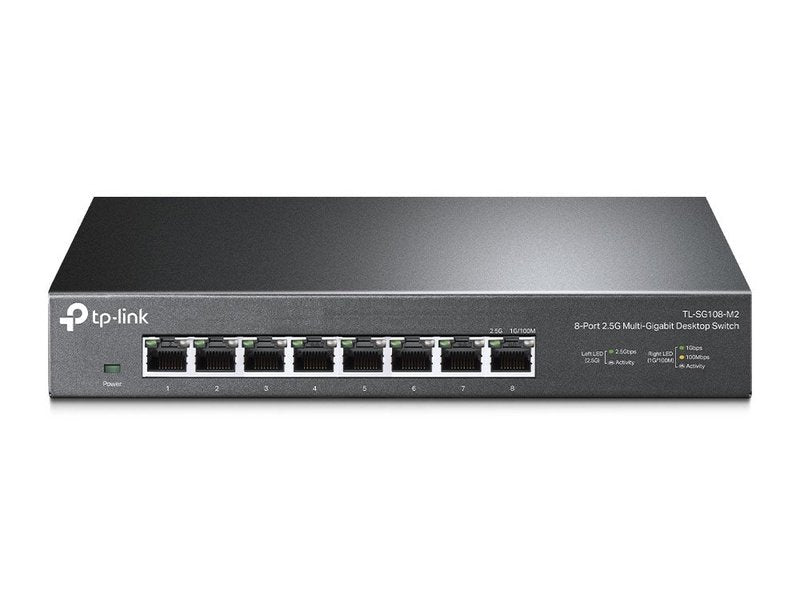

8-Port 2.5G Desktop Switch [TL-SG108-M2]
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

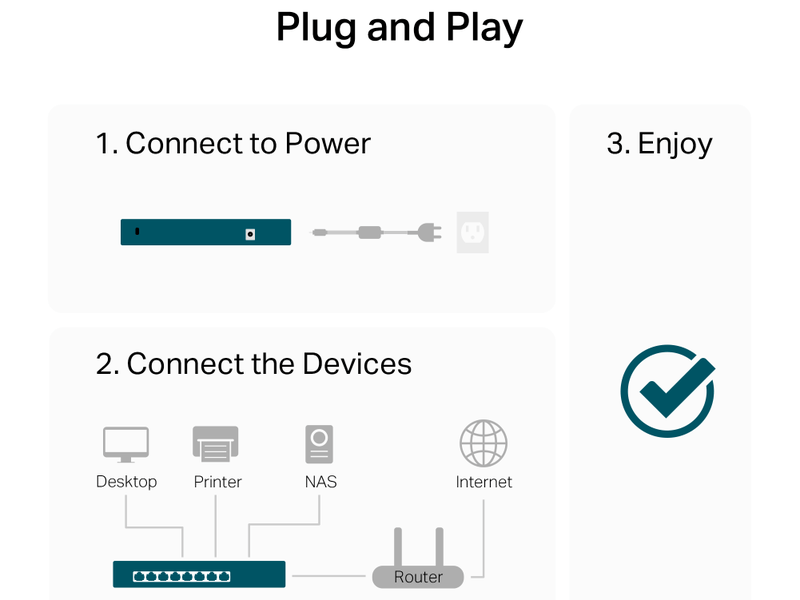

- Plug and Play. Allows for easy deployment without the need for a technician.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.

Specifications
HARDWARE FEATURES |
|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 1.5 A) |
| LED Indicator | • System Power: 1 |
| • Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port | |
| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max Power Consumption | 15.65 W |
| Max Heat Dissipation | 53.40 BTU/h |
PERFORMANCE |
|
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • 802.3X Flow Control |
| • 802.1p/DSCP QoS | |
| Transfer Method | Store and Forward |
OTHERS |
|
| Certification | CE, FCC ,RoHS |
| Package Contents | • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2 |
| • Power Adapter | |
| • Installation Guide | |
| • Rubber Feet | |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) |
| • Storage Temperature: -40–70 °C (-40–158 °F) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
