Description

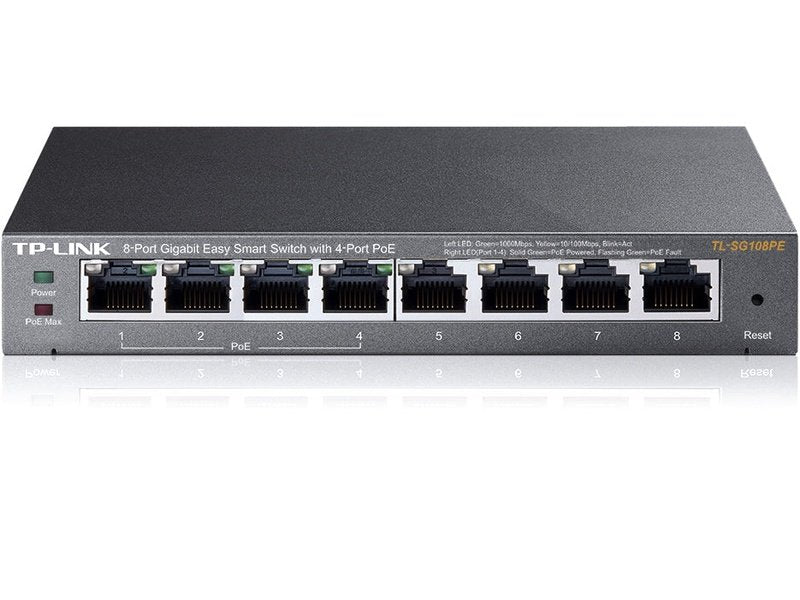

8-Port Gigabit Easy Smart Switch
with 4-Port PoE+ [TL-SG108PE]
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 64W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Professional 8-Port Gigabit Easy Smart Switch with 4-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

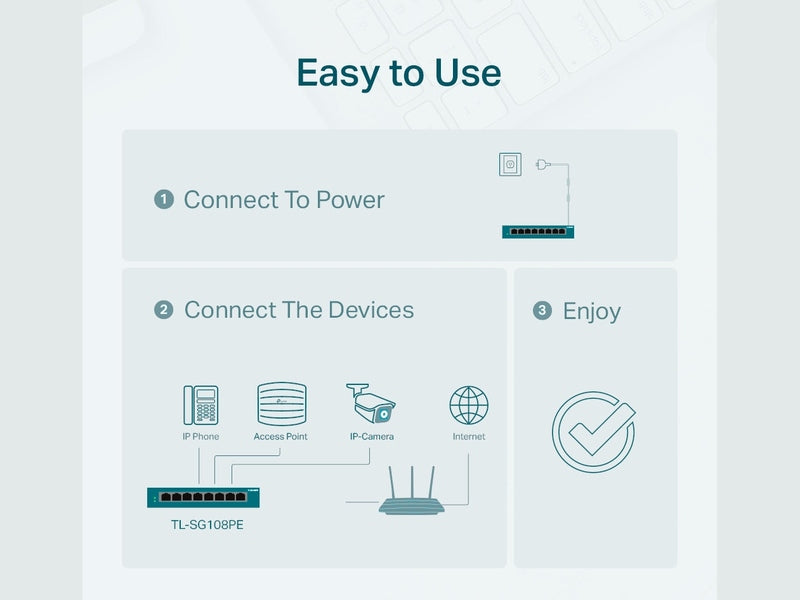

Multiple Application Scenarios
The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

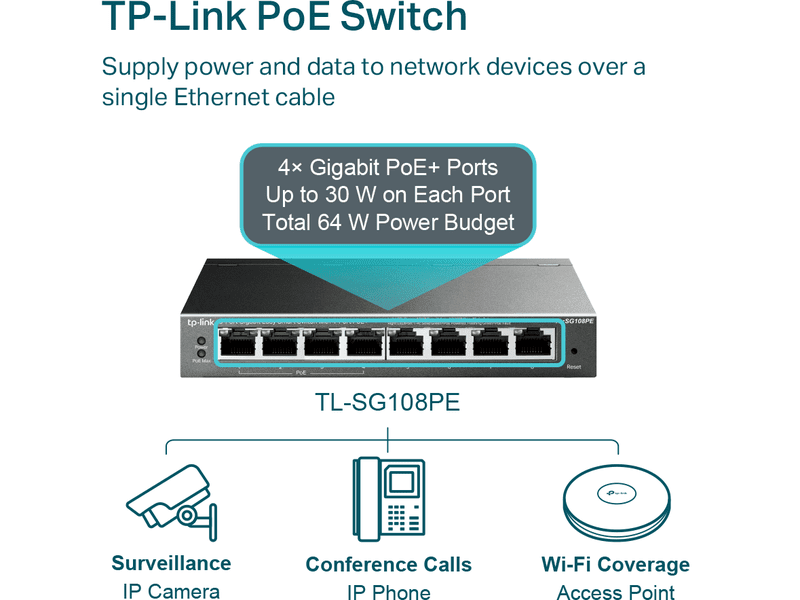

Dedicated 4 PoE+ Ports (64 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Making Management Easy
TL-SG108PE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Features Guarantee Stable Operation

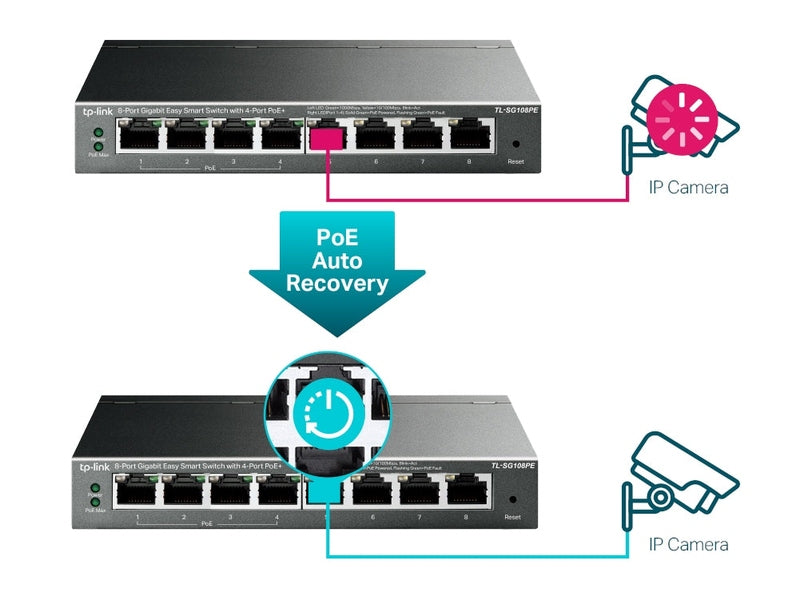

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 64 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG108PE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
Interface | Eight 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |

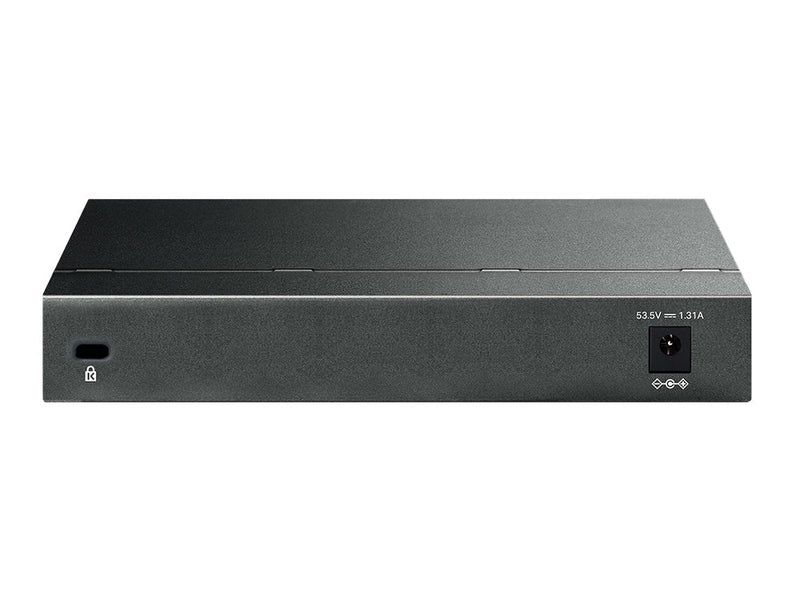

Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 64W |
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Max Power Consumption | 5.41 W (220V/50Hz with no PD connected) 74.27 W (220V/50Hz with 64 W PD connected) |
Max Heat Dissipation | 18.45 BTU/h (with no PD connected) 253.26 BTU/h (with 64 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.9 Mpps |
MAC Address Table | 4 K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management | Web-based GUI Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SG108PE Power Adapter Installation Guide Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
