Description

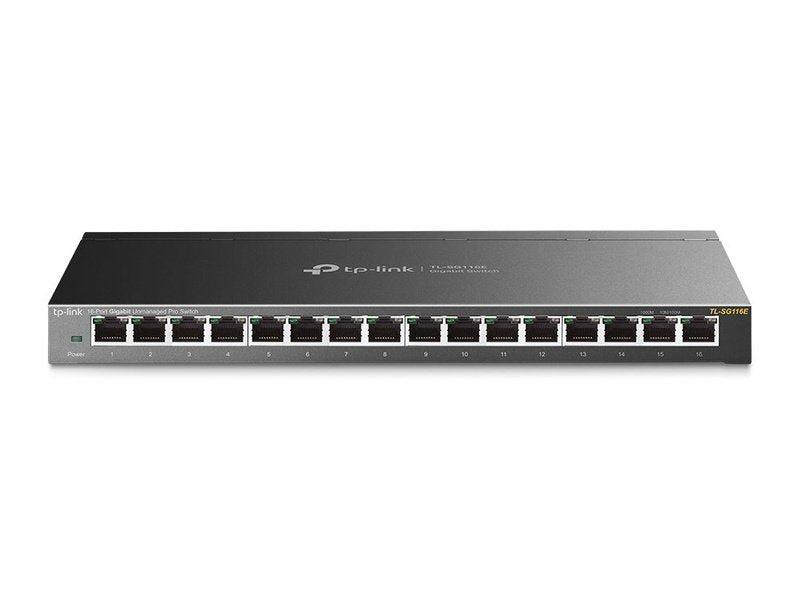

16-Port Gigabit Easy Smart Switch [TL-SG116E]
- 16 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Link your devices, Create Convenient Business
The TL-SG116 Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG116 can always help you deal with your business quickly and easily.

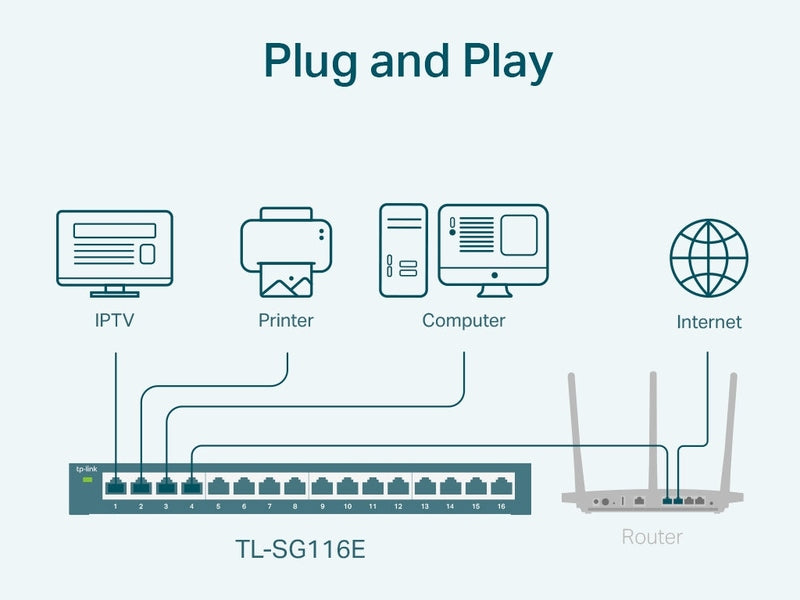

Plug and Play, Easy to Internet
A plug-and-play design makes for easy deployment without the need for a technician. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
More features, more choices
Administrators can designate the priority of the traffic based on QoS to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Pro Switches uses innovative energy-saving technologies. Power consumption automatically adjusts according to the link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Power Supply | External Power Adapter(Output: 12VDC/1.0A) |
Dimensions ( W x D x H ) | 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm) |
Max Power Consumption | 9.19W(220V/50Hz) |
Max Heat Dissipation | 31.36BTU/h |
PERFORMANCE | |
---|---|
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.81Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 9KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SG116E Power Cord Installation Guide Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
