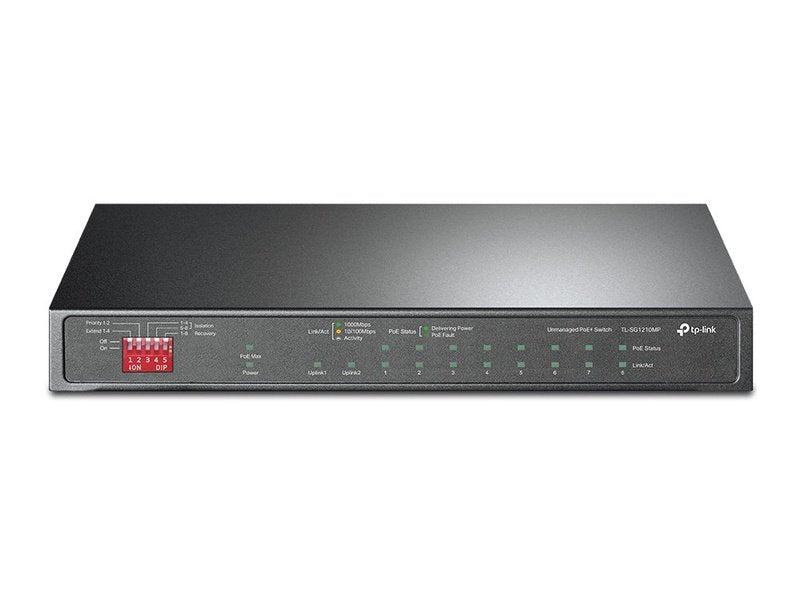

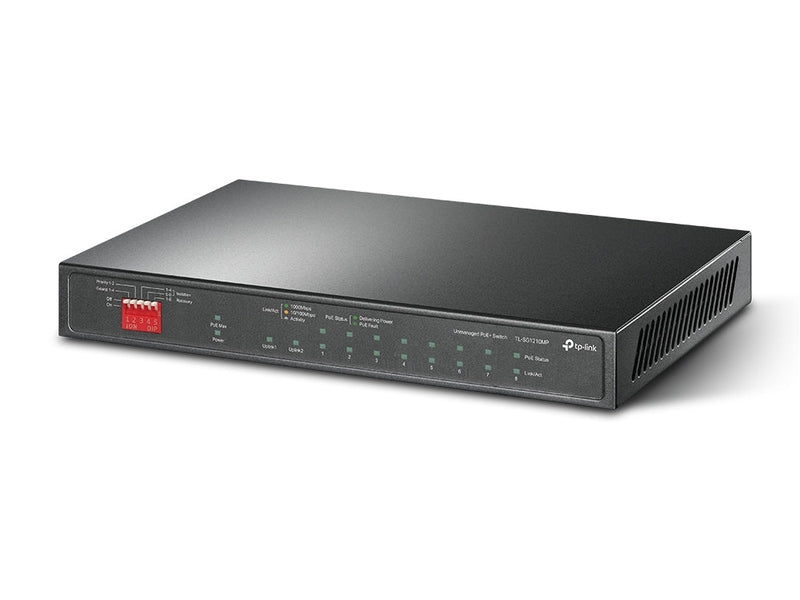

TP-Link TL-SG1210MP 8-Port PoE+ 123W Gigabit Desktop Switch with 1-Port RJ45 and 1 SFP Slots

TP-LinkSKU: TL-SG1210MP

TP-Link 10 Port Gigabit Desktop Switch with 8 Port PoE+

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$175.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

10-Port Gigabit Desktop Switch with 8-Port PoE+ [TL-SG1210MP]

  • 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
  • Up to 250 m data and power transmission range under Extend Mode**

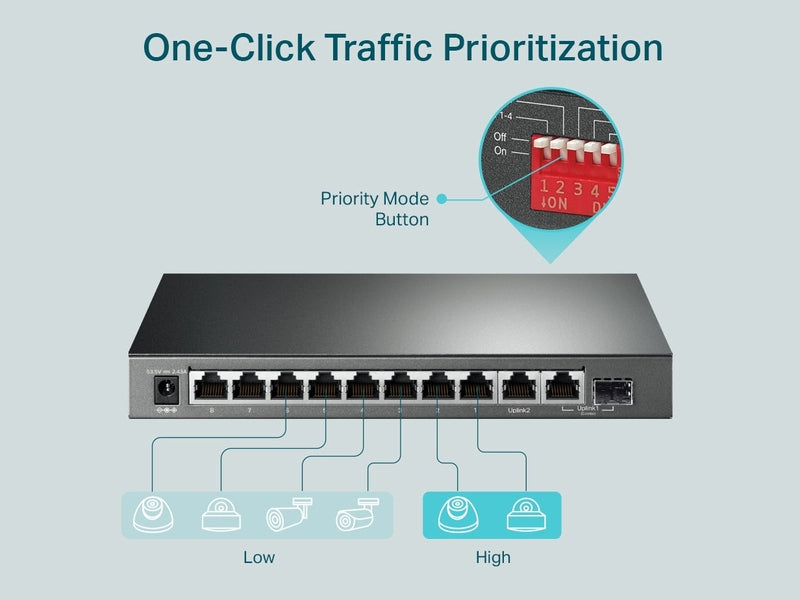

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

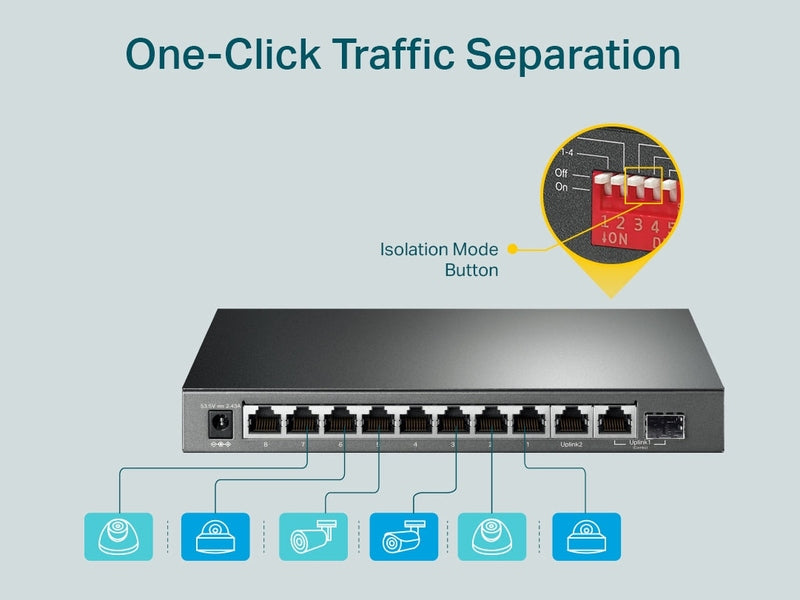

  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
  • Plug and play with no configuration required
  • Fanless design reduces power consumption and works silently in its location

Professional 10-Port Gigabit Unmanaged Switch
with 8-Port PoE+

Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 8 PoE+ Ports (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

Ideal for IP Surveillance
—Up to 250 m Transmissions

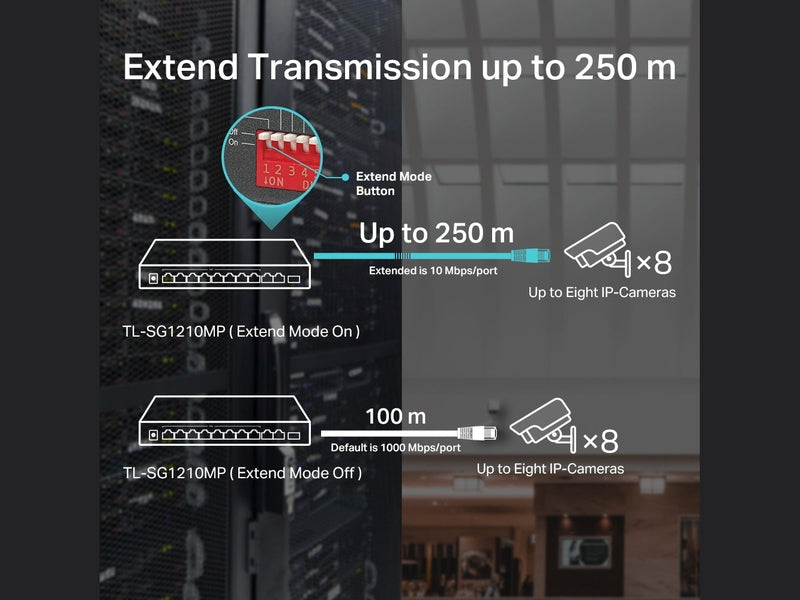

With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Keep Your Network Smooth and Safe with Port Prioritization and Separation

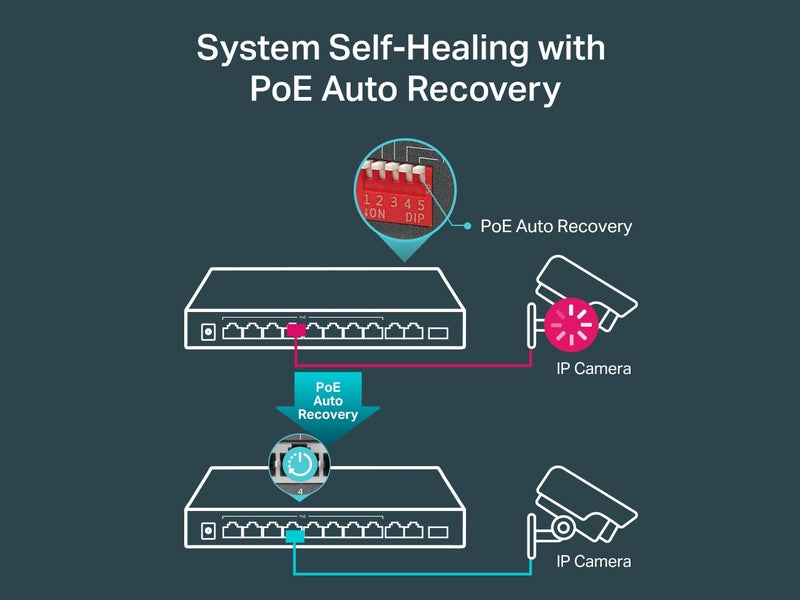

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Specifications

HARDWARE FEATURES

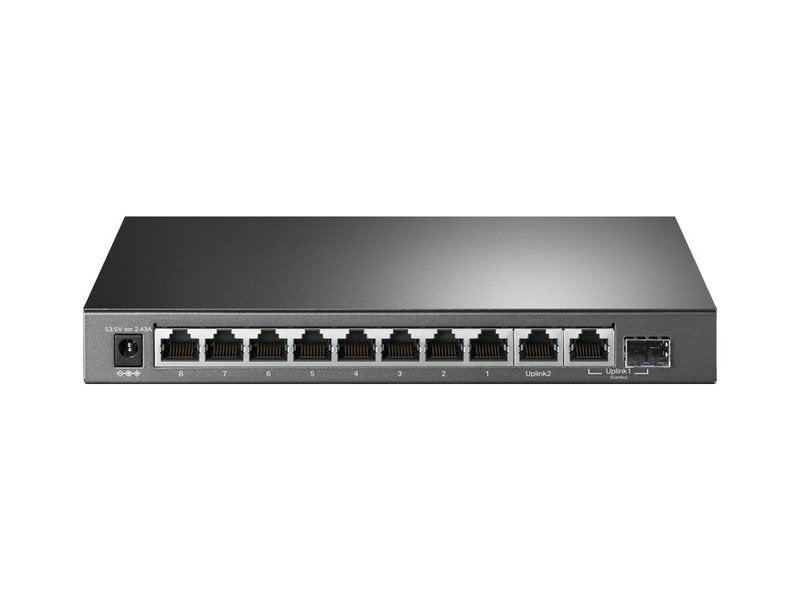

Interface • 9× 10/100/1000 Mbps RJ45 Ports
• 1× 1000 Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 123 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption • 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation • 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG1210MP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
