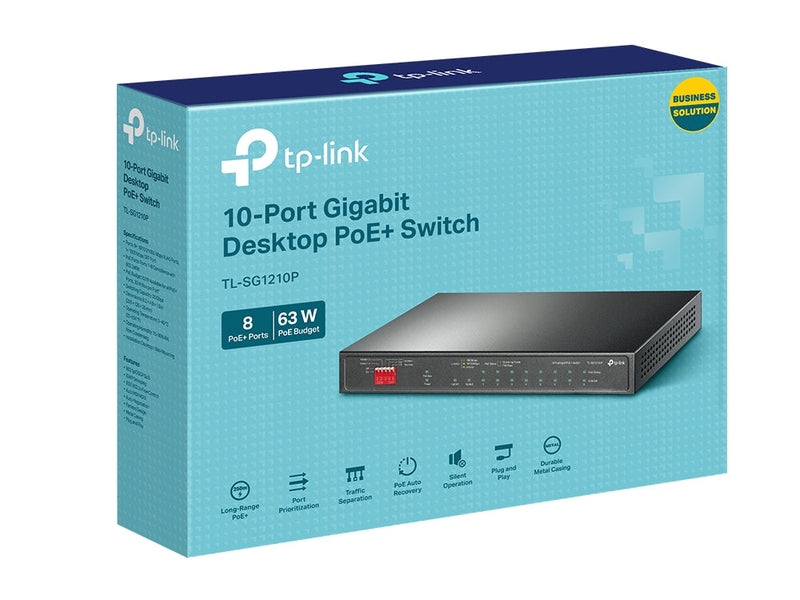

TP-Link TL-SG1210P 8-Port PoE+ 63W Gigabit Desktop Switch with 1-Port RJ45 and 1 SFP Slots

TP-LinkSKU: TL-SG1210P

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ - Interface: 8 PoE+ 10/100/1000Mbps RJ45 Ports

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$125.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

10-Port Gigabit Desktop Switch with 8-Port PoE+ [TL-SG1210P
]

  • 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
  • With 8 PoE+ ports, transfers data and power on one single cable
  • Working with IEEE 802.3af/at compliant PDs, expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
  • Easy to use, with no configuration and installation needed

Professional 10-Port Gigabit Unmanaged Switch
with 8-Port PoE+

Plug and Play, with PoE Transmission for Surveillance up to 250 m


Dedicated 8 PoE+ Ports (63 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 63 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.

Keep Your Network Smooth and Safe with Port Prioritization and Separation

Port Prioritization

Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.

Enhanced with Port Isolation

Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 63 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SG1210P are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210P delivers switching performance you can depend on.



Specifications

HARDWARE FEATURES

Interface

8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Supply

External Power Adapter(Output: 53.5VDC / 1.31A)

Backup Bandwidth

20 Gbps

PoE+ Ports(RJ45)

Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W

Mac Address Table

4K

Dimensions ( W x D x H )

209 × 126 × 26 mm

Max Power Consumption

7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation

24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)



SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transmission Method

Store-And-Forward



OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG1210P, Power Adapter, Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
