Description
Overview

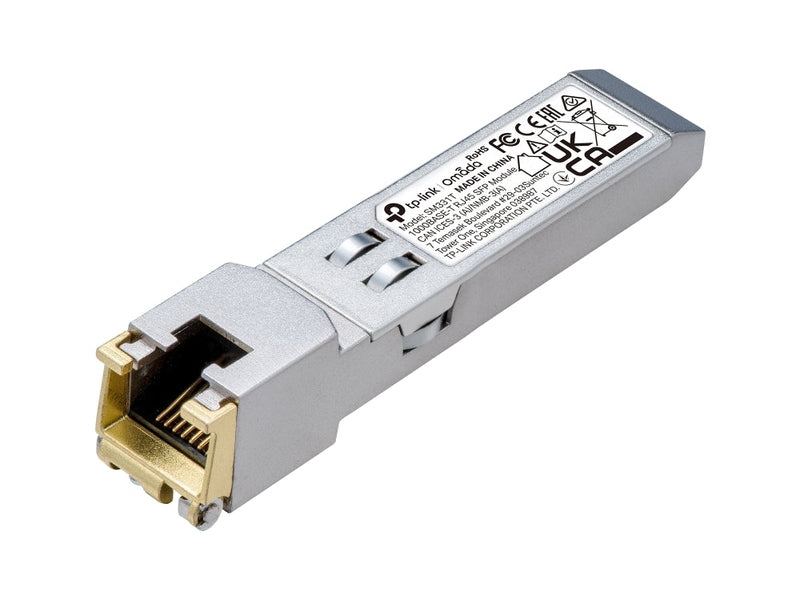

Omada 1000BASE-T RJ45 SFP Module
- Support 10/100/1000Base-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
Omada 1000BASE-T RJ45 SFP Module
- Support 10/100/1000Base-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
SM331T Copper SFP Transceiver Specifications | |
---|---|
Transceiver | |
Standards and Protocols | IEEE 802.3-2002 |
Power Supply | 3.3 V |
Max. Cable Length | 100 m (Cat 5e or above) |
Data Rate | 1.25 Gbps |
Port Type | 1× 1000 Mbps RJ45 Port |
Safety & Emission | FCC, CE |
Environment | |
Operating Temperature | 0–70°C (32–158°F) |
Storage Temperature | −40–85°C (−40–185°F) |
Hardware Features | |
Hot Swappable | Yes |
Media Converter & Module | |
Dimensions (W × D × H) | 67.4 × 13.75 × 13.8 mm (2.7 × 0.5 × 0.5 in) |
Package Content | |
Included Items | • SM331T Transceiver • Installation Guide |
