Description
Overview

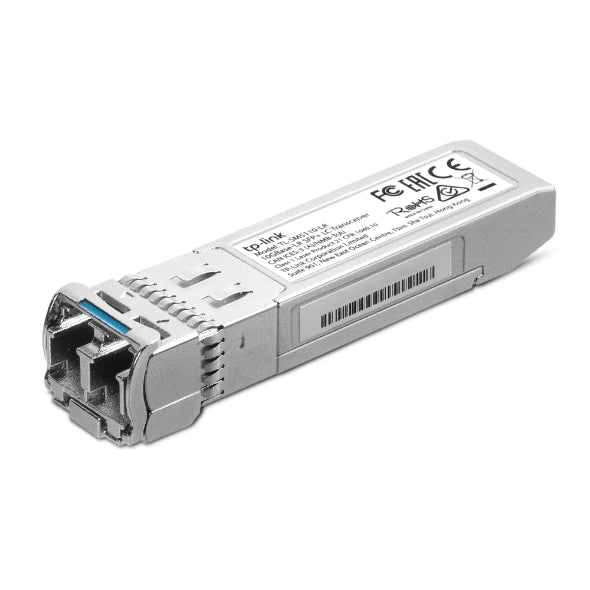

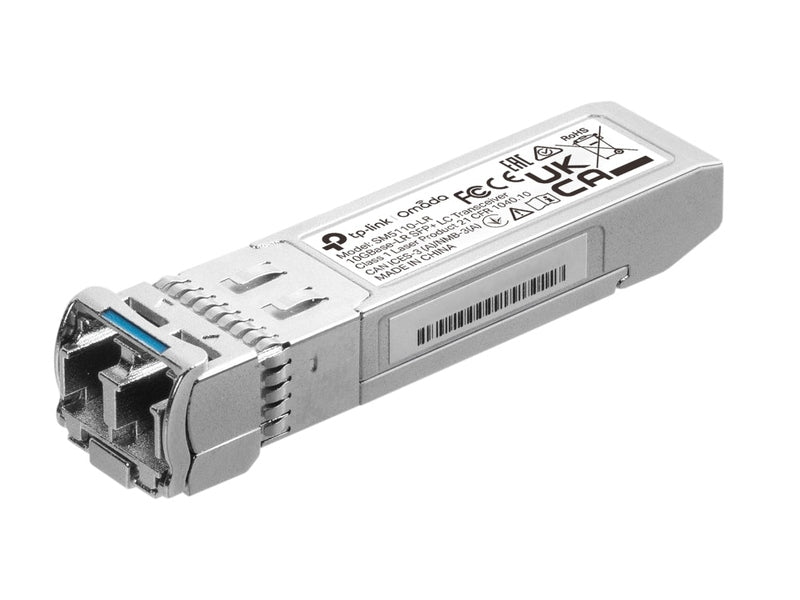

Omada 10GBase-LR SFP+ LC Transceiver
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more.
What This Product Does
The SM5110-LR (TL-SM5110-LR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively
Omada 10GBase-LR SFP+ LC Transceiver
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more.
What This Product Does
The SM5110-LR (TL-SM5110-LR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively
SM5110-LR 10G SFP+ Transceiver Specifications | |
---|---|
Transceiver | |
Standards and Protocols | IEEE 802.3ae, TCP/IP |
Wave Length | 1310 nm |
Power Supply | 3.3 V |
Fiber Type | 9/125 µm Single-Mode |
Max. Cable Length | 10 km |
Data Rate | 10 Gbps |
Port Type | LC Duplex |
Safety & Emission | FCC, CE |
Environment | |
Operating Temperature | 0–70°C (32–158°F) |
Storage Temperature | −40–85°C (−40–185°F) |
Operating Humidity | 10% to 90% RH (Non-condensing) |
Storage Humidity | 5% to 90% RH (Non-condensing) |
Hardware Features | |
DDM | Yes |
SFP-MSA | Yes |
Hot Swappable | Yes |
Media Converter & Module | |
Dimensions (W × D × H) | 56.7 × 13.9 × 10.35 mm (2.2 × 0.5 × 0.4 in) |
Package Content | |
Included Items | • SM5110-LR Transceiver • Installation Guide |
