Description
Overview

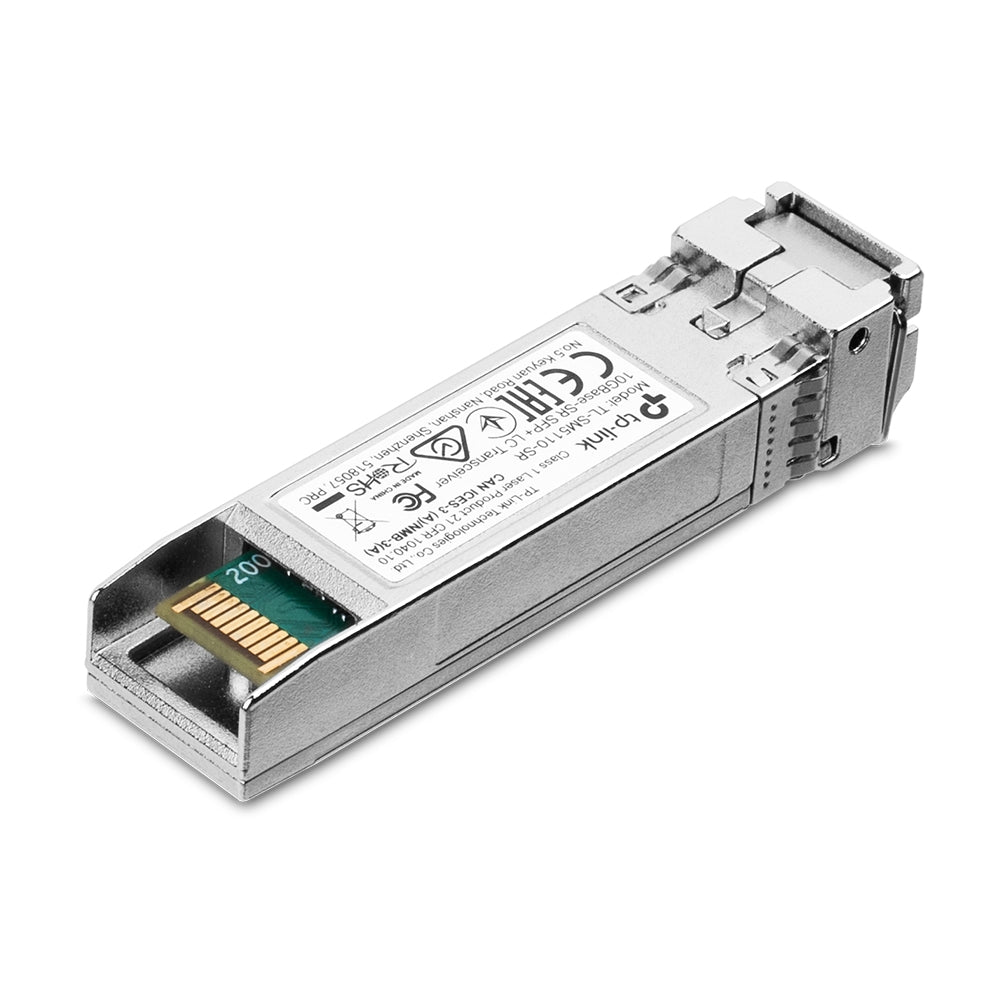

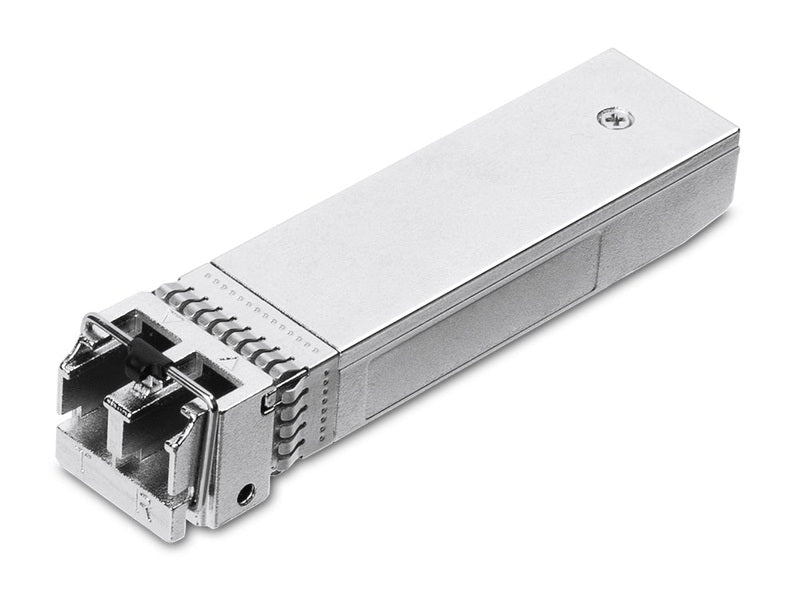

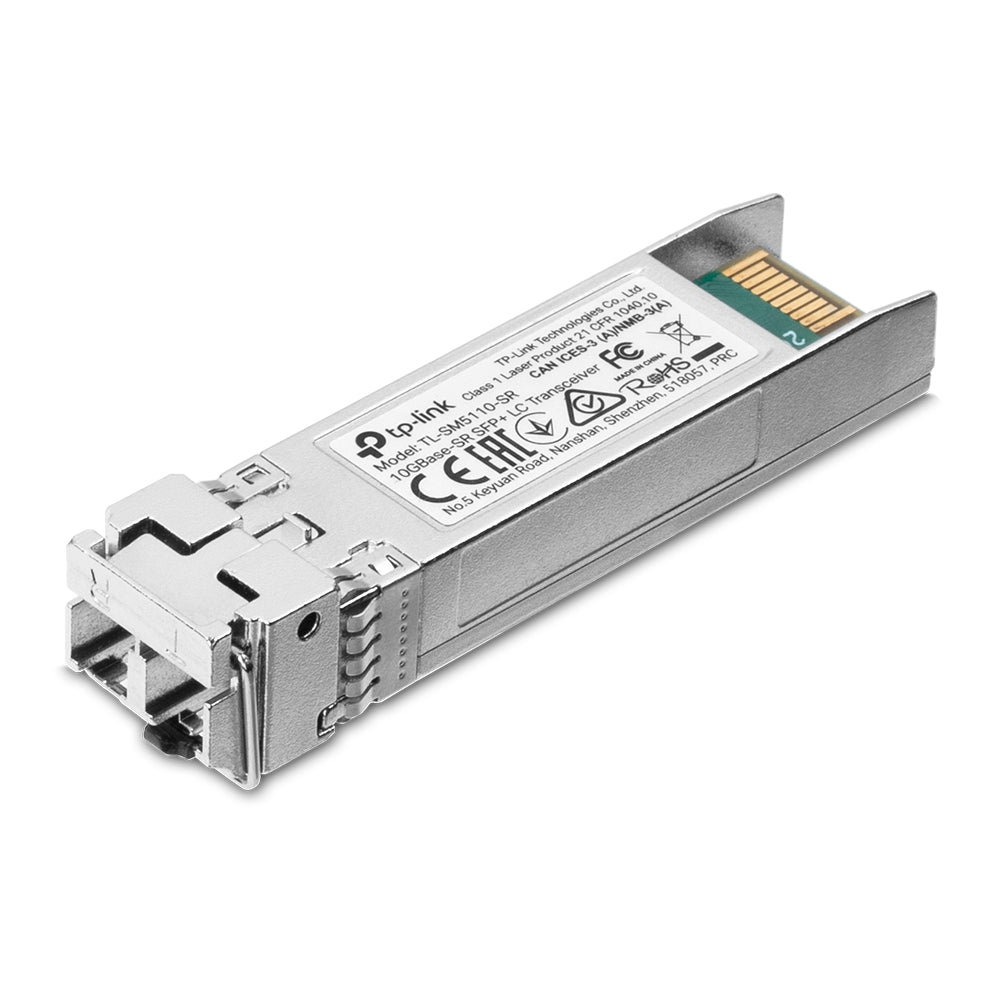

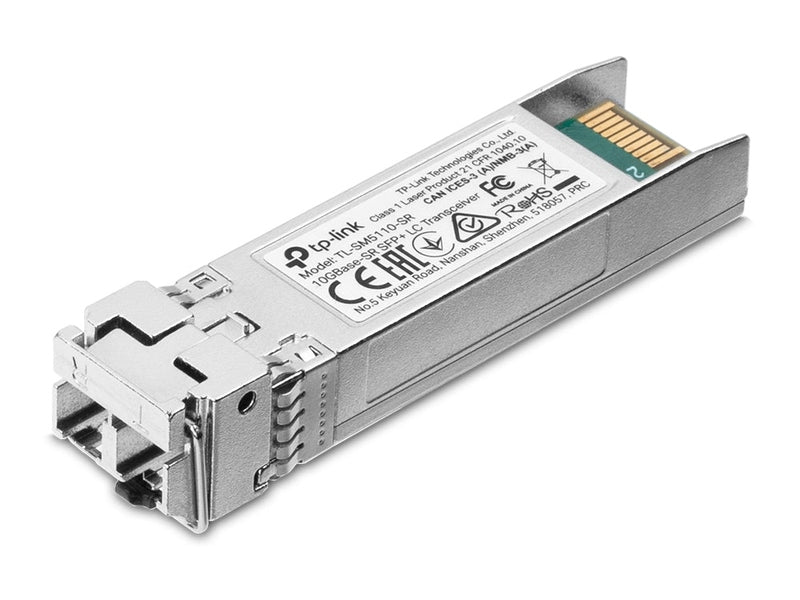

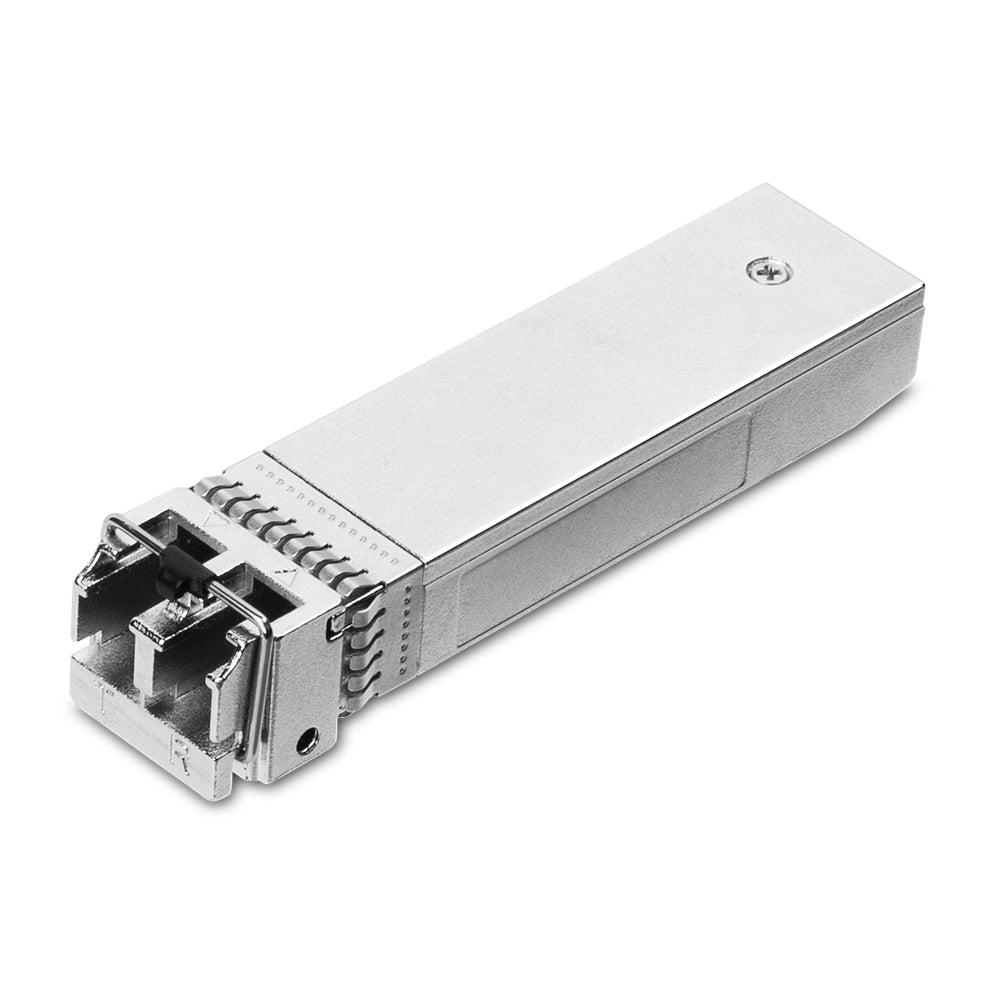

10GBase-SR SFP+ LC Transceiver
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
10GBase-SR SFP+ LC Transceiver
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
| TL-SM5110-SR 10G SFP+ Transceiver Specifications | |
|---|---|
| Transceiver | |
| Standards and Protocols | IEEE 802.3ae, TCP/IP, SFF-8472 |
| Wave Length | 850 nm |
| Power Supply | 3.3 V |
| Fiber Type | 50/125 µm or 62.5/125 µm Multi-mode |
| Max. Cable Length | 300 m (OM3) |
| Data Rate | 10 Gbps |
| Port Type | LC/UPC |
| Safety & Emission | FCC, CE |
| Environment | |
| Operating Temperature | 0–70°C (32–158°F) |
| Storage Temperature | −40–80°C (−40–176°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Hardware Features | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Media Converter & Module | |
| Dimensions (W × D × H) | 61.3 × 14.5 × 12.2 mm (2.4 × 0.6 × 0.5 in) |
| Package Content | |
| Included Items | • TL-SM5110-SR 10G SFP+ Module • Installation Guide |
