Overview

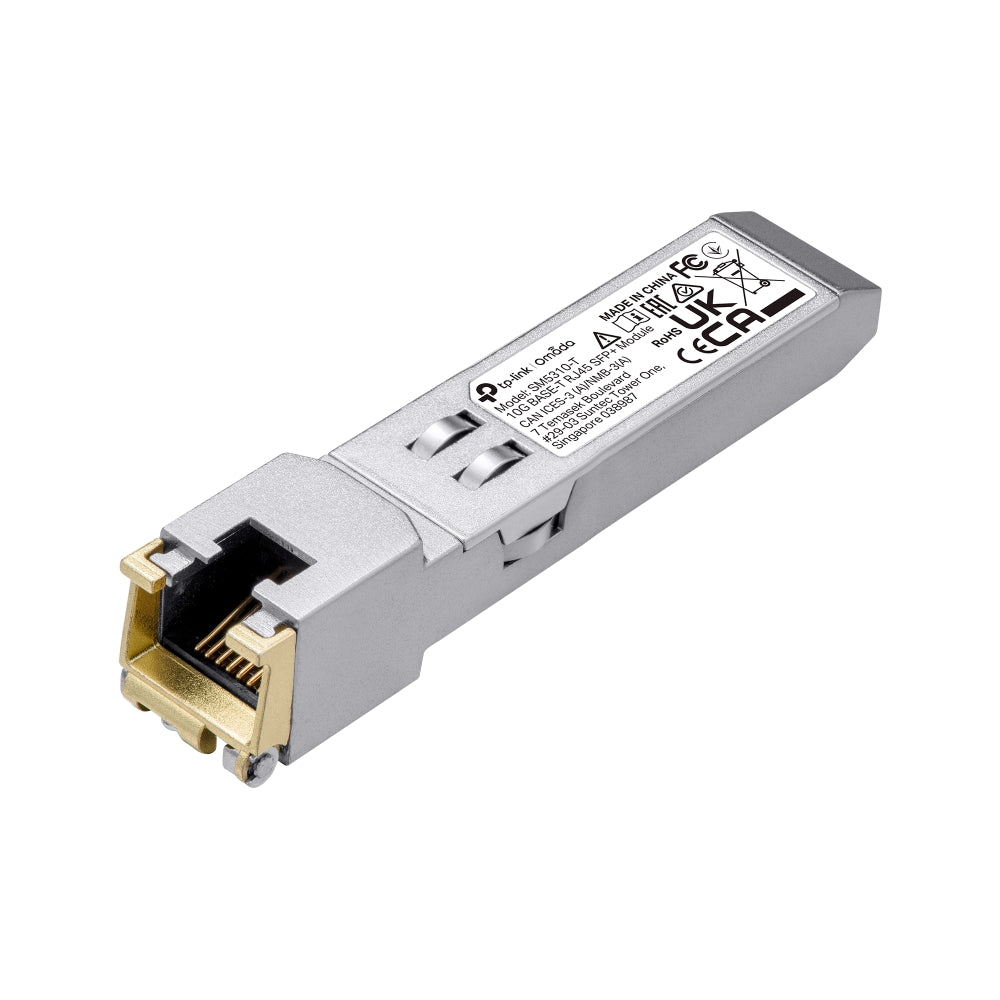

Omada 10G BASE-T RJ45 SFP+ Module
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Fully Metallic Enclosure for Low EMI
Omada 10G BASE-T RJ45 SFP+ Module
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Fully Metallic Enclosure for Low EMI
| SM5310-T 10GBASE-T RJ45 SFP+ Transceiver Specifications | |
|---|---|
| Transceiver | |
| Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an, 802.3x SFF 8432, SFF-8472 |
| Power Supply | 3.3 V |
| Max. Cable Length | • 1000BASE-T / 2.5GBASE-T / 5GBASE-T: UTP Cat 5e or above (max. 100 m) • 10GBASE-T: UTP Cat 6a or above (max. 30 m) |
| Data Rate | 10.3 Gbps |
| Port Type | 1× 10G RJ45 Port |
| Safety & Emission | FCC, CE, RoHS |
| Environment | |
| Operating Temperature | 0–70°C (32–158°F) |
| Storage Temperature | −40–85°C (−40–185°F) |
| Hardware Features | |
| Hot Swappable | Yes |
| Media Converter & Module | |
| Dimensions (W × D × H) | 67.4 × 13.75 × 13.8 mm (2.7 × 0.5 × 0.5 in) |
| Package Content | |
| Included Items | • SM5310-T 10GBASE-T RJ45 SFP+ Module • Installation Guide |
