Description

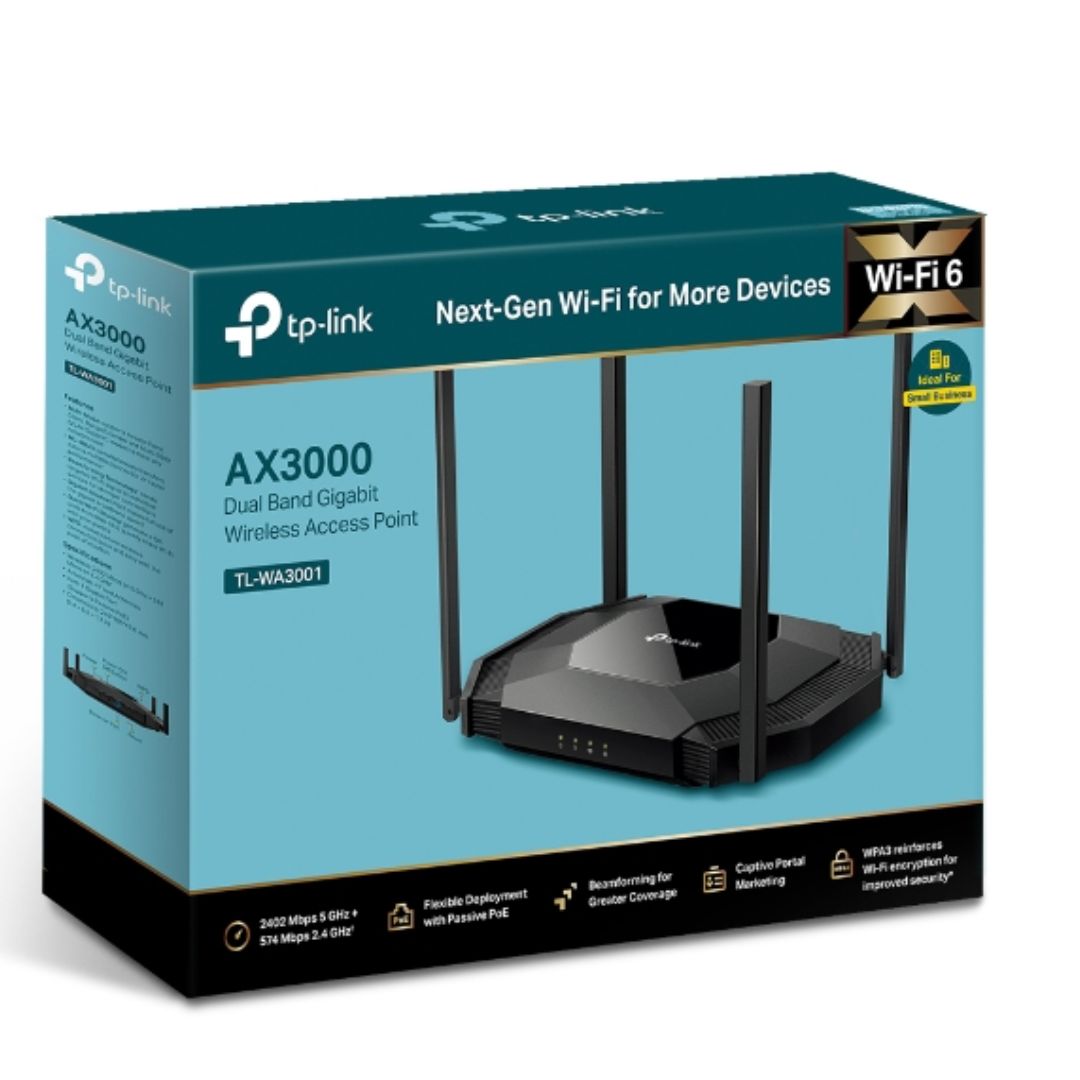

TP-Link TL-WA3001 AX3000 Dual-Band Wi-Fi 6 Access Point (TL-WA3001)
Model TL-WA3001 is a TP-Link wireless access point. An access point adds wireless connectivity to an existing network and is often used to extend coverage or provide managed Wi-Fi in homes, offices and commercial spaces. Form factor and radio class shape the deployment. Key model detail: wireless generation — Wi-Fi 6.
Key Features
- Gigabit Wi-Fi 6 Speed for 4K Streaming – 3000 Mbps Dual Band Wi-Fi for faster browsing, streaming and downloading, all at the same time.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal – Offers a designed portal page for heightened security and marketing.
Technical Specifications
|
HARDWARE FEATURES |
|
|
Interface |
1 Gigabit Port (Supports Passive PoE) |
|
Button |
Power On/Off Button, WPS Button, Reset Button |
|
External Power Supply |
48V/0.5A |
|
Dimensions ( W x D x H ) |
9.4×6.5×1.7 in (240×165×43.6mm) |
|
Antenna |
4 Fixed High Performance Antennas |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz |
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
|
Reception Sensitivity |
5 GHz: 11ax HE20 MCS0:-97dBm, 11ac VHT20 MCS9:-73dBm, 11ax HE20 MCS11:-67dBm 11ax HE40 MCS0:-94dBm, 11ac VHT40 MCS9:-70dBm, 11ax HE40 MCS11:-63dBm 11ax HE80 MCS0:-91dBm, 11ac VHT80 MCS9:-66dBm, 11ax HE80 MCS11:-60dBm 11ac VHT160 MCS9:-63dBm, 11ax HE160 MCS11:-58dBm
2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS8:-73dBm, 11ax HE20 MCS11:-65dBm 11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS9:-69dBm, 11ax HE40 MCS11:-62dBm |
|
Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control |
|
Wireless Security |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions |
|
Transmission Power |
FCC: <23dBm(2.4GHz), <22dBm(5GHz) |
|
SOFTWARE FEATURES |
|
|
Quality of Service |
WMM |
|
Operating Modes |
Access Point, Range Extender, Client, Multi-SSID |
|
System Tools |
SNMP, Ping Watchdog |
|
DHCP |
Server, DHCP Client List |
|
Protocols |
IPv4, IPv6 |
|
OTHERS |
|
|
Certification |
FCC, RoHS |
|
Package Content |
Wireless Access Point TL-WA3001 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector |
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
|
Environment |
Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Operating Humidity: 10%~90% non-condensing |
TP-Link TL-WA3001 AX3000 Dual-Band Wi-Fi 6 Access Point (TL-WA3001)
$168.00
