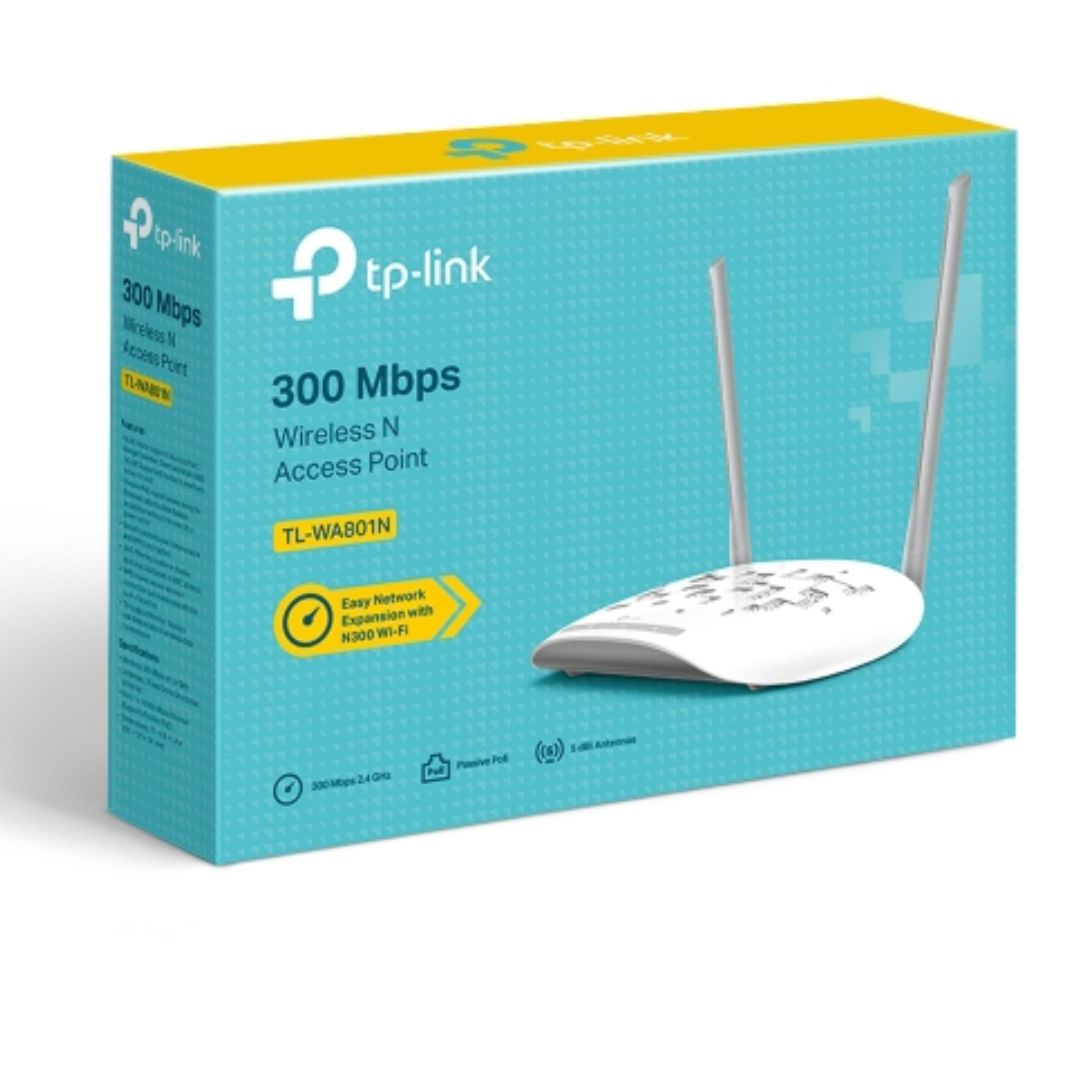

TP-Link TL-WA801N N300 Wi-Fi Access Point TL-WA801N
Roll over image to zoom in Click on image to zoom

TP-Link TL-WA801N N300 Wi-Fi Access Point (TL-WA801N)

TP-LinkSKU: TL-WA801N

  • 2.4 GHz Wi-Fi 4 access point rated up to 300 Mbps
  • Access point, client, range extender and multi-SSID operating modes
  • Two fixed external antennas and 10/100 Mbps wired Ethernet
  • Passive PoE injector enables flexible placement up to 30 m from the supply
  • WPA/WPA2 wireless security and convenient WPS pairing

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup currently unavailable at PC LAN Store

Price:
$52.00
1

Description

TP-Link TL-WA801N N300 Wi-Fi Access Point (TL-WA801N)

Model TL-WA801N is a TP-Link wireless access point. An access point adds wireless connectivity to an existing network and is often used to extend coverage or provide managed Wi-Fi in homes, offices and commercial spaces. Form factor and radio class shape the deployment. Key model detail: wireless class — N300.

Key Features

  • Wireless class: N300
  • Power & charging: Passive PoE Supported
  • Key feature: AP/Client/Bridge/Repeater
  • Key feature: Multi-SSID
  • Key feature: Multiple Operation Modes
  • Power & charging: Included Passive POE Injector
  • Power & charging: PASSIVE 10/100 POE (1)

Deployment & Compatibility

Plan network uplink, mounting location and power method before installation. If this is an Omada model, verify its controller requirements and management compatibility for the specific deployment. This listing is for the TL-WA801N model; check manufacturer hardware revisions and compatibility requirements where applicable.

Technical Specifications

HARDWARE FEATURES

Interface

1× 10/100 M Ethernet Port(RJ45)

Support Passive PoE

Button

Power On/Off Button, WPS Button, Reset Button

External Power Supply

9VDC / 0.6A

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )

7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)

Antenna Type

2 Fixed Omni-Directional Antennas

WIRELESS FEATURES

Frequency

2.4 GHz

Signal Rate

300 Mbps at 2.4 GHz

Reception Sensitivity

11g 6Mbps: -90dBm

11g 54Mbps: -77dBm

11n HT20 MC7: -73dBm

11n HT40 MC7: -70dBm

Transmit Power

CE: <15dBm; FCC: <20dBm

Wireless Modes

AP Mode

Multi-SSID Mode

Client Mode

Range Extender Mode

Wireless Functions

Enable/Disable Wireless Radio, WMM, Short GI, AP

Isolation, Wireless Statistics, Throughput Monitor

Wireless Security

WEP, WPA/WPA2, WPA/WPA2-PSK encryptions

Quality of Service

WMM

Management

SNMP

Advanced Functions

Up to 30 meters Passive PoE is supported

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Wireless Access Point TL-WA801N

Power Adapter

Passive PoE Power Injector

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an Internet Service Provider (for Internet access)

Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)

Storage Temperature: -40°C~70°C (-40°F ~158°F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH
