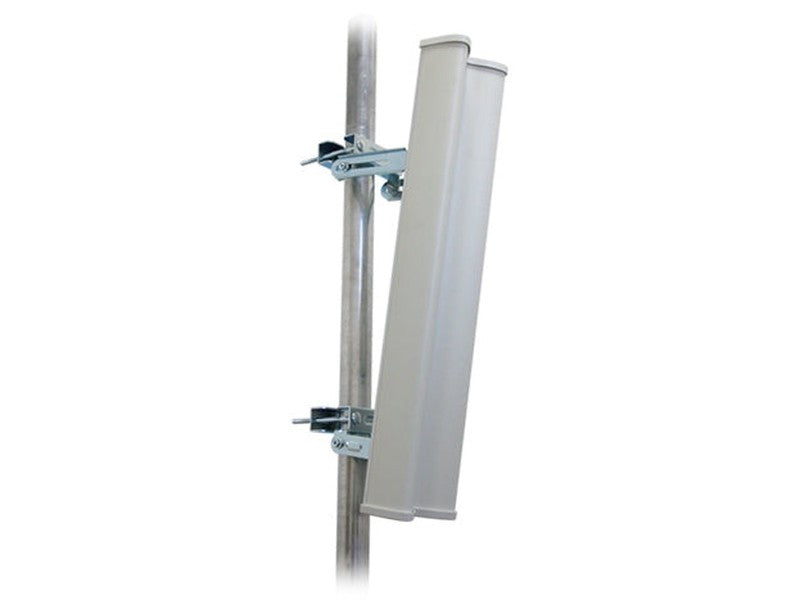

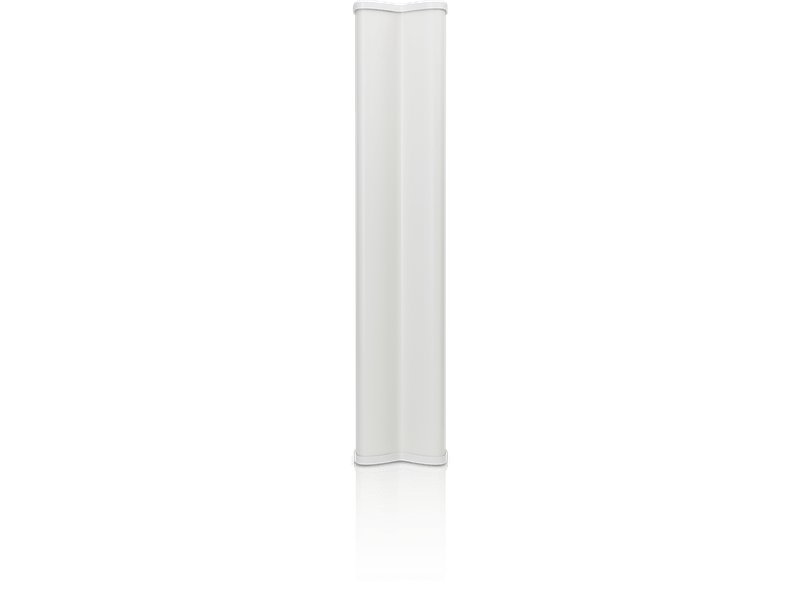

airMAX 2.4 GHz, 15 dBi, 120º Sector
AM-2G15-120
2.4 GHz, 120º, 15 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
airMAX 2.4 GHz, 15 dBi, 120º Sector
AM-2G15-120
2.4 GHz, 120º, 15 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
| AM-2G15-120 Specifications | |
|---|---|
| Product Type | 2.4 GHz Sector Antenna |
| Application | PtMP deployments with RocketM2 radios |
| MIMO Support | 2×2 Dual-Polarity |
| Compatibility | RocketM2 and other 2.4 GHz airMAX radios |
| RF Characteristics | |
| Frequency Range | 2.3 – 2.7 GHz |
| Antenna Gain | 15–16 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Elevation Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | ≥ 28 dB |
| Max VSWR | 1.5:1 |
| Mechanical | |
| Dimensions | 700 × 145 × 93 mm (27.6 × 5.7 × 3.7") |
| Weight | 4 kg (8.8 lb) |
| Mounting | Universal pole mount, RocketM bracket, weatherproof RF jumpers included |
| Environmental | |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N @ 160 km/h (24 lbf @ 100 mph) |
| Compliance | |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | ✓ |
