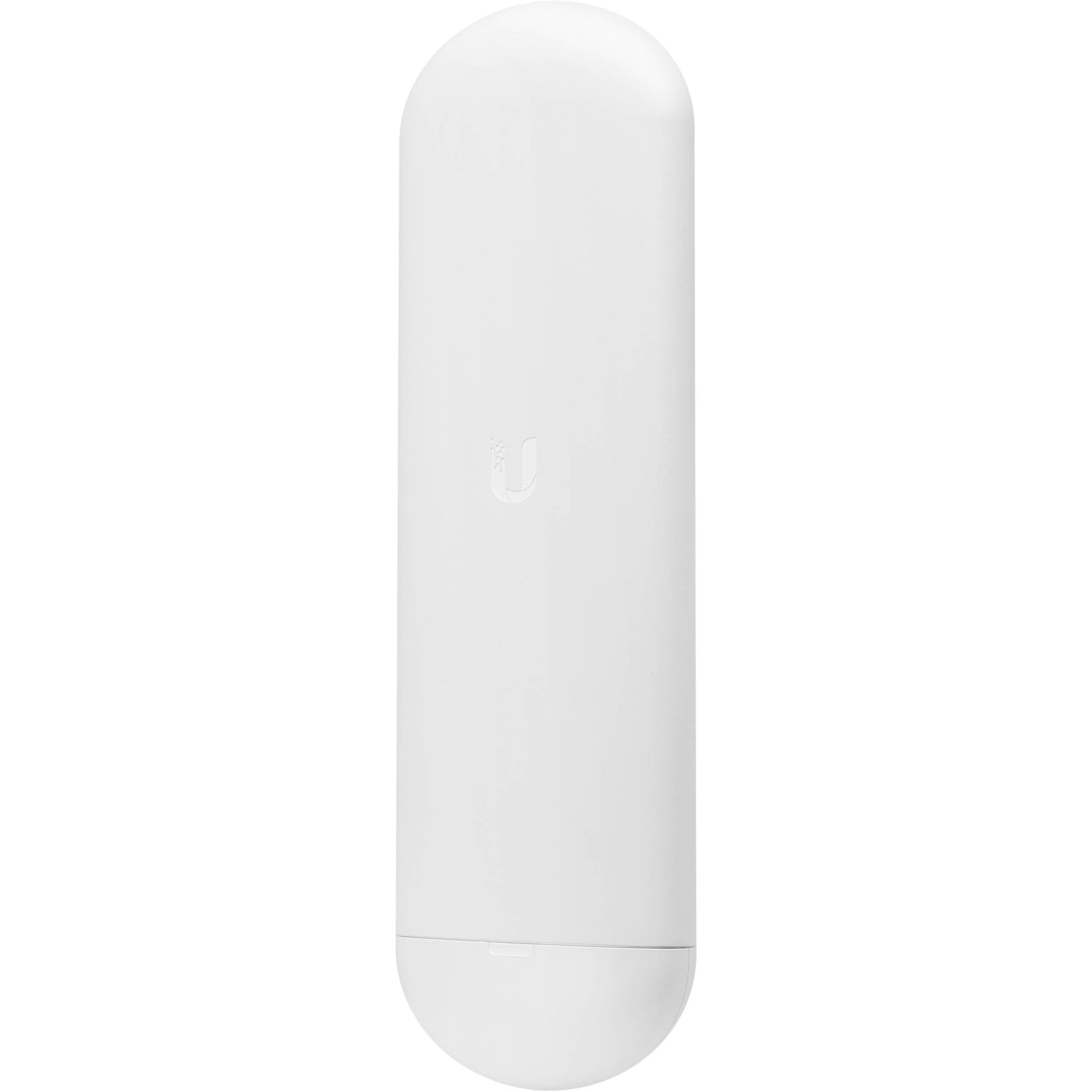

airMAX NanoStation 5AC
NS-5AC
UISP-supported WiFi radio designed for point-to-point and customer premises applications.
airMAX NanoStation 5AC
NS-5AC
UISP-supported WiFi radio designed for point-to-point and customer premises applications.
| NS-5AC Specifications | |
|---|---|
| Product Type | airMAX AC CPE |
| Application | Point-to-point and customer premises deployments |
| Antenna Gain | 16 dBi |
| Beamwidth | 45° (H/V/Elevation) |
| Polarization | Dual linear |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Wireless | |
| Operating Frequency | Worldwide: 5150–5875 MHz USA: U-NII-1 to U-NII-3 bands |
| Management Radio | Worldwide: 2412–2472 MHz US/CA: 2412–2462 MHz |
| Cross-Polarization Isolation | ≥ 20 dB |
| Max VSWR | 1.6:1 |
| Interfaces | |

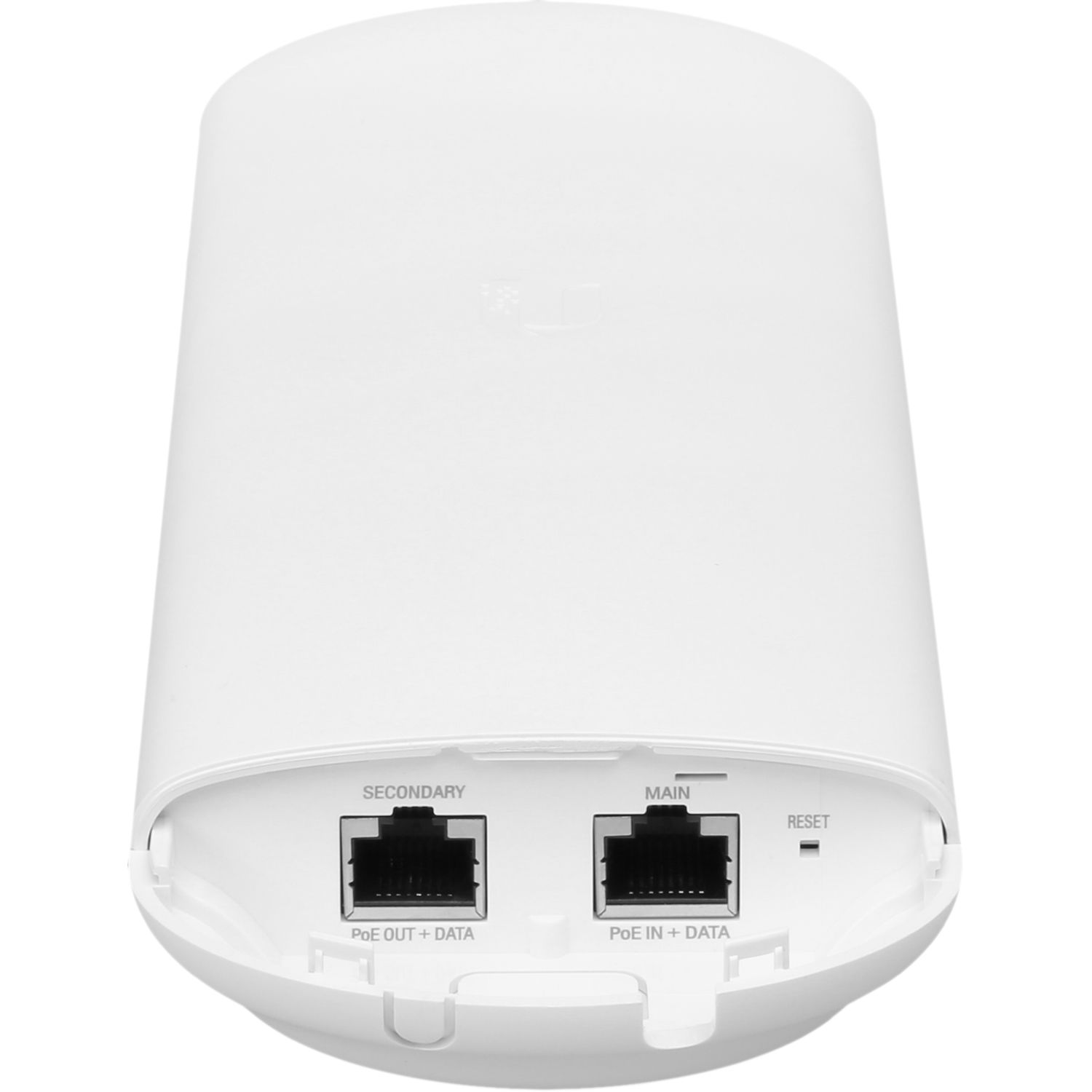

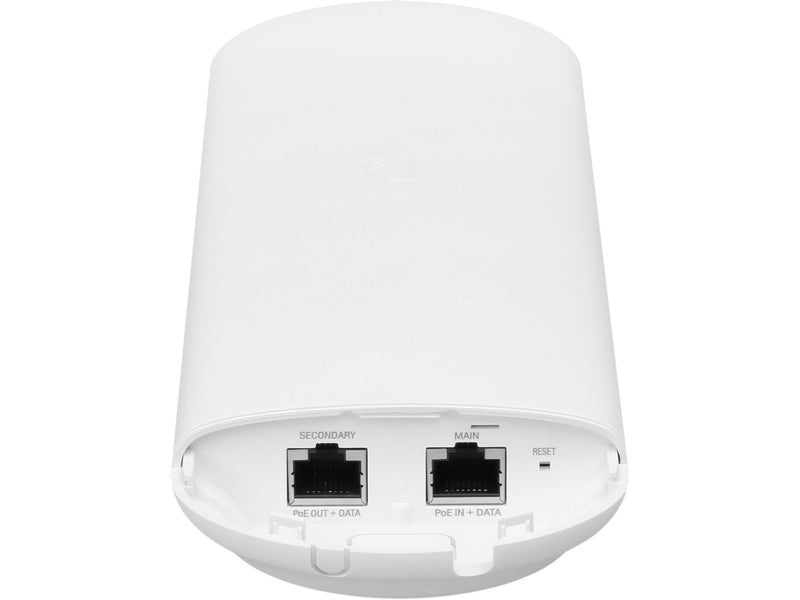

| Networking | (2) Gigabit RJ45 Ethernet ports |
| PoE Output | Secondary port supports software-enabled 24V PoE passthrough |
| Power | |
| Power Method | PoE Alternative A (Pins 1,2+; 3,6−) Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported Voltage Range | 22–27V DC / 44–54V DC |
| Max Power Consumption | 9W |
| Mechanical | |
| Dimensions | Without mount: 257 × 84 × 41 mm (10.1 × 3.3 × 1.6") With mount: 257 × 84 × 30 mm (10.1 × 3.3 × 1.2") |
| Weight | 233 g (8.2 oz) |
| Enclosure Material | UV-resistant plastic |

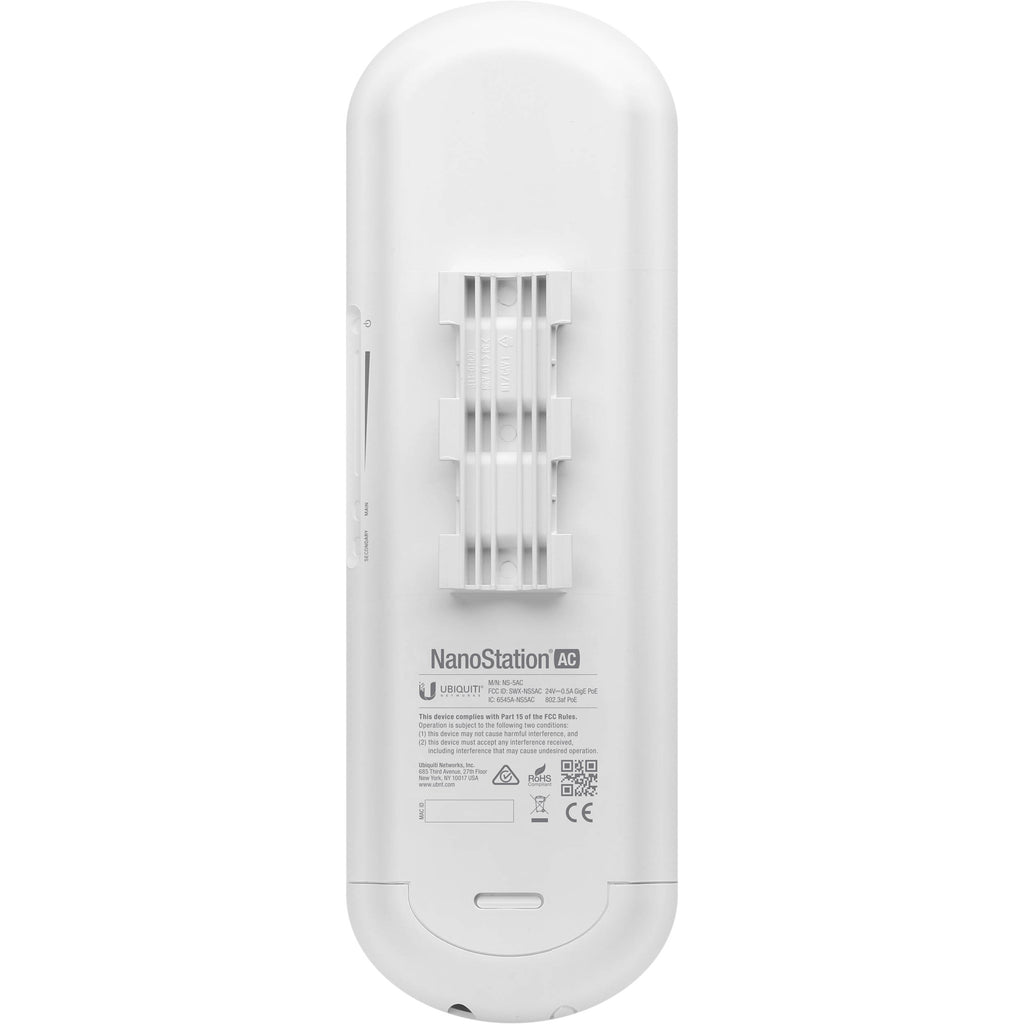

| Mounting | Pole and wall mount kits (included) |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Air / Contact |
| LEDs | Power, Ethernet, (4) signal strength |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
