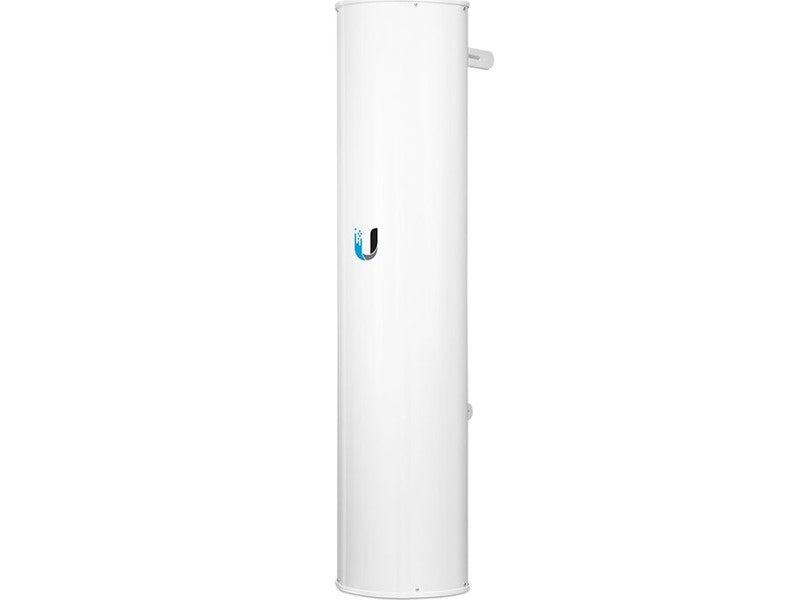

airPRISM 3x30° HD Sector
AP-5AC-90-HD
5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications.
airPRISM 3x30° HD Sector
AP-5AC-90-HD
5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications.
| AP-5AC-90-HD Specifications | |
|---|---|
| Product Type | 5 GHz Sector Antenna |
| Application | High-density Point-to-Multipoint (PtMP) deployments |
| Compatible Radios | Rocket Prism 5AC |
| RF Characteristics | |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 3 × 30° (6 dB) |
| VPOL Beamwidth | 3 × 30° (6 dB) |
| Elevation Beamwidth | 8° |
| Electrical Downtilt | 2° |
| Polarization | Dual-linear |
| Max VSWR | 1.75:1 |
| Interfaces | |
| RF Connectors | (6) RP-SMA (weatherproof) |
| Mechanical | |
| Dimensions (with mount) | 322.6 × 201.5 × 1300 mm (12.7 × 7.93 × 51.18") |
| Weight (with mount) | 13.1 kg (28.9 lb) |

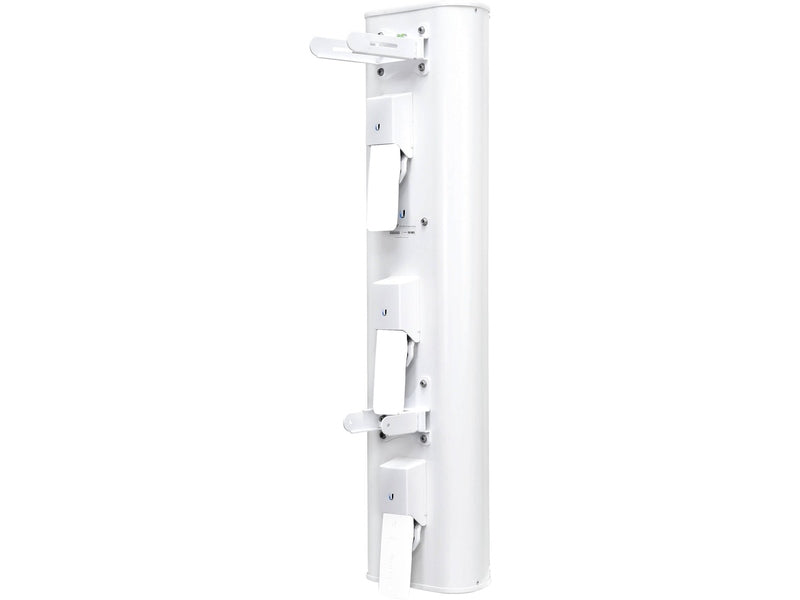

| Mounting | Pole mount kit (included) |
| Environmental | |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 534 N @ 200 km/h (120 lbf @ 125 mph) |
| Compliance | |
| Certifications | CE, FCC, IC |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | ✓ |
