Description
Overview

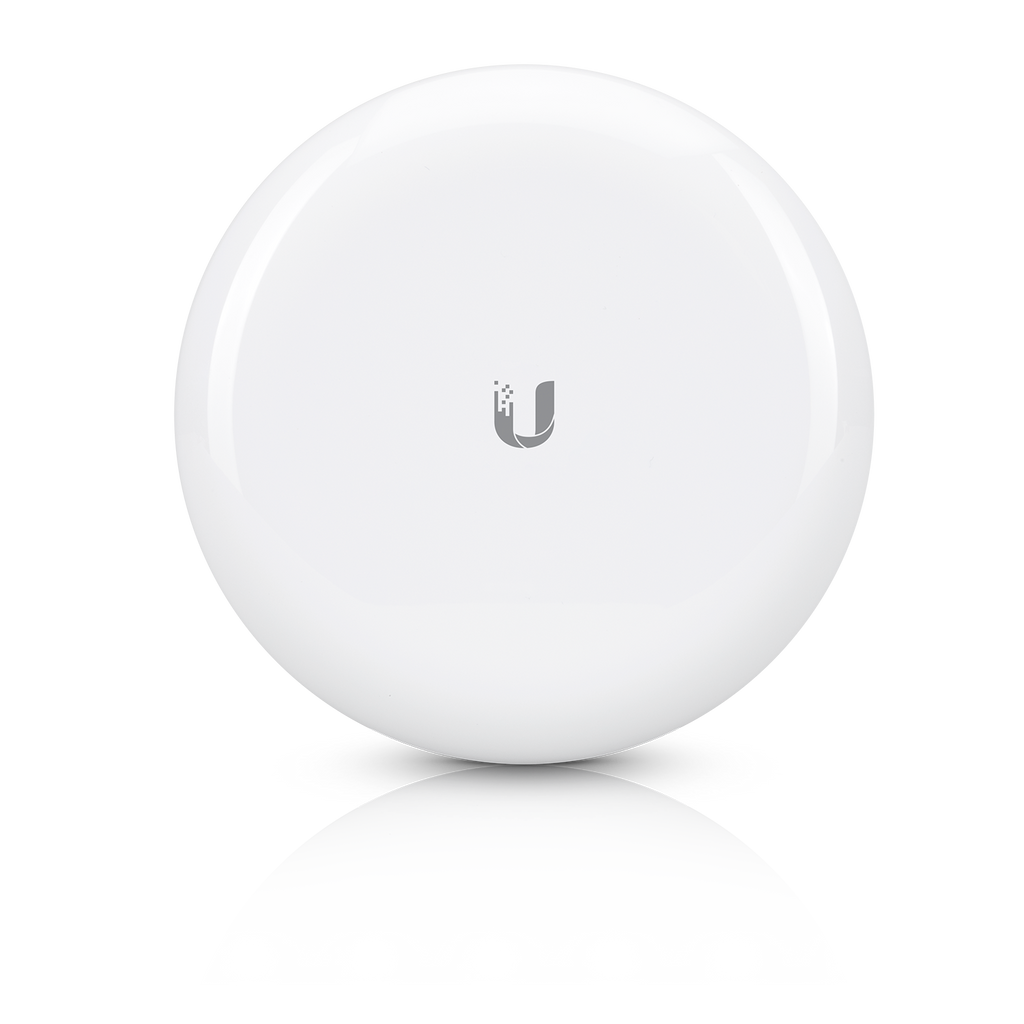

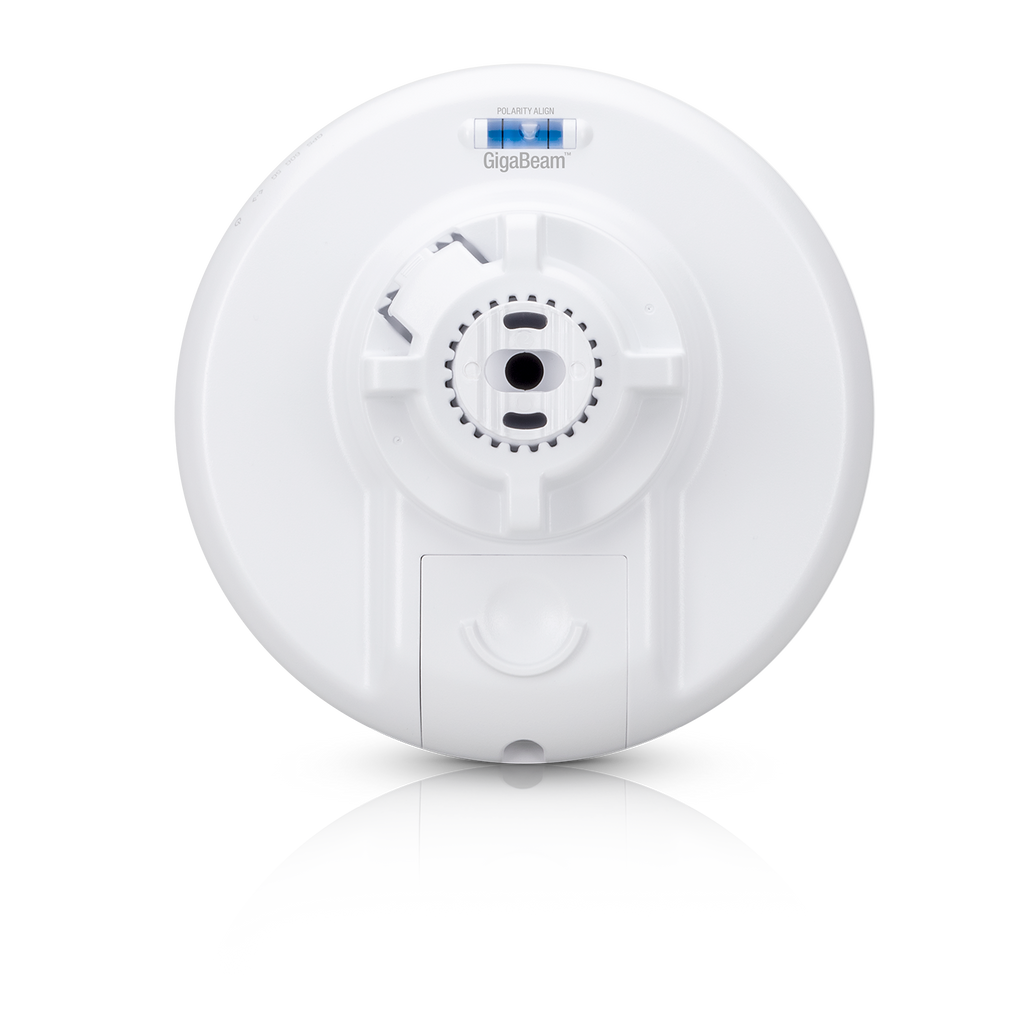

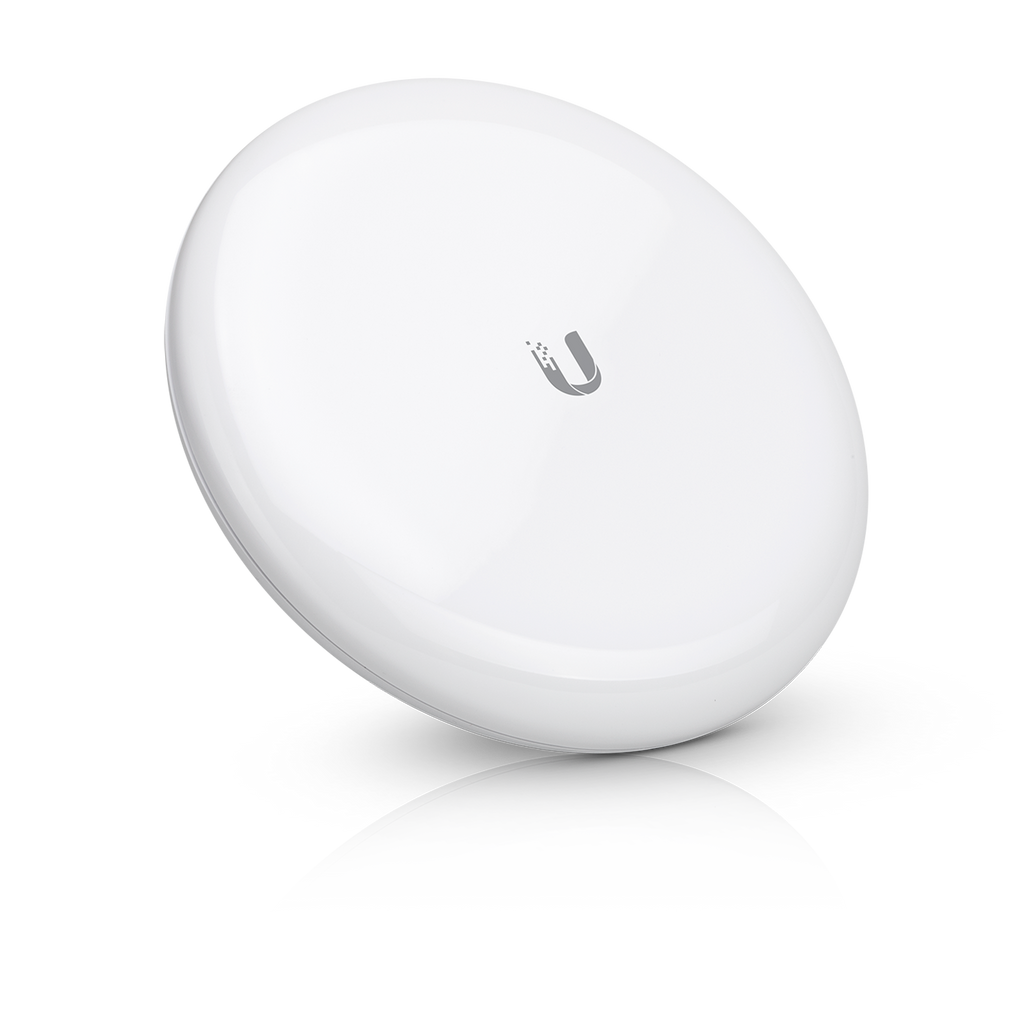

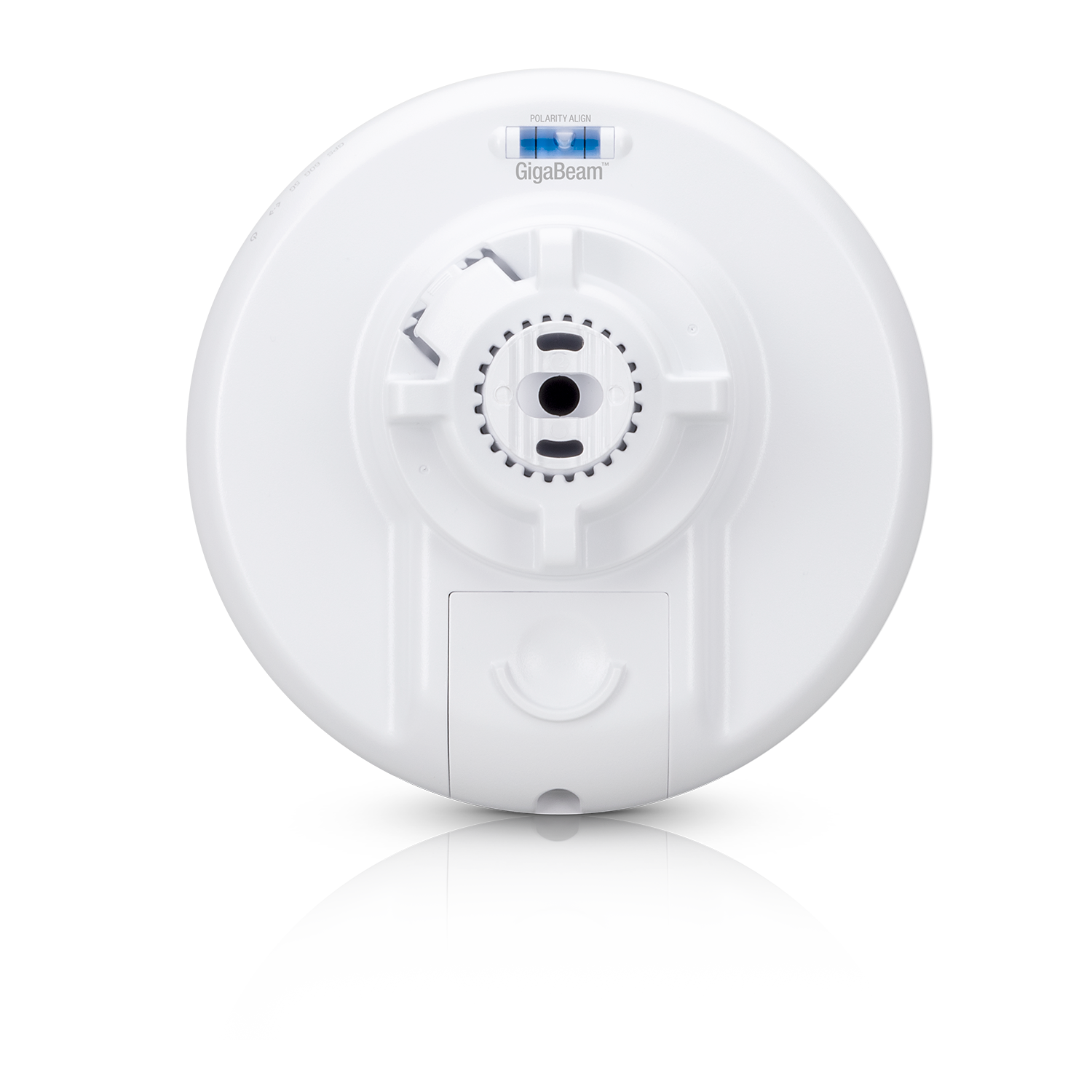

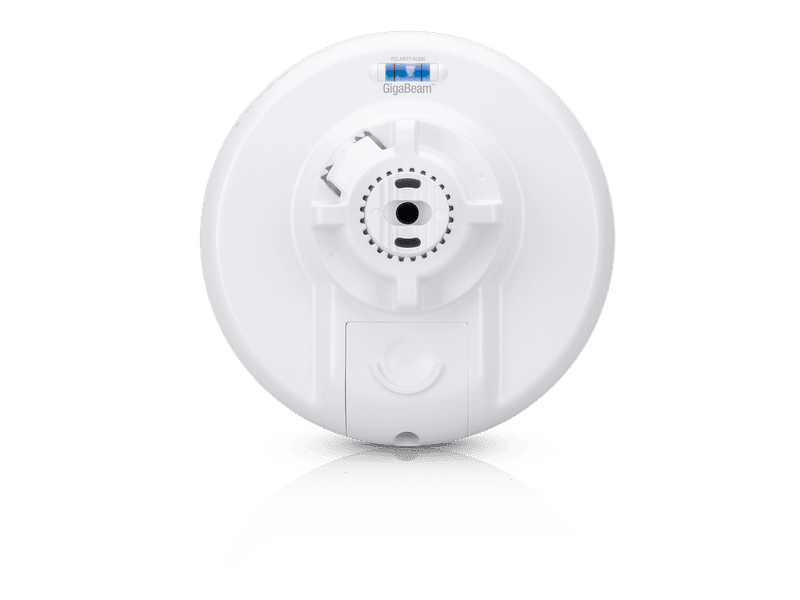

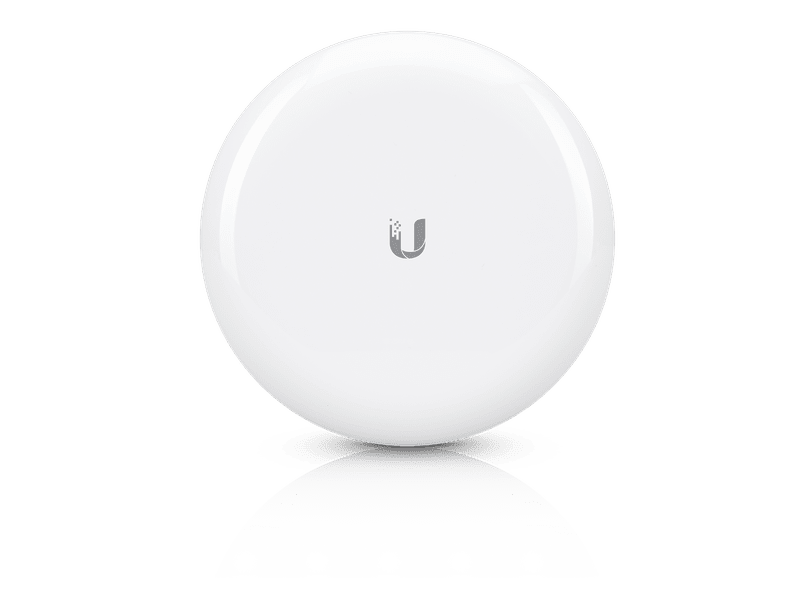

airMAX GigaBeam
GBE
60 GHz/5 GHz radio with 1+ Gbps throughput.
airMAX GigaBeam
GBE
60 GHz/5 GHz radio with 1+ Gbps throughput.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Ø140 × 44 mm (Ø5.5 × 1.7") |
| Weight | 376 g (13.3 oz) |
| Enclosure Material | UV-resistant polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |

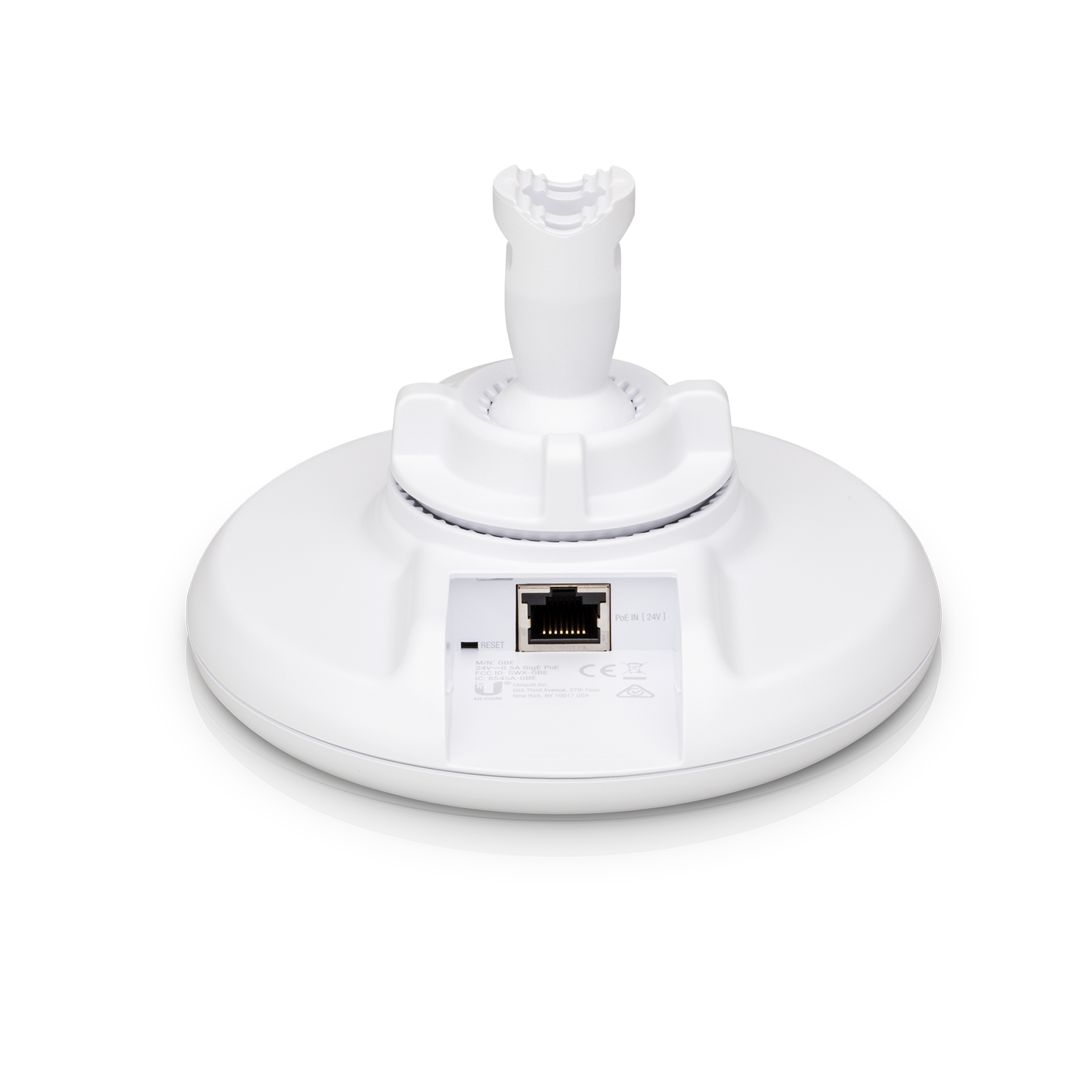

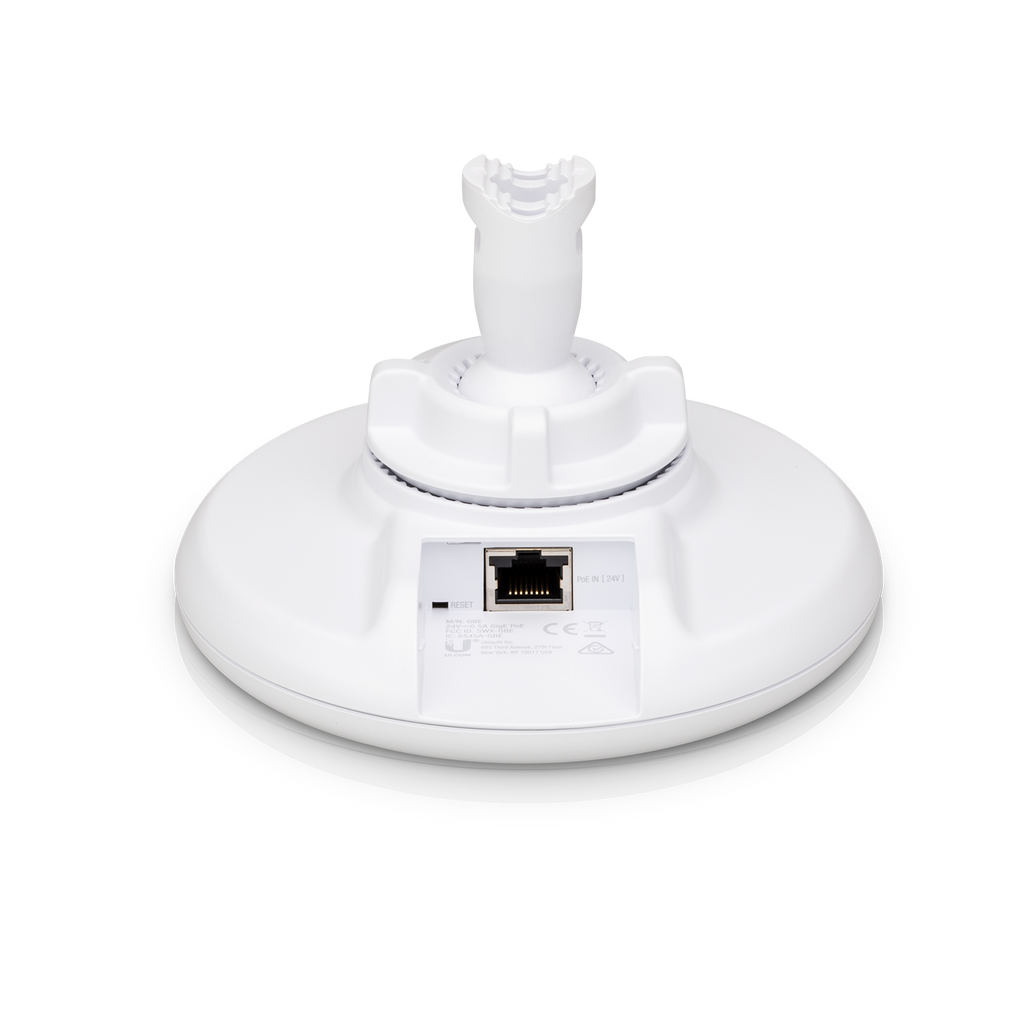

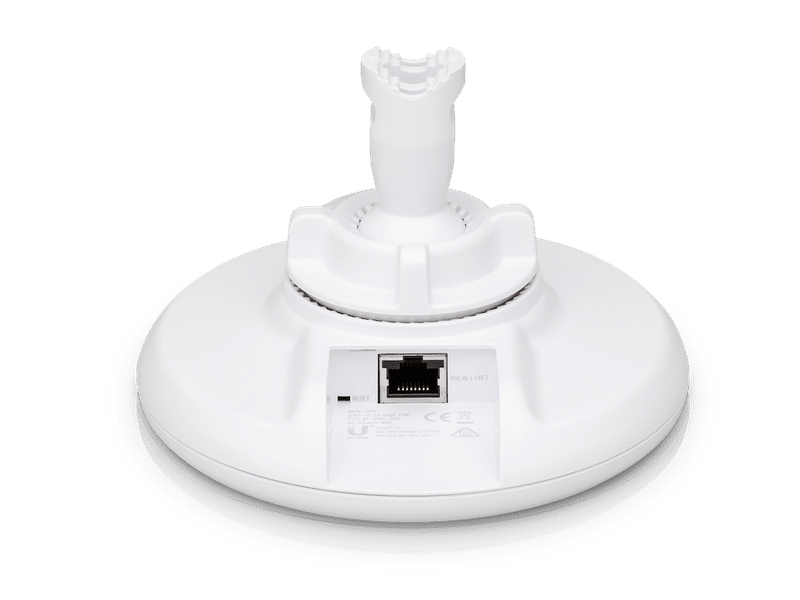

| Networking Interface | (1) GbE RJ45 port |
| RF Connections | Internal |
| Power Method | Passive PoE 2-pairs (4, 5+; 7, 8−) |
| Power Supply | 24V DC, 0.5A Gigabit PoE adapter (Included) |
| Voltage Range | 22–27V DC |
| Max. Power Consumption | 11W |
| ESD/EMP Protection | Air/contact: ±24kV |
| LEDs | Power / Ethernet / 5G / 60G |
| Ambient Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Operating Mode | PtP |
| Ubiquiti Specific Features | Integrated 60 GHz and 5 GHz radios, discovery protocol |
| Security | WPA2 AES only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Tools | Antenna alignment tool, discovery utility, traceroute, speed test |
| Management Interface | UISP application (web/mobile) |
| Minimum Software Requirements | Any modern web browser / iOS™ or Android™ smartphone |
