Description
Overview
Access Button
UA-Button

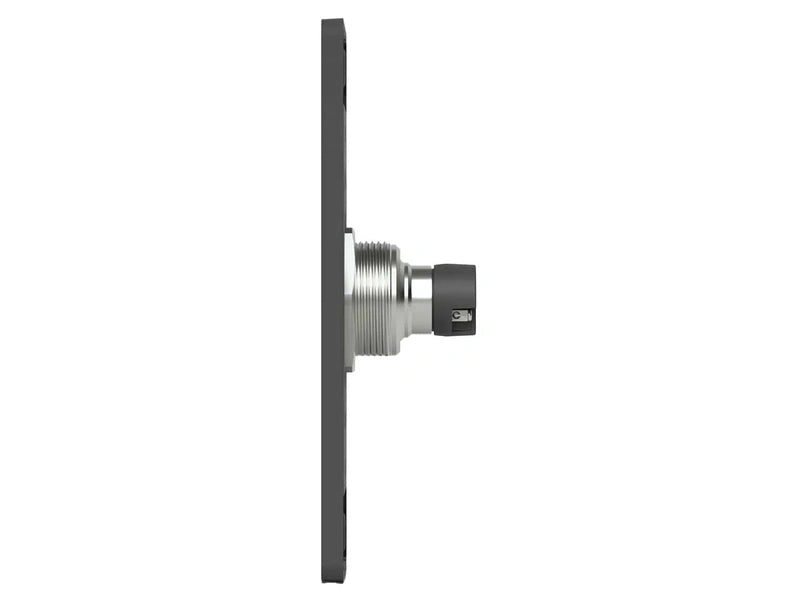

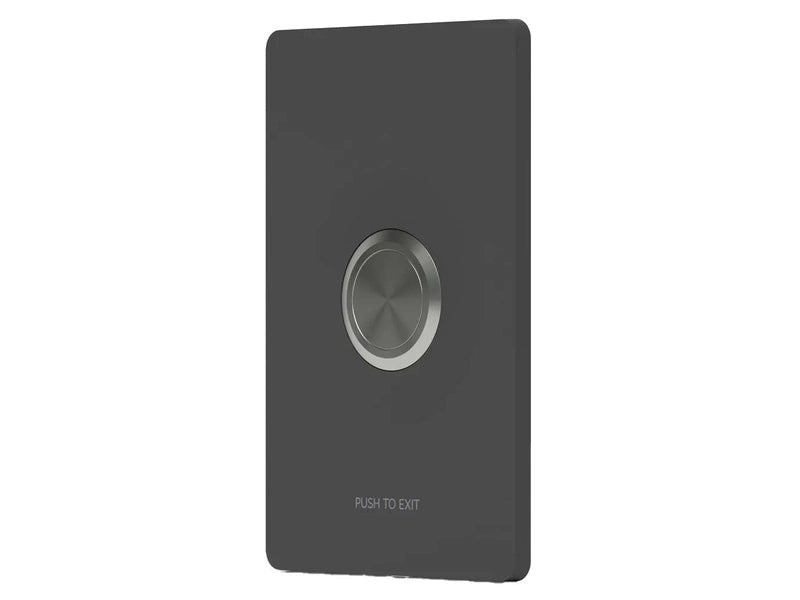

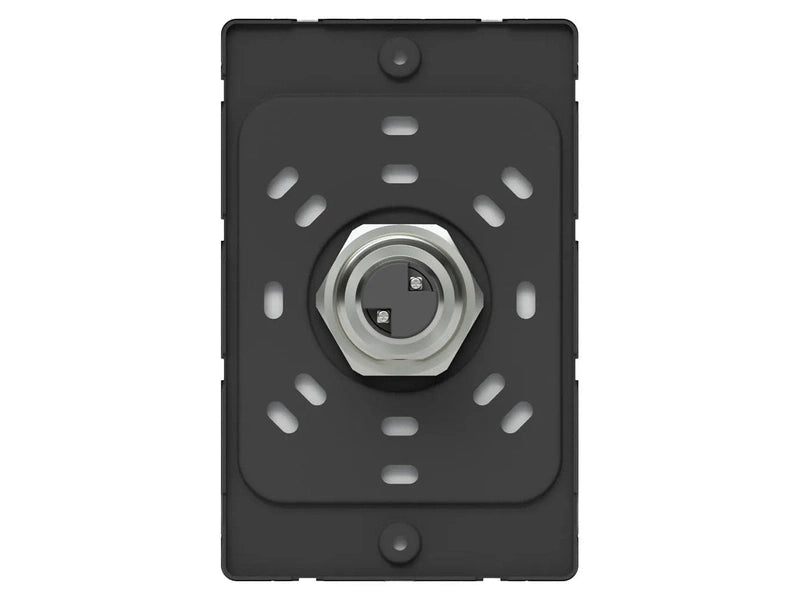

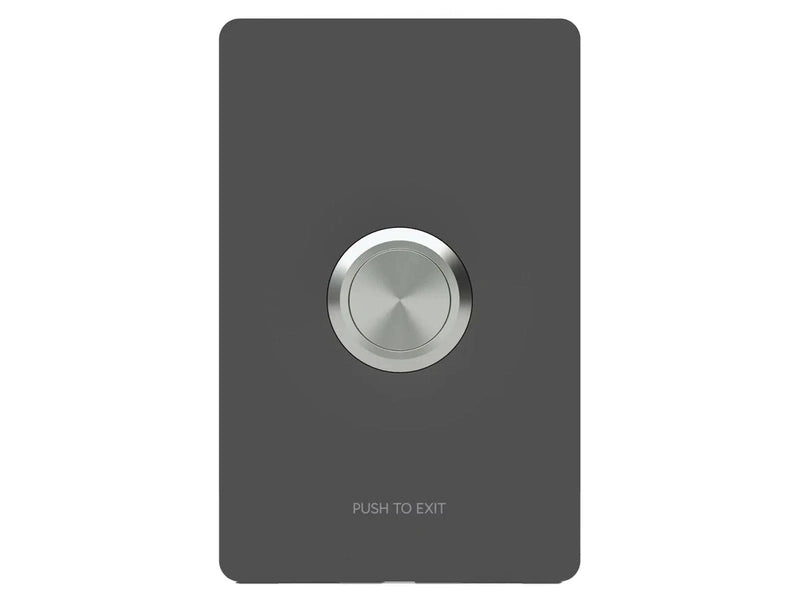

Push-to-exit button designed for UniFi Access Hubs.
Includes black and white faceplates
Compatibility
UA-G2-SK-Pro
UA-G2-SK
UA-G3-SK-Pro
UA-G3-SK
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
Access Button
UA-Button
Push-to-exit button designed for UniFi Access Hubs.
Includes black and white faceplates
Compatibility
UA-G2-SK-Pro
UA-G2-SK
UA-G3-SK-Pro
UA-G3-SK
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
| UA-Button Specifications | |
|---|---|
| Dimensions | 137 × 88 × 38.1 mm (5.4 × 3.5 × 1.5") |
| Weight | 180 g (6.3 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate, SGCC steel |
| Available Colors | Black, White |
| Indoor/Outdoor Use | Indoor only |
| Mechanical Life | 1,000,000 clicks |
| Power Method | Via UniFi Access Hub UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |
| Contact Type | (1) Normally Open |
| Contact Rating | 30V DC, 2A |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Storage Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade 1 |
| NDAA Compliant | ✓ |
| Certifications | CE, UL 294, CAN/ULC-60839-11-1 |
| Document Reference | UA-Button, V01 |
