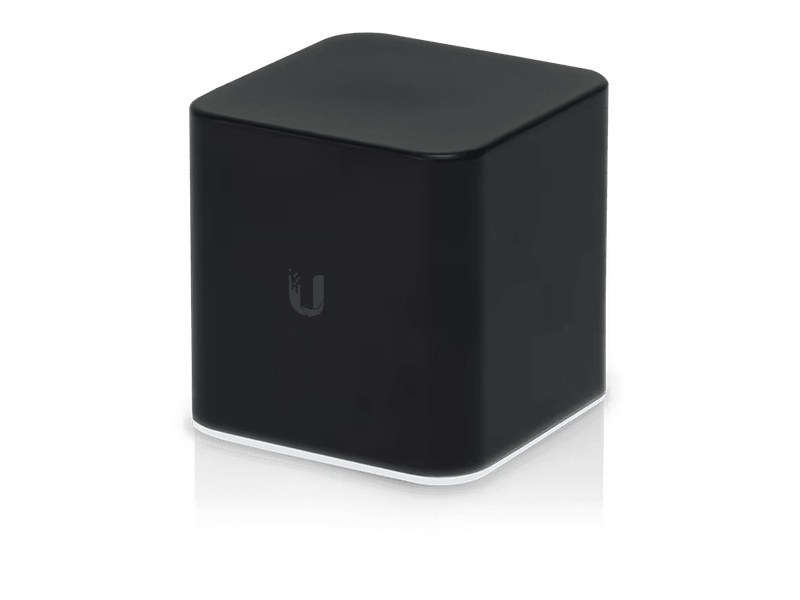

airCube Home WiFi AP
ACB-AC
High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
airCube Home WiFi AP
ACB-AC
High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
| ACB-AC Specifications | |
|---|---|
| Product Type | Dual-Band Home WiFi Access Point |
| Application | Interoperates with airMAX CPEs; UISP-managed |
| Wireless | |
| WiFi Standards | 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz / 5 GHz |
| Max Speeds | 2.4 GHz: 300 Mbps 5 GHz: 866.7 Mbps |
| MIMO | 2×2 |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 5 dBi |
| Max TX Power | 22 dBm |
| Interfaces | |
| Networking | (4) Gigabit RJ45 Ethernet ports |
| PoE Out | Controllable 24V PoE Out on WAN port (Pins 4,5+; 7,8−) |
| Management | Ethernet / WiFi (UISP, Web UI, U Mobile App) |
| Power | |
| Power Method | Micro-USB adapter (included) or 24V PoE In |
| Input Voltage Range | 22–27V DC |
| Max Power Consumption | 8.5W |
| Mechanical | |
| Dimensions | 87.8 × 89.5 × 89.25 mm (3.5 × 3.5 × 3.5") |
| Weight | 280 g (9.9 oz) |
| Enclosure | Black polycarbonate |
| LED Indicators | Status |
| Environmental | |
| Operating Temperature | −10 to 50°C (14 to 122°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Contact/Air |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
