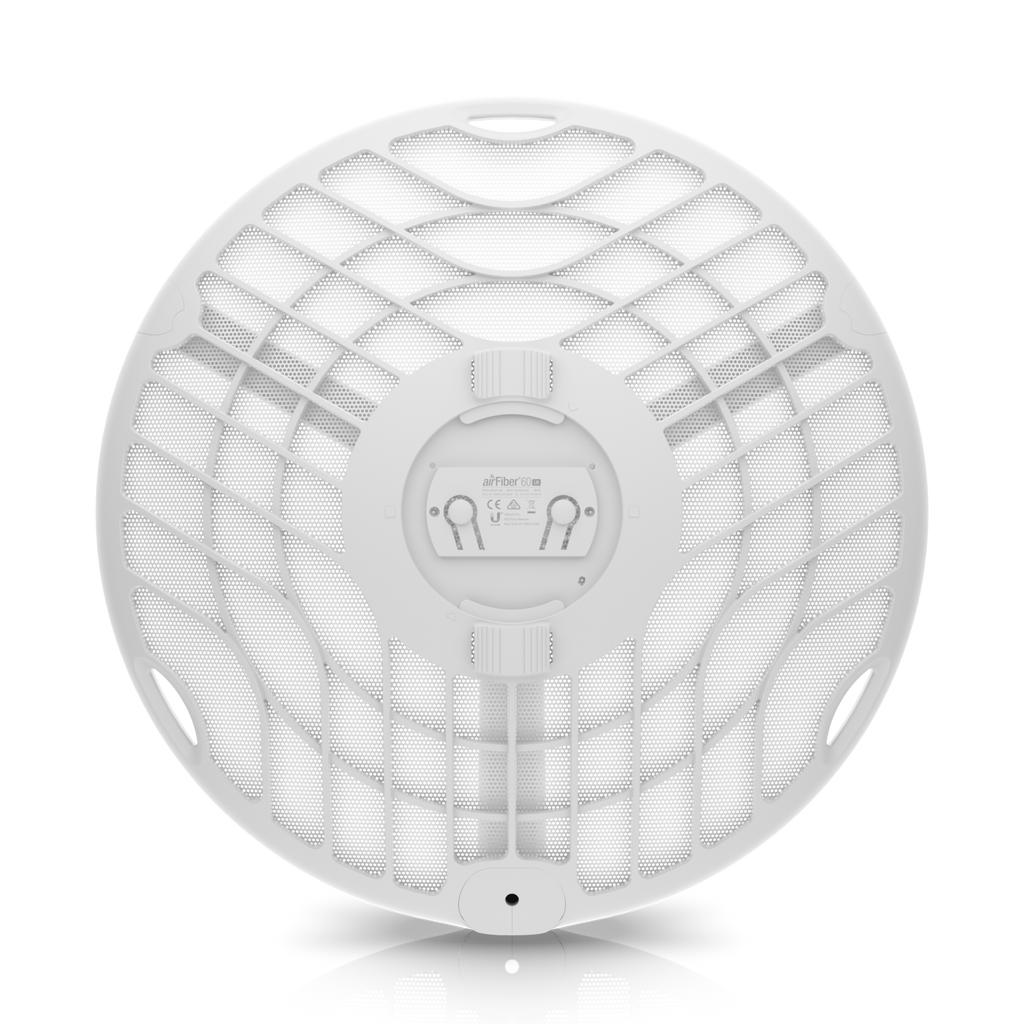

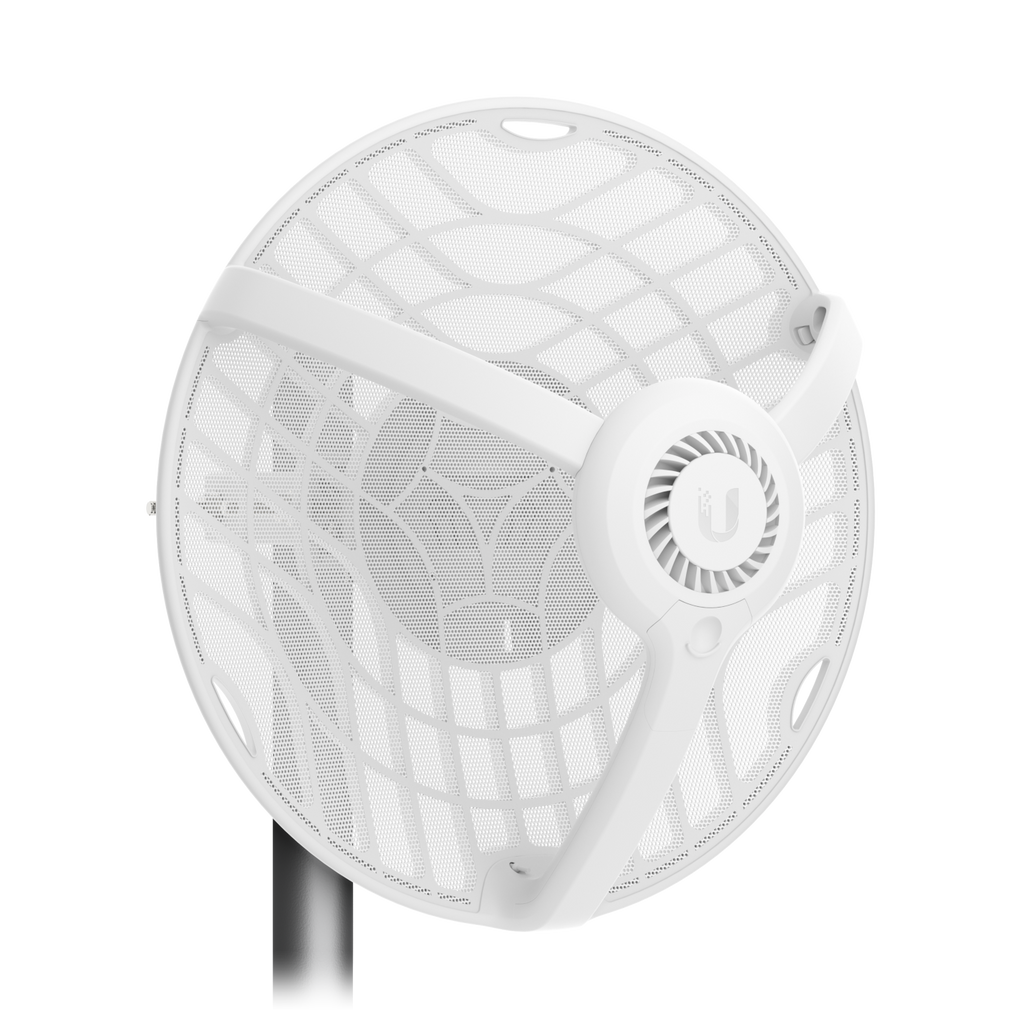

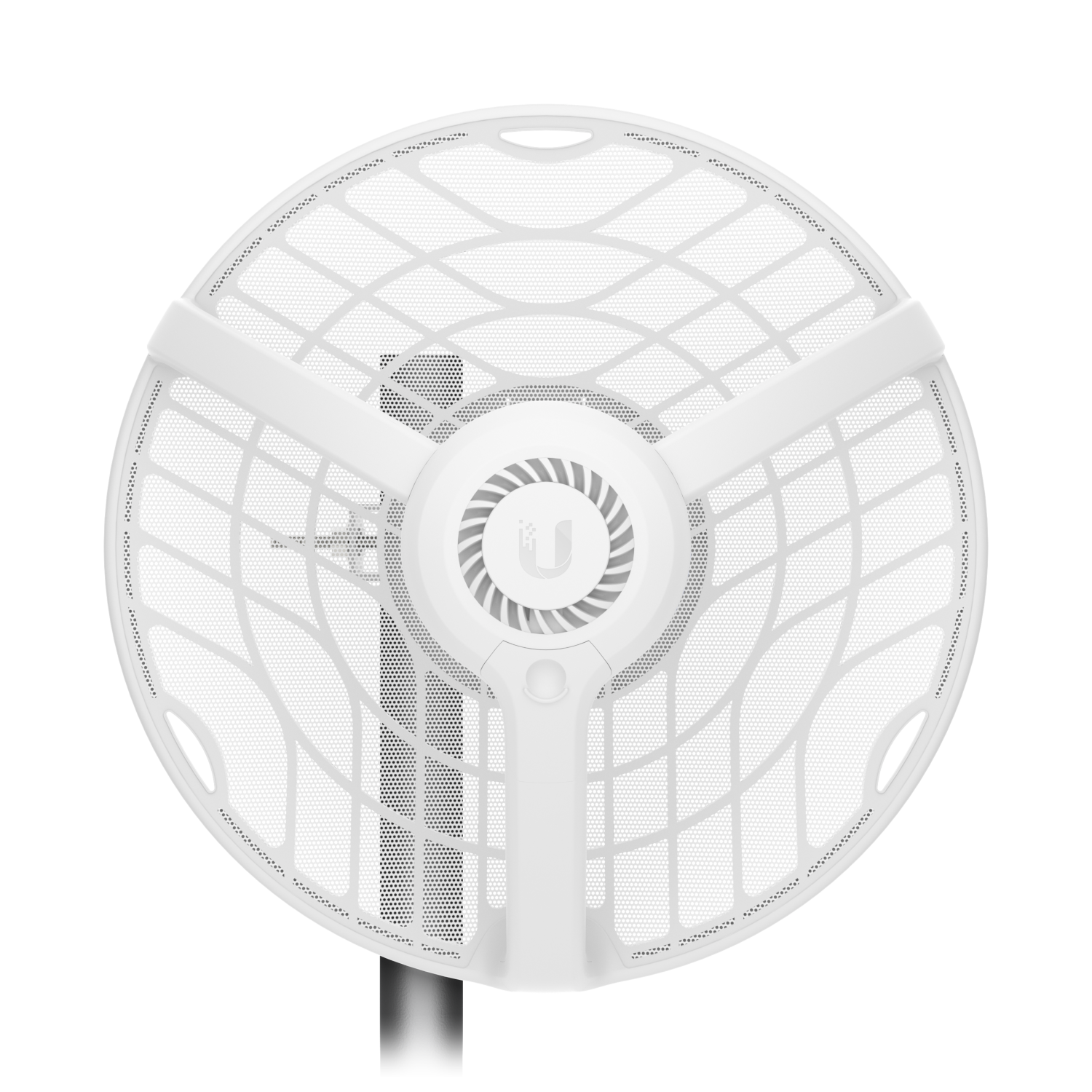

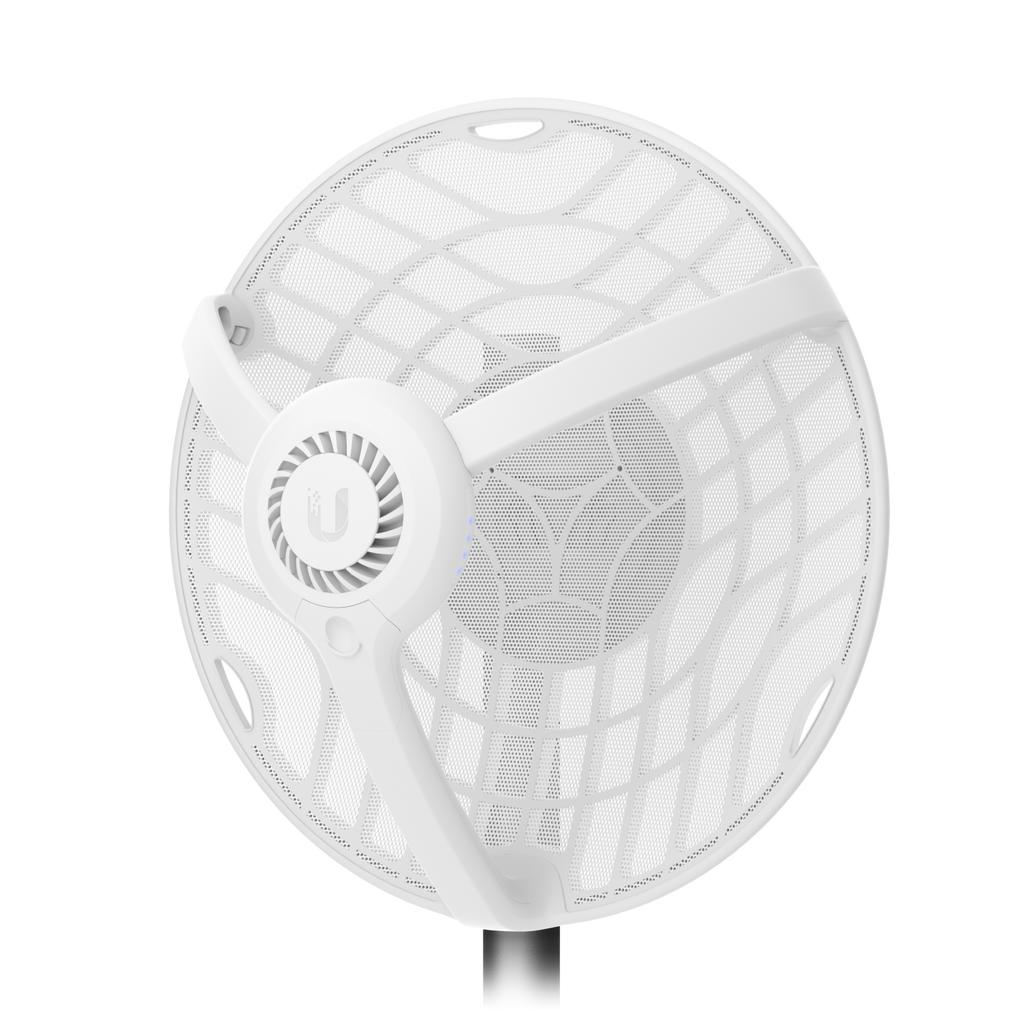

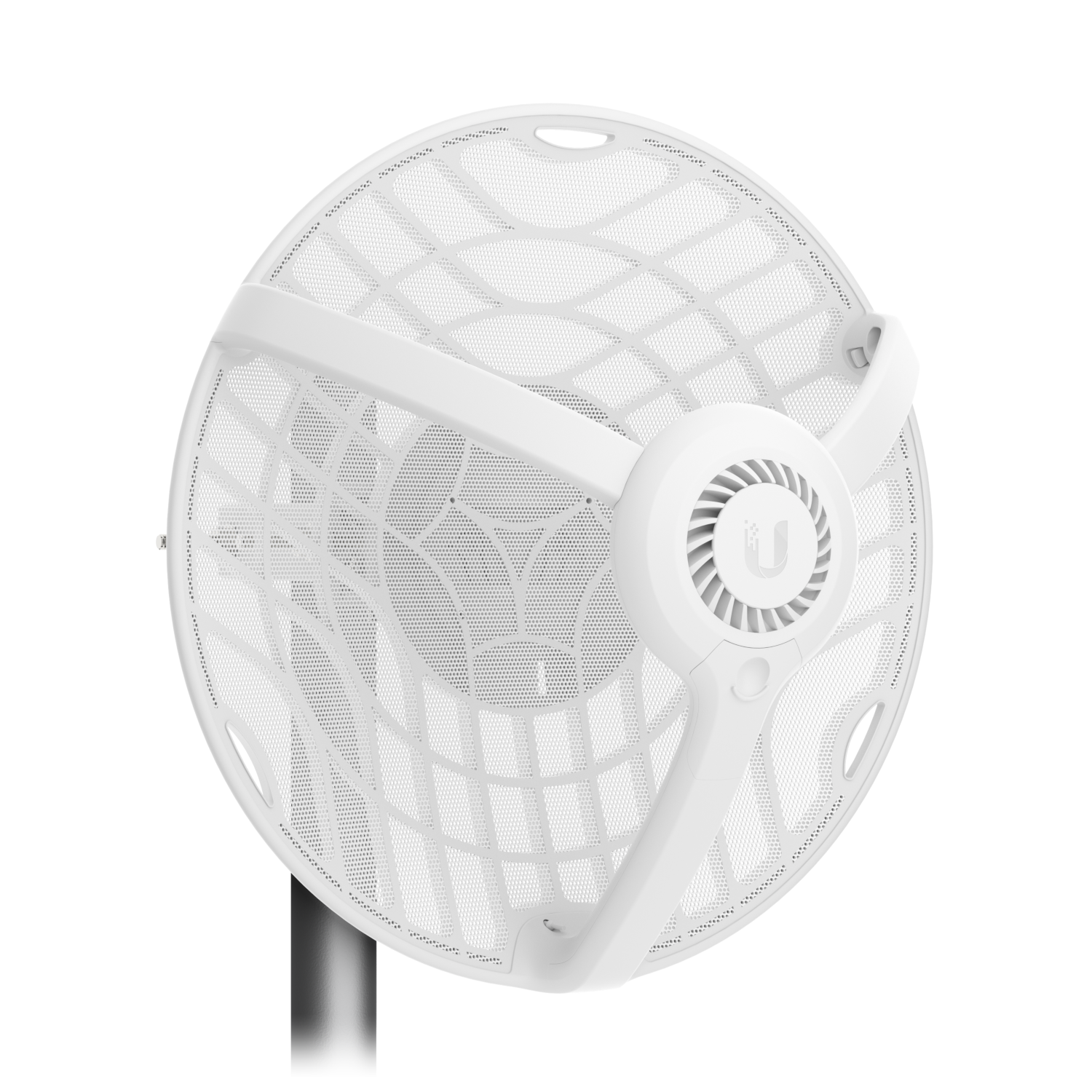

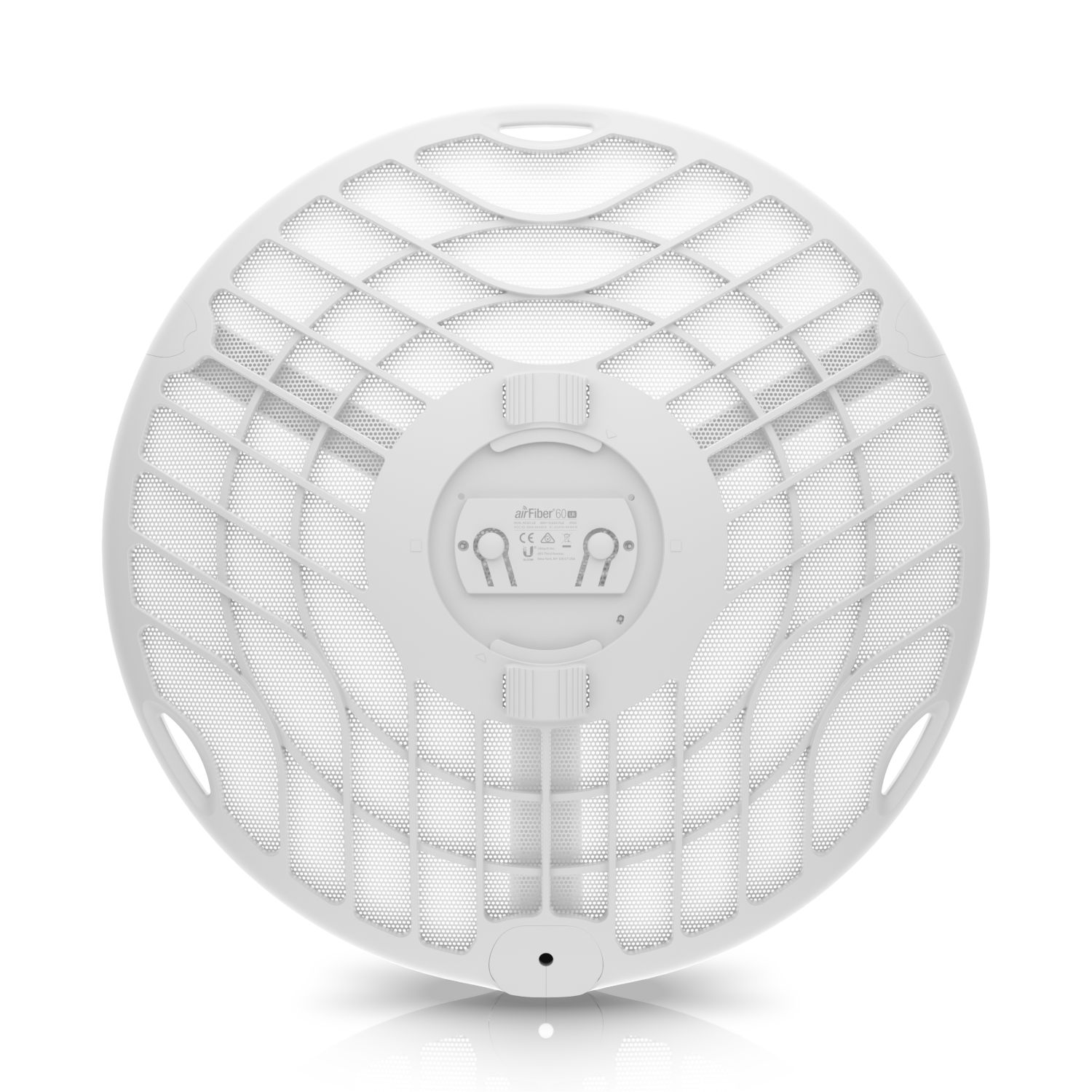

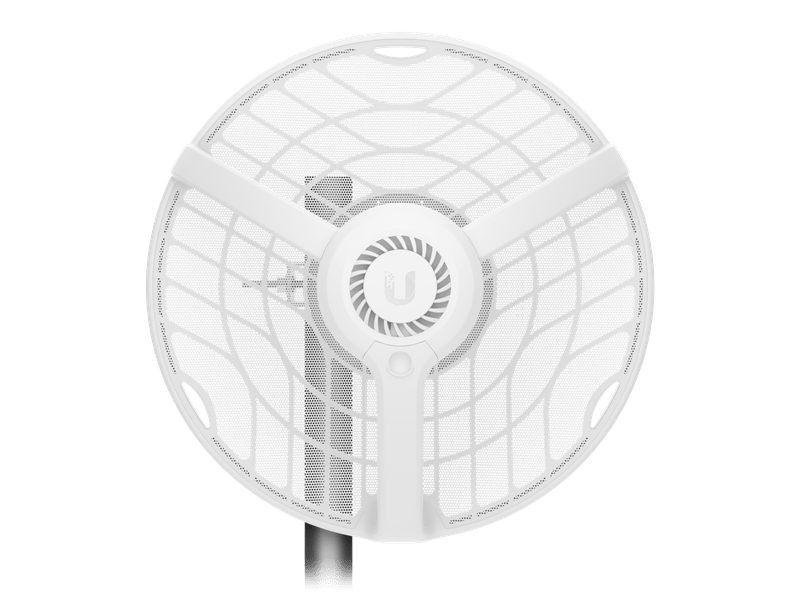

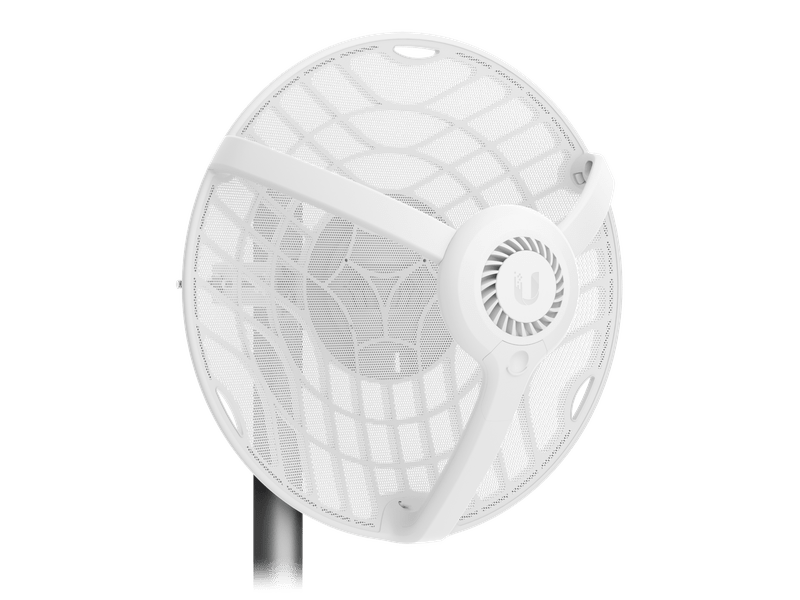

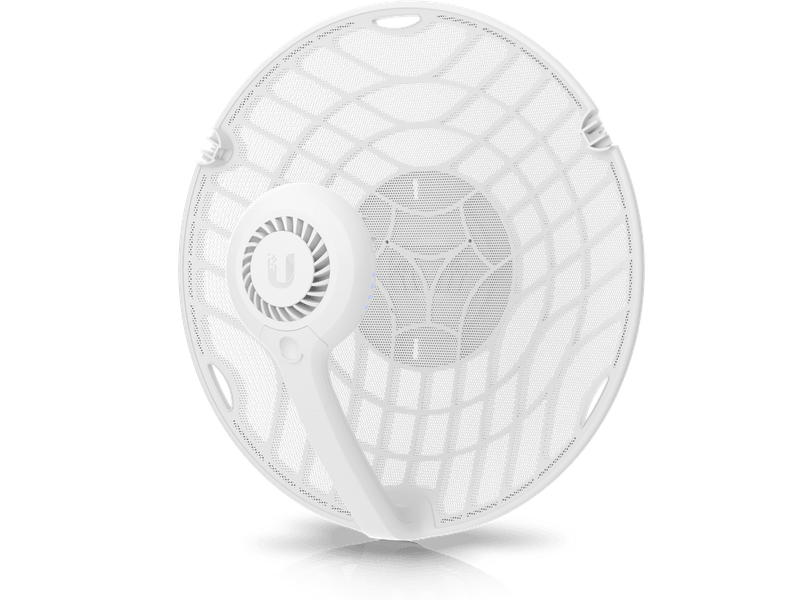

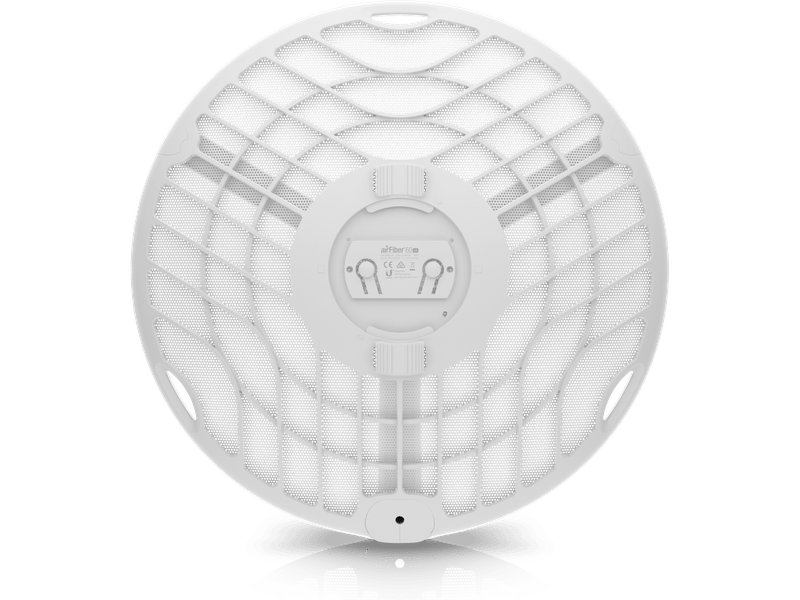

airFiber 60 Long-Range
AF60-LR
Long-range 60 GHz radio system that pairs in PtP mode or connects to a Wave AP as a client in PtMP mode.
airFiber 60 Long-Range
AF60-LR
Long-range 60 GHz radio system that pairs in PtP mode or connects to a Wave AP as a client in PtMP mode.
| AF60-LR Specifications | |
|---|---|
| Product Type | 60 GHz Point-to-Point Radio |
| Operating Mode | PtP only |
| Max Throughput | 1.95 Gbps |
| Max Range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| Operating Frequency | 57–71 GHz (region-dependent) |
| Channel Bandwidth | 2160 / 1080 MHz |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 1.6° / Elevation: 1.6° |
| Processor | Quad-core ARM® Cortex®-A7 |
| Memory | 256 MB DDR3 |
| Networking Interface | (1) GbE RJ45 port |
| GPS | ✓ |
| Power Method | Passive PoE 4-pair (1,2+; 3,6-) and (4,5+; 7,8-) Passive PoE 2-pair (4,5+; 7,8-) for 44–54V DC only |
| Power Supply | 48V DC, 0.65A Gigabit PoE adapter (included) |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Max Power Consumption | 22W |
| Dimensions | Ø413 × 360 mm (Ø16.3 × 14.2") |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Enclosure Material | Aluminum, UV-stabilized polycarbonate |
| Mount Material | Galvanized steel |
| Mounting Options | Precision alignment kit (included), pole Ø25.4–76.2 mm |
| Wind Loading | 420 N @ 200 km/h (94.4 lbf @ 125 mph) |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV (air/contact) |
| Management Platform | UISP (Bluetooth setup supported) |
| Operating Mode | Bridge mode |
| Services | Ping watchdog NTP client Antenna alignment Speed test Discovery utility |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
