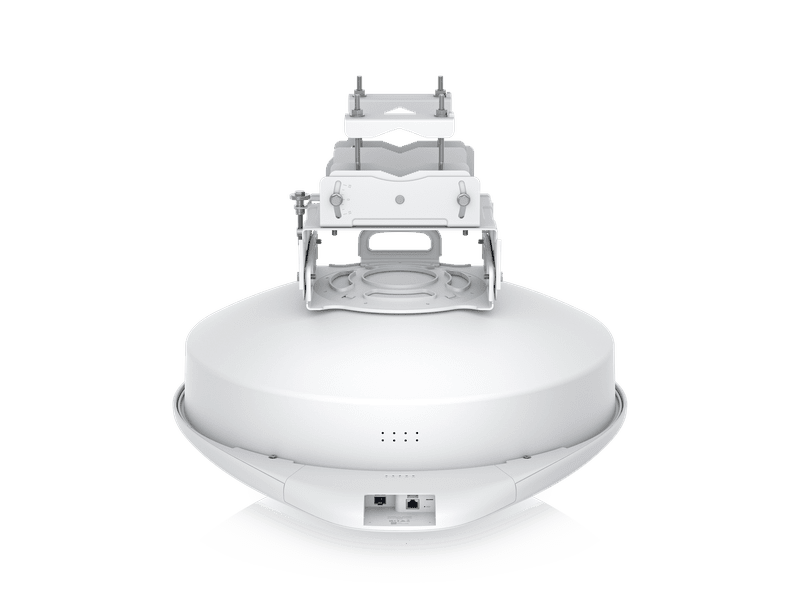

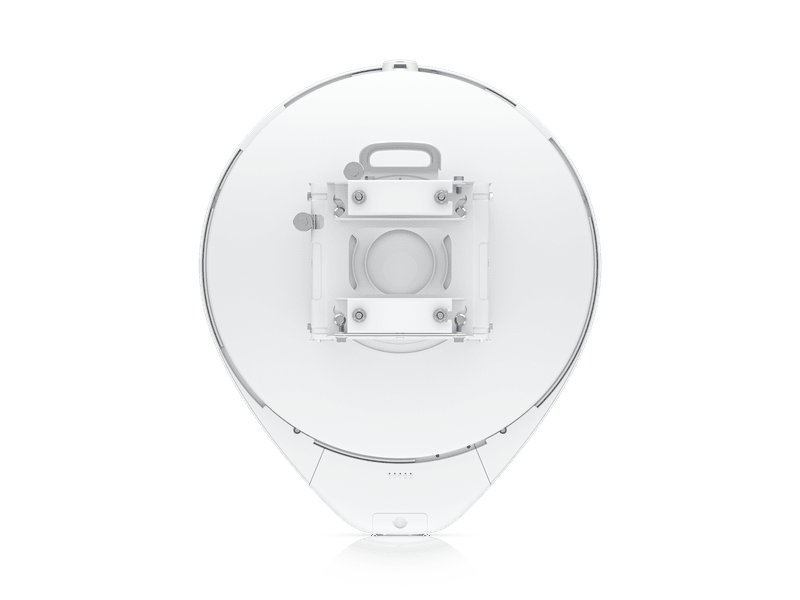

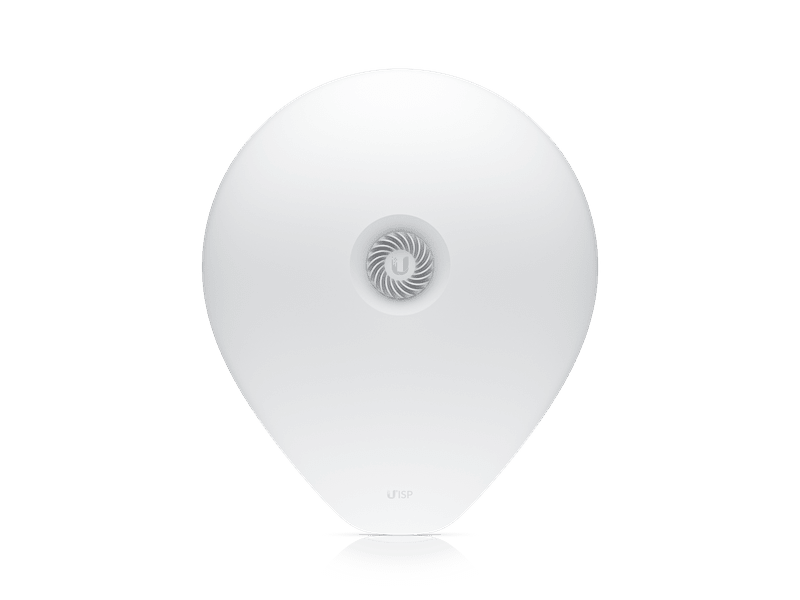

airFiber 60 XG
AF60-XG
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.
airFiber 60 XG
AF60-XG
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.
| AF60-XG Specifications | |
|---|---|
| Product Type | 60 GHz Point-to-Point Bridge |
| Operating Mode | PtP only |
| Max. Throughput | 60 GHz: 3.8 Gbps / 6 Gbps (with channel bonding) 5 GHz: 866.6 Mbps (backup) |
| Max. Range | 4 km |
| Encryption | WPA2-PSK (AES) |
| Processor | Quad-Core ARM® Cortex® A72 @ 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking Interfaces | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| RF Connections | Internal |
| Button | Factory reset |
| Power Method | Passive PoE 4-pairs (1,2+; 3,6-) and (4,5+; 7,8-) Passive PoE 2-pairs (4,5+; 7,8-) for 44–54V DC only |
| Power Supply | 48V DC, 0.65A Gigabit PoE adapter (included) |
| Max. Power Consumption | 31.2W |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Primary Frequency | 57–66 GHz |
| Channel Bandwidth | 2160 MHz / 4320 MHz (with bonding) |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz |
| Polarization | Vertically linear |
| Beamwidth | Azimuth/Elevation: 3 dB @ 1.6° |
| Backup Frequency | US/CA: 5150–5250 MHz (U-NII-1), 5725–5850 MHz (U-NII-3) Worldwide: 5150–5875 MHz |
| Backup Bandwidth | 20/40/80 MHz |
| Backup Polarization | Dual-linear |
| Backup Beamwidth | Azimuth/Elevation: 3 dB @ 5° |
| Dimensions | 779 × 664 × 383 mm (30.68 × 26.14 × 15.06") |
| Weight | 8.6 kg (19 lb) without mount 13 kg (28.7 lb) with mount |
| Enclosure Material | UV-stabilized polycarbonate, steel |
| Mount Material | Galvanized steel |
| Mounting | Precision alignment kit (included) |
| Pole Compatibility | Ø40–80 mm (Ø1.5–3.15") |
| Wind Loading | 422 N @ 200 km/h (94.86 lbf @ 125 mph) |
| Operating Temperature | -40 to 55°C (-40 to 131°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Status LEDs | Power: White/Blue Ethernet: Flashing Blue GPS: Blue (≥4 satellites) 60G / 5G: Blue (active) |
| Management Platform | UISP Web (v1.4.3+), iOS/Android App (v2.19+) |
| Services | UISP, ping watchdog, NTP client, system log |
| Utilities | Antenna alignment, discovery, ping, speed test |
| Certifications | FCC, IC, CE, Terragraph |
| NDAA Compliant | ✓ |
