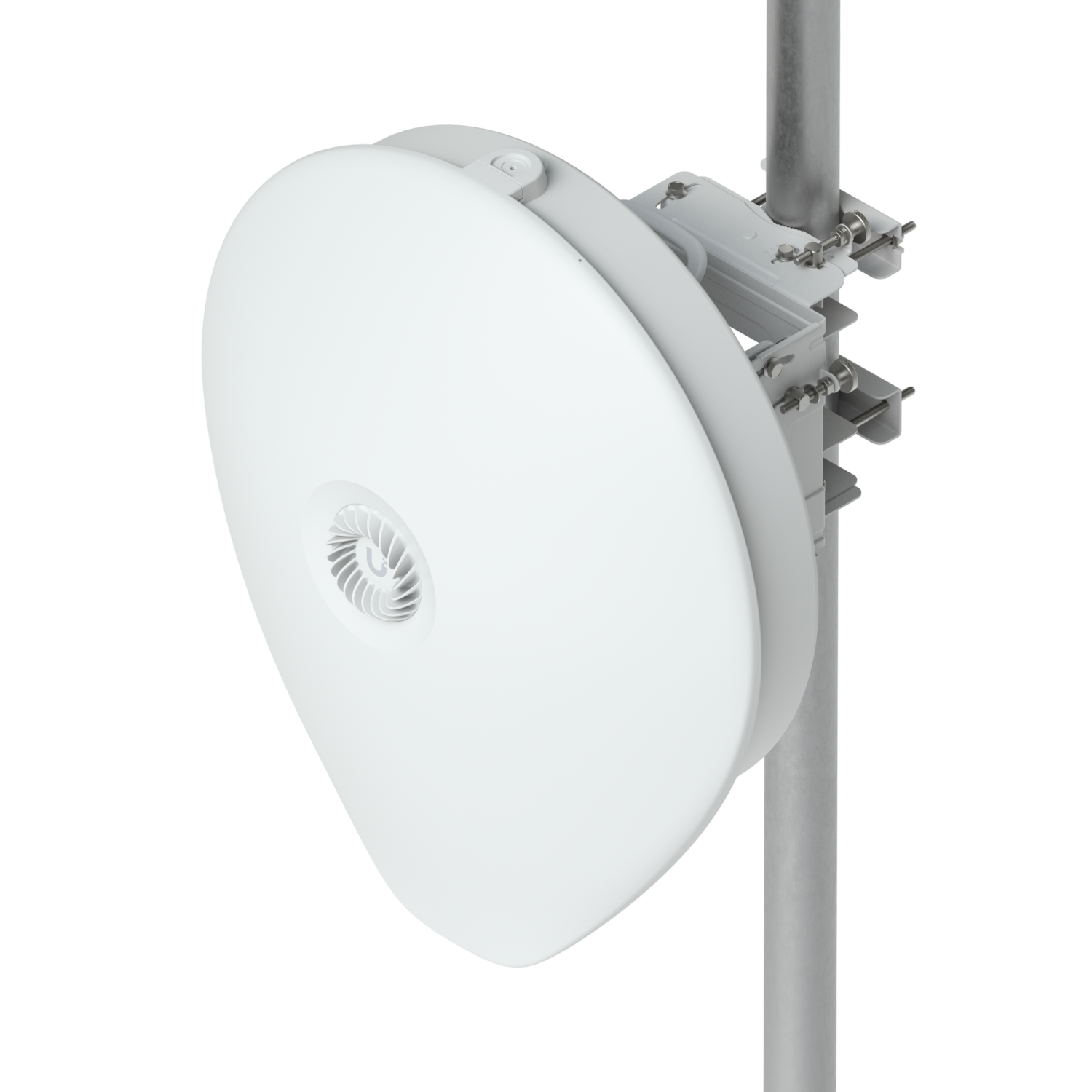

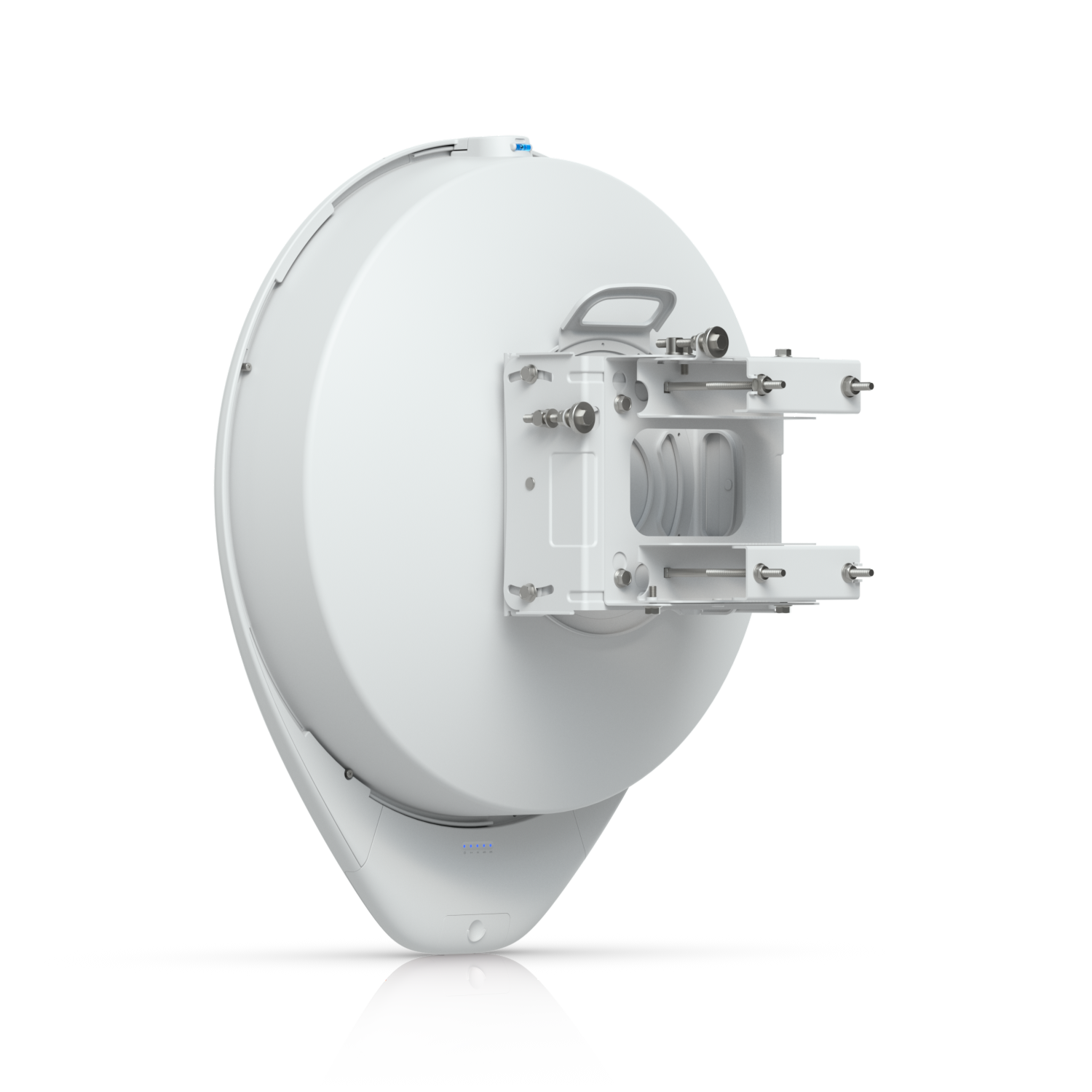

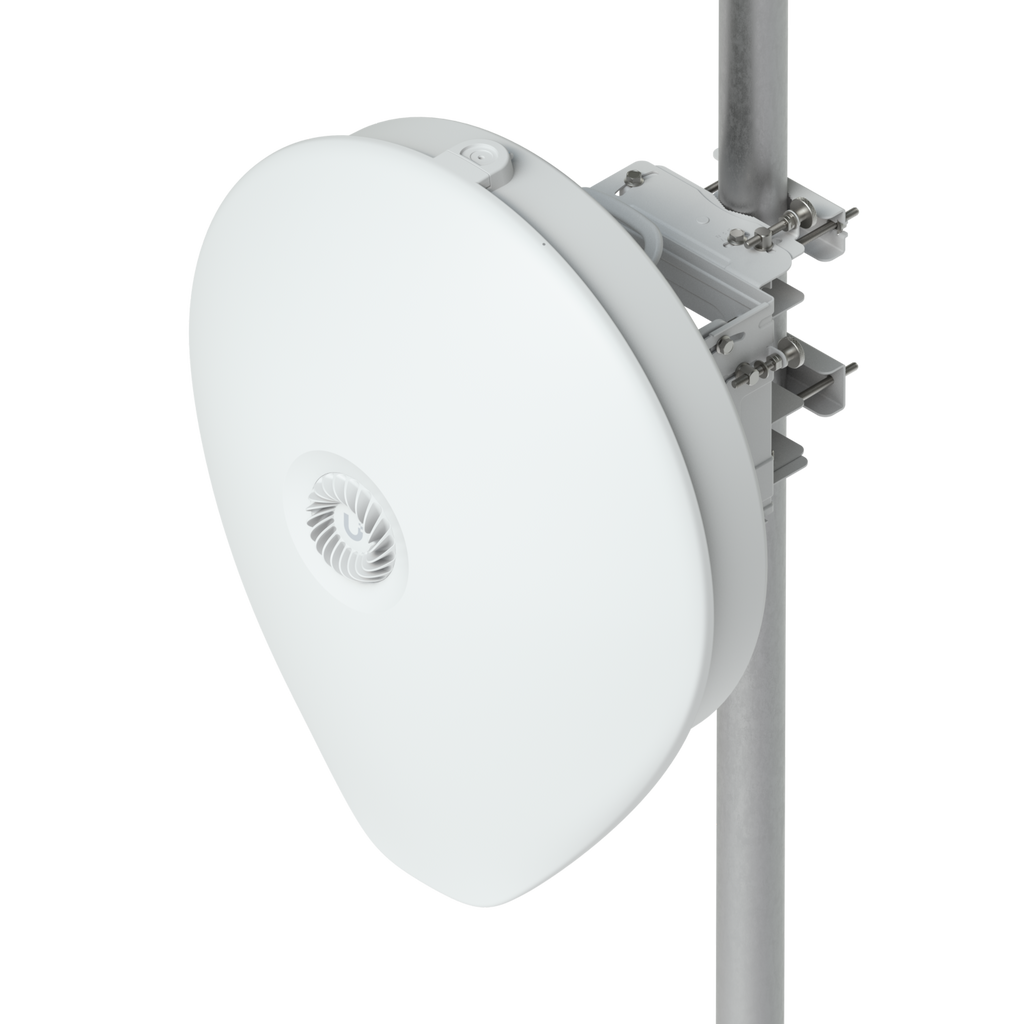

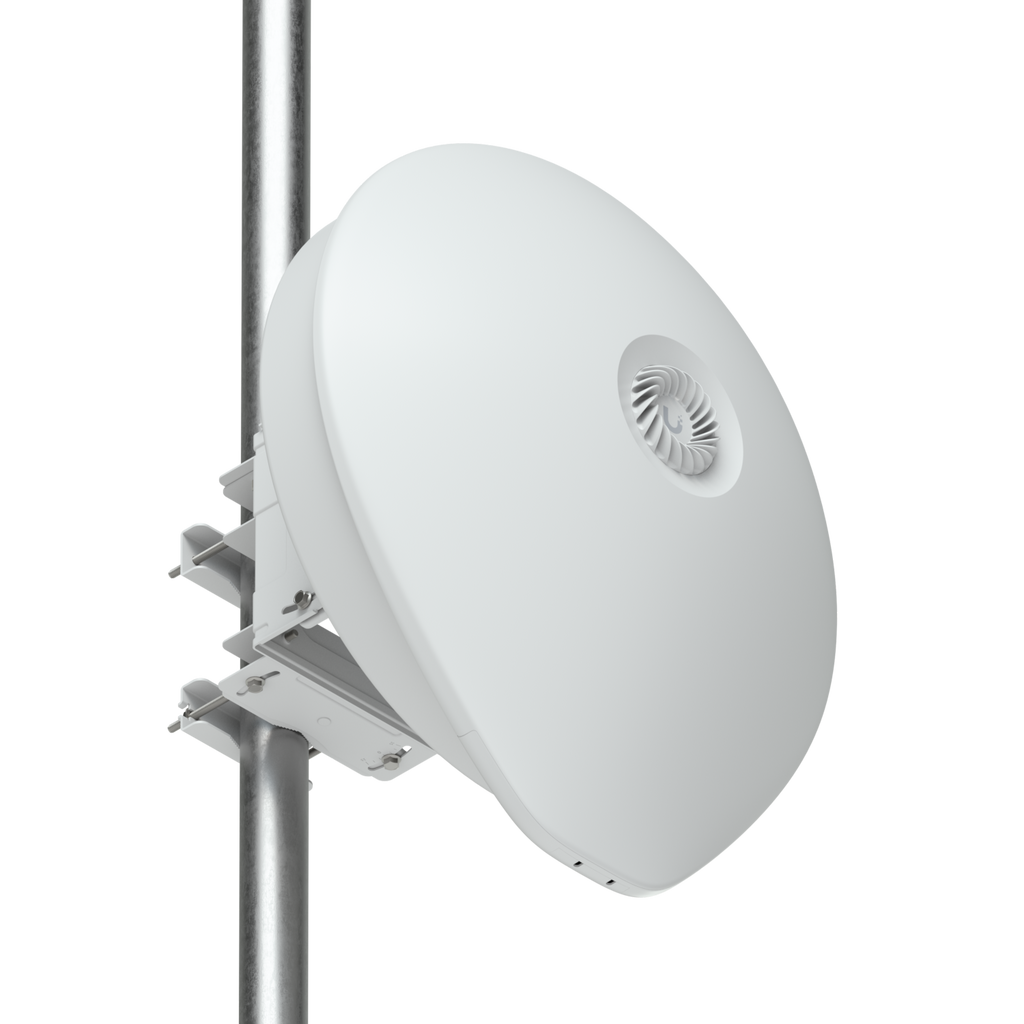

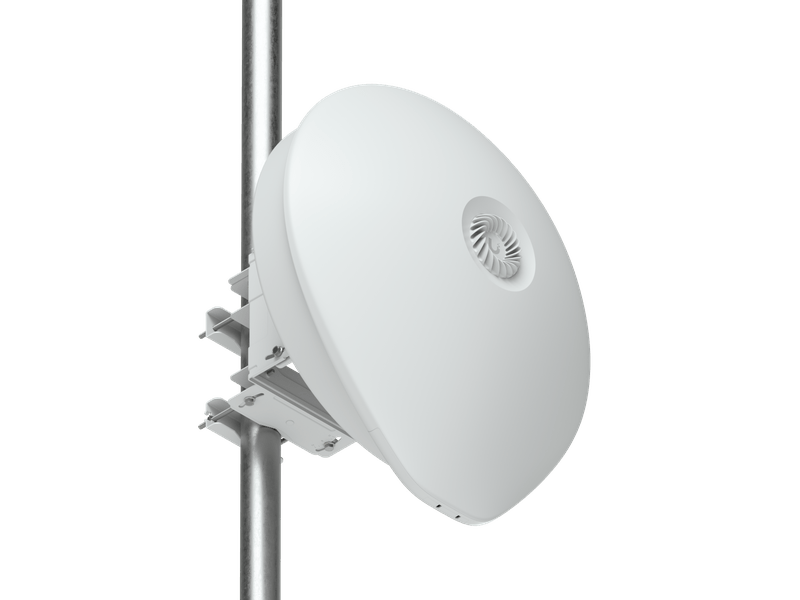

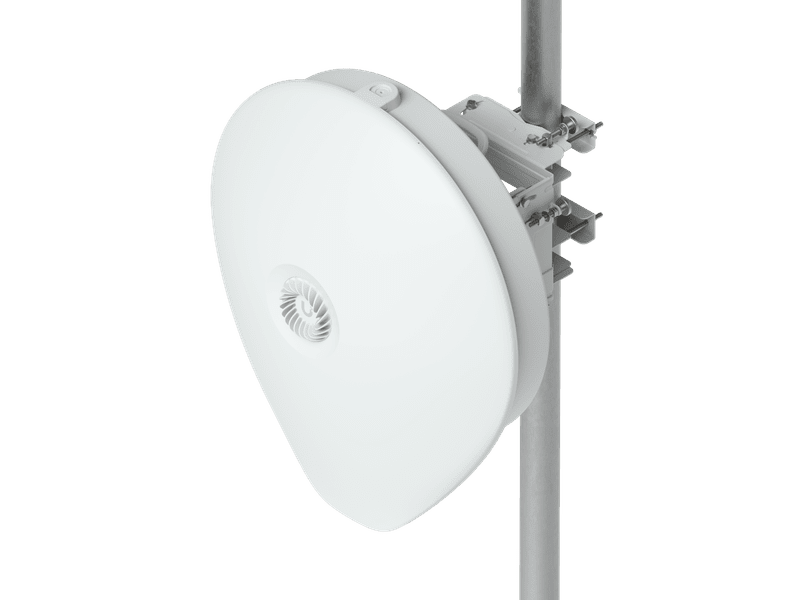

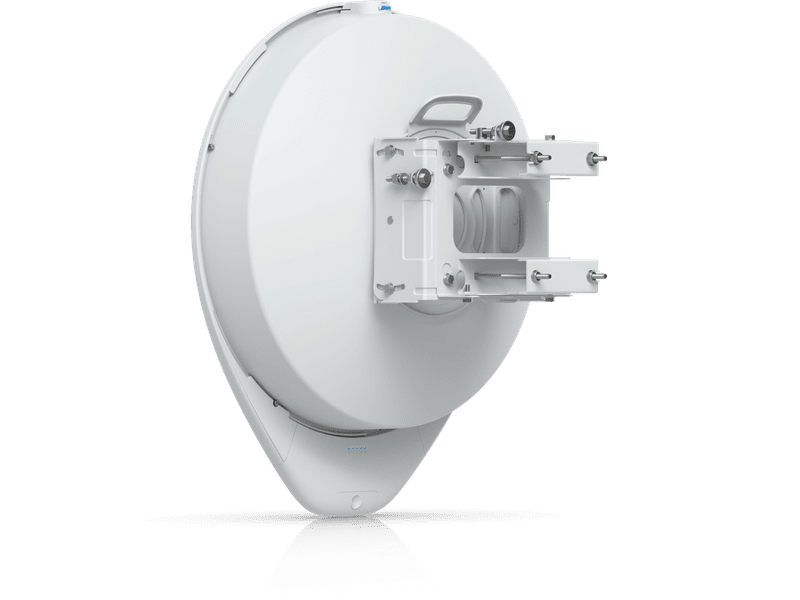

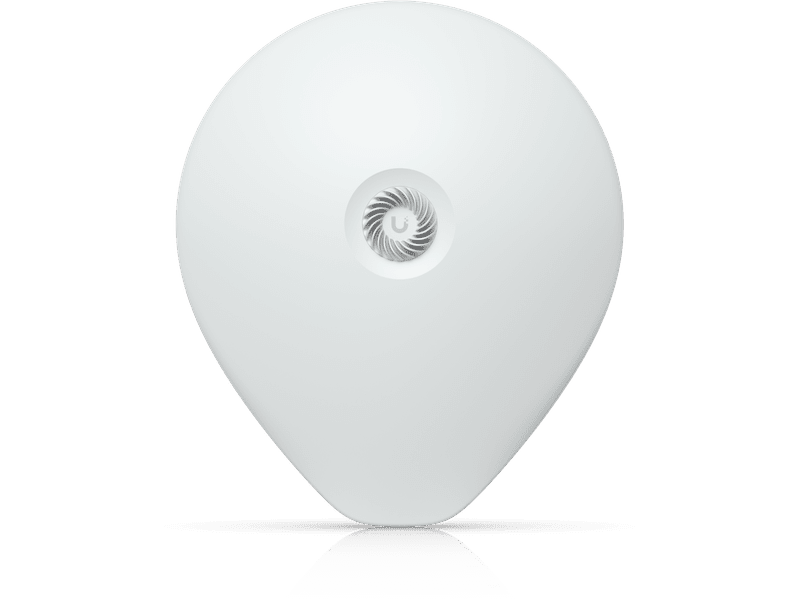

airFiber 60 Xtreme-Range
AF60-XR
Multi-gigabit, 60 GHz bridge designed to create long-distance links.
airFiber 60 Xtreme-Range
AF60-XR
Multi-gigabit, 60 GHz bridge designed to create long-distance links.
AF60-XR Specifications | |
---|---|
Product Type | 60 GHz Point-to-Point Bridge |
Operating Mode | PtP only |
Max. Throughput | 5.4 Gbps |
Max. Range | 15+ km |
Encryption | WPA2-PSK (AES) |
Processor | Quad-core ARM Cortex-A53 @ 1.4 GHz |
Memory | 1 GB DDR3L |
Networking Interfaces | (1) GbE RJ45 port, (1) 1/10G SFP+ port |
Power Method | Passive PoE 4-pairs (1,2+; 3,6-) and (4,5+; 7,8-) Passive PoE 2-pairs (4,5+; 7,8-) for 44–54V DC only |
Power Supply | 48V DC, 0.65A Gigabit PoE adapter (included) |
Max. Power Consumption | 24W |
Supported Voltage Range | 44–54V DC / 22–27V DC |
GPS | ✓ |
Button | Factory reset |
Primary Frequency | 57–71 GHz |
Channel Bandwidth | 2160, 1080, 540 MHz |
Modulation | 16QAM, QPSK, BPSK |
Polarization | Vertically linear |
Beamwidth | Azimuth/Elevation: 3 dB @ 1.4° |
Backup Frequency | US/CA: U-NII-1 to U-NII-3 (5150–5850 MHz) Worldwide: 5150–5875 MHz |
Backup Bandwidth | 20, 40, 80 MHz |
Backup Modulation | BPSK, QPSK, 16QAM, 64QAM, 256QAM (various coding rates) |
Backup Antenna Gain | 26 dBi |
Backup Beamwidth | Azimuth/Elevation: 3 dB @ 5° |
Cross-Pol Isolation | 14 dB |
Dimensions | 779 × 664 × 383 mm (30.7 × 26.1 × 15.1") |
Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
Enclosure Material | UV-stabilized polycarbonate, steel |
Mount Material | Galvanized steel |
Mounting | Precision alignment kit (included) |
Pole Compatibility | Ø40–80 mm (Ø1.5–3.15") |
Wind Loading | 422 N @ 200 km/h (94.86 lbf @ 125 mph) |
Operating Temperature | -40 to 55°C (-40 to 131°F) |
Operating Humidity | 5 to 95% noncondensing |
Weatherproofing | IPX6 |
Status LEDs | Power, Ethernet, GPS, Link (5 GHz & 60 GHz) |
Management Platform | UISP Web (v1.4.3+) UISP iOS (v2.20+) UISP Android (v2.21.5+) |
Services | UISP, ping watchdog, NTP client, system log |
Utilities | Antenna alignment, discovery, ping, trace route, speed test |
Certifications | FCC, IC, CE |
NDAA Compliant | ✓ |
