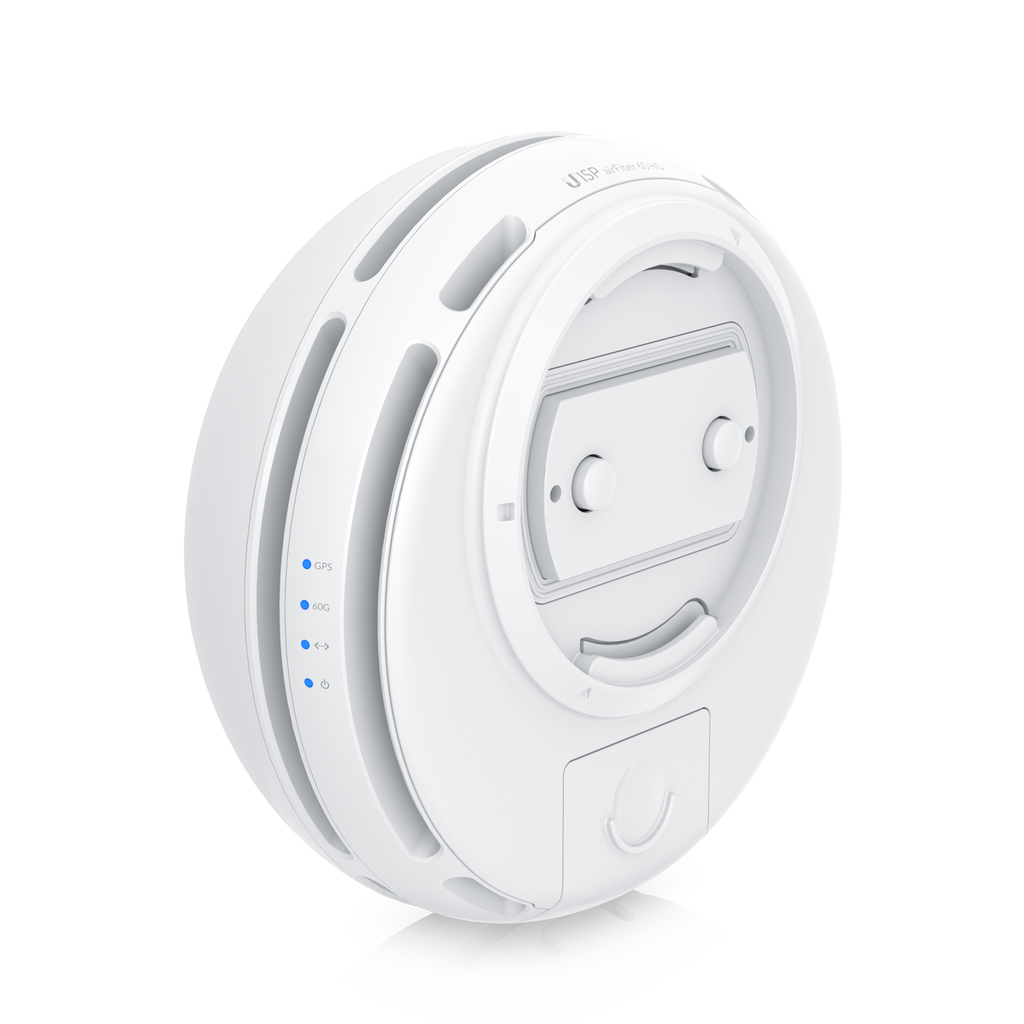

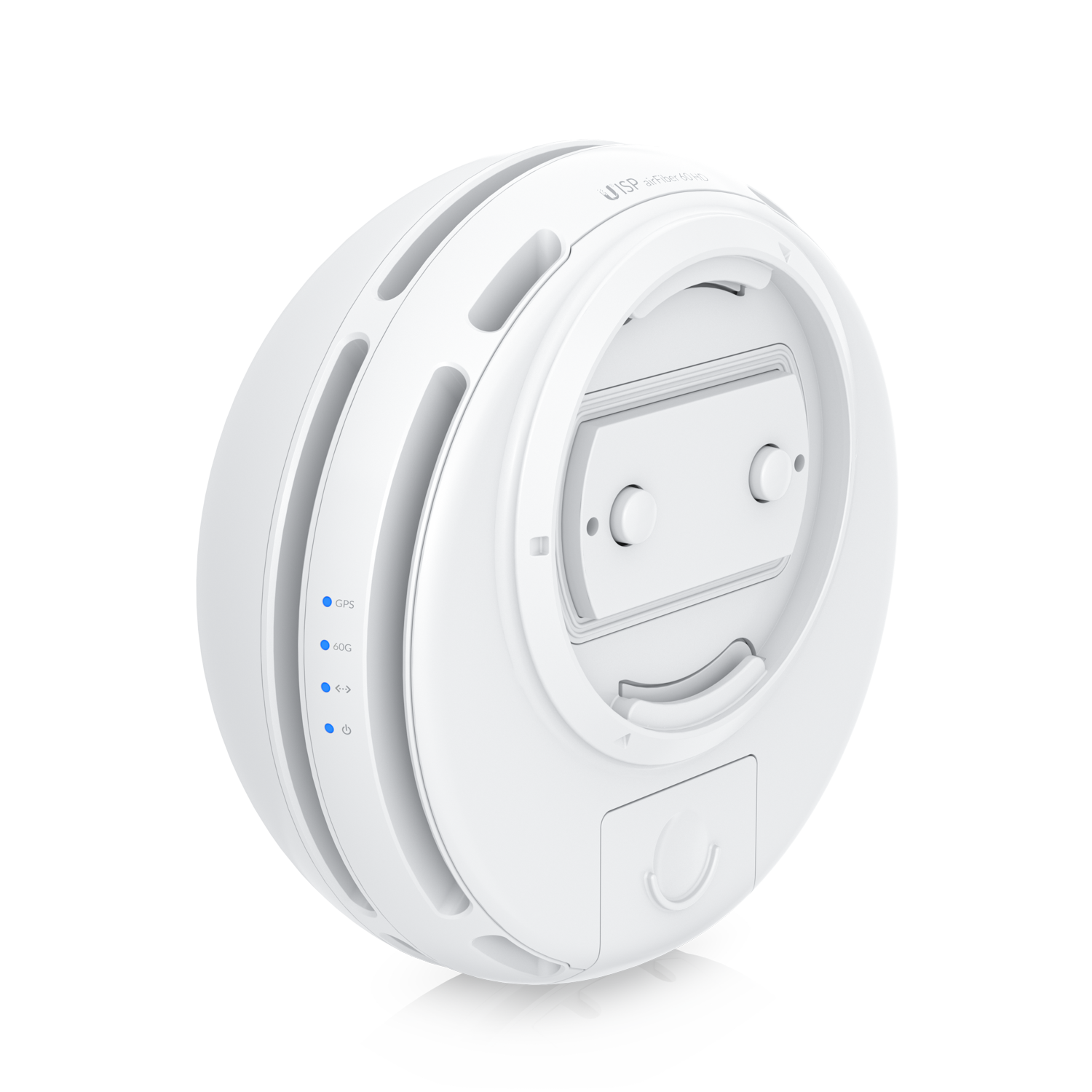

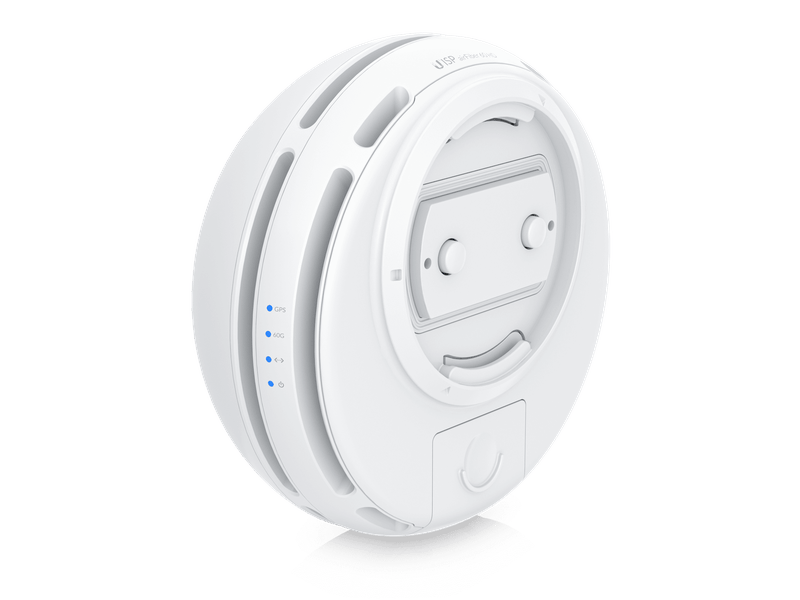

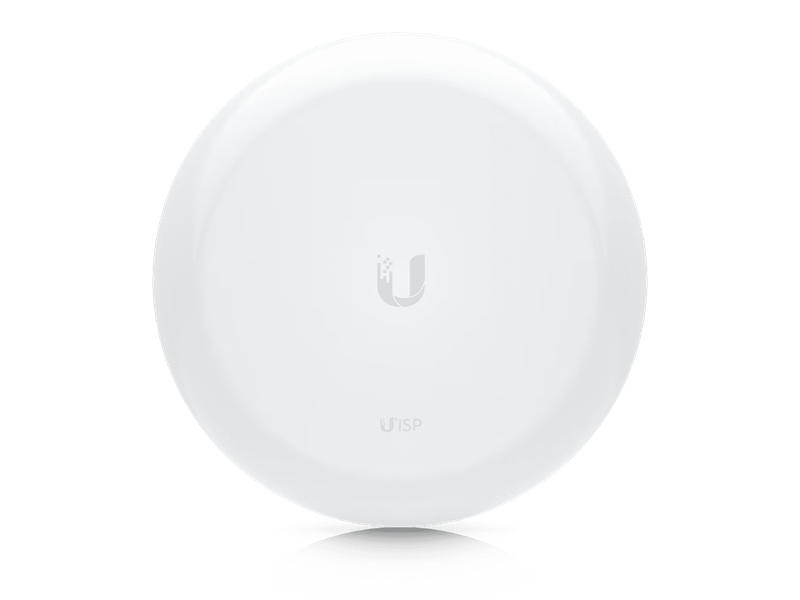

airFiber 60 HD
AF60-HD
Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
airFiber 60 HD
AF60-HD
Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
| AF60-HD Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Ø189 × 89 mm (Ø7.4 × 3.5") |
| Weight | 1.8 kg (3.9 lb) without mount / 2.95 kg (6.5 lb) with mount |
| Enclosure Material | Aluminum alloy, UV-stabilized plastic |
| Mount Material | Stainless steel (SUS304) |
| Mount Type | 60G precision alignment pole mount (included) |
| Wind Loading | 64 N @ 200 km/h (14.39 lbf @ 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex® A72 @ 1.6 GHz |
| Memory | 2 GB DDR4 |

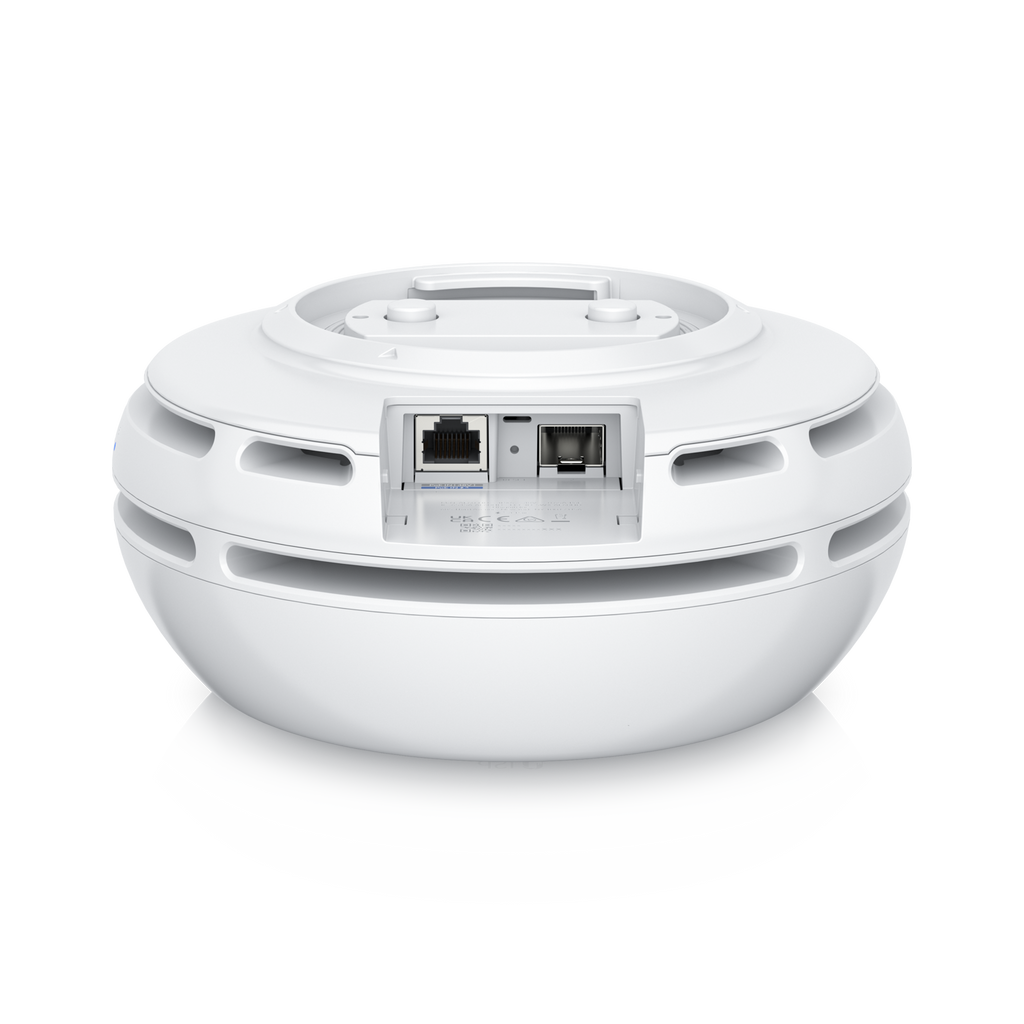

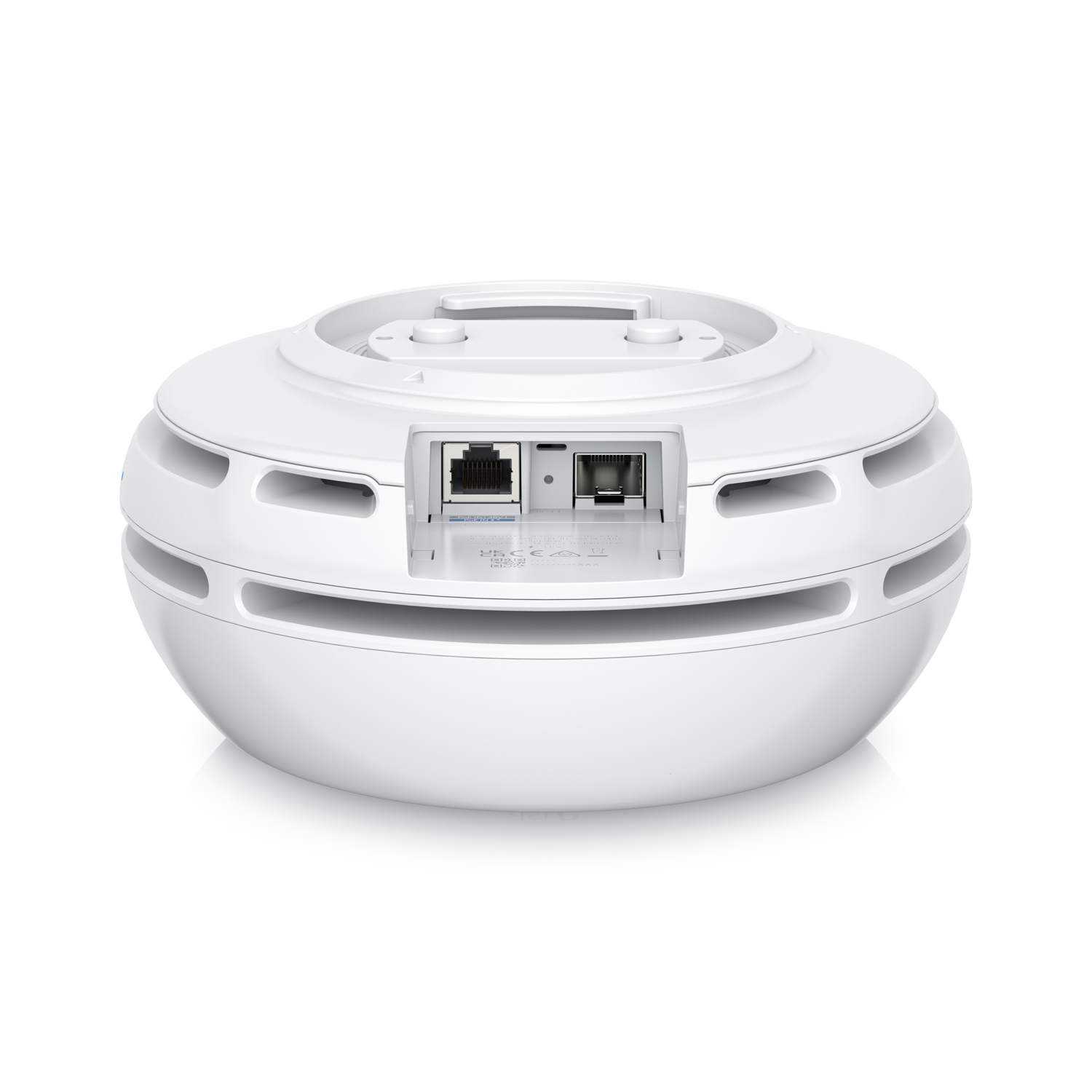

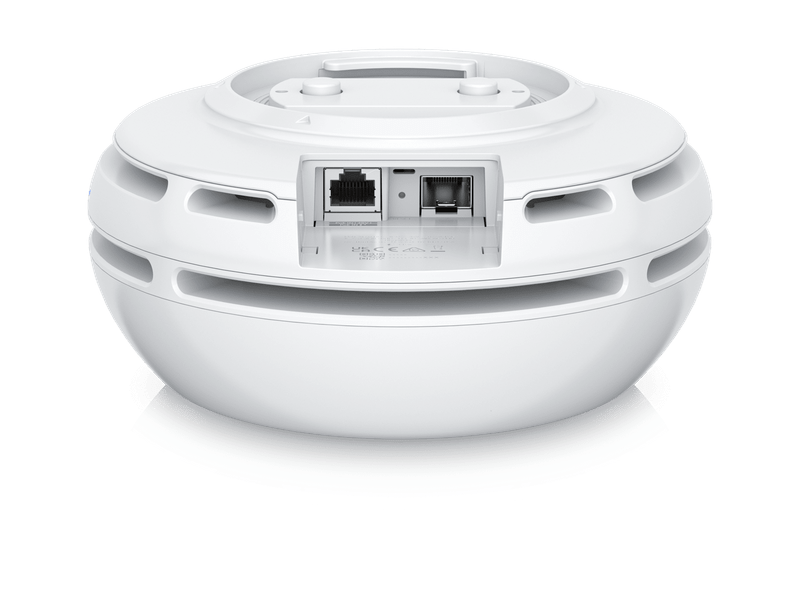

| Networking Interfaces | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| RF Connections | Internal |
| GPS | ✓ |
| Button | Factory reset |
| Power | |
| Power Method | Passive PoE 4-pair (1,2+; 3,6− and 4,5+; 7,8−) Passive PoE 2-pair (4,5+; 7,8−) for 44–54V DC only |
| Power Supply | 48V DC, 0.65A Gigabit PoE adapter (included) |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Max Power Consumption | 29.31W |
| Environmental | |
| Operating Temperature | -40 to 55°C (-40 to 131°F) |
| Operating Humidity | 5 to 95% noncondensing |
| RF & Performance | |
| Operating Frequency | 57–66 GHz (region-dependent) |
| Channel Bandwidth | 2160 MHz / 4320 MHz (with channel bonding) |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz *Depends on bandwidth and region |
| Beamwidth | Azimuth: 3° / Elevation: 3° |
| Polarization | Vertically linear |
| Max Throughput | 3.8 Gbps / 6 Gbps (with channel bonding) |
| Max Range | 2 km |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink Ratio | 50/50 |
| Software & Management | |
| Operating Mode | PtP only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Utilities | Beamform info, discovery utility, ping, traceroute, speed test |
| Management Interface | Bluetooth (UISP app), Web UI |
| Minimum Software Requirements | Modern web browser / iOS or Android smartphone |

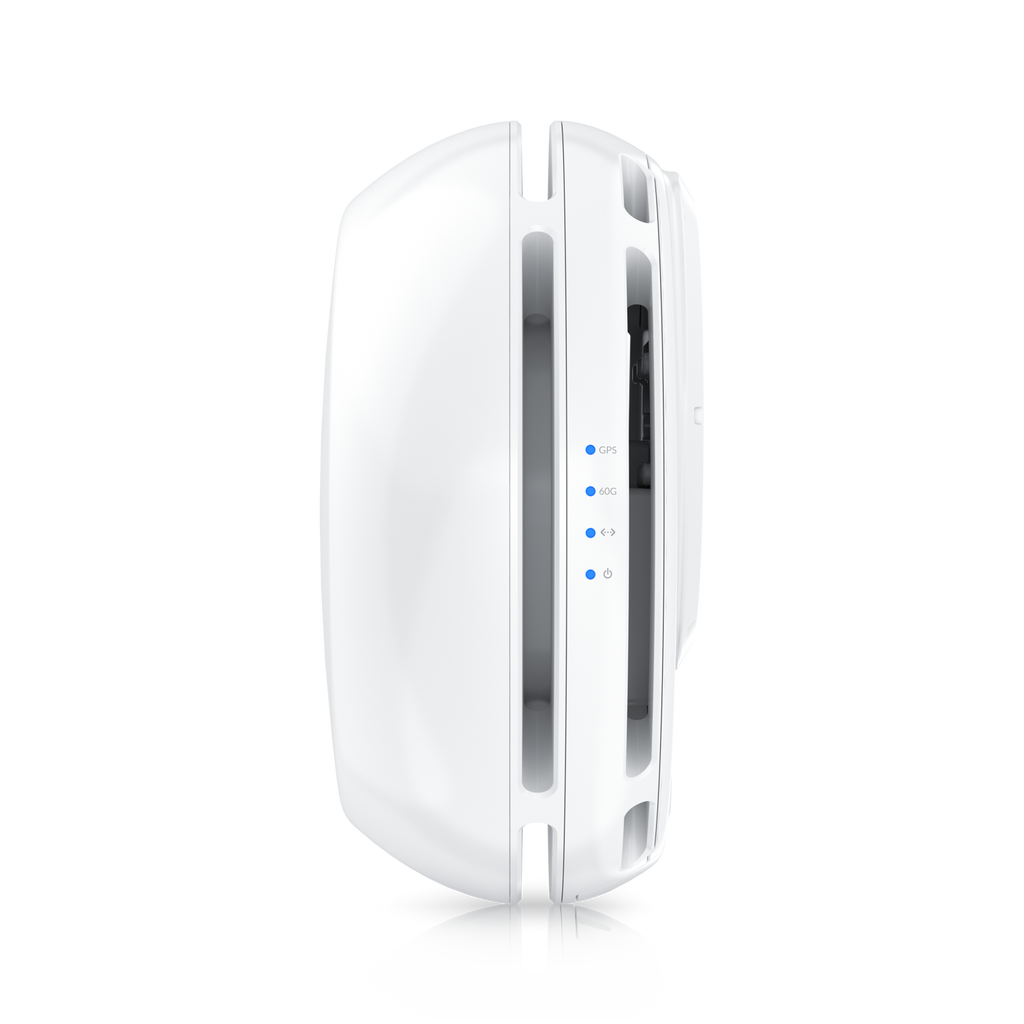

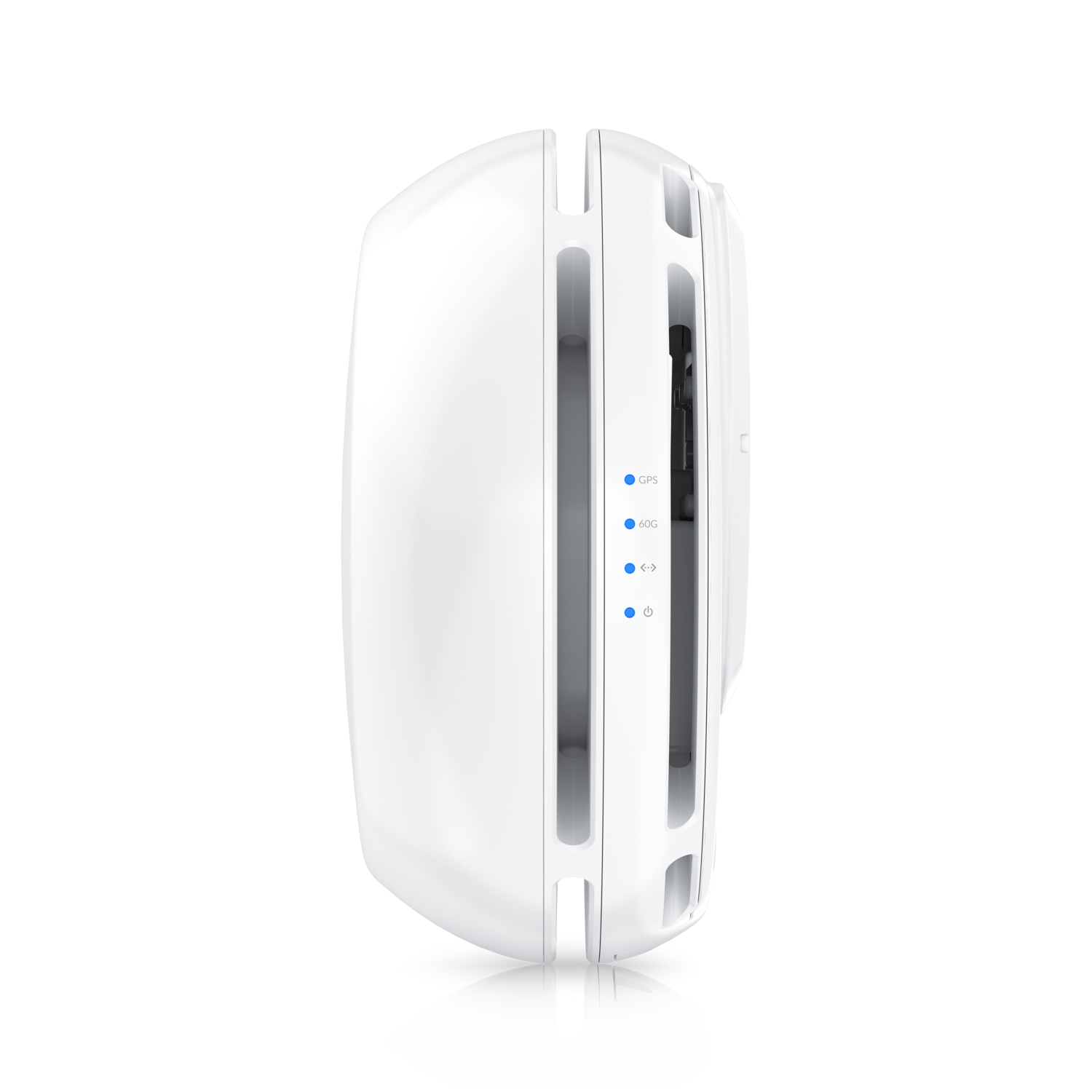

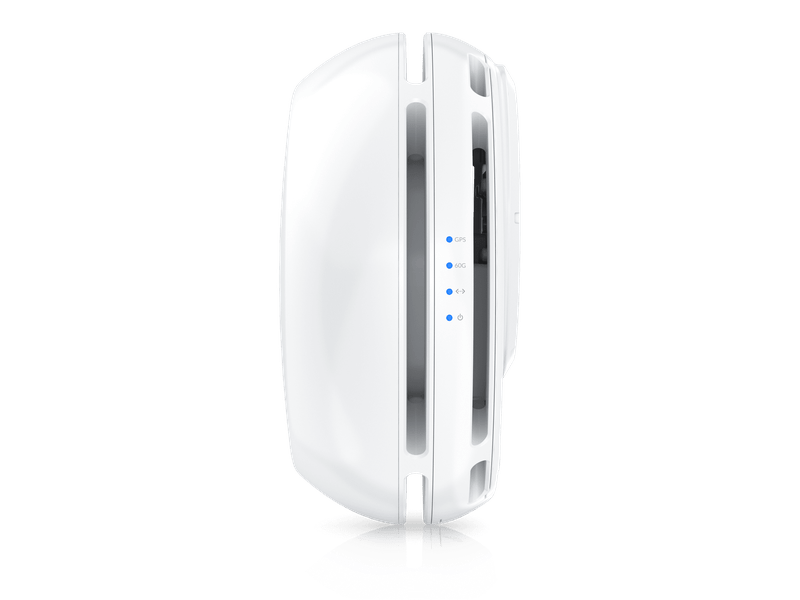

| LED Indicators | |
| Power | White (not connected), Blue (connected to UISP) |
| Ethernet | Flashing blue: activity |
| GPS | Blue: receiving ≥4 satellite signals |
| 60G | Blue: active connection |
| Compliance | |
| Certifications | FCC, IC, CE, Terragraph |
| NDAA Compliant | ✓ |
