Description
Overview

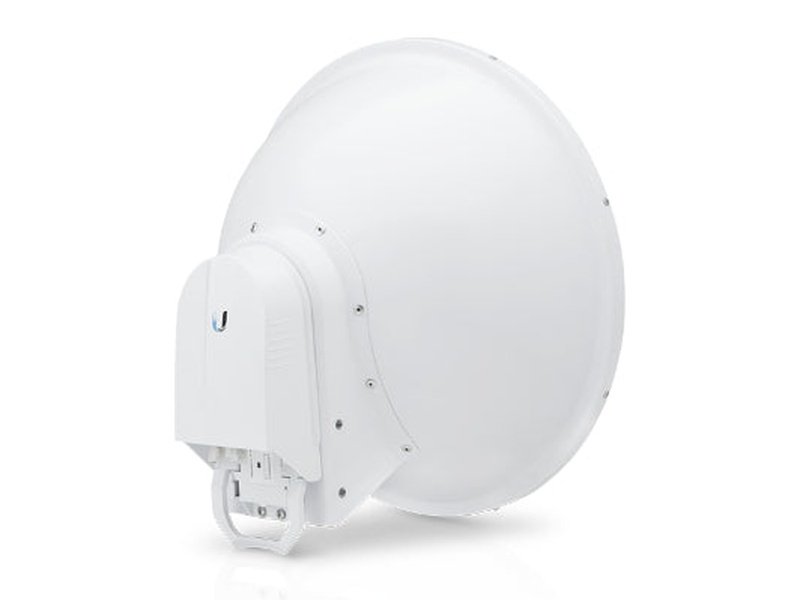

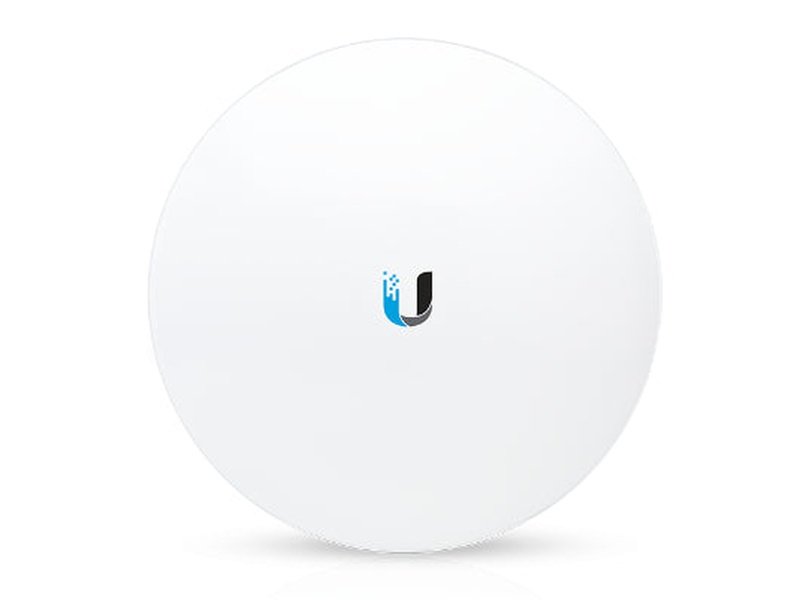

5 GHz, 23 dBi antenna ideal for long range Point-to-Point (PtP) links.
- 2x2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Secure pole-mounting
- Compatible with airFiber X radios
Specifications
5 GHz, 23 dBi antenna ideal for long range Point-to-Point (PtP) links.
- 2x2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Secure pole-mounting
- Compatible with airFiber X radios
Specifications
Dimensions | 378 x 378 x 290 mm (14.88 x 14.88 x 11.42") |
Weight | With Mount: 3.4 kg (7.5 lb) |
Frequency | 5.1 - 5.9 GHz |
Gain | 23 dBi |
Max. VSWR | 1.5:1 |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 190 N @ 200 km/h (43 lbf @ 125 mph) |
Polarization | Dual Linear |
F/B Ratio | 33 dB |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5") Poles |
