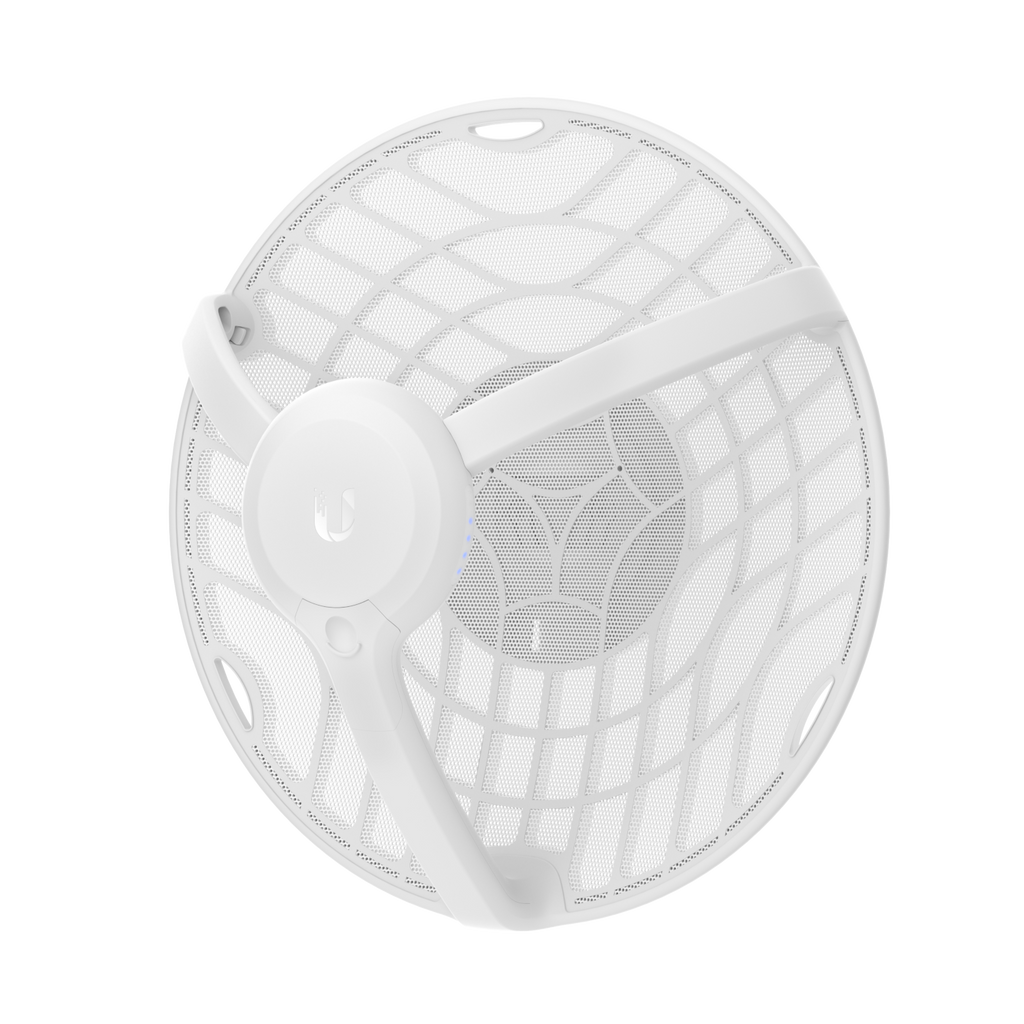

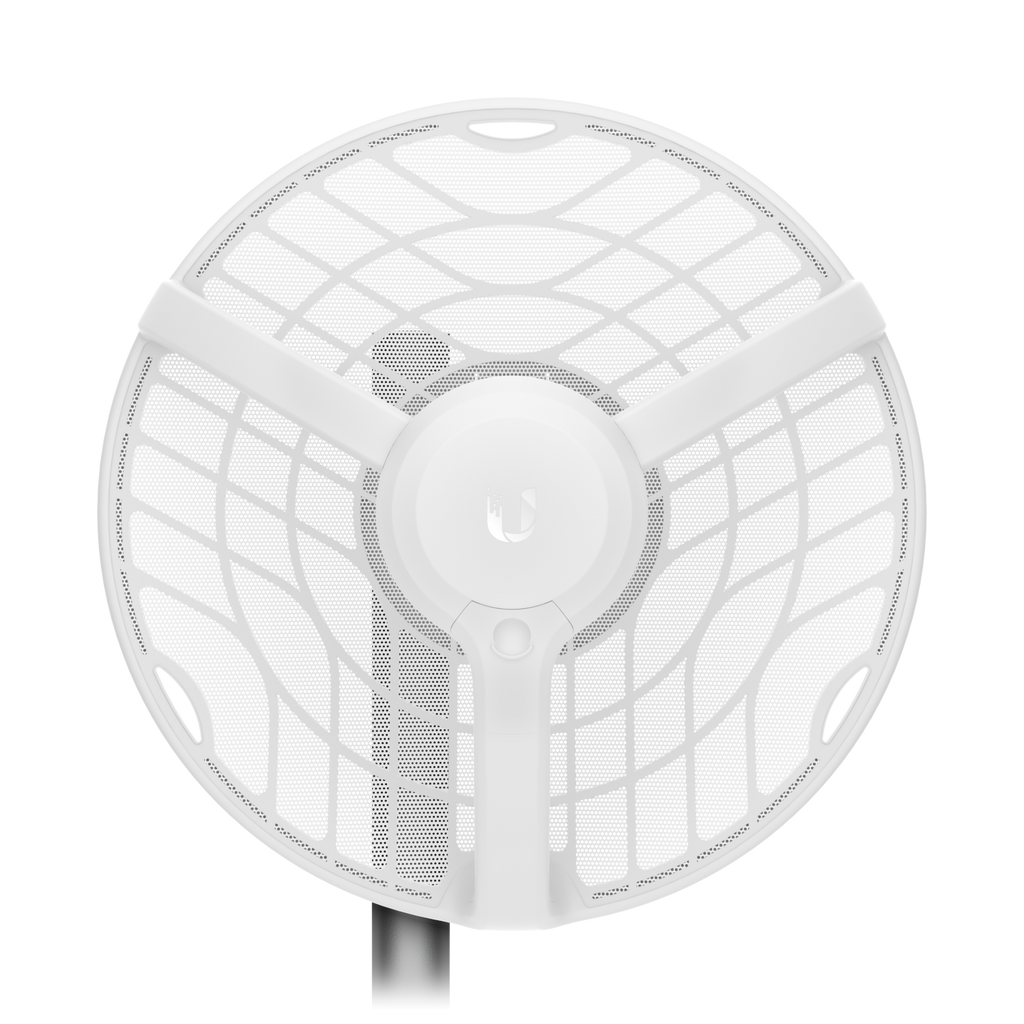

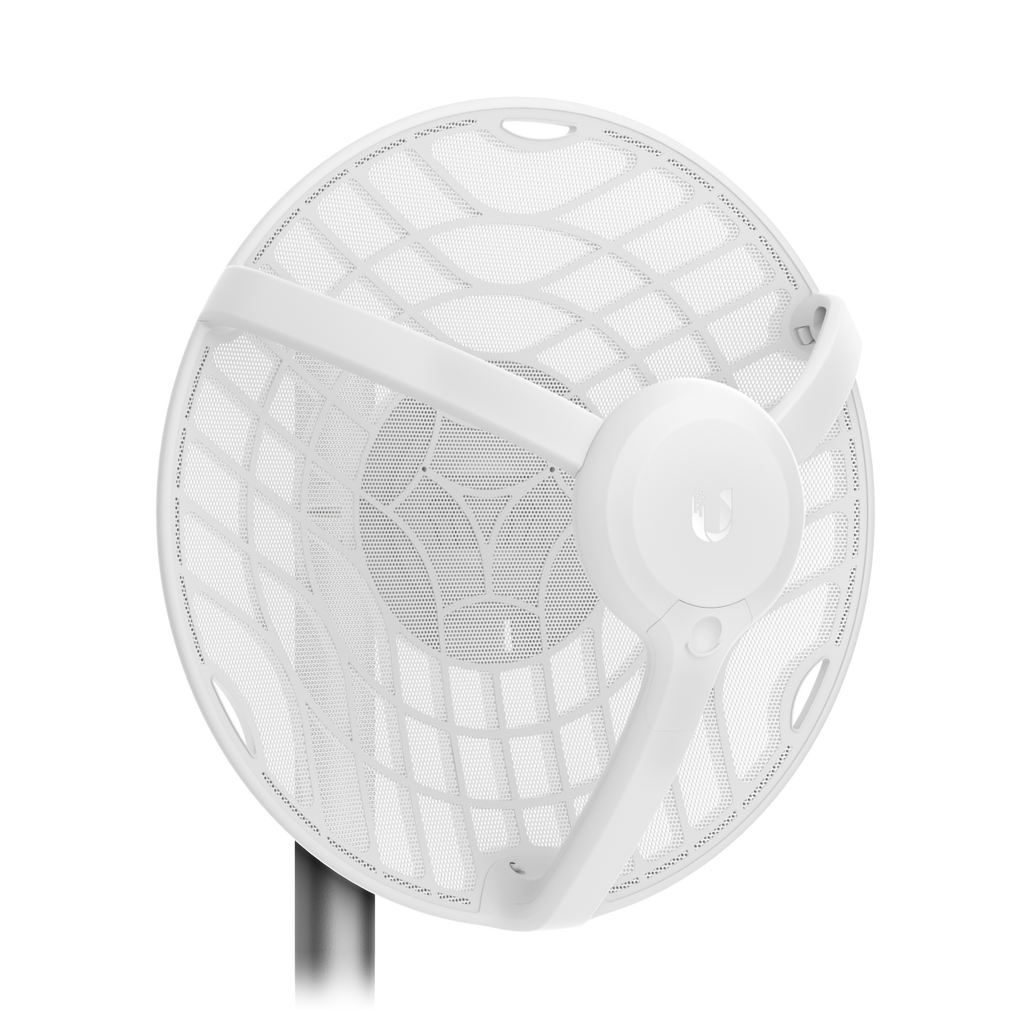

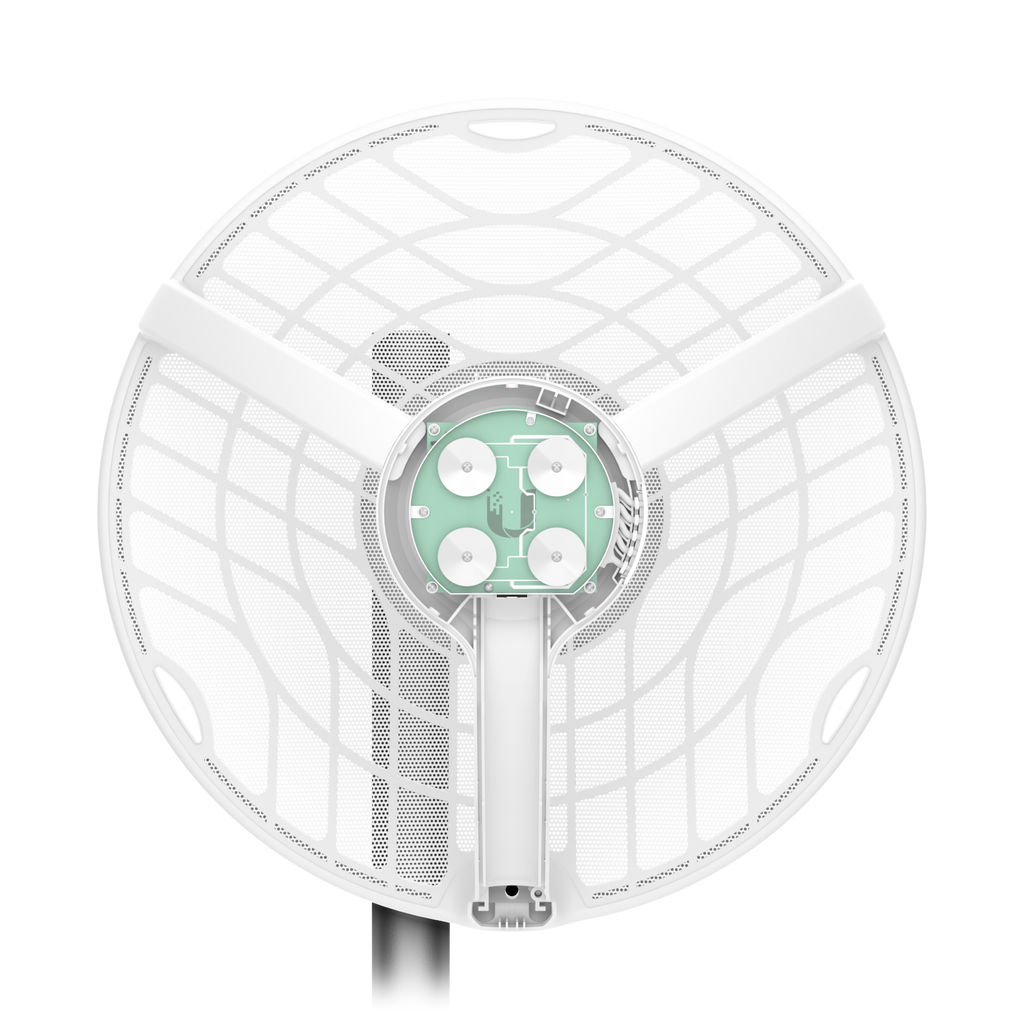

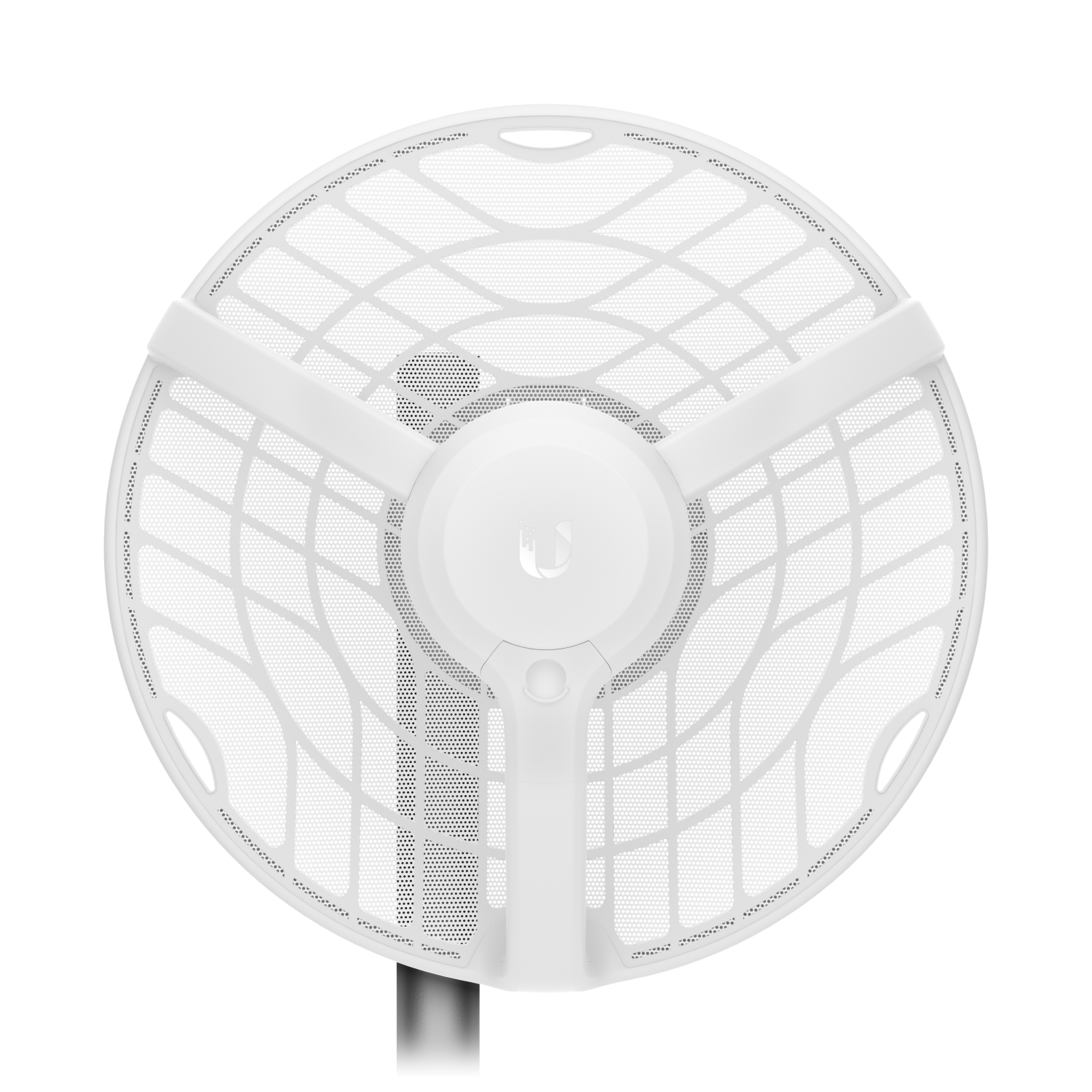

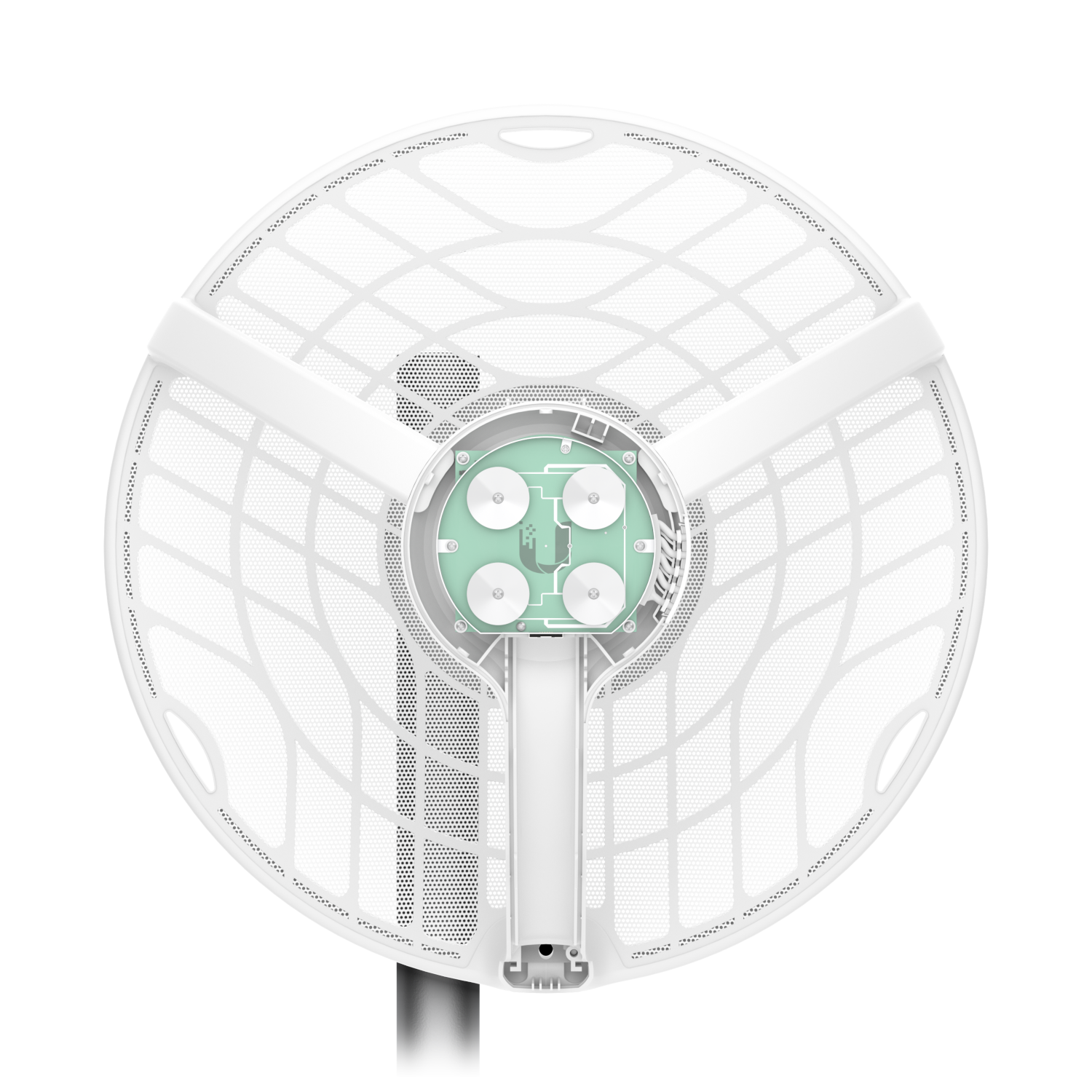

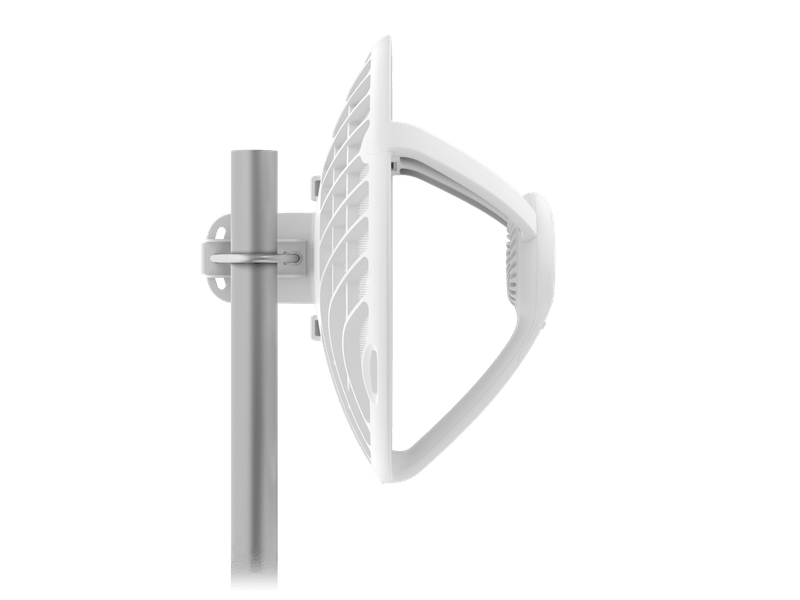

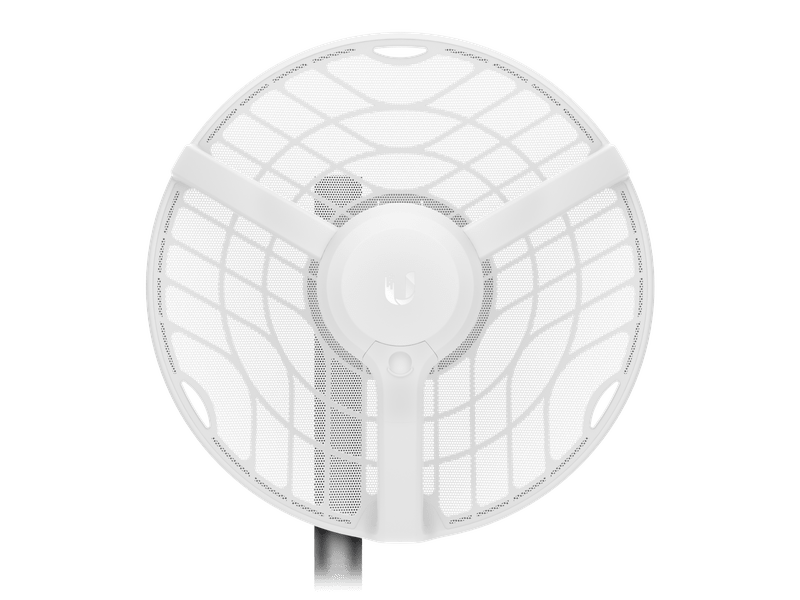

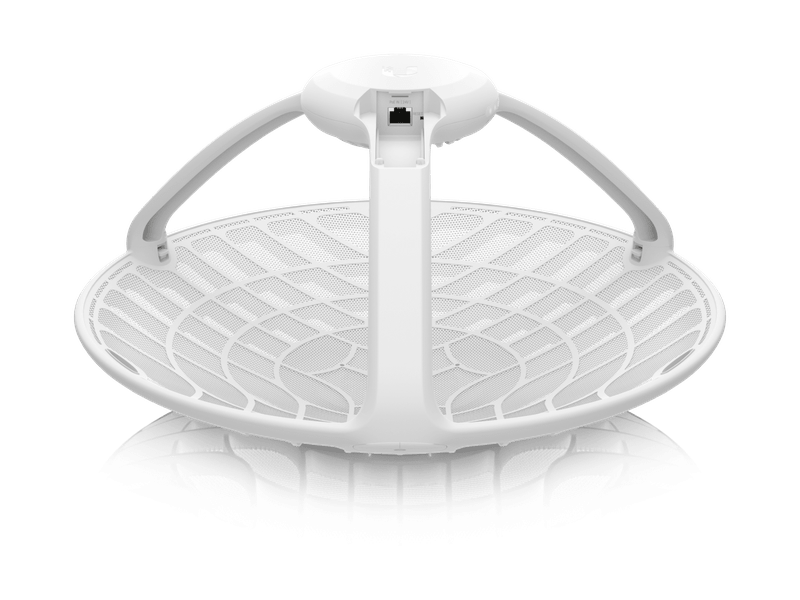

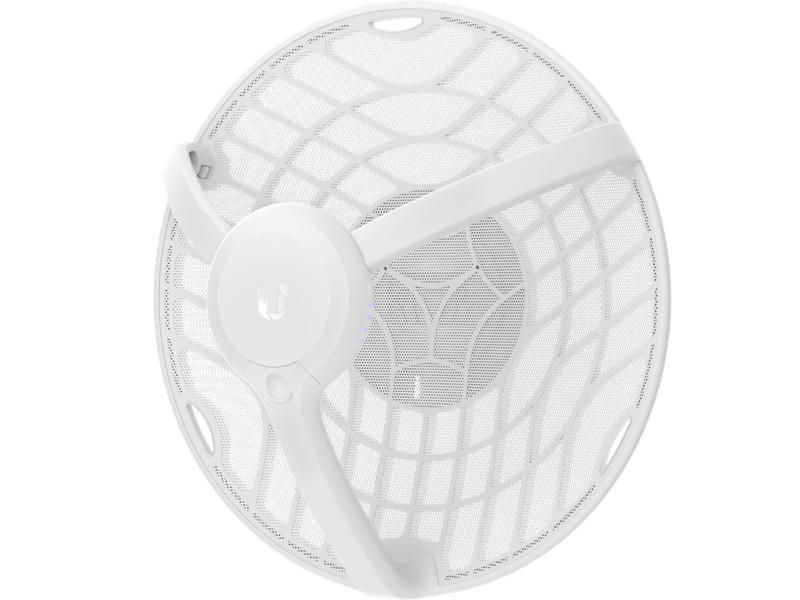

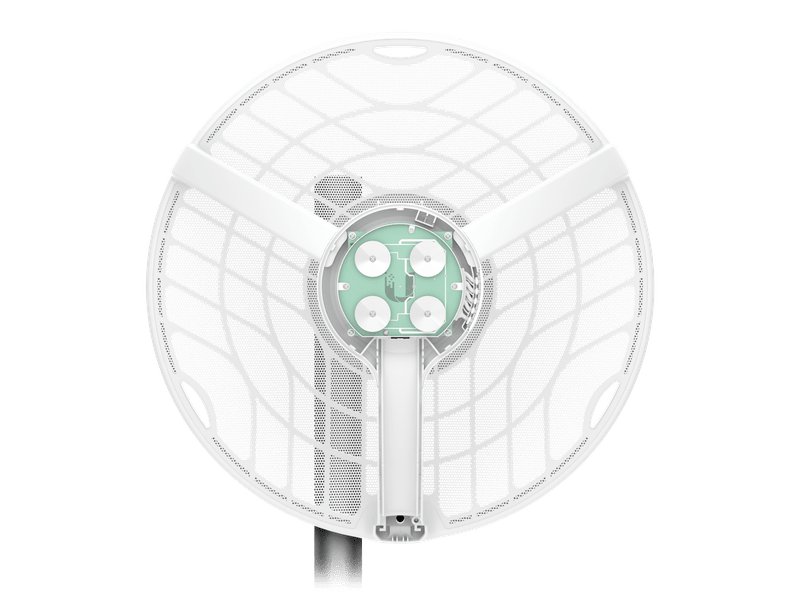

airMAX GigaBeam Long-Range
GBE-LR
High-gain 60 GHz/5 GHz radio with 1+ Gbps throughput and up to 2 km range.
airMAX GigaBeam Long-Range
GBE-LR
High-gain 60 GHz/5 GHz radio with 1+ Gbps throughput and up to 2 km range.
| GBE-LR Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 415 × 415 × 303 mm (16.34 × 16.34 × 11.93") |
| Weight | 1.4 kg (3.09 lb) without mount / 1.8 kg (3.97 lb) with mount |
| Enclosure Material | Aluminum, UV-stabilized polycarbonate |

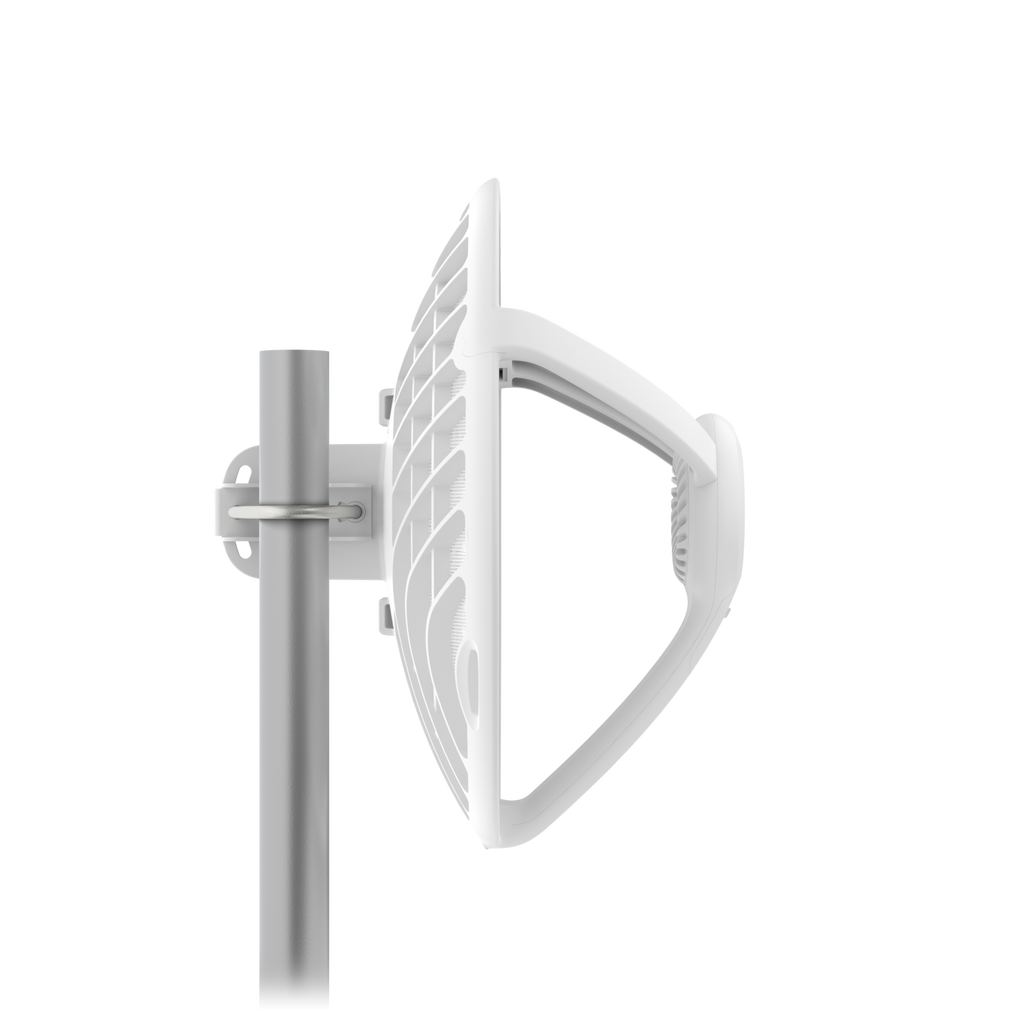

| Mounting | Pole mount (included) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A7 |
| Memory | 256 MB DDR3 |

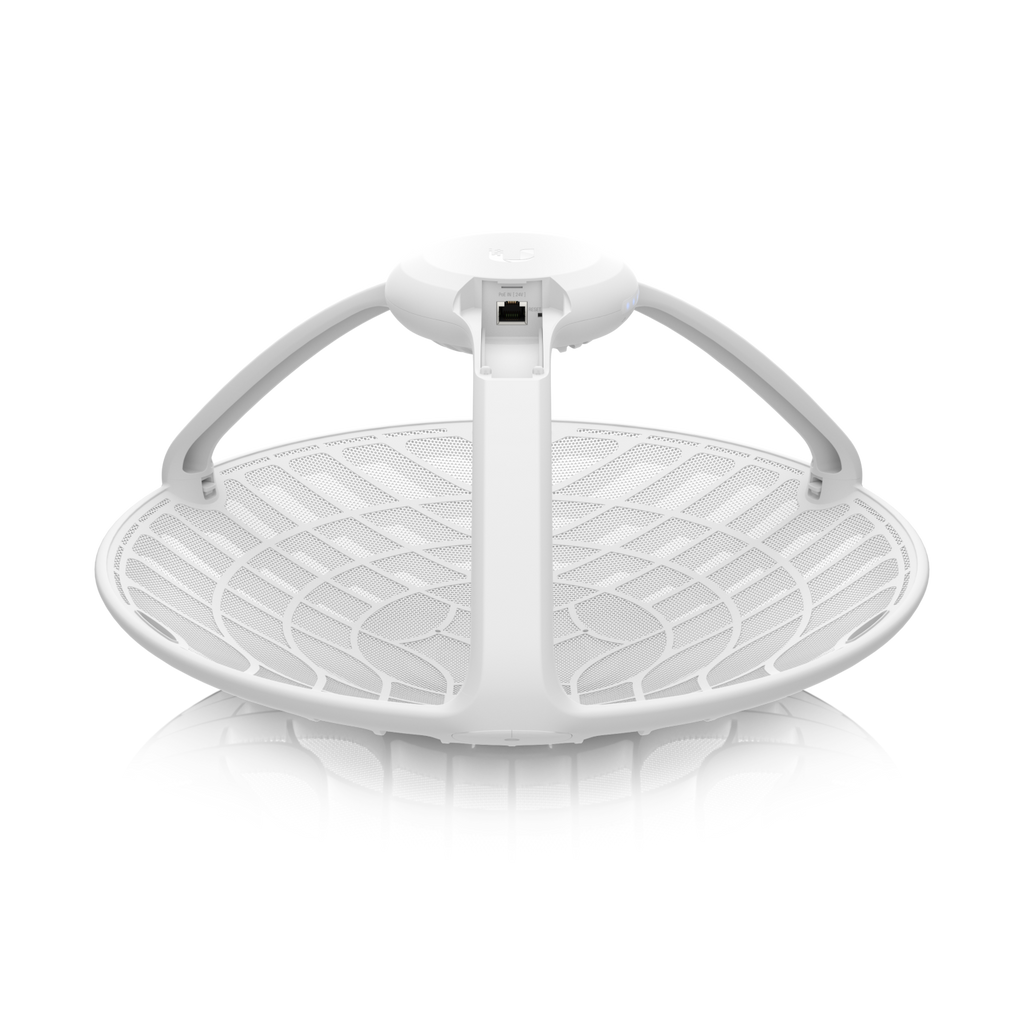

| Networking Interface | (1) Gigabit Ethernet RJ45 port |
| RF Connections | Internal |
| Power | |
| Power Method | Passive PoE 2-pairs (4,5+; 7,8−) |
| Power Supply | 24V DC, 0.5A Gigabit PoE adapter (included) |
| Voltage Range | 22–27V DC |
| Max Power Consumption | 11W |
| ESD/EMP Protection | ±24kV air/contact |
| Environmental | |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| RF & Performance | |
| Operating Frequencies | 60 GHz: 57,000–66,000 MHz 5 GHz: 5150–5850 MHz (region-dependent) |
| Channel Bandwidth | 60 GHz: 2160 MHz 5 GHz: 20/40/80 MHz |
| Max Conducted TX Power | 25 dBm (combined) |
| Antenna Gain | 60 GHz: 38 dBi 5 GHz: 11 dBi |
| Max Throughput | 1+ Gbps |
| Max Range | Up to 2 km |
| Encryption | WPA2 AES only |
| Software & Management | |
| Operating Mode | Point-to-Point (PtP) |
| Ubiquiti Features | Integrated 60 GHz and 5 GHz radios, discovery protocol |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Tools | Antenna alignment tool, discovery utility, traceroute, speed test |
| Management Interface | UISP application (web/mobile) |
| Minimum Software Requirements | Modern web browser / iOS or Android smartphone |
| LED Indicators | |
| Power | Flashing white: bootup White: ready, not connected Flashing blue: ready, cannot connect Blue: ready and connected |
| Ethernet | Flashing blue: traffic detected |
| 5G / 60G | Blue: active connection |
| Compliance | |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
