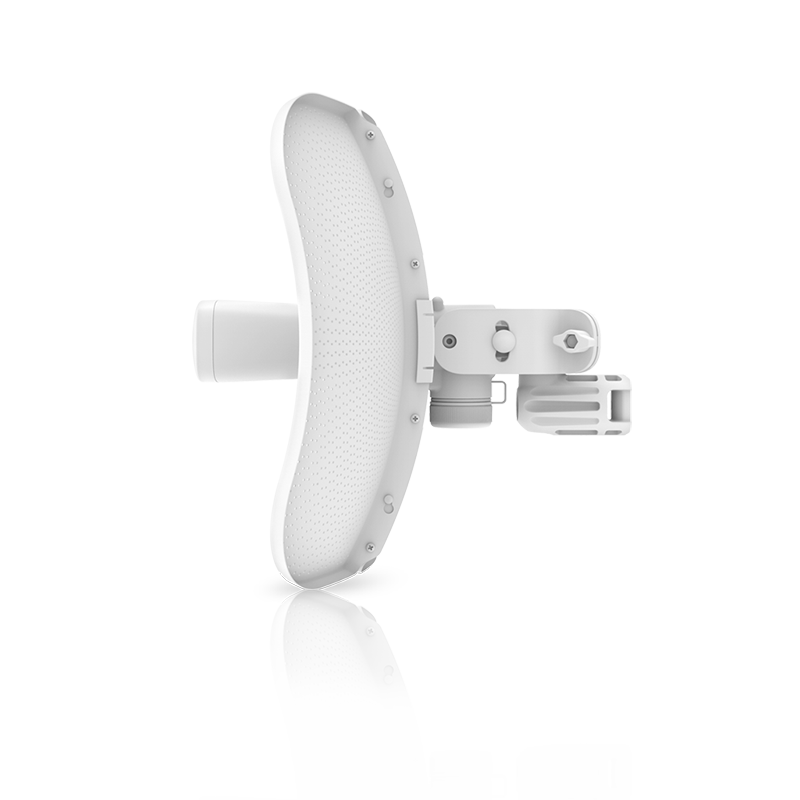

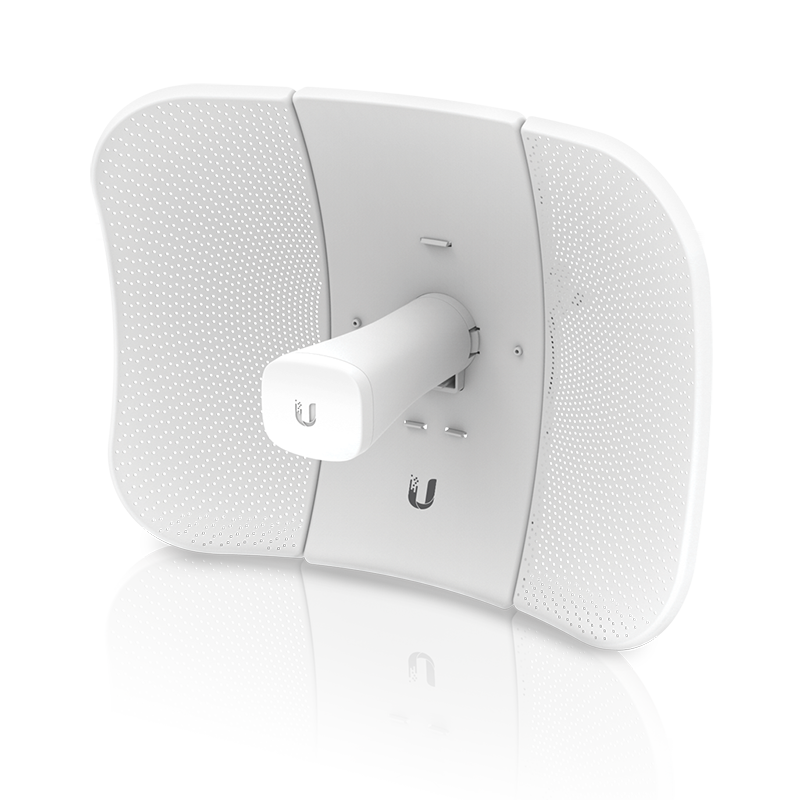

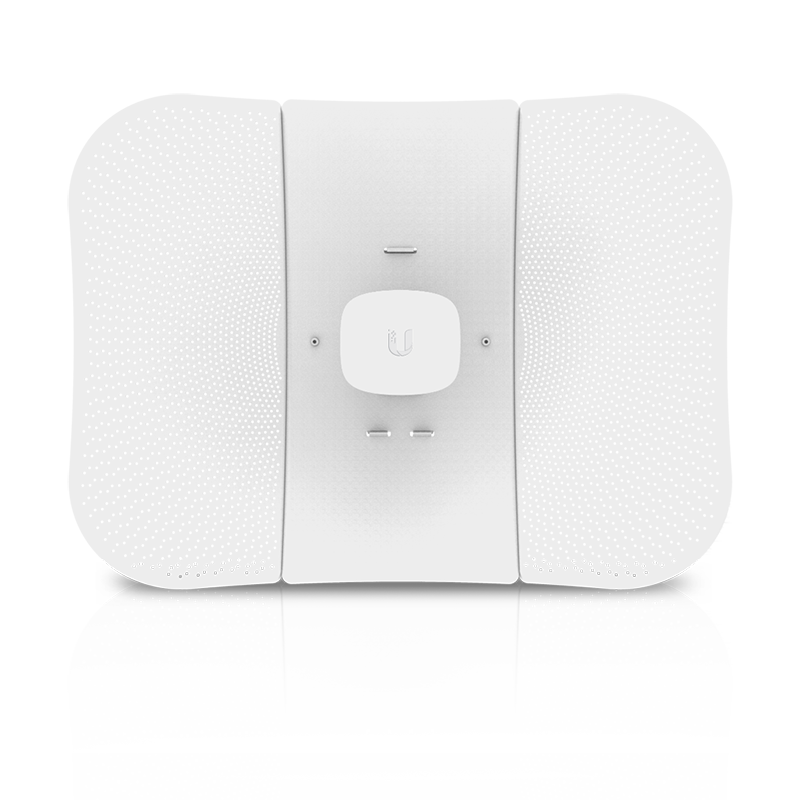

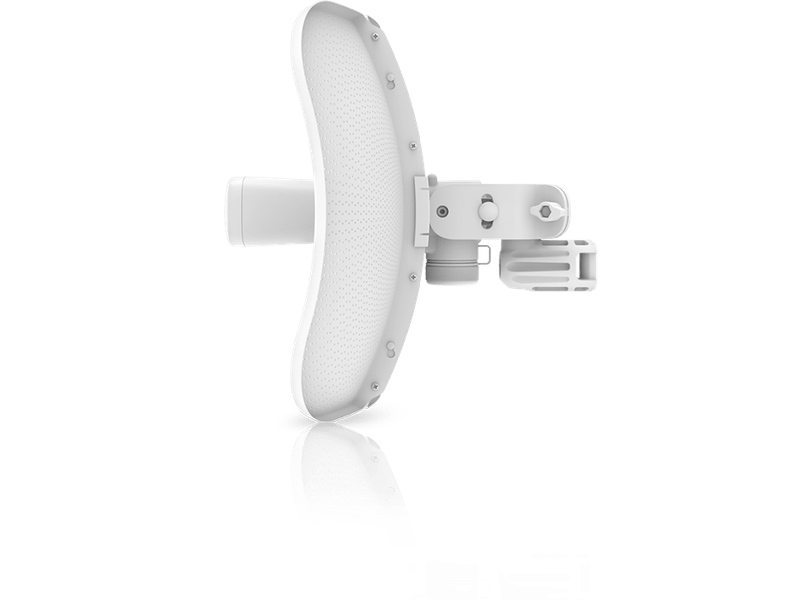

airMAX LiteBeam 5AC
LBE-5AC-Gen2
Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup.
airMAX LiteBeam 5AC
LBE-5AC-Gen2
Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup.
| LBE-5AC-GEN2 Specifications | |
|---|---|
| Product Type | airMAX ac CPE with Dedicated Management Radio |
| Application | Point-to-Point and Point-to-Multipoint wireless links |
| Max Throughput | 450+ Mbps TCP/IP |
| Antenna Gain | 23 dBi |
| Wireless | |
| Operating Frequency | Worldwide: 5150–5875 MHz USA: U-NII-1, U-NII-2A, U-NII-2C, U-NII-3 |
| Management Radio | Worldwide: 2412–2472 MHz US/CA: 2412–2462 MHz |
| Channel Sizes | PtP: 10/20/30/40/50/60/80 MHz PtMP: 10/20/30/40 MHz |
| Max TX Power | 25 dBm |
| Polarization | Dual linear |
| Interfaces | |
| Networking | (1) Gigabit Ethernet RJ45 port |
| Power | |
| Power Method | Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.3A Gigabit PoE adapter (included) |
| Supported Voltage Range | 22–27V DC |
| Max Power Consumption | 7W |
| Mechanical | |
| Dimensions | 358 × 271.95 × 272.5 mm (14.1 × 10.7 × 10.7") |
| Weight | Without mount: 800 g (1.8 lb) With mount: 980 g (2.2 lb) |
| Enclosure Material | UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf) |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
