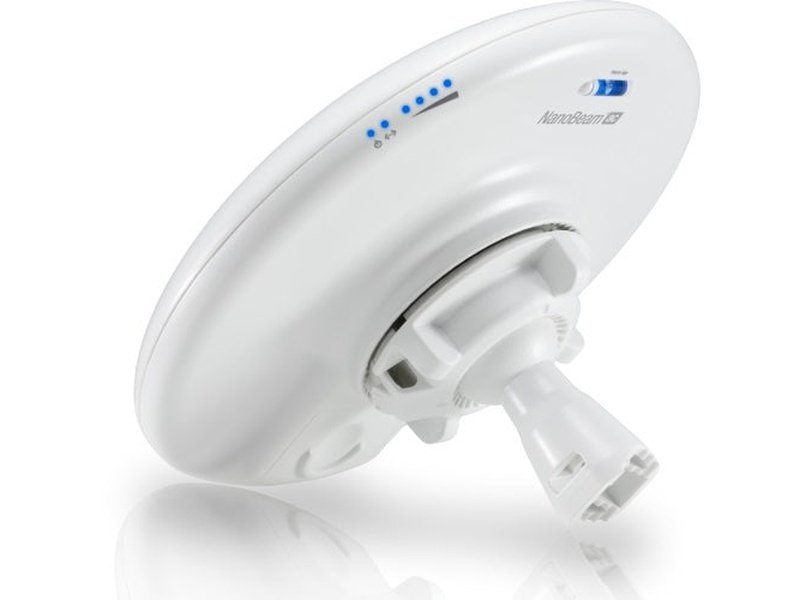

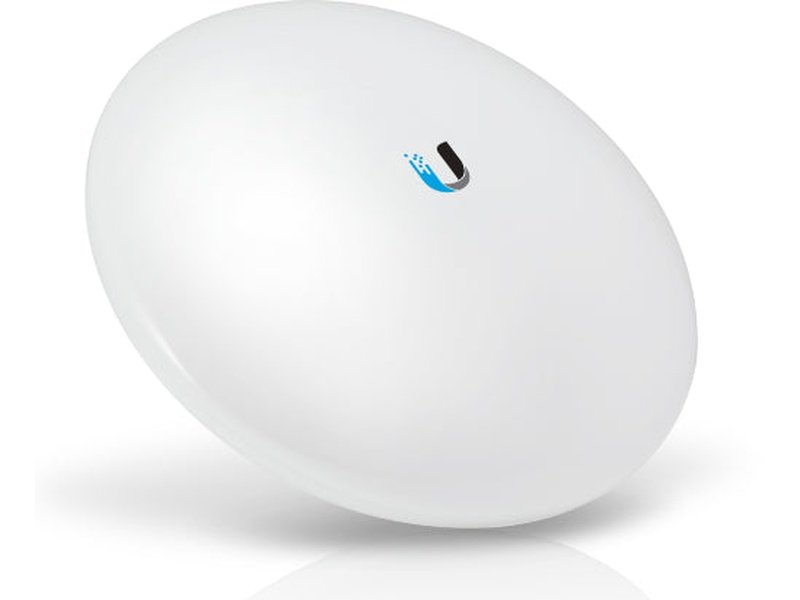

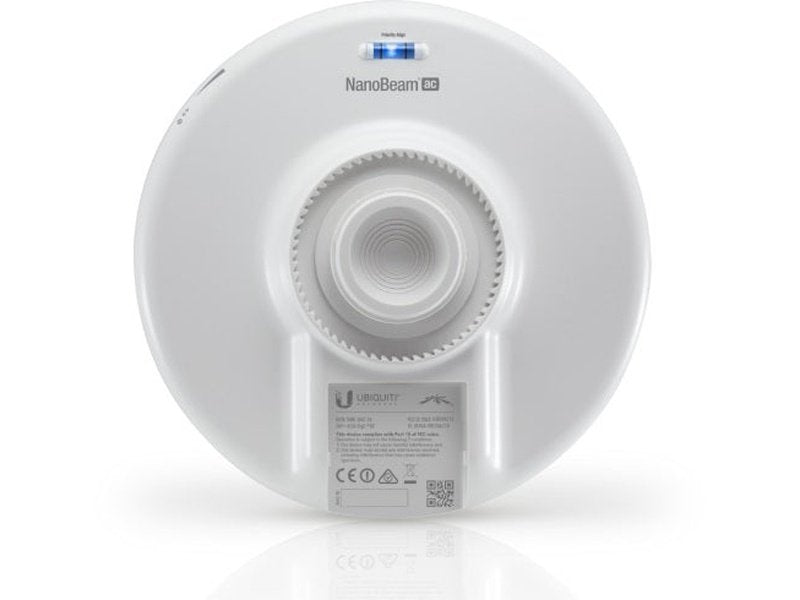

Ubiquiti airMAX Nanobeam AC Gen2

UbiquitiSKU: NBE-5AC-GEN2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$178.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.
- 5 GHz, 10+ km link range
- 450+ Mbps throughput
- Easy mounting
- Dedicated spectral analysis radio
- Dedicated WiFi management radio

Specifications

Mechanical
Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight 530 g (1.17 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wall mount (Not included)
Wind Loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Networking interface (2) GbE RJ45 ports
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8W
ESD/EMP protection Air/contact: ± 24kV
LEDs Power, Ethernet, (4) Signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 80° C (-40 to 176 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 19 dBi
Channel sizes
PtP Mode
PtPM Mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
