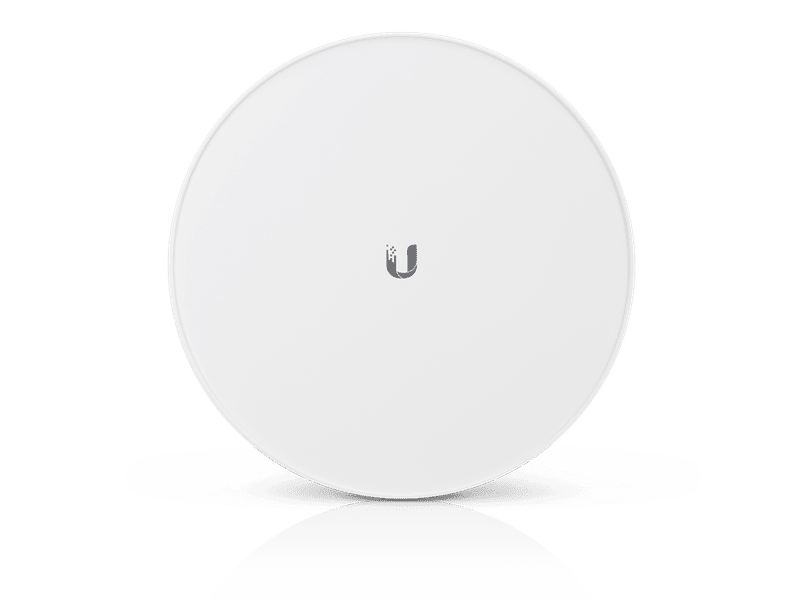

Ubiquiti Airmax PowerBeam 5AC-Gen2 5 GHz Point-to-Point (PtP) Bridge

UbiquitiSKU: PBE-5AC-ISO-Gen2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$239.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

- 5 GHz, 15+ km link range
- 450+ Mbps throughput
- Isolation antenna design rejects RF noise
- Dedicated spectral analysis radio
- Dedicated WiFi management radio
- Note. This product should be purchased in pairs in order to form links.

Specifications

Mechanical
Dimensions 420 x 420 x 230 mm (16.5 x 16.5 x 9.1")
Weight 2.2 kg (4.9 lbs)
Enclosure material UV-stabilized plastic, powder-coated SPCC
Mounting Pole mount kit (Included)
Wind loading 380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 20—27V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24 kV
LEDs Power, Ethernet, (4) signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC, RoHS
System
Gain 25 dBi
Channel sizes
PtP Mode
PtMP Mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Operating Frequency (MHz)
Worldwide 5150 - 5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
USA 2412 - 2462 MHz
