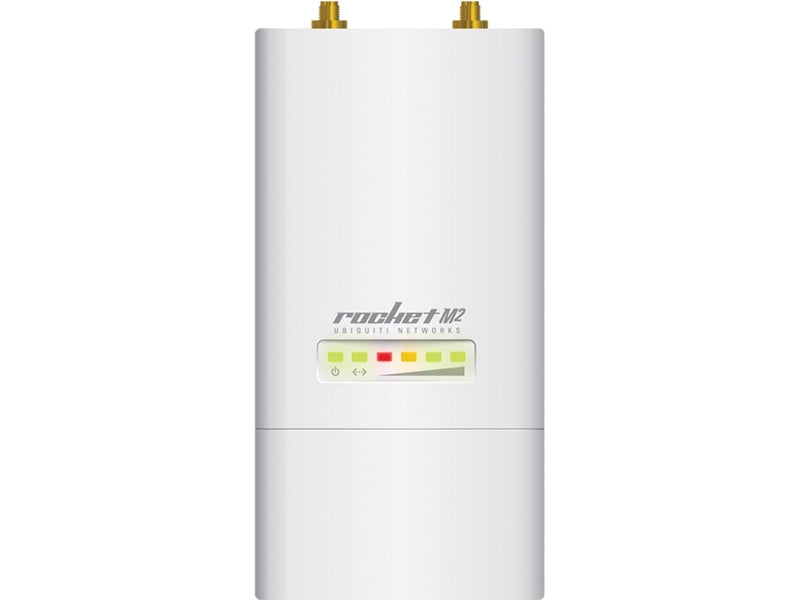

Ubiquiti airMAX Rocket M2 2.4Ghz 2x2 MIMO BaseStation,150+ Mbps Throughput, Plug-and-play Integration with airMAX Antennas
Ubiquiti airMAX Rocket M2 2.4Ghz 2x2 MIMO BaseStation,150+ Mbps Throughput, Plug-and-play Integration with airMAX Antennas
| ROCKETM2 Specifications | |
|---|---|
| Product Type | 2.4 GHz airMAX BaseStation Radio |
| Application | Point-to-Point and Point-to-Multipoint wireless links |
| Max Throughput | 150+ Mbps TCP/IP |
| Range | 50+ km |
| Wireless | |
| Frequency Range | 2.4 GHz (2412–2462 MHz) |
| Wireless Standard | 802.11b/g/n |
| Modulation | OFDM, QAM, BPSK |
| Channel Widths | 5/10/20/40 MHz |
| Max TX Power | 27 dBm |
| RX Sensitivity | −96 dBm @ MCS0 |
| Polarization | Dual linear |
| MIMO Configuration | 2×2 MIMO |
| Interfaces | |
| Ethernet Port | (1) 10/100 Mbps RJ45 |
| RF Connectors | (2) RP-SMA female (weatherproof) |
| Power | |
| Power Method | Passive PoE (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 1A PoE adapter (included) |
| Max Power Consumption | 6.5W |
| Mechanical | |
| Dimensions | 160 × 80 × 37 mm (6.3 × 3.1 × 1.5") |
| Weight | 250 g (8.8 oz) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Mounting | Universal Rocket mount (compatible with airMAX antennas) |
| Environmental | |
| Operating Temperature | −40 to 80°C (−40 to 176°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Air/Contact |
| Software Features | |
| Operating System | airOS |
| QoS | Intelligent QoS for voice/video prioritization |
| Protocol | airMAX TDMA |
| Security | WEP, WPA, WPA2 |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
