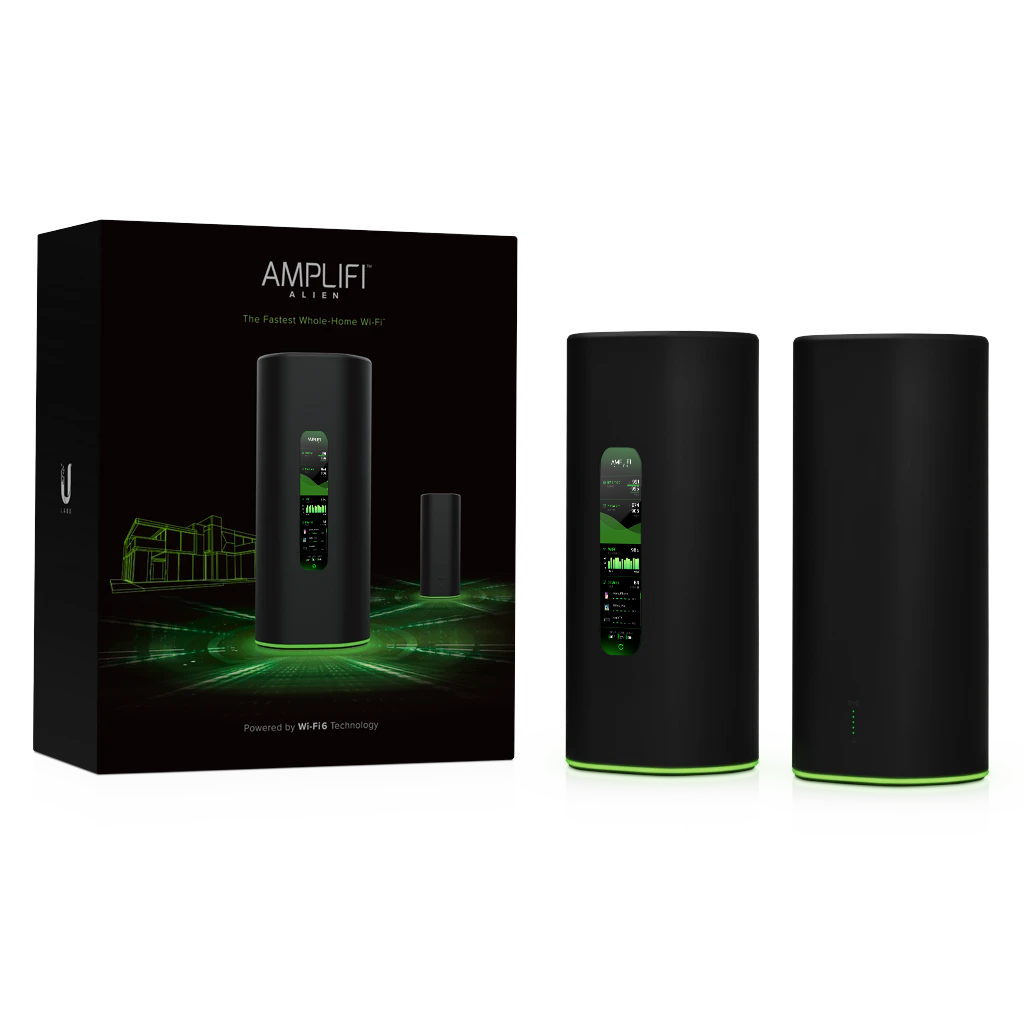

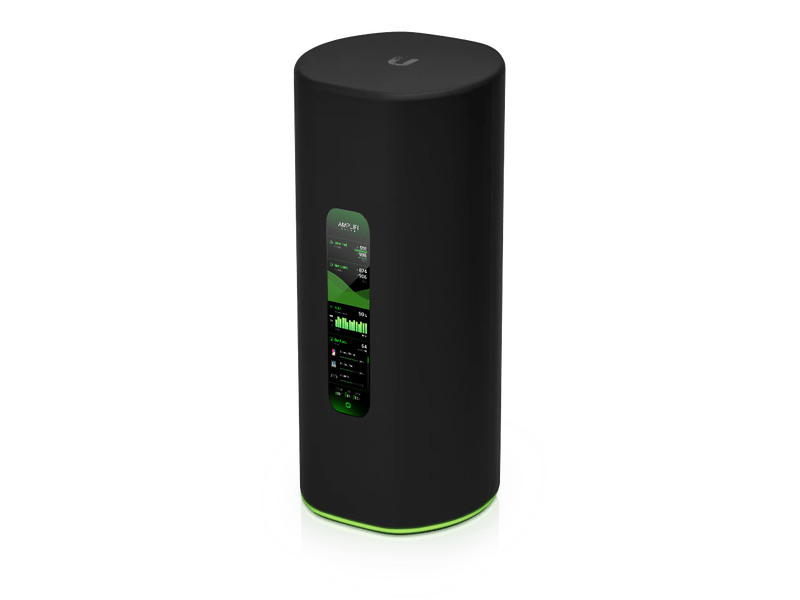

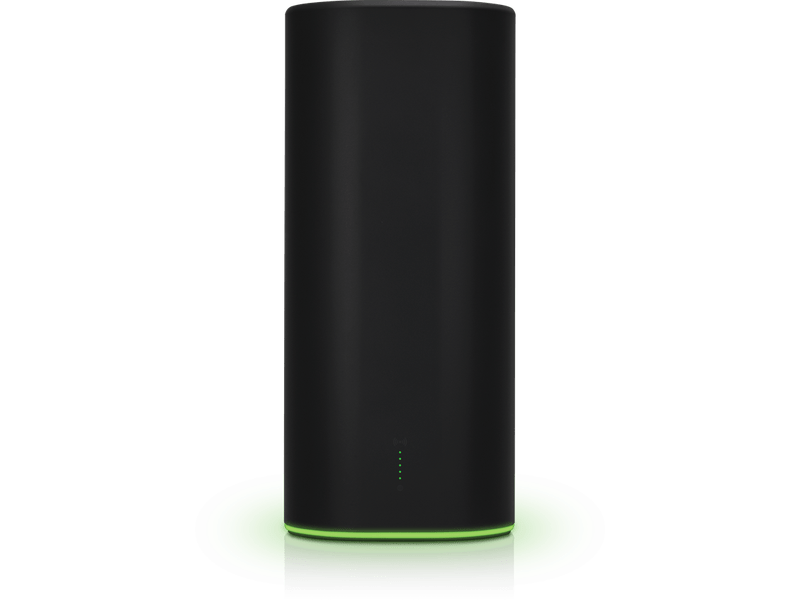

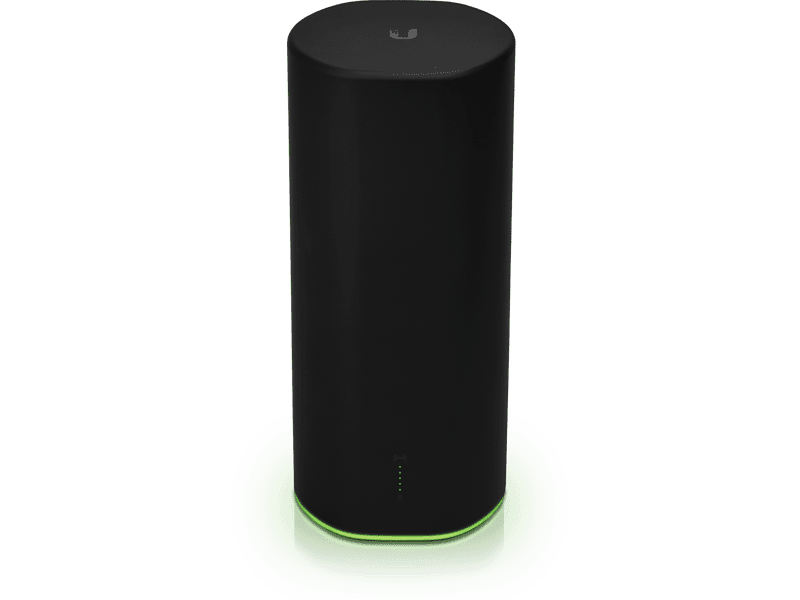

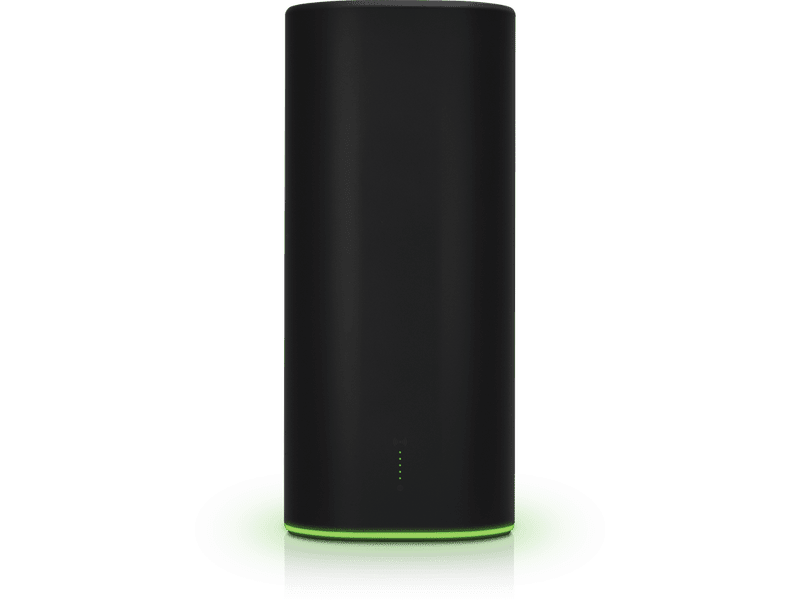

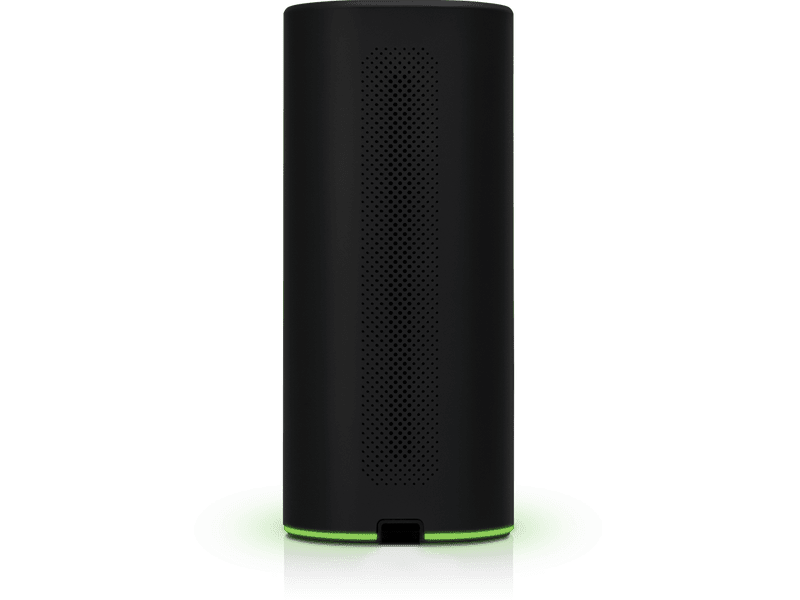

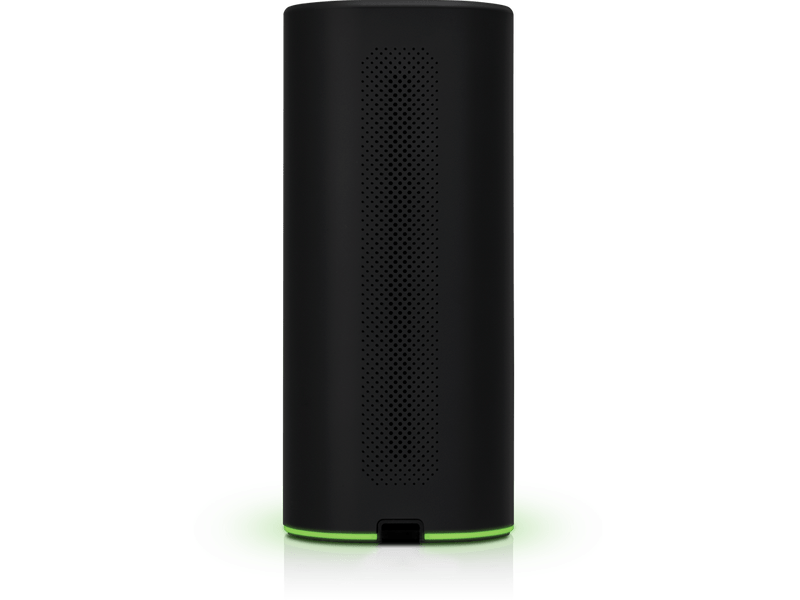

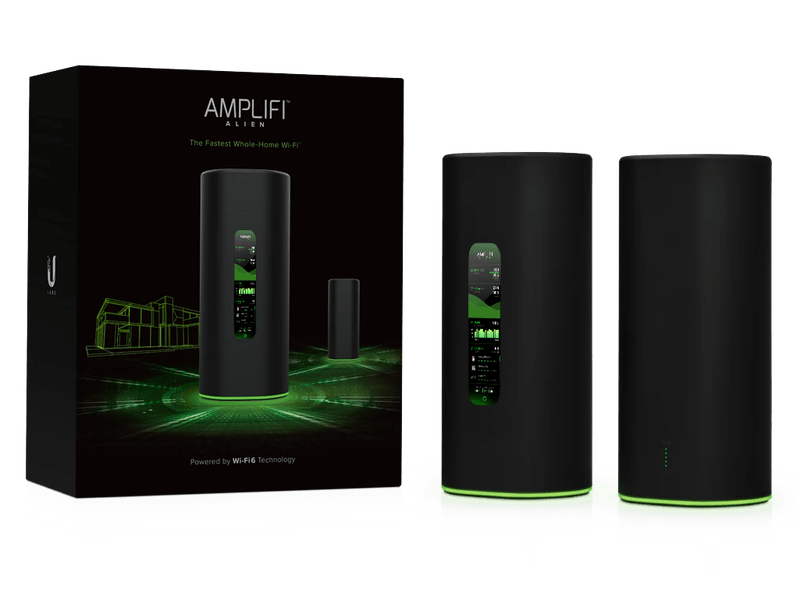

AmpliFi Alien Router and MeshPoint
AFi-ALN
Experience out-of-this-world WiFi range and performance with the world's only 16-stream WiFi router. Includes a MeshPoint for seamless WiFi coverage expansion.

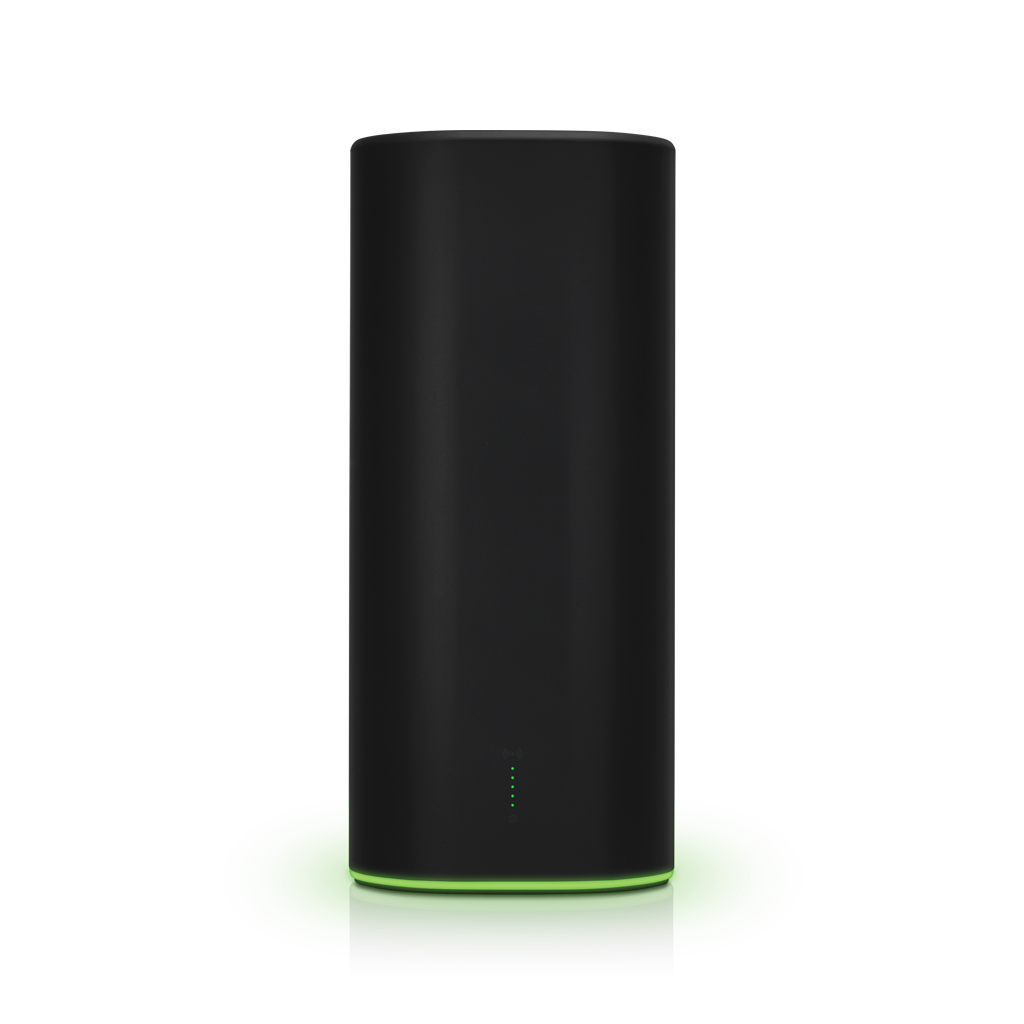

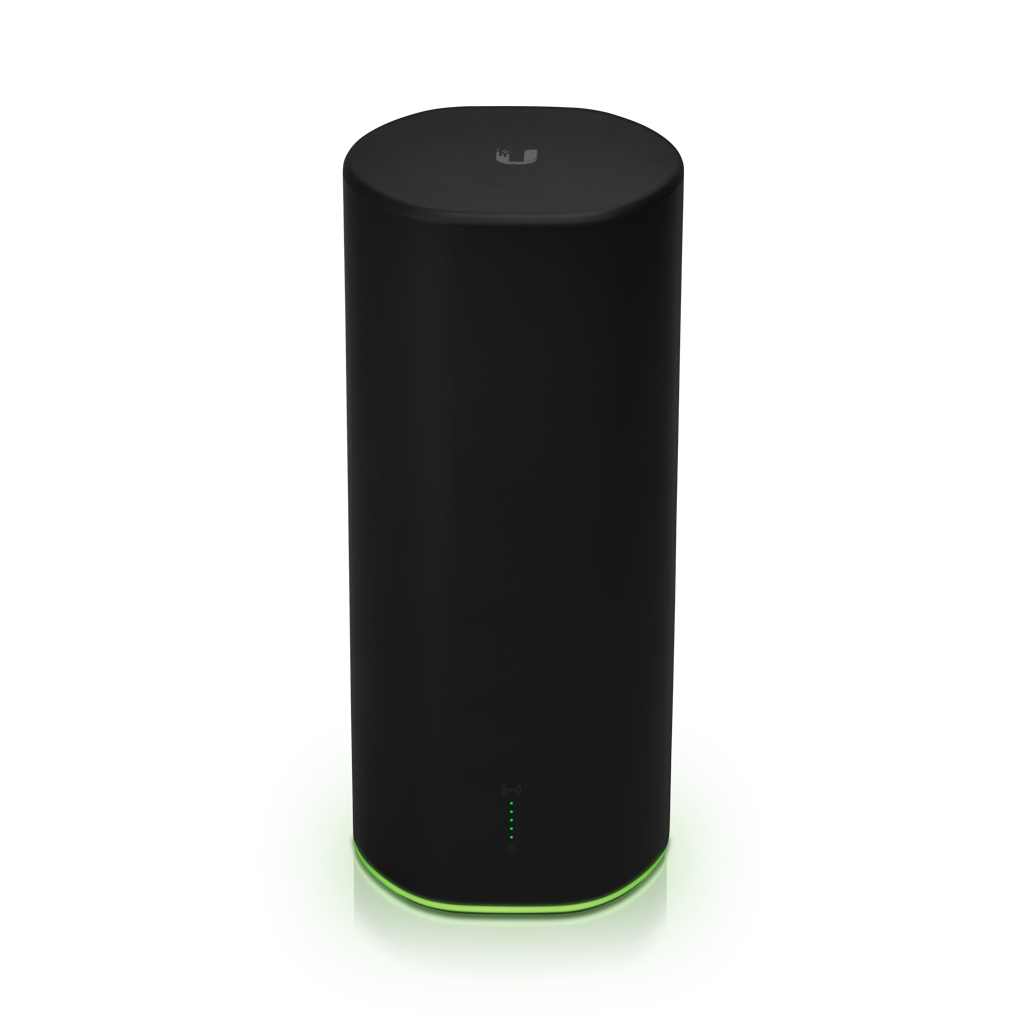

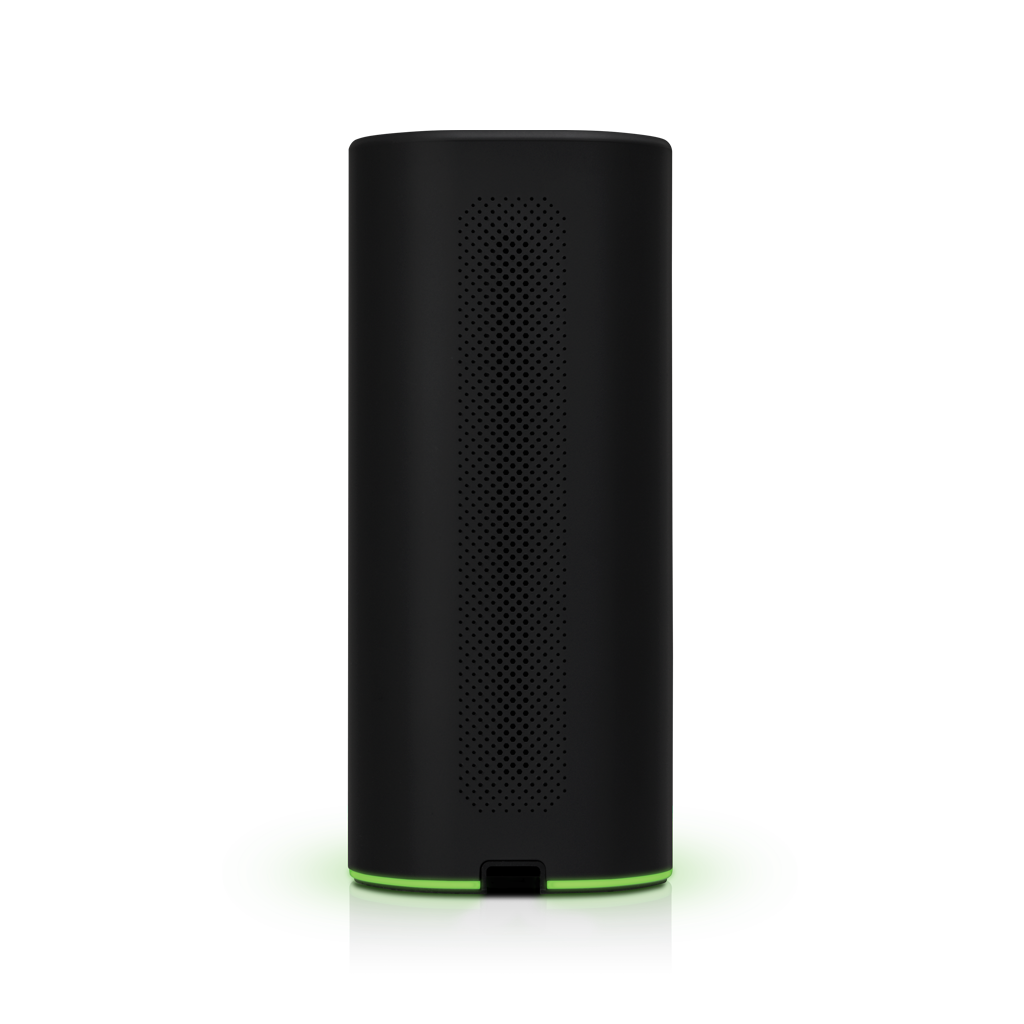

AmpliFi Alien Router and MeshPoint
AFi-ALN
Experience out-of-this-world WiFi range and performance with the world's only 16-stream WiFi router. Includes a MeshPoint for seamless WiFi coverage expansion.
| AmpliFi Alien Router & MeshPoint Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Router: 110 × 110 × 250 mm (4.3 × 4.3 × 9.8") MeshPoint: 110 × 110 × 250 mm (4.3 × 4.3 × 9.8") |
| Weight | Router: 1.2 kg (2.7 lb) MeshPoint: 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A53s @ 2.2 GHz |
| Memory | Router/MeshPoint: 1GB DDR3L |
| Management Interface | WiFi, Ethernet |

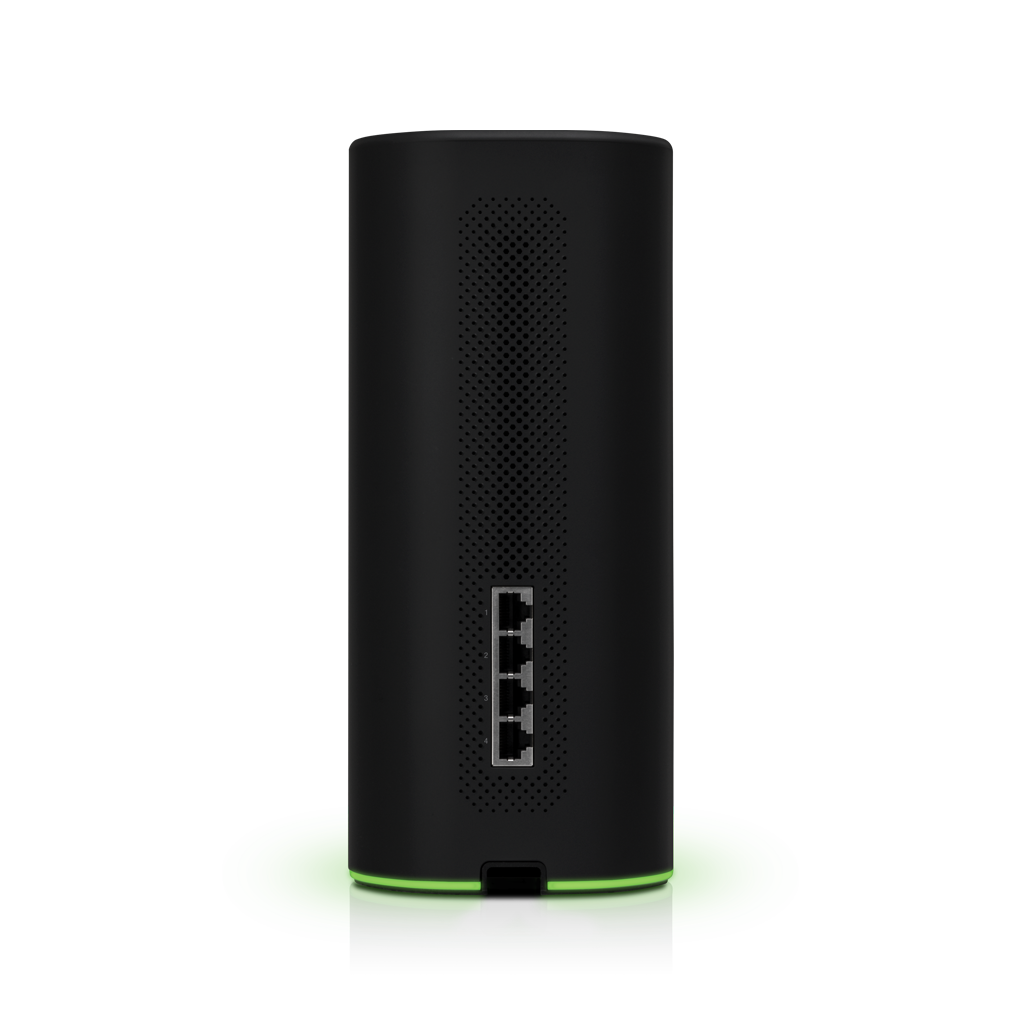

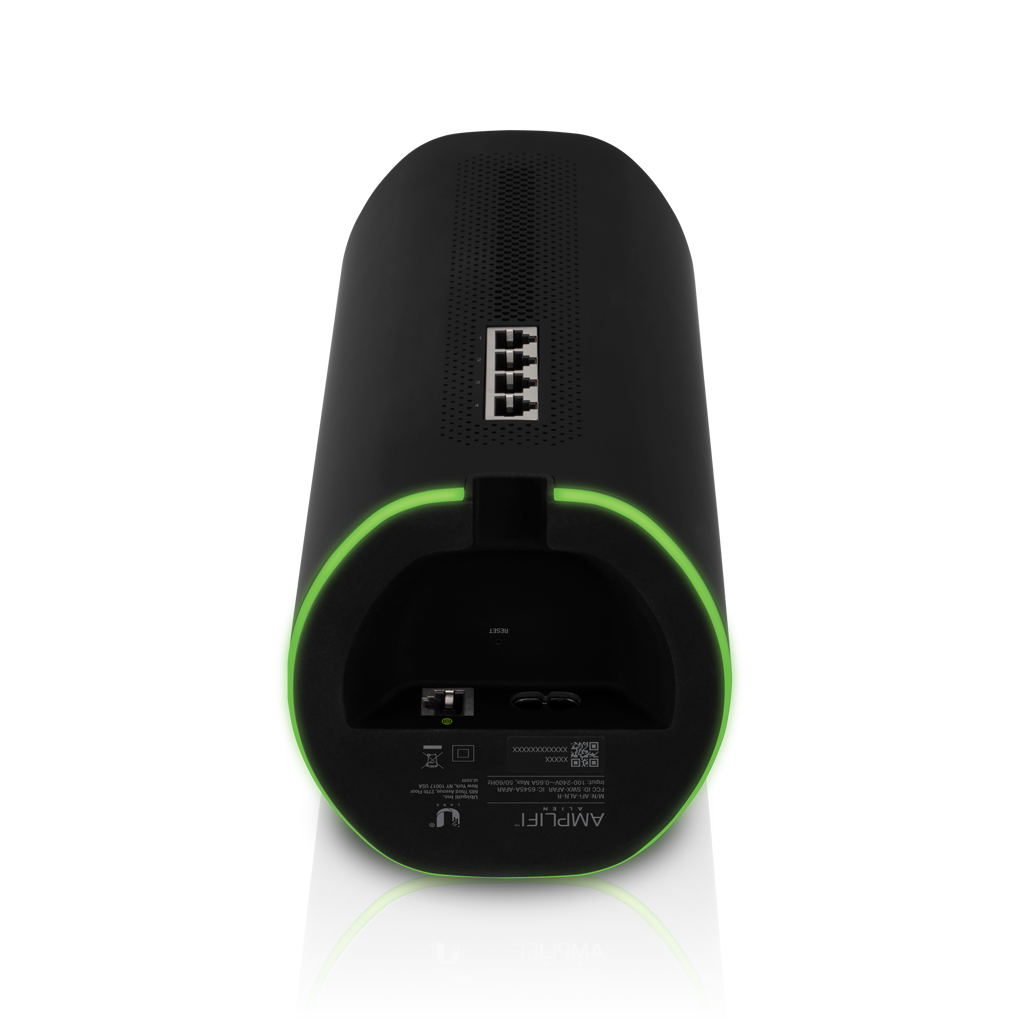

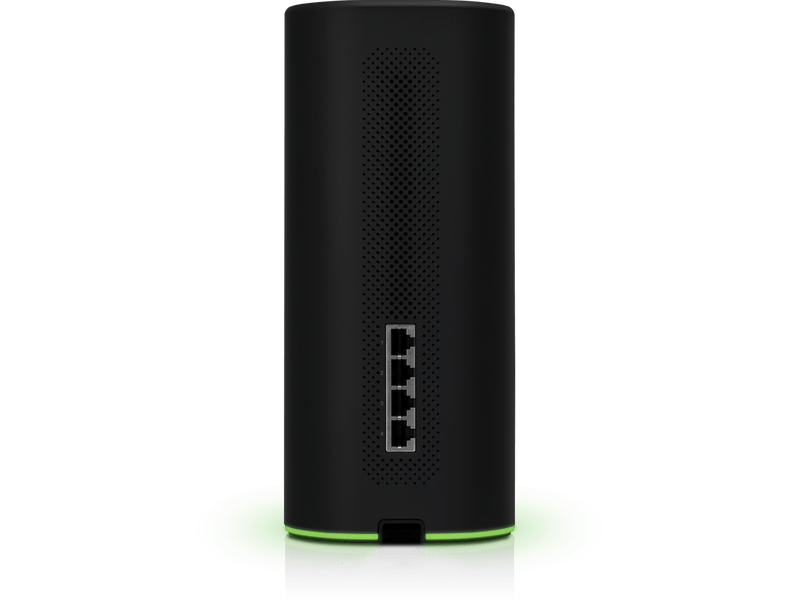

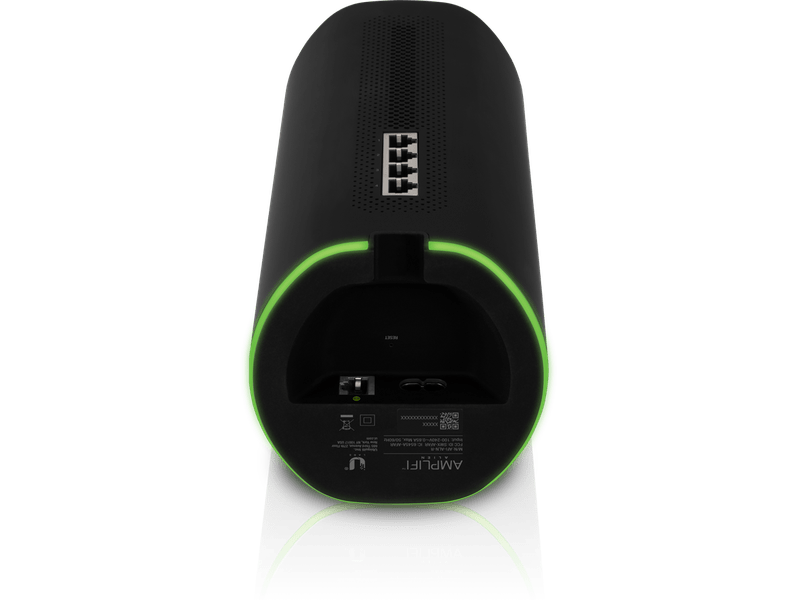

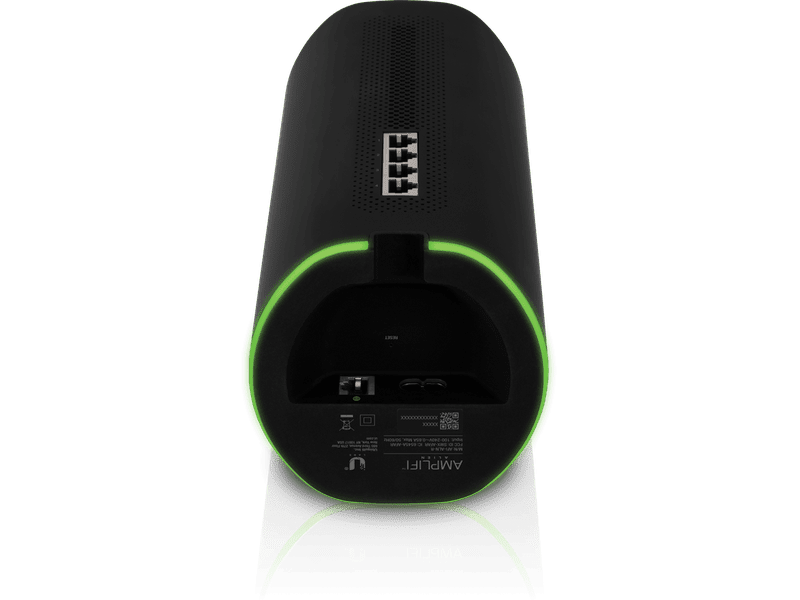

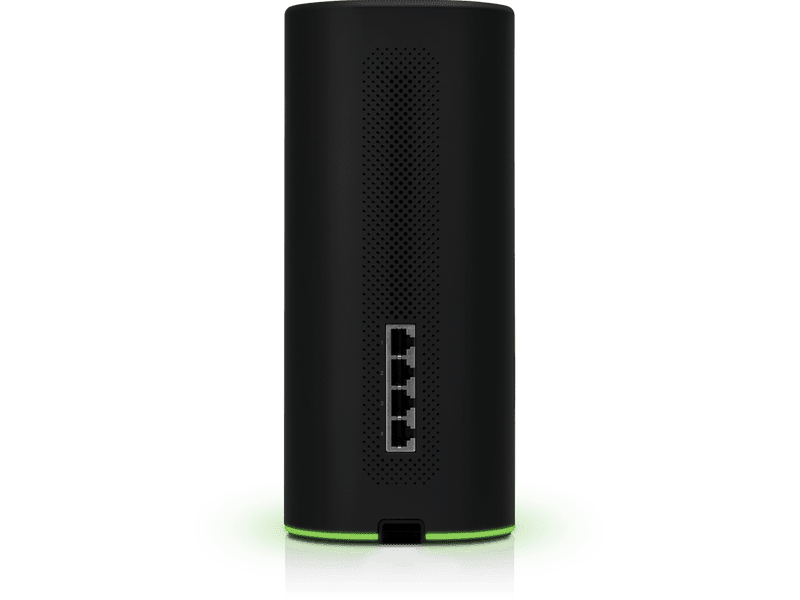

| Networking Interface | Router: (1) GbE RJ45 WAN, (4) GbE RJ45 LAN MeshPoint: (1) GbE RJ45 LAN |
| Power Method | Universal AC input, 100–240V AC, 1A Max., 50/60 Hz |
| Max Power Consumption | Router: 35W MeshPoint: 34W |
| ESD/EMP Protection | Air/contact: ±24kV |
| Wireless | |
| Max TX Power |
US: 2.4 GHz: 23 dBm 5 GHz: 19 dBm (low band) / 20 dBm (high band) International: 2.4 GHz: 23 dBm* 5 GHz: 20 dBm** *Up to 30 dBm per chain **Up to 24 dBm per chain |
| MIMO |
US: 2.4 GHz: 4×4 5 GHz: 4×4 (low band) / 8×8 (high band) International: 2.4 GHz: 4×4 5 GHz: 8×8 |
| Speeds |
US: 2.4 GHz: 1150 Mbps 5 GHz: 1700 Mbps (low band) / 4800 Mbps (high band) International: 2.4 GHz: 1148 Mbps 5 GHz: 4800 Mbps |
| Antenna Gain | 2.4 GHz: 3 dBi 5 GHz: 6 dBi |
| Antenna Type | Internal dual-band metal stamp with 12 polarity |
| Display & Indicators | |

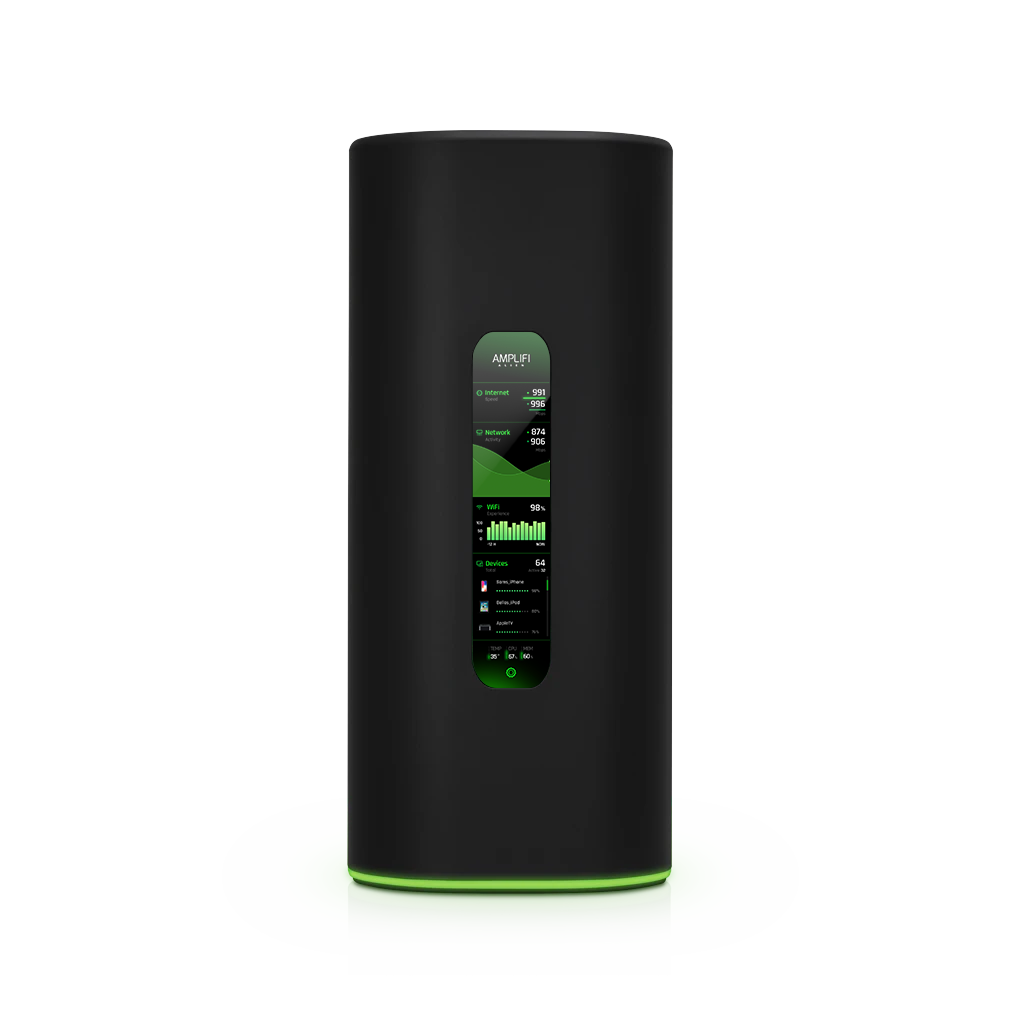

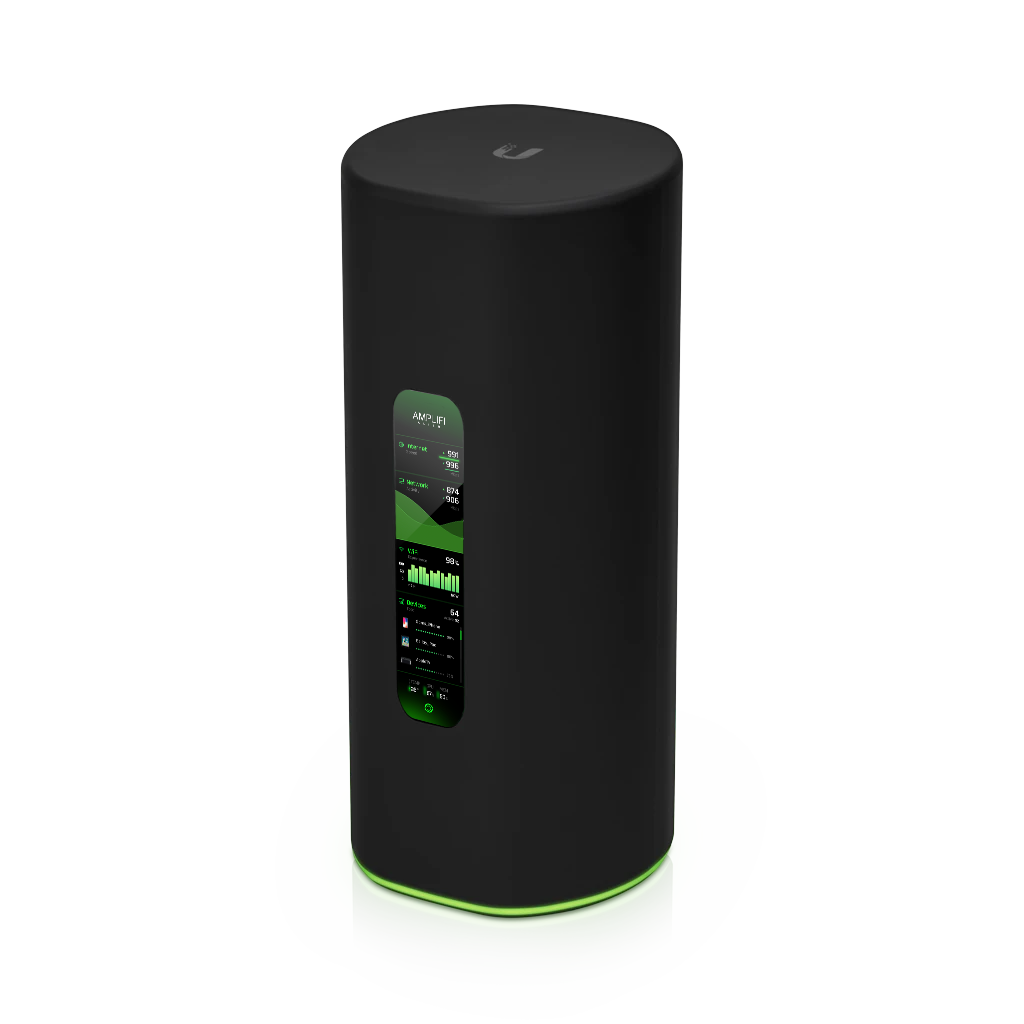

| Display | Router: 4.7" diagonal, 274 × 1268, 279 ppi, G+F touch, full color MeshPoint: No display |
| LEDs | Router/MeshPoint: Green ring MeshPoint Status: - Flashing: Initial configuration - Bottom to top: Bootup in progress - Middle outward: WiFi not ready or disconnected - Steady: Adopted (signal strength indicator) - Flash quickly: Locate - Sequential: Firmware upgrading |
| Button | Factory reset |
| Environmental | |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| WiFi Standards | Up to WiFi 6 |
| WiFi Functions | MU-MIMO, OFDMA, TX-beamforming |
| Wireless Security | WPA2 |
| VLAN | Yes |
| Advanced QoS | Yes |
| Guest Traffic Isolation | Yes |
| Power Save | Yes |
| Supported Data Rates | 802.11a: 54 Mbps 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 600 Mbps + 600 Mbps 802.11ac: 1733 Mbps + 800 Mbps 802.11ax: 4800 Mbps (Router-Mesh backbone) 802.11ax: 4800 Mbps + 1148 Mbps (Client access) |
| Operating Frequency* | 2.4 GHz: 2412–2472 MHz 5 GHz: 5150–5875 MHz *Depends on regulatory region |
