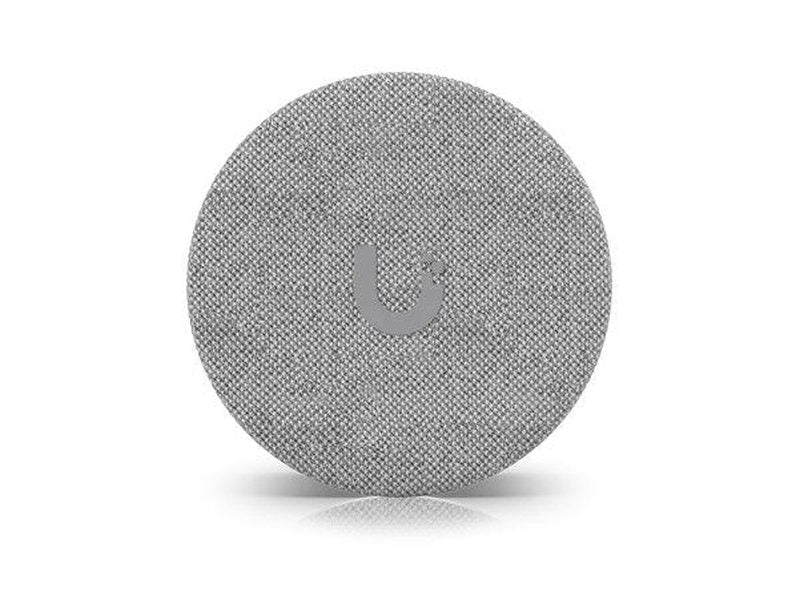

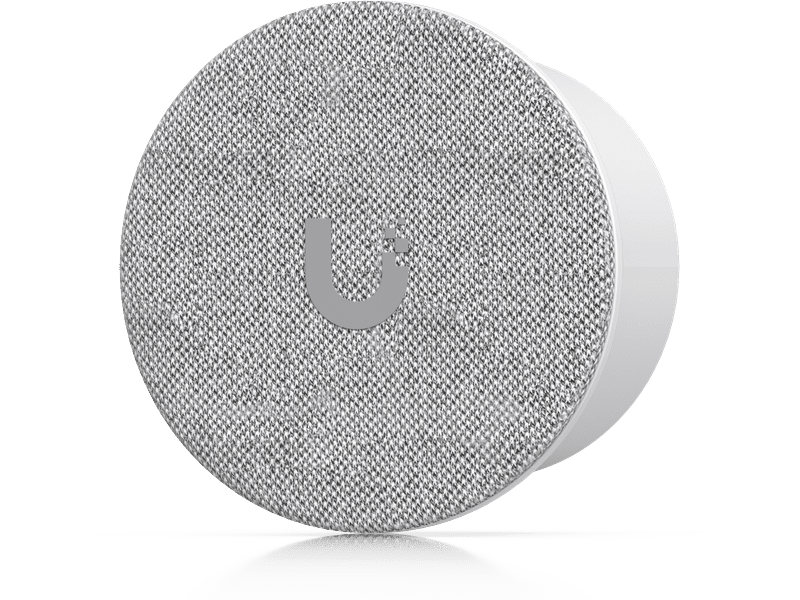

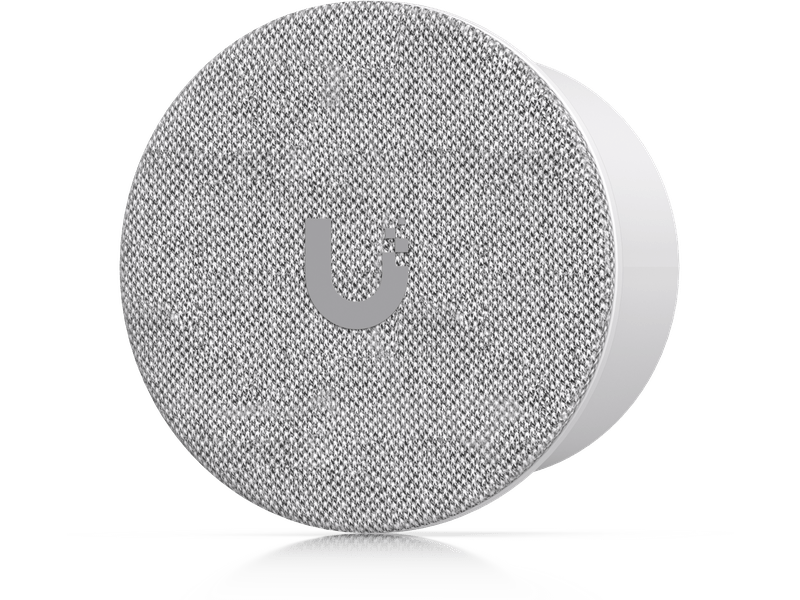

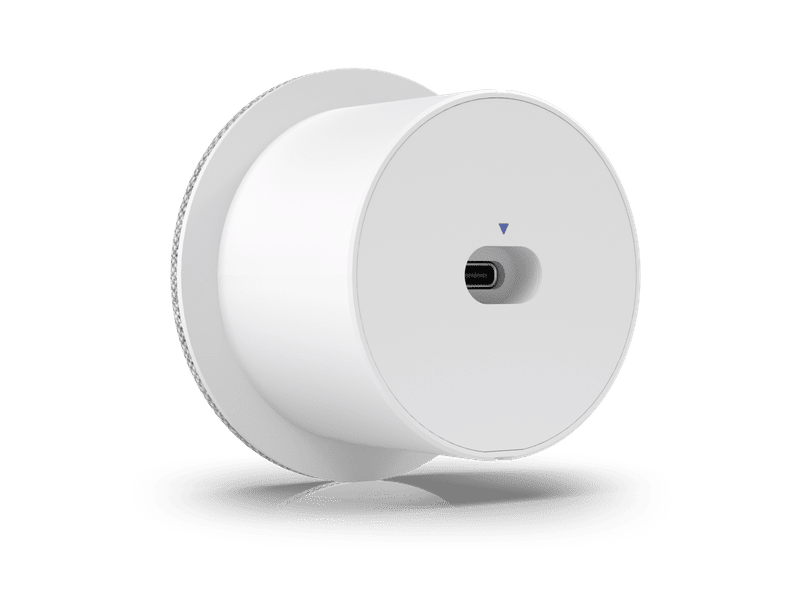

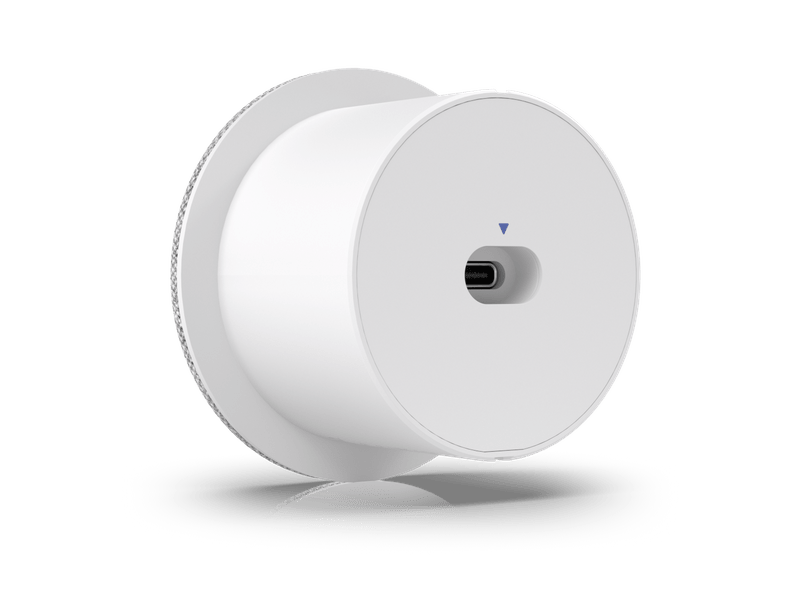

AI Theta Audio
UVC-AI-Theta-Audio
Two-way audio module that connects to an AI Theta Hub.
AI Theta Audio
UVC-AI-Theta-Audio
Two-way audio module that connects to an AI Theta Hub.
| UVC-AI-Theta-Audio Specifications | |
|---|---|
| Product Type | Two-way Audio Module |
| Function | Adds microphone and speaker to AI Theta system |
| Compatibility | AI Theta Hub |
| Mounting | Flush mount (included) |
| Microphone | Yes (software-disable capable) |
| Speaker | Yes |
| Power Method | USB Type-C, 5V DC, 0.9A |
| Max Power Consumption | 4.5W |
| Module Dimensions | Ø61.5 × 39 mm (Ø2.4 × 1.5") |
| Module Weight | 65 g (2.3 oz) |
| Flush Mount Weight | 22 g (0.8 oz) |
| Cable Weight | 18 g (0.63 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate |
| Cable Length | 1 m (3.3 ft) |
| Cable Diameter | 3.3 mm (0.13") |
| Jacket Material | Woven fabric |
| Jacket Enclosure Dimensions | 28 × 13 × 7.5 mm (1.1 × 0.5 × 0.3") |
| Jacket Enclosure Material | PVC |
| Connector Type | Theta proprietary |
| Operating Temperature | -20 to 40°C (-4 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Management Platform | UniFi Protect (Web v2.7.18+, iOS/Android v1.11.0+) |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
