Description
Overview
Connect Display
UC-Display

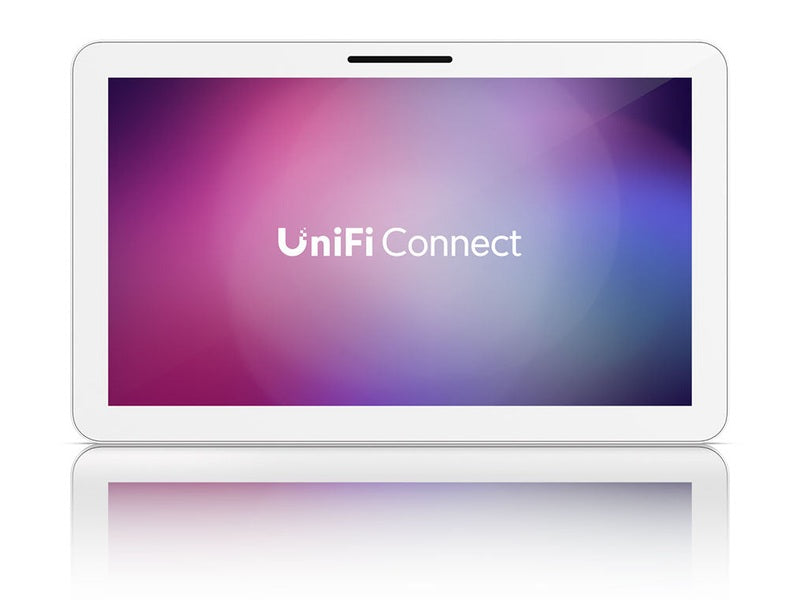

21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications.
Connect Display
UC-Display
21.5" Full HD PoE++ touchscreen designed for interactive digital signage applications.
UC-Display Specifications | |
---|---|
Dimensions | 538.3 × 330 × 37 mm (21.2 × 13 × 1.5") |
Weight | 4.9 kg (10.8 lb) |

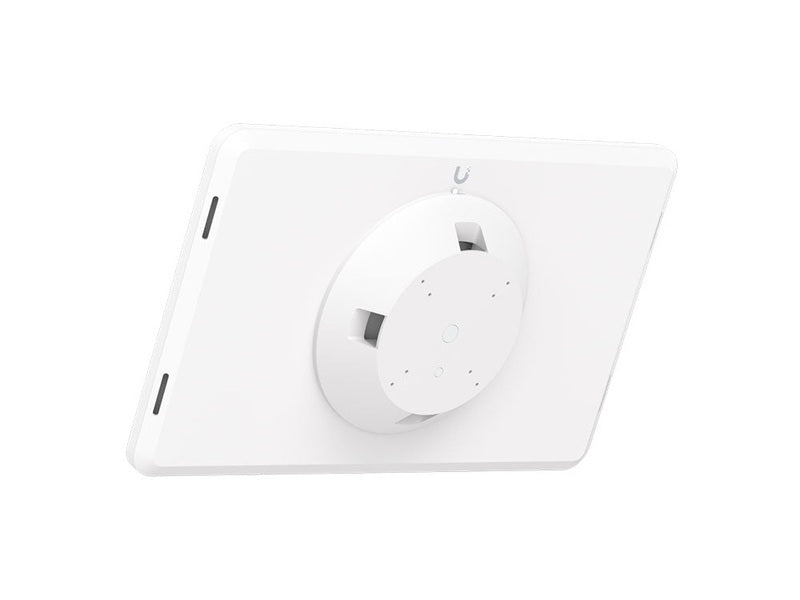

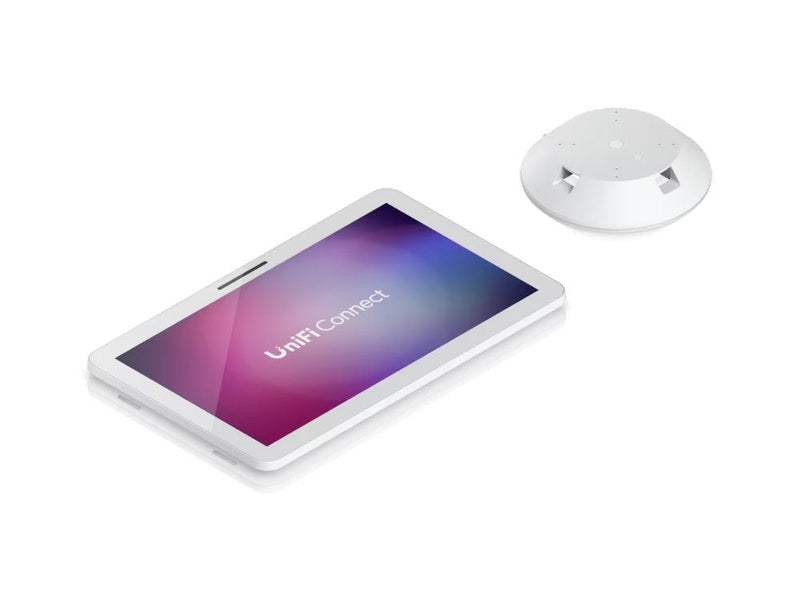

Mounting Options | VESA mount adapter (included) Optional: Table stand, surface mount, arm mount, flush mount |
Screen Size | 21.5″ diagonal (546 mm) |
Resolution | 1920 × 1080 (Full HD, 16:9) |
Brightness | 250 nits (typical) |
Touch Technology | Capacitive multi-touch |
Orientation | Portrait / Landscape |
Processor | Octa-core ARM® Cortex®-A53 @ 2.2 GHz |
Memory | 3 GB RAM |
Storage | 32 GB |
Power Input | PoE++ |
Max Power Consumption | 27W |
Ethernet | 1 × GbE RJ45 port |
USB-C | 1 port (reserved for future use) |
Bluetooth | Bluetooth 4.2 |
Microphone | ✓ |
Speaker | ✓ |
Button | Factory reset |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 20 to 90% noncondensing |
Supported Platform | UniFi Connect |
Mobile App Support | UniFi Connect (iOS & Android) |
Certifications | FCC, IC |
