Overview

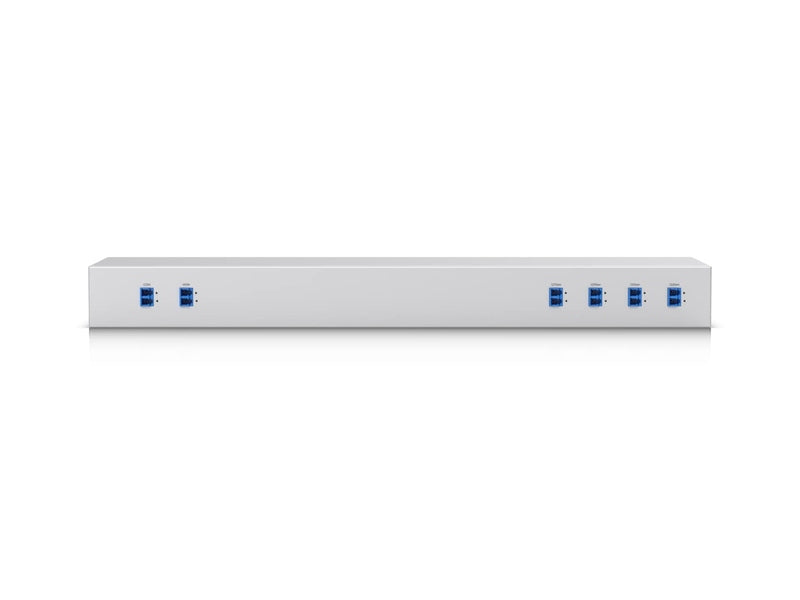

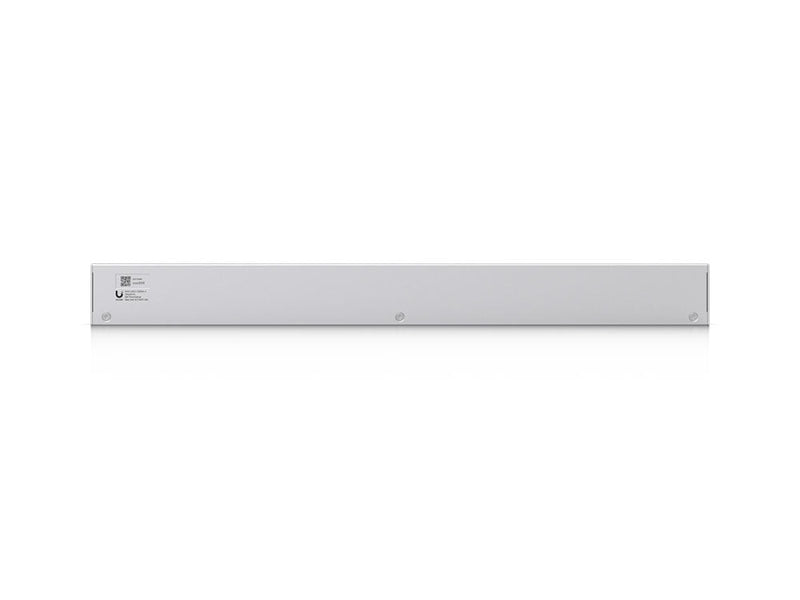

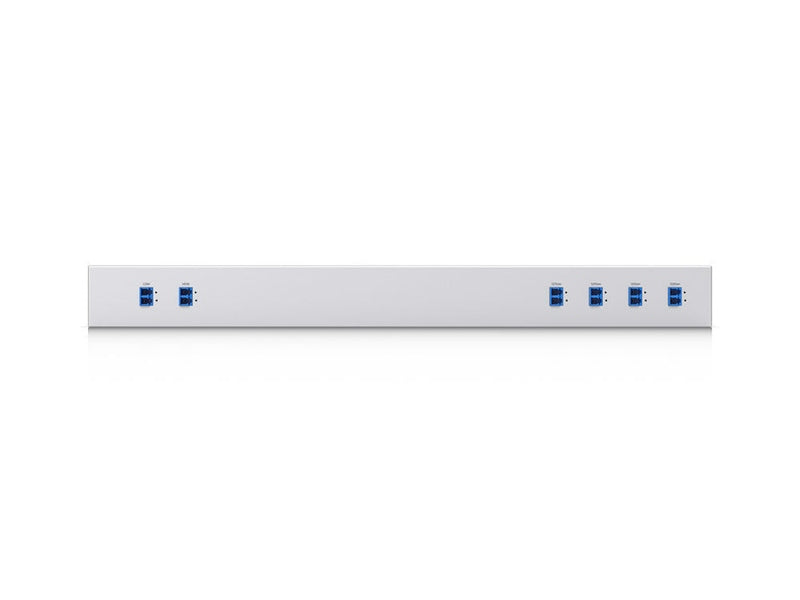

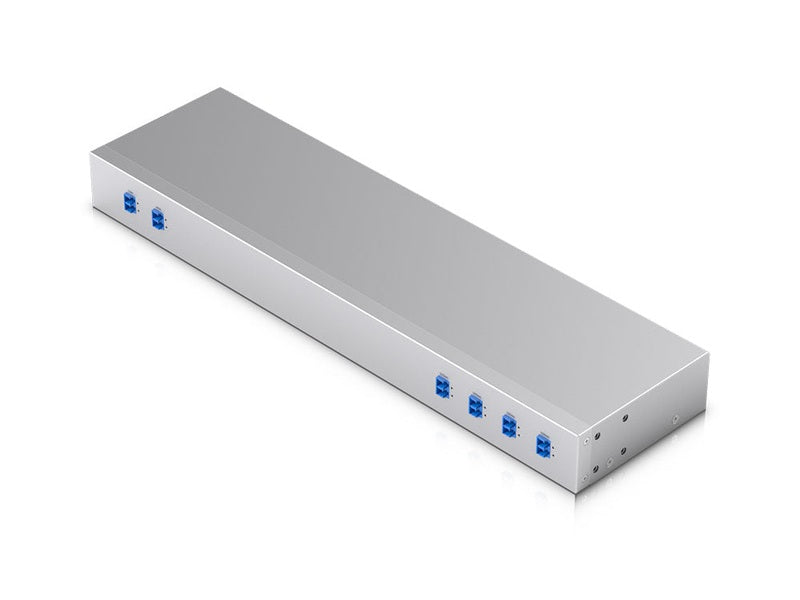

CWDM Mux Demux 4
UACC-CWDM-4
Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
(4) 1270 to 1330 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
Compatibility: USW-Aggregation, USW-Pro-Aggregation
CWDM Mux Demux 4
UACC-CWDM-4
Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
(4) 1270 to 1330 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
Compatibility: USW-Aggregation, USW-Pro-Aggregation
UACC-CWDM-4 Specifications | |
---|---|
Product Type | Rack-Mountable CWDM Mux/Demux Module |
Channel Count | 4 Channels |
Channel Center Wavelengths | 1270 / 1290 / 1310 / 1330 nm |
Fiber Type | Single-mode (SMF-28e) |
Connector Type | (1) COM (LC/UPC) (1) MON (LC/UPC) (4) LC/UPC channel ports |
Pigtail Type | 0.9 mm white LC/UPC |
Min. Channel Passband | ±6.5 nm |
Insertion Loss | < 1.5 dB (Max) |
Return Loss | ≥ 50 dB |
Isolation | Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB |
Max. Passband Ripple | 0.3 dB |
Max. Polarization Dependent Loss | 0.1 dB |
Max. Polarization Mode Dispersion | 0.1 ps |
Min. Directivity | 55 dB |
Max. Power Handling | 500 mW |
Dimensions | 442 × 120 × 43.7 mm (17.4 × 4.7 × 1.7") |
Weight | 1.4 kg (3.2 lb) |
Enclosure Material | SGCC Steel |
Mounting | Standard 19" rack-mountable |
Operating Temperature | -30 to 75° C (-22 to 167° F) |
Storage Temperature | -40 to 90° C (-40 to 194° F) |
NDAA Compliant | ✓ |
