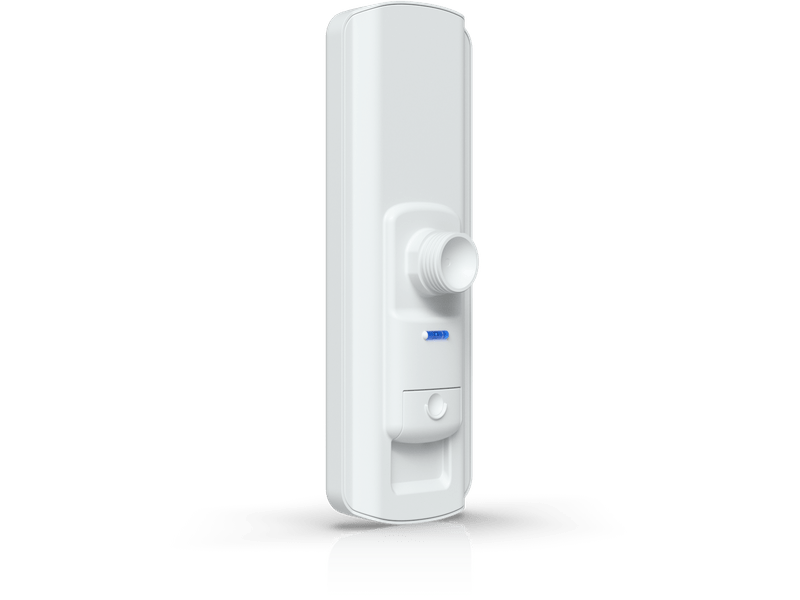

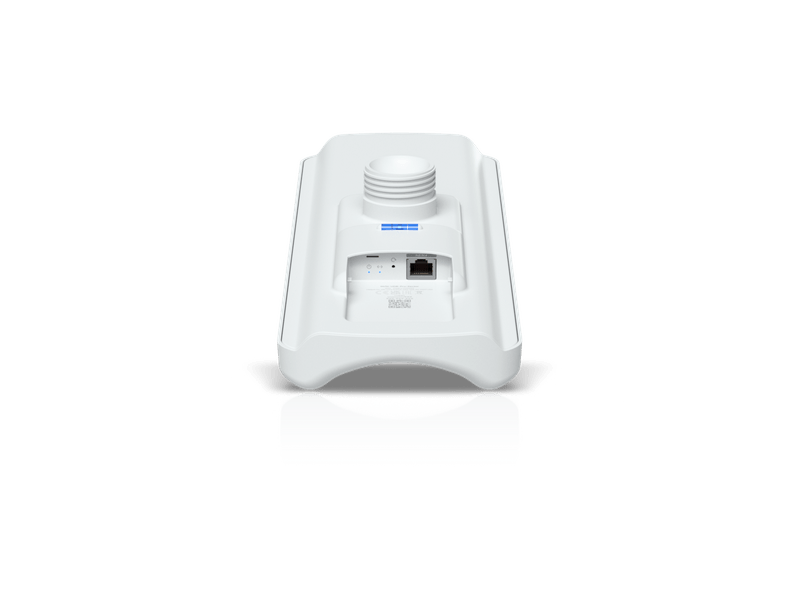

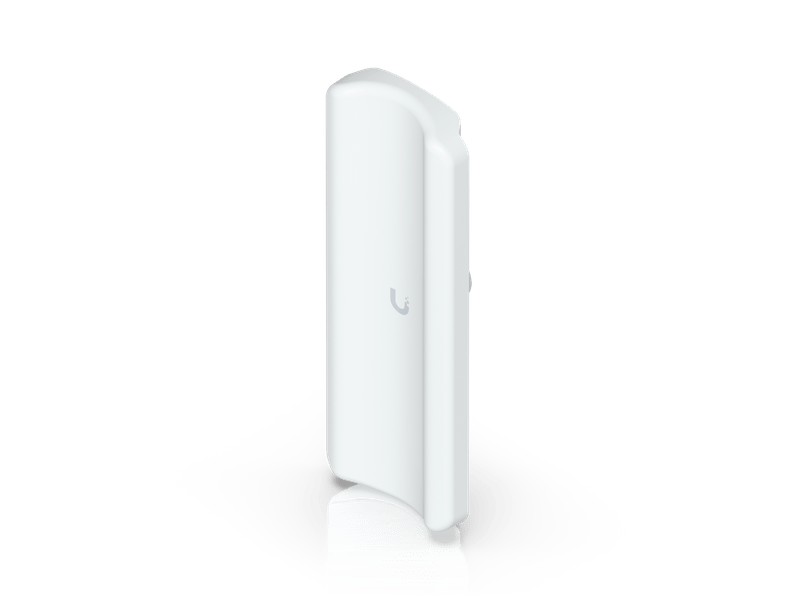

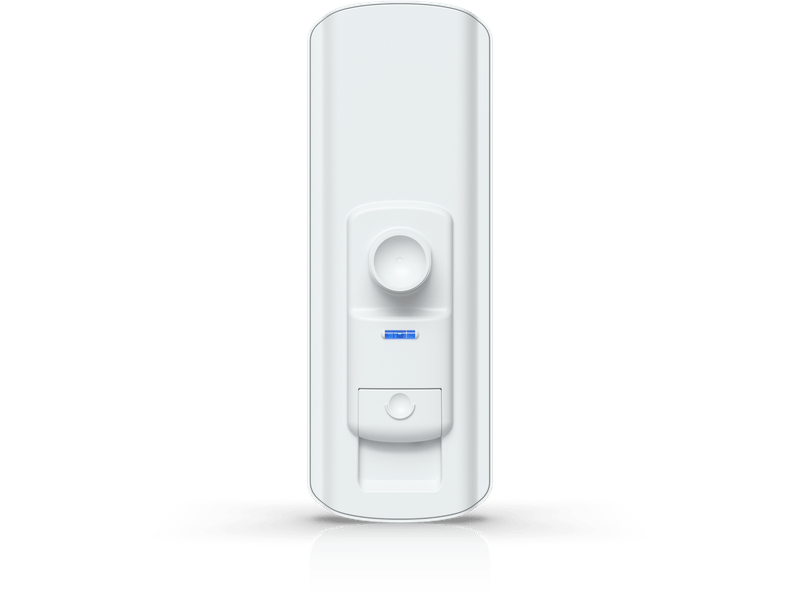

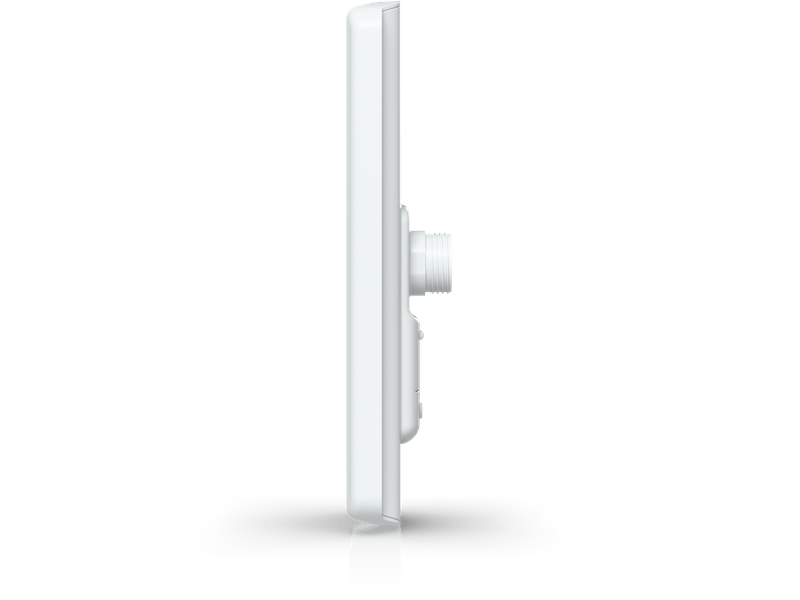

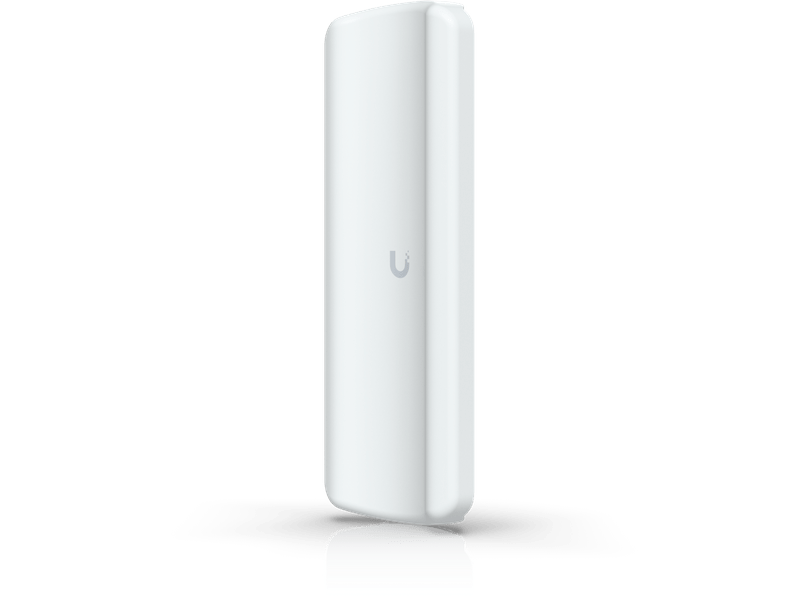

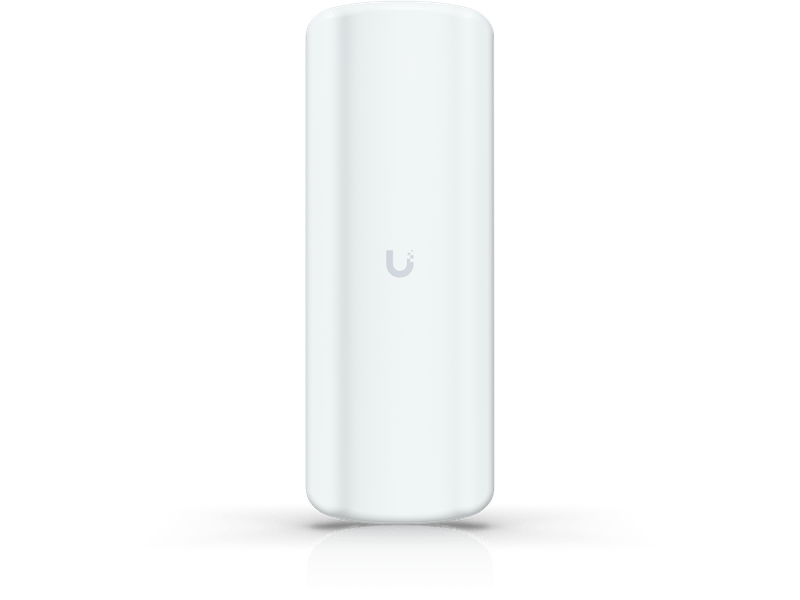

Device Bridge Pro Sector
UDB-Pro-Sector
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.
Device Bridge Pro Sector
UDB-Pro-Sector
5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.
| UDB-Pro-Sector Specifications | |
|---|---|
| Overview | |
| Dimensions | 360.9 × 129.6 × 71.4 mm (14.2 × 5.1 × 2.8") |
| WiFi Standard | WiFi 5 (802.11ac) |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO | 2 × 2 (5 GHz) |
| Max. Data Rate | 400 Mbps (BW40, 5 GHz) |
| Antenna Gain | 17 dBi (5 GHz) |
| Max. TX Power | 25 dBm (5 GHz) |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates |
802.11ac (WiFi 5): 6.5 Mbps to 400 Mbps (MCS0–MCS9, NSS1/2, VHT 20/40) 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet, WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2 N at 200 km/h |
| Weight | Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9–2.4" (24–60 mm) |
| Button | (1) Factory-reset |
| LEDs | System: Power, Ethernet |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating Frequency |
US/CA: U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz Worldwide: 5150–5875 MHz |
| Environmental | |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
