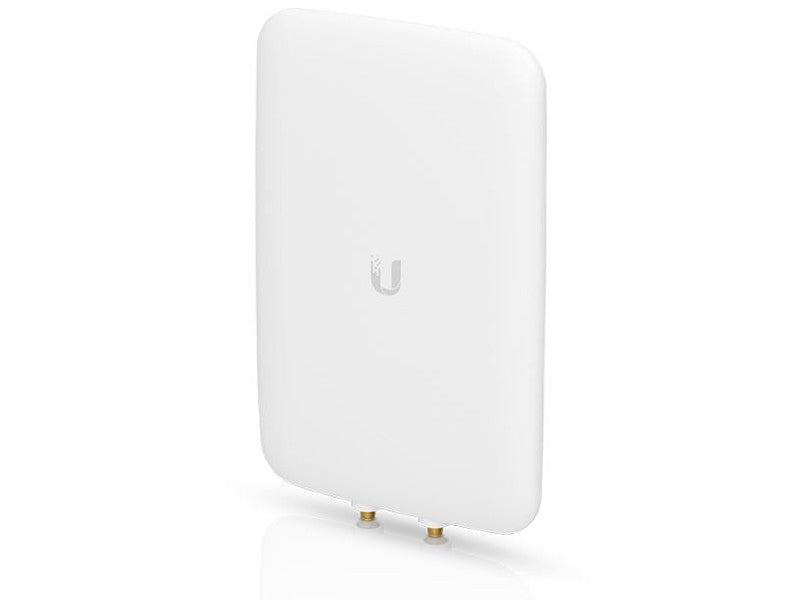

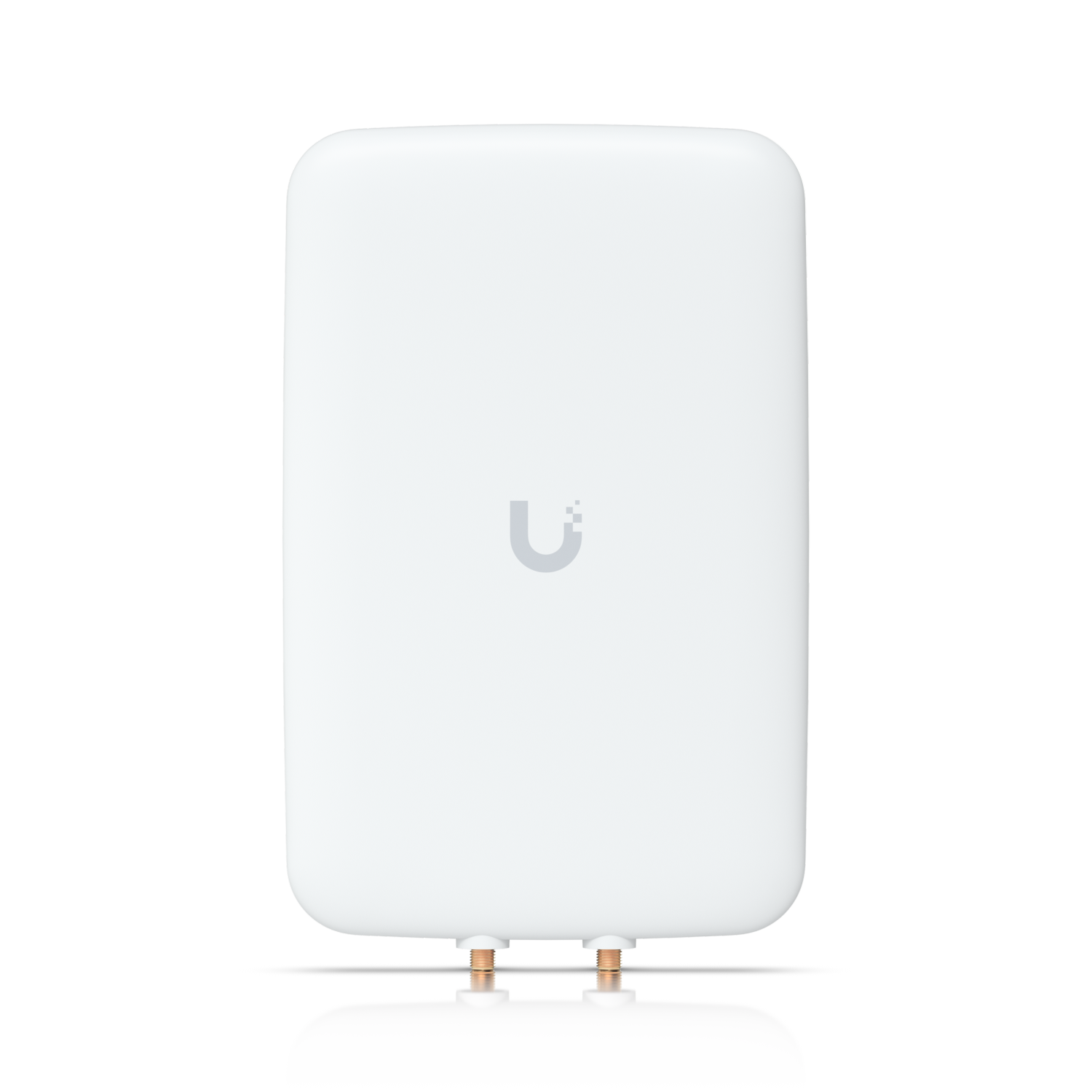

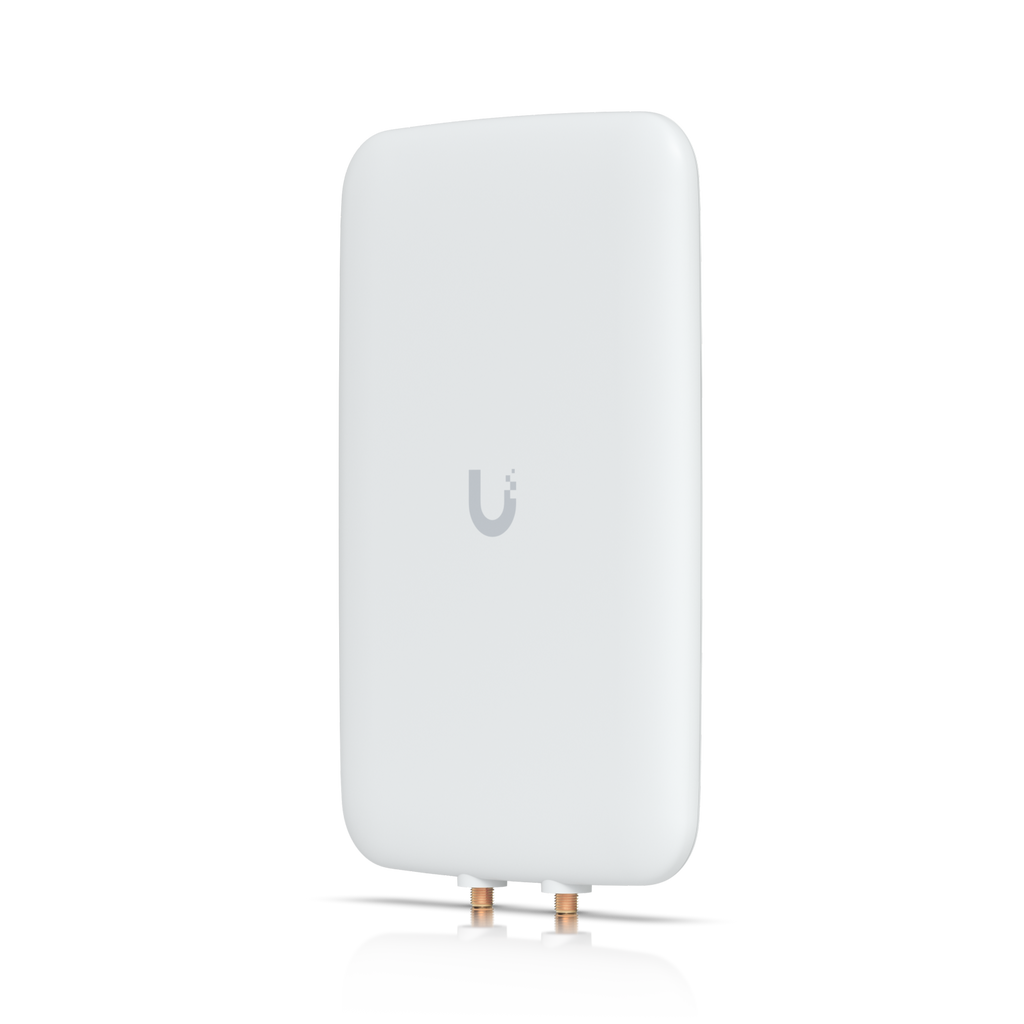

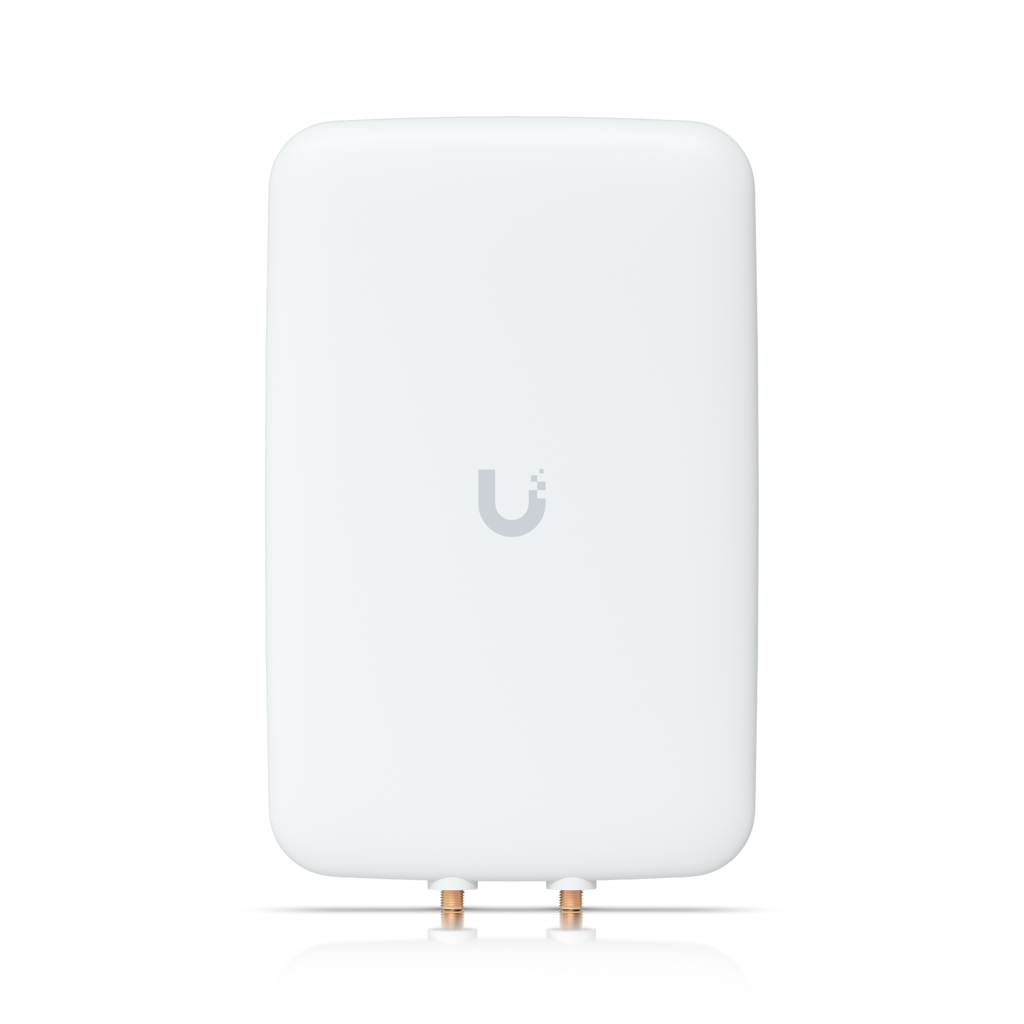

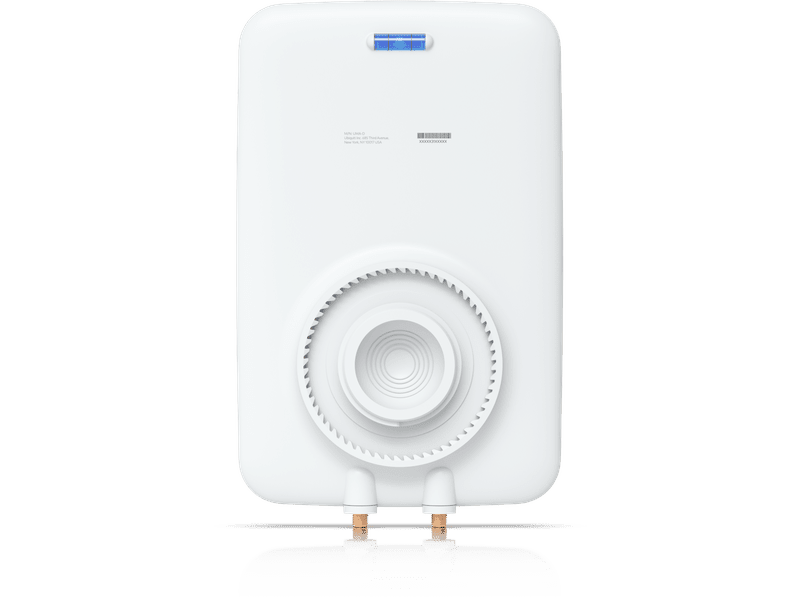

AC Mesh Dual-Band Antenna
UMA-D
An optional mesh antenna for AC Mesh.
Compatibility: UAP-AC-M
AC Mesh Dual-Band Antenna
UMA-D
An optional mesh antenna for AC Mesh.
Compatibility: UAP-AC-M
| UMA-D Specifications | |
|---|---|
| Product Type | Dual-Band Directional Antenna |
| Application | Extends coverage and performance of UniFi AC Mesh APs |
| Compatibility | UniFi AC Mesh (UAP-AC-M) |
| RF Characteristics | |
| Frequency Range | 2.4–2.5 GHz / 5.1–5.9 GHz |
| Gain | 10 dBi @ 2.4 GHz 15 dBi @ 5 GHz |
| Polarization | Dual-linear |
| Beamwidth (HPOL/VPOL) | 2.4 GHz: 90° / 90° 5 GHz: 45° / 45° |
| Elevation Beamwidth | 2.4 GHz: 90° 5 GHz: 45° |
| Cross-Polarization Isolation | 2.4 GHz: 25 dB 5 GHz: 30 dB |
| Max VSWR | 2:1 |

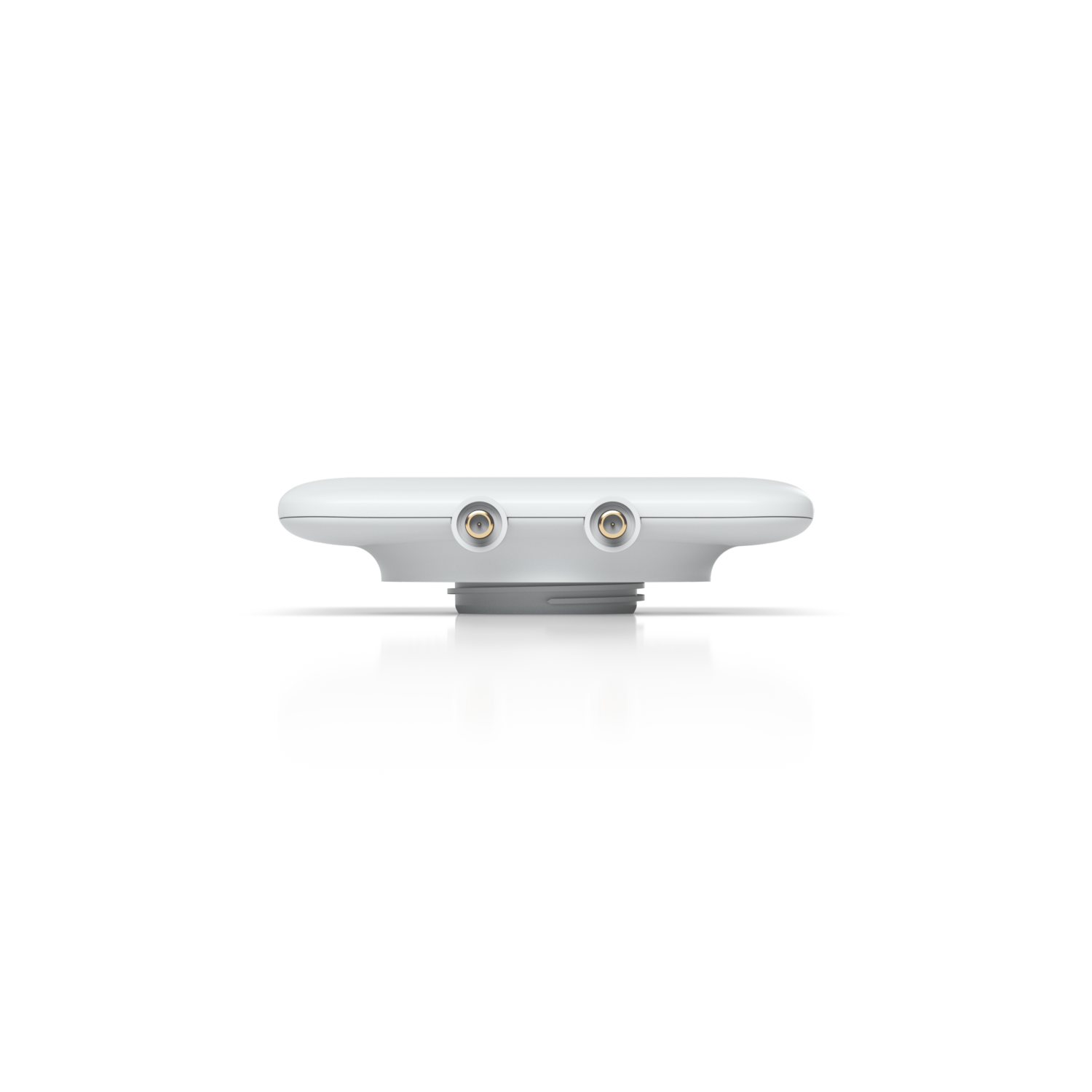

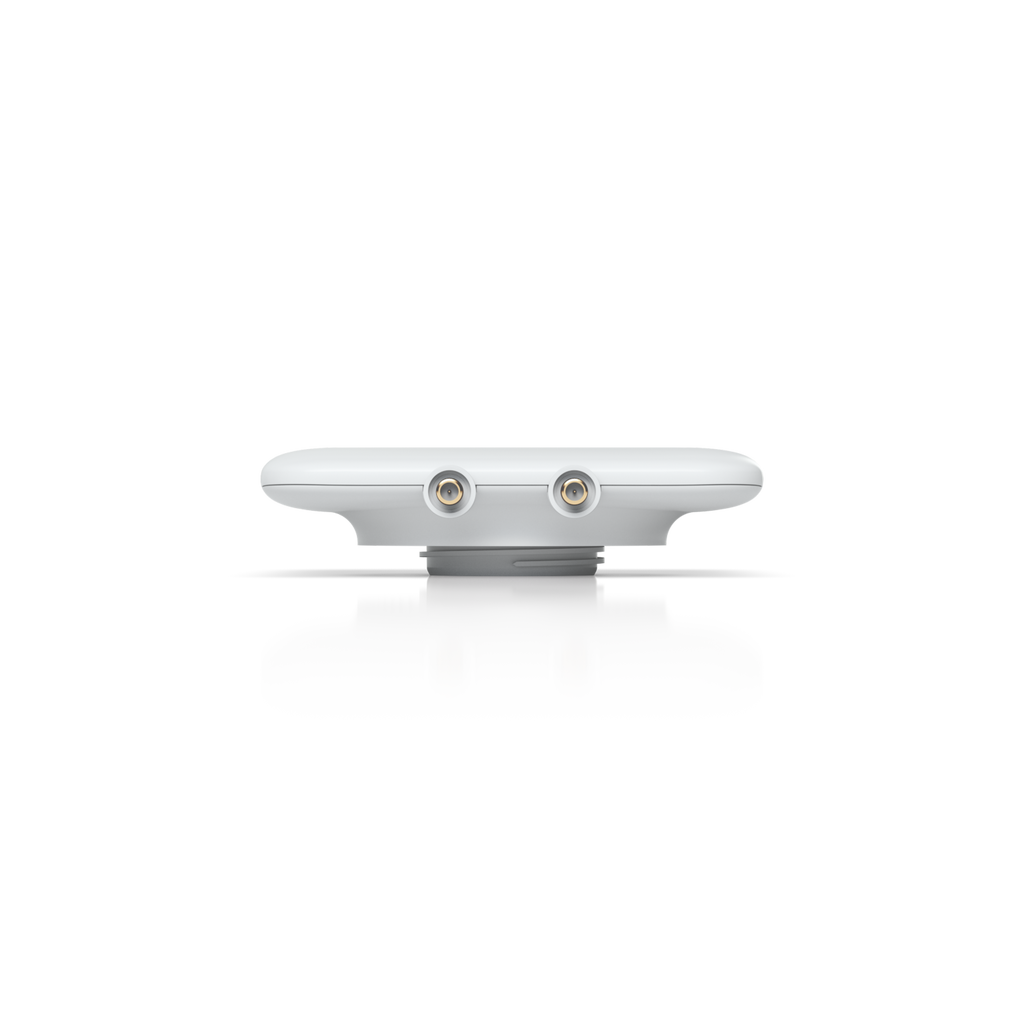

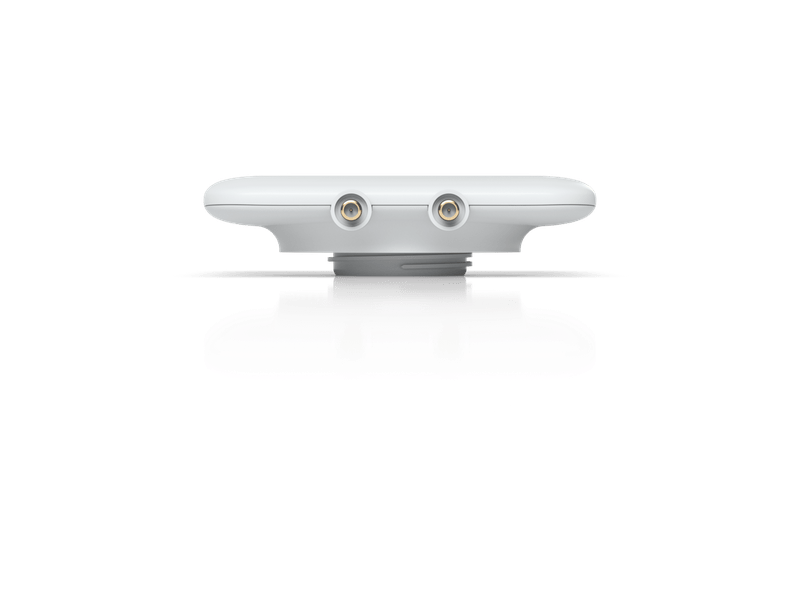

| RF Connectors | (2) RP-SMA female |
| Mechanical | |
| Dimensions | 201.3 × 128 × 32.5 mm (7.9 × 5 × 1.3") |
| Weight | Without mount: 400 g (0.9 lb) With mount: 480 g (1.1 lb) |
| Mounting Options | Wall and pole mount (included) |
| Mounting Hardware | Three-axis ball joint for precise aiming |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Environmental | |
| Installation Environment | Indoor/Outdoor |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Compliance | |
| NDAA Compliant | ✓ |
