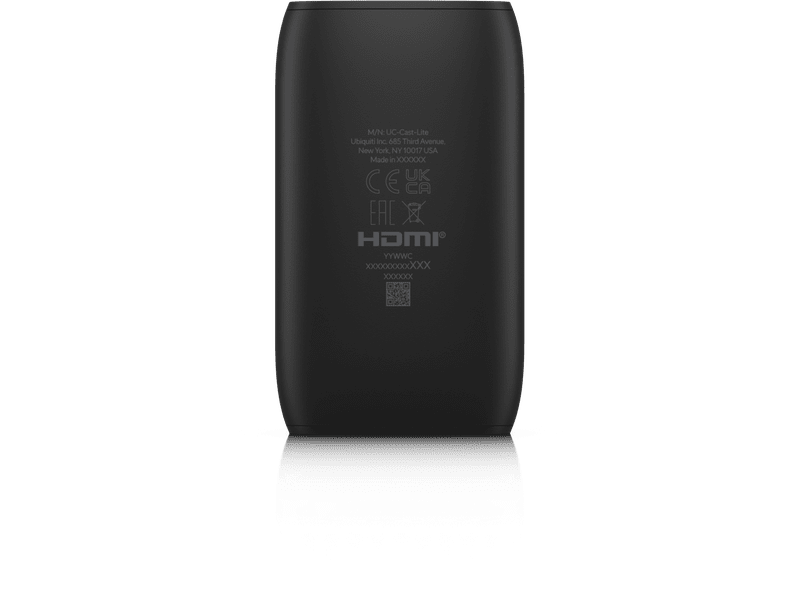

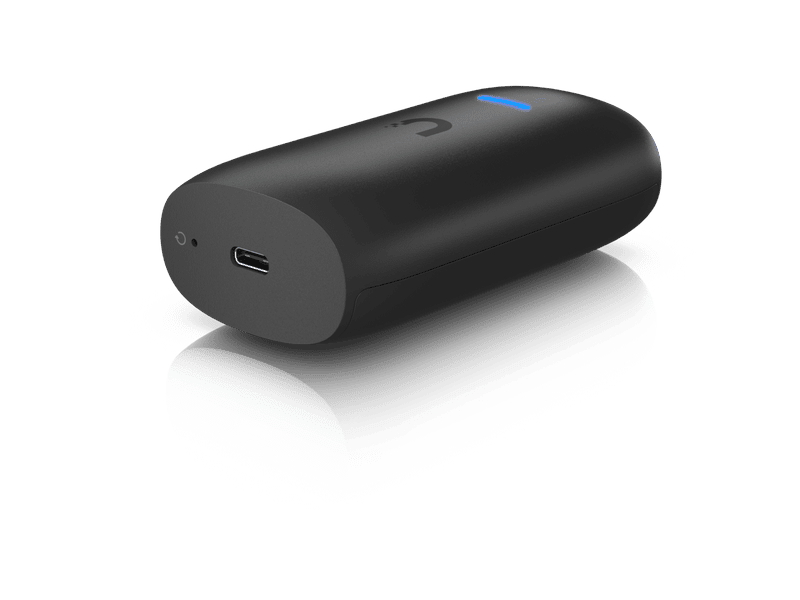

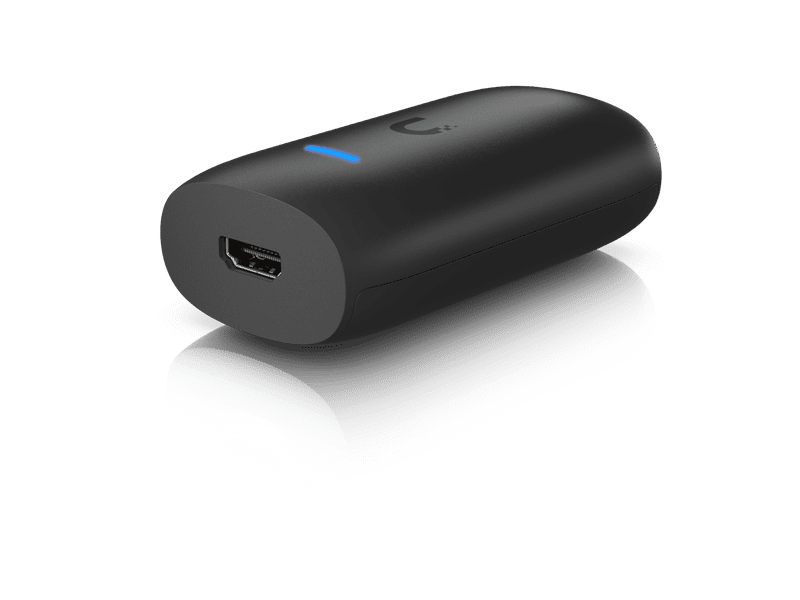

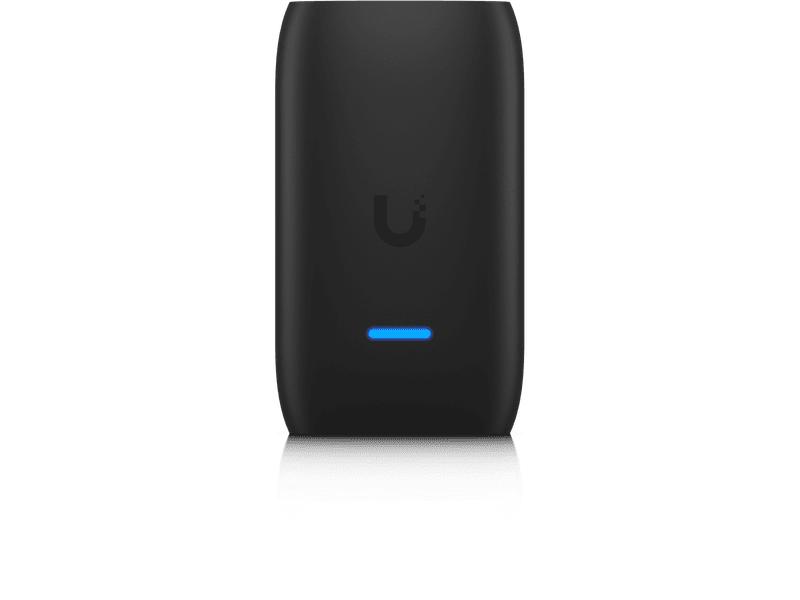

Display Cast Lite
UC-Cast-Lite
Digital signage player designed for media playback on HDMI displays.
Note. HDMI cable not included. Protect camera streaming not supported. Use Protect Viewport to view camera feeds on an HDMI display.
Display Cast Lite
UC-Cast-Lite
Digital signage player designed for media playback on HDMI displays.
Note. HDMI cable not included. Protect camera streaming not supported. Use Protect Viewport to view camera feeds on an HDMI display.
UC-Cast-Lite Specifications | |
---|---|
Product Type | Digital Signage Media Player |
Display Output | (1) HDMI port |
Video Support | Up to Full HD / 60 FPS |
Application Suite | UniFi Connect ✓ |
Dimensions | Without mount: 90 × 52 × 31 mm (3.5 × 2.1 × 1.2") With mount: 92.1 × 56.3 × 40.8 mm (3.6 × 2.1 × 1.4") |
Weight | Without mount: 160 g (5.6 oz) With mount: 180 g (6.3 oz) |
Pole Mount Diameter | 1–2" (25–50 mm) |
Processor | Quad-Core Arm® Cortex®-A55 @ 1.9 GHz |
Memory | 2 GB RAM |
Storage | 16 GB |
Power Method | USB Type-C, 5V DC, 1A |
Max Power Consumption | 5W |
WiFi Standards | 802.11 a/b/g/n/ac/ax |
WiFi Bands | 2.4 GHz: BW 20/40 MHz 5 GHz: BW 20/40/80 MHz |
Button | (1) Factory-reset |
LEDs | System: White/Blue |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 20 to 90% noncondensing |
Certifications | CE, FCC, IC, Wi-Fi CERTIFIED |
NDAA Compliant | ✓ |
Management Application | UniFi Connect Web: v3.17.0+ UniFi Connect Mobile (iOS/Android): v2.26.0+ |
