Overview
Display Cast Pro
UC-Cast-Pro
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
Note. USB-C power adapter and HDMI cable not included. Does not support Protect camera streaming. Use Protect Viewport to view Protect camera feeds on an HDMI display.

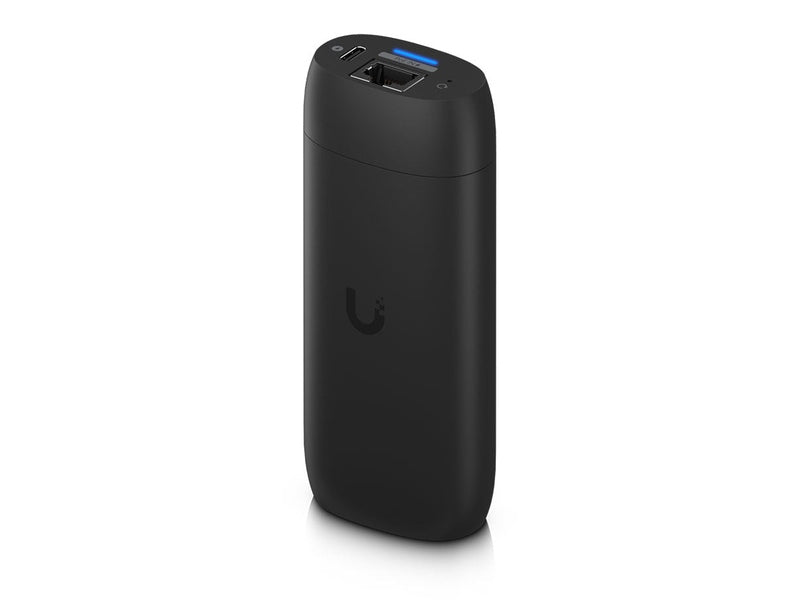

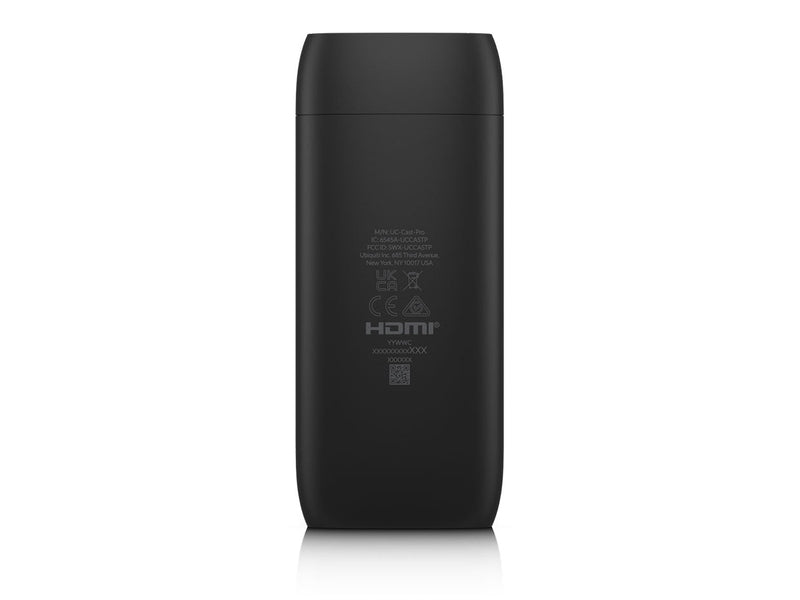

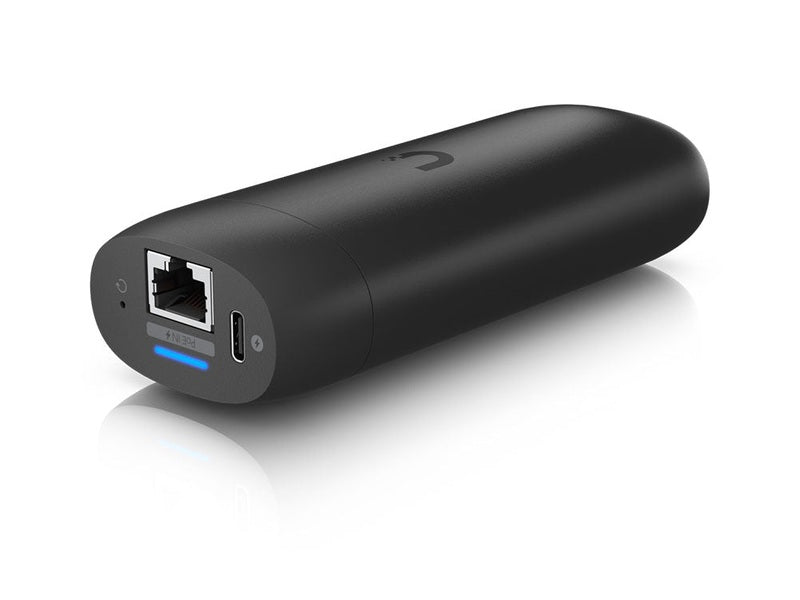

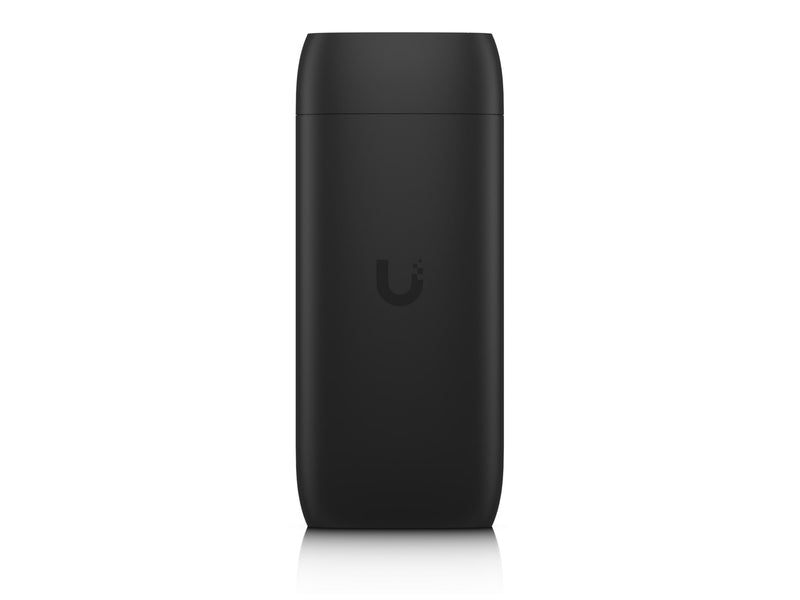

Display Cast Pro
UC-Cast-Pro
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
Note. USB-C power adapter and HDMI cable not included. Does not support Protect camera streaming. Use Protect Viewport to view Protect camera feeds on an HDMI display.
UC-Cast-Pro Specifications | |
---|---|
Dimensions | Without mount: 123 × 52 × 31 mm (4.8 × 2.0 × 1.2") With mount: 125.1 × 56.3 × 40.8 mm (4.9 × 2.2 × 1.6") |
Weight | Without mount: 240 g (5.8 oz) With mount: 260 g (9.2 oz) |
Mounting Options | Pole mount (1–2" diameter) |
Enclosure Material | Polycarbonate, aluminum alloy |
Display Output | (1) HDMI port |
Video Support | Up to 4K @ 60 FPS |
Use Case | Managed digital signage for HDMI displays |
Processor | Octa-core CPU: (2) ARM® Cortex®-A78 + (6) ARM® Cortex®-A55 Integrated Mali-G57 GPU |
Memory | RAM: 8 GB, Storage: 32 GB |
Power Method | PoE: 48V DC, 0.35A via GbE RJ45 USB-C: 5V DC, 3A |
Max. Power Consumption | 17.5W |
Networking Interface | (1) GbE RJ45 port |
Wireless | WiFi 2.4 GHz: 20/40 MHz WiFi 5 GHz: 20/40/80 MHz Standards: 802.11 a/b/g/n/ac/ax |
USB-C Ports | (2) for power and peripherals |
Buttons | (1) Factory-reset |
LEDs | System status: White/Blue |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 20 to 90% noncondensing |
Management Platform | UniFi Connect |
Minimum Version | Web: v3.14.6 and later iOS/Android: v2.18.1 and later |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Wi-Fi CERTIFIED |
