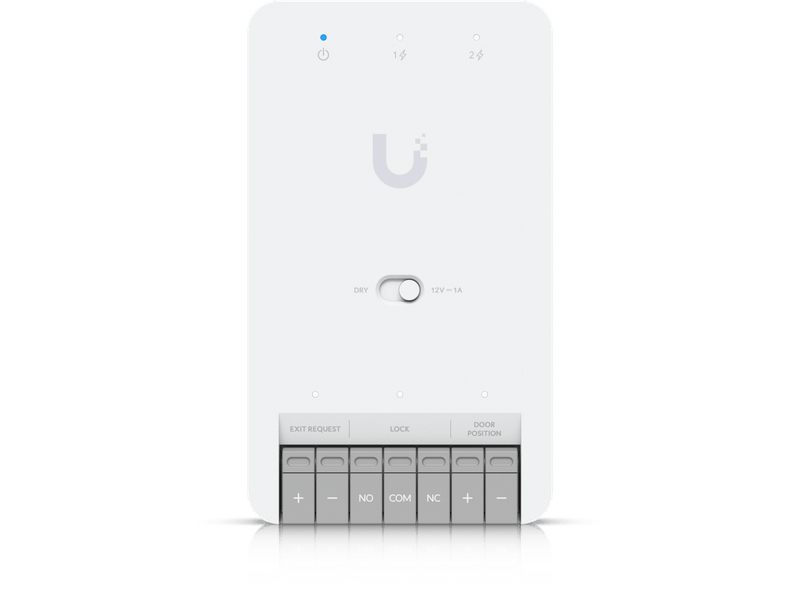

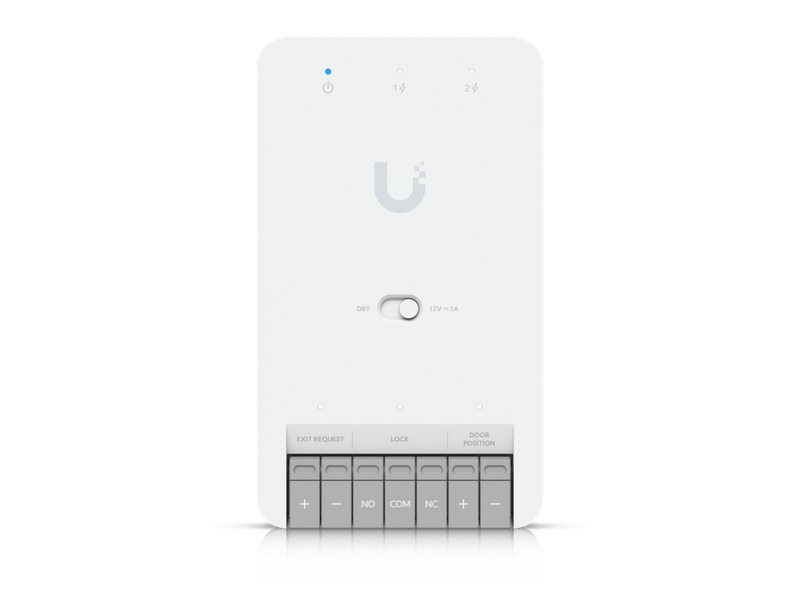

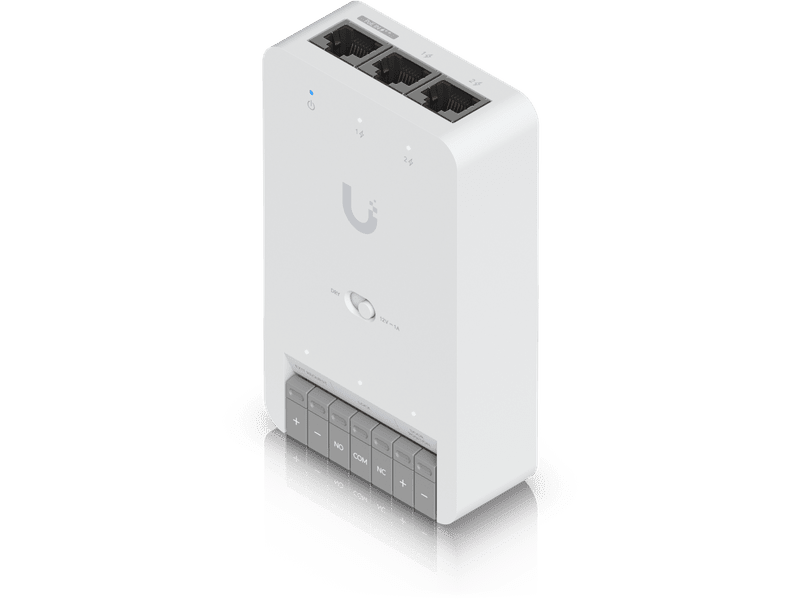

Door Hub Mini
UA-Hub-Door-Mini
Compact Access Control Hub for a single door.
Door Hub Mini
UA-Hub-Door-Mini
Compact Access Control Hub for a single door.
| UA-Hub-Door-Mini Specifications | |
|---|---|
| Product Type | Compact Access Control Hub for Single Door |
| Dimensions | 113 × 66 × 27.6 mm (4.4 × 2.6 × 1.1") |
| Weight | 190 g (6.7 oz) |

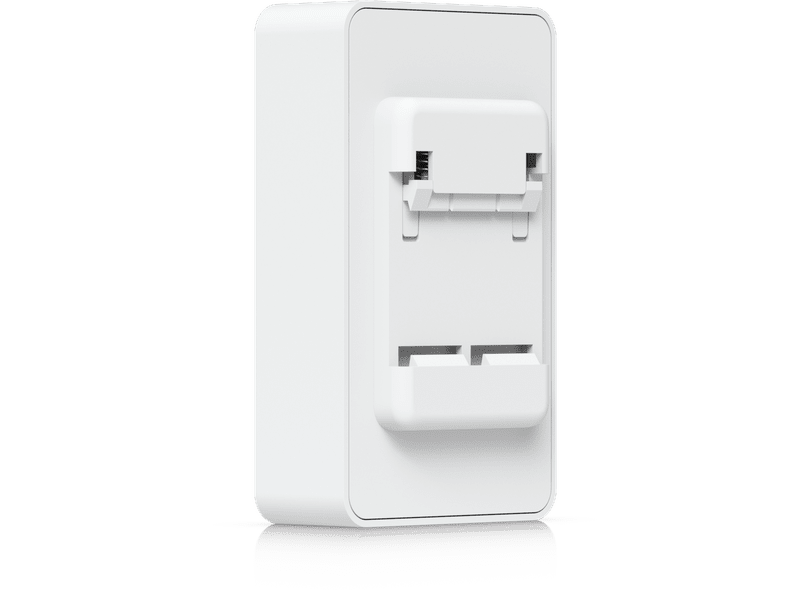

| Mounting | DIN-rail (Included) |
| Enclosure Material | Polycarbonate, metal |
| Indoor/Outdoor Use | Indoor only |
| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | (1) PoE++ input (50V DC, 1A) (2) PoE outputs (50V DC, 30W per port, 45W max aggregated) |
| Input Terminals | (1) Door exit request (1) Door position sensor |
| Dry Output Relay | 30V DC, 1A |
| Max Power Consumption | 19W (without PoE output) 50W (with PoE output) |
| Power Method | PoE++ |
| Buttons | (1) Factory-reset, (1) Dry/Wet switch |
| LEDs | White / Blue |
| PoE Cabling | Minimum Cat 5e; 24 AWG for horizontal/riser, 26 AWG for patch cords |
| Recommended Max Cable Lengths |
UA-Lock-Electric (400mA): 24 AWG: 25 m, 22 AWG: 42 m, 20 AWG: 66 m, 18 AWG: 100 m UA-Lock-Magnetic-540kg (500mA): 24 AWG: 12 m, 22 AWG: 20 m, 20 AWG: 30 m, 18 AWG: 46 m UA-Lock-Magnetic-270kg (800mA): 24 AWG: 12 m, 22 AWG: 20 m, 20 AWG: 30 m, 18 AWG: 46 m Other locks (1A): 24 AWG: 9 m, 22 AWG: 15 m, 20 AWG: 24 m, 18 AWG: 36 m |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| UL 294 Level | Level I (Destructive attack, Line security, Endurance, Standby power) |
| NDAA Compliant | ✓ |
| Management Application | UniFi Access |
