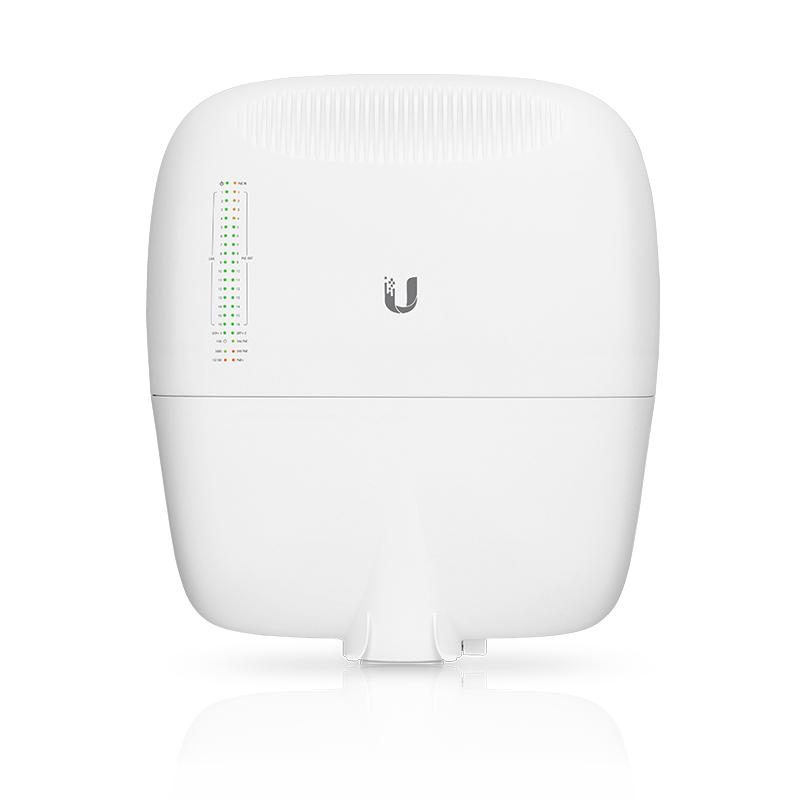

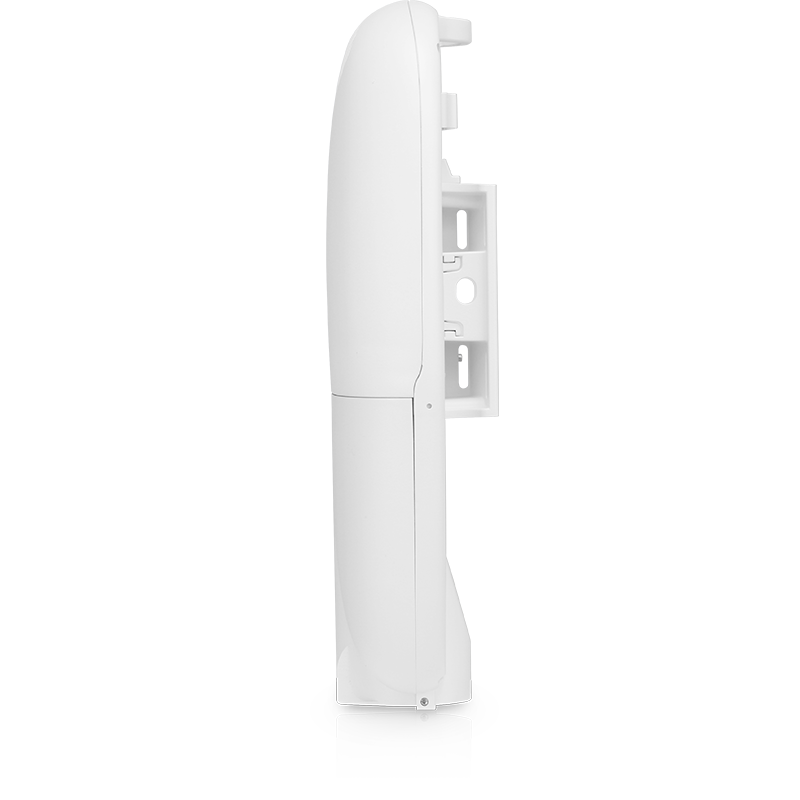

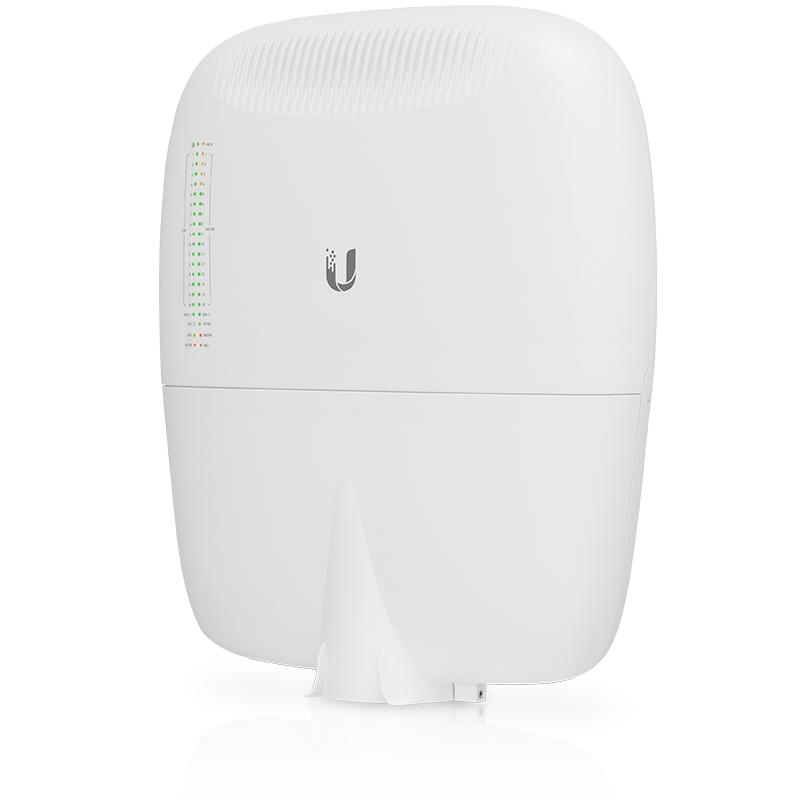

EdgePoint S16
EP-S16
Application-specific WISP control point with (16) Gigabit RJ45 ports and (2) SFP ports.
EdgePoint S16
EP-S16
Application-specific WISP control point with (16) Gigabit RJ45 ports and (2) SFP ports.
| EP-S16 Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Without wall-mount: 326.6 × 382.7 × 88.8 mm (12.9 × 15.1 × 3.5") With wall-mount: 326.6 × 382.7 × 105.5 mm (12.9 × 15.1 × 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure Material | Diecast aluminum alloy, UV-resistant polycarbonate |

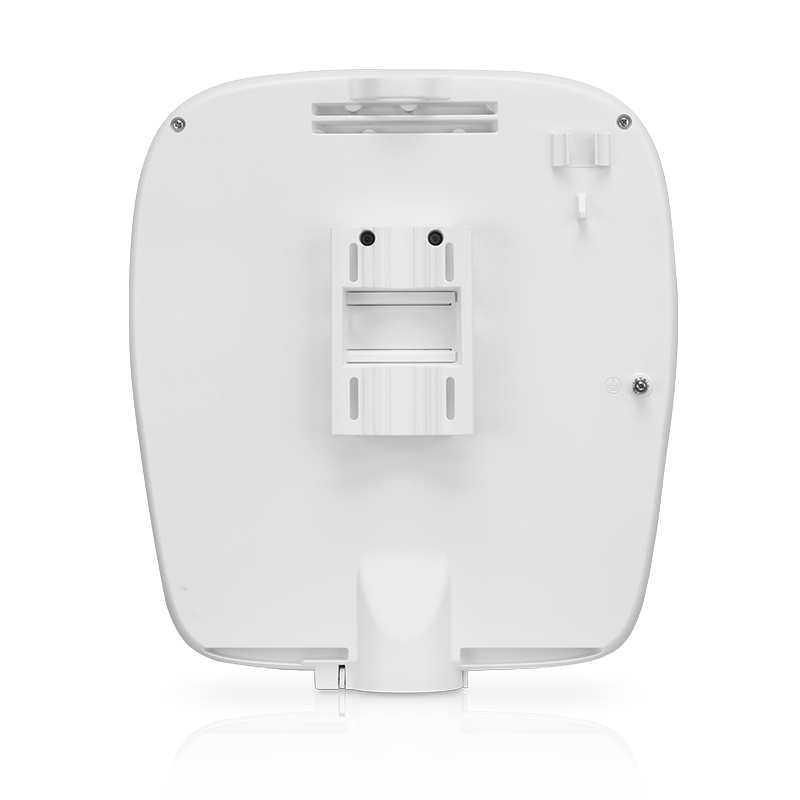

| Mounting | Pole or wall mount |
| Wind Loading | 153 N @ 200 km/h (34 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

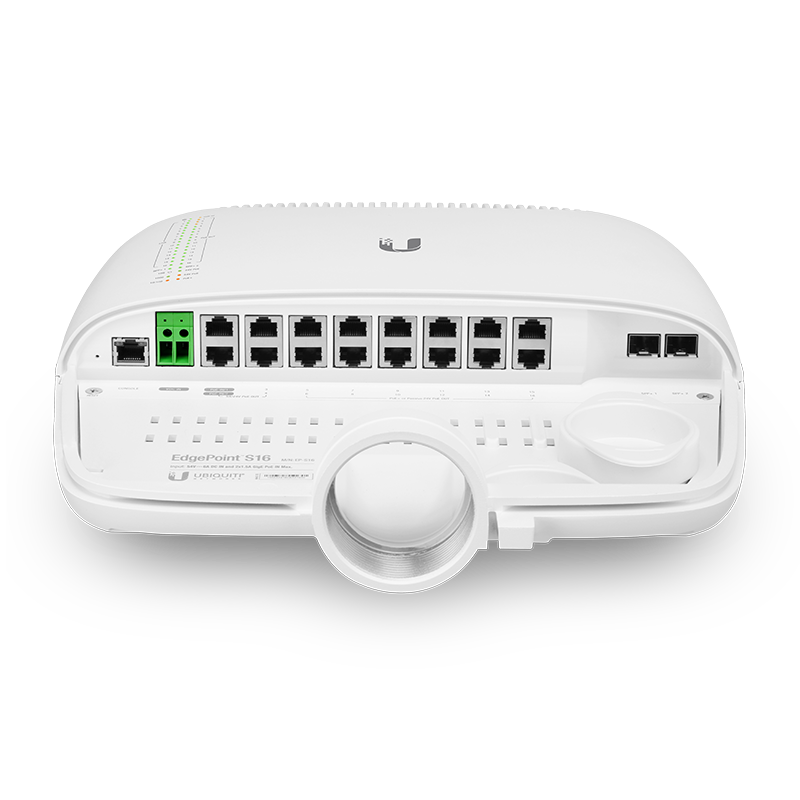

| Networking Interfaces | (16) 10/100/1000 RJ45 ports (2) 1/10G SFP+ ports (1) RJ45 serial console port |
| Button | Factory reset |
| LED Indicators | System: power RJ45 ports: speed/link/activity, PoE SFP ports: speed/link/activity |
| Power | |
| Power Method | (1) DC terminal block: 54V DC, 6A input (2) Passive PoE input: 54V / 1.5A, 4-pair (ports 1 & 2) |
| PoE Output | Ports 1–4: 54V or 24V / 1.4A, 4-pair passive PoE Ports 5–16: PoE/PoE+ or 24V / 0.7A, 2-pair passive PoE |
| Power Monitoring | DC terminal block input RJ45 ports 1–2: PoE input/output RJ45 ports 3–16: PoE output |
| Supported Voltage Range | 42–56V DC (−48V not supported) |
| Max Power Consumption | 40W (excluding PoE output) |
| Environmental | |
| Operating Temperature | −40 to 65°C (−40 to 149°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
