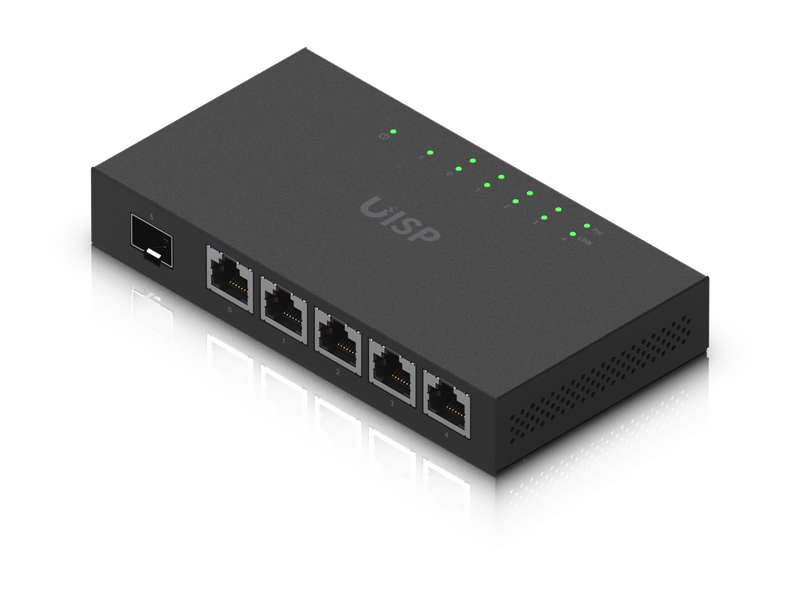

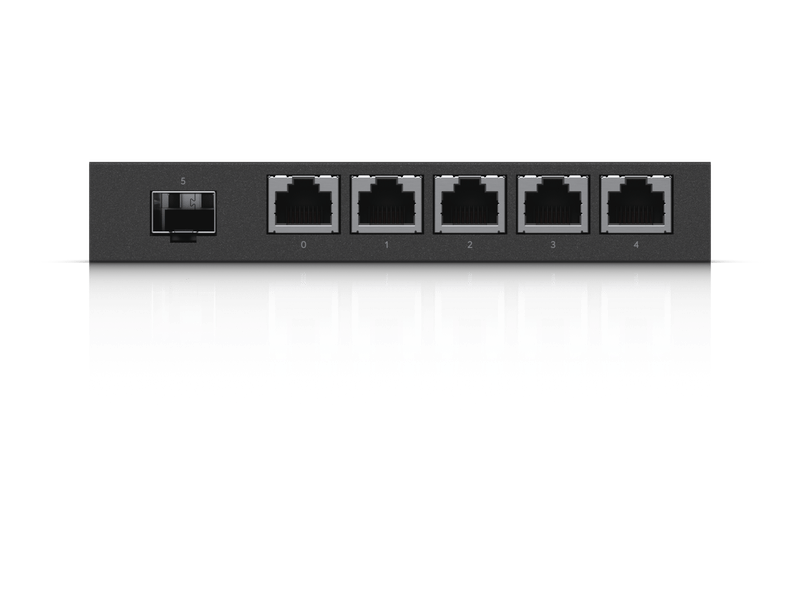

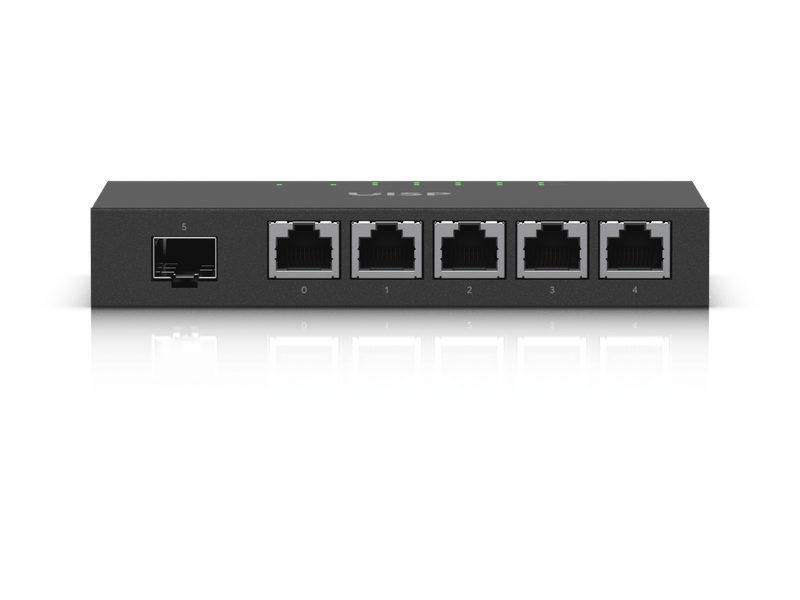

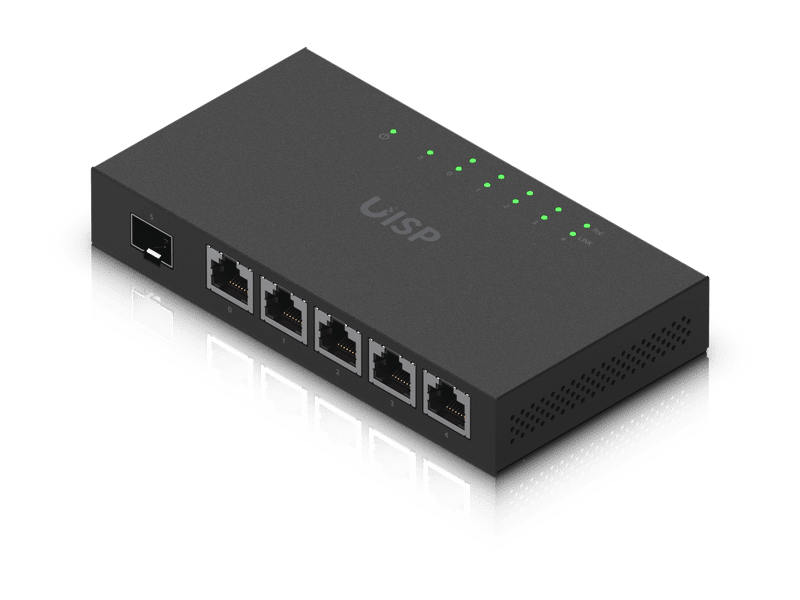

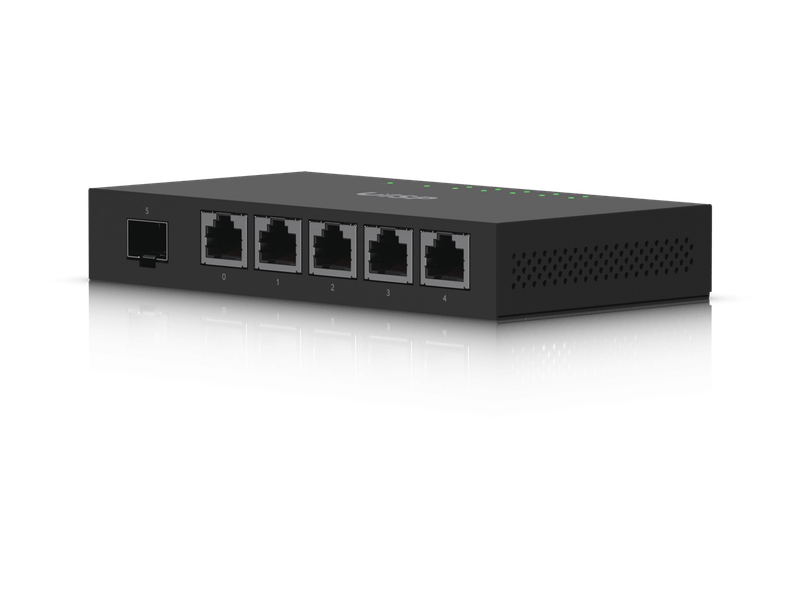

EdgeRouter X SFP
ER-X-SFP
Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.
EdgeRouter X SFP
ER-X-SFP
Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.
| ER-X-SFP Specifications | |
|---|---|
| Product Type | Gigabit Router with SFP Port and Passive PoE |
| Application | Advanced routing for SOHO and ISP networks |
| Routing Performance | 1 Gbps line rate |
| Interfaces | |
| RJ45 Ports | (5) Gigabit Ethernet |
| SFP Port | (1) 1 Gbps SFP |
| PoE Output | 24V Passive PoE on RJ45 ports |
| Max PoE Wattage per Port | 12W |
| Total PoE Budget | 50W |
| PoE Pins | 2-pair: Pins 4,5 (+) and 7,8 (−) |
| LED Indicators | System Status, PoE, Link/Activity |
| Button | Factory Reset |
| System | |
| Processor | Dual-Core 880 MHz MIPS1004Kc |
| Memory | 256 MB DDR3 RAM |
| Storage | 256 MB NAND |
| Operating System | EdgeOS |
| Power | |
| Power Method | 24V DC, 2.5A power adapter (included) |
| Voltage Range | 9–26V DC |
| Max Power Consumption | 5W (excluding PoE output) |
| Mechanical | |
| Dimensions | 142 × 75 × 23 mm (5.6 × 3 × 0.9") |
| Weight | 215 g (7.6 oz) |
| Mounting | Wall mount |
| Enclosure Material | Plastic |
| Environmental | |
| Operating Temperature | −10 to 45°C (14 to 113°F) |
| Operating Humidity | 10 to 90% noncondensing |
| ESD/EMP Protection | ±24kV Air/Contact |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
