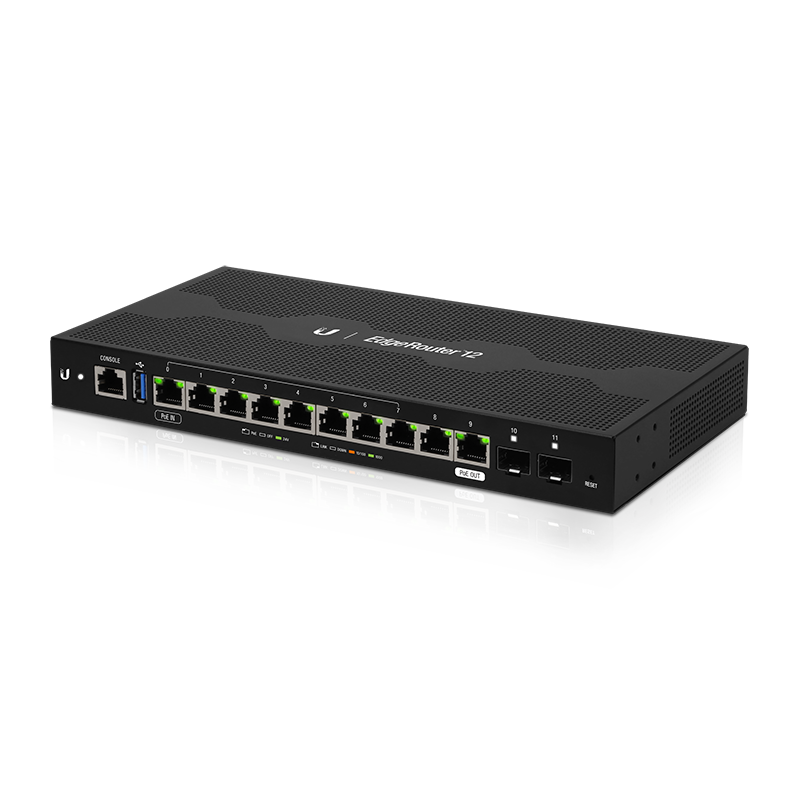

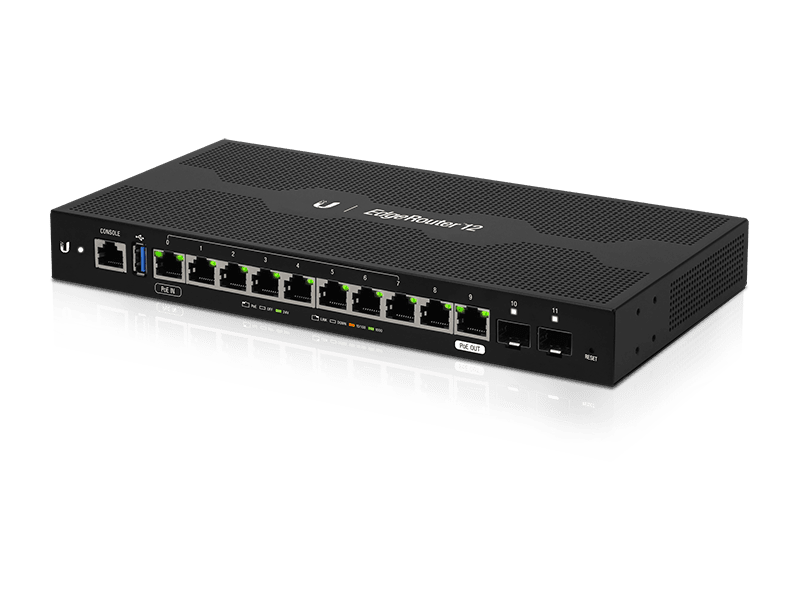

EdgeRouter 12
ER-12
High-performance router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports.
EdgeRouter 12
ER-12
High-performance router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports.
| ER-12 Specifications | |
|---|---|
| Product Type | High-Performance Gigabit Router with Layer 2 Switching |
| Application | Advanced routing for enterprise and ISP networks |
| Interfaces | |
| RJ45 Ports | (10) Gigabit Ethernet |
| SFP Ports | (2) 1 Gbps SFP |
| Serial Console | (1) RJ45 |
| PoE Input | Port 0: 24V Passive PoE |
| PoE Passthrough | Port 9: 24V Passive PoE |
| Performance | |
| Routing Throughput | 3.4 million packets per second (64-byte) 6.8 Gbps (1518-byte packets) |
| Switching | Ports 0–7 configurable for Layer 2 switching |
| Power | |
| Power Method | External AC/DC adapter (included) |
| Input Voltage | 24V DC, 1A |
| Voltage Range | 9–30V DC |
| Max Power Consumption | 20W (excluding PoE output) |
| Mechanical | |
| Dimensions | 268.1 × 136.5 × 31.1 mm (10.6 × 5.4 × 1.2") |
| Weight | 700 g (1.5 lb) |
| Enclosure | Metal, fanless design |
| Environmental | |
| Operating Temperature | −10 to 50°C (14 to 122°F) |
| Operating Humidity | 10 to 90% noncondensing |
| ESD/EMP Protection | ±24kV Air / ±24kV Contact |
| System | |
| Processor | Quad-Core 1 GHz MIPS64 |
| Memory | 1 GB DDR3 RAM |
| Storage | 4 GB eMMC + 8 MB SPI NOR |
| LEDs | System: Power Data Ports: Speed / Link / Activity / PoE SFP Ports: Link / Activity |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
