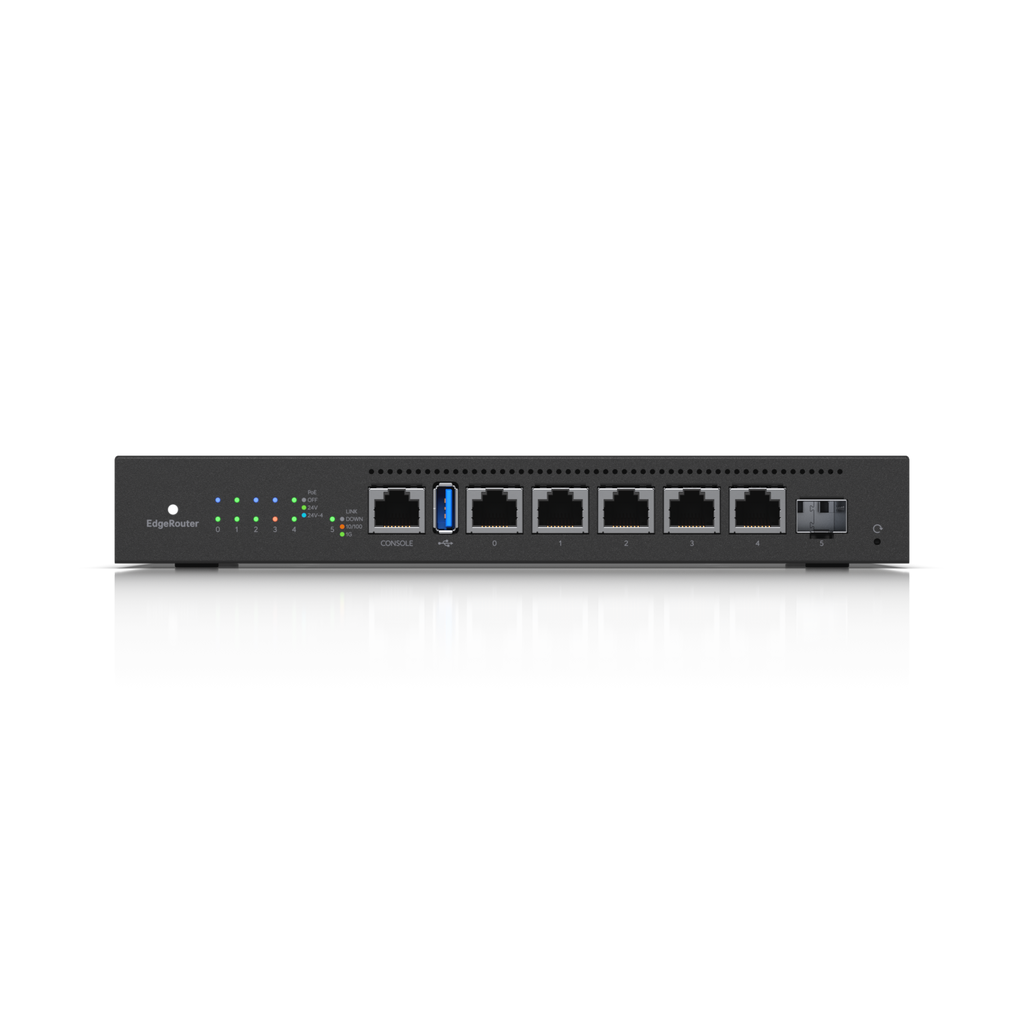

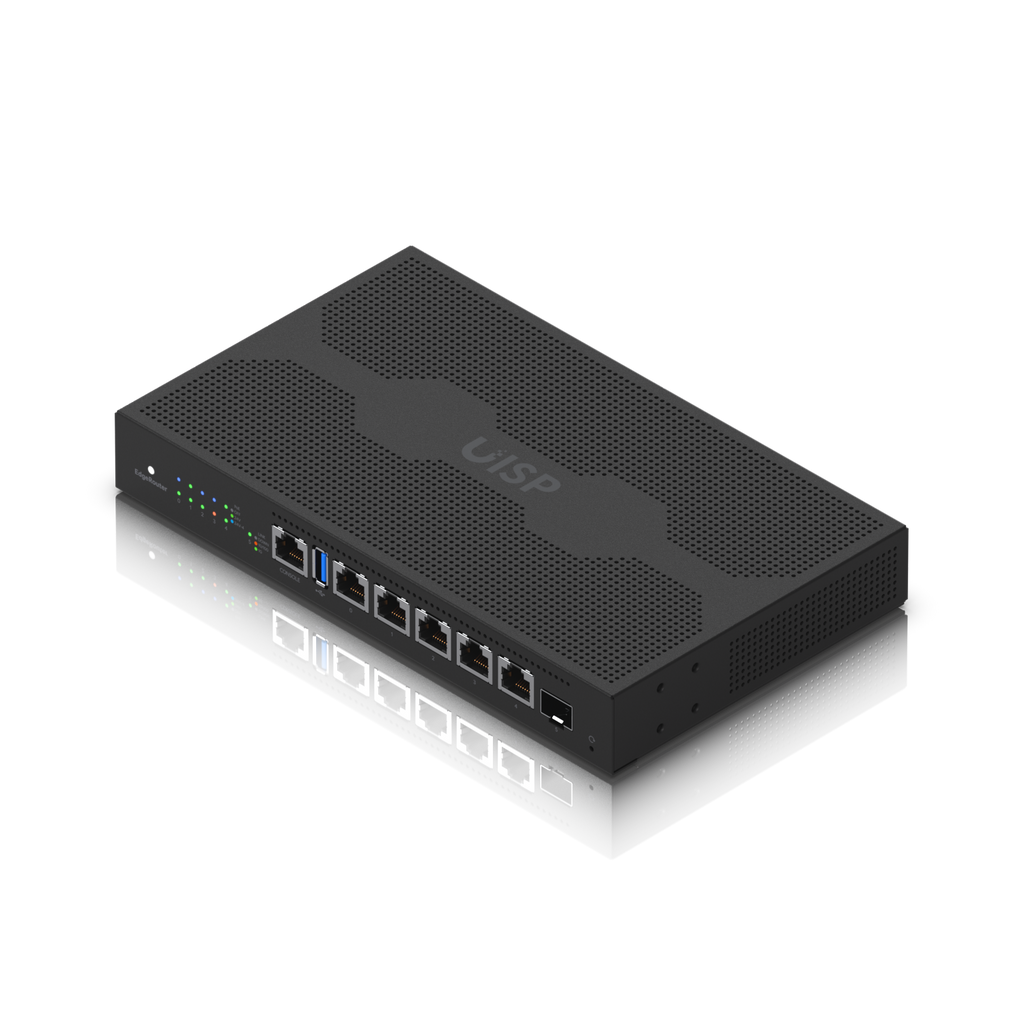

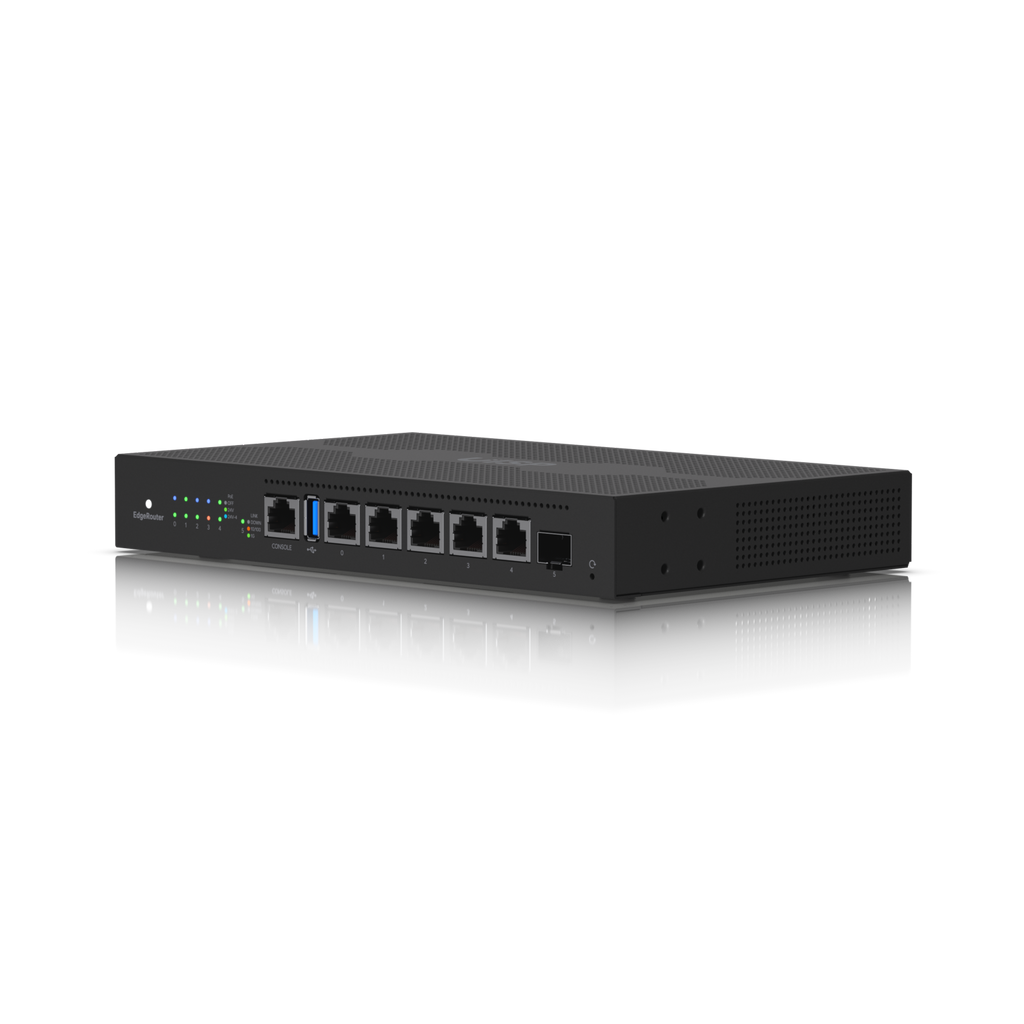

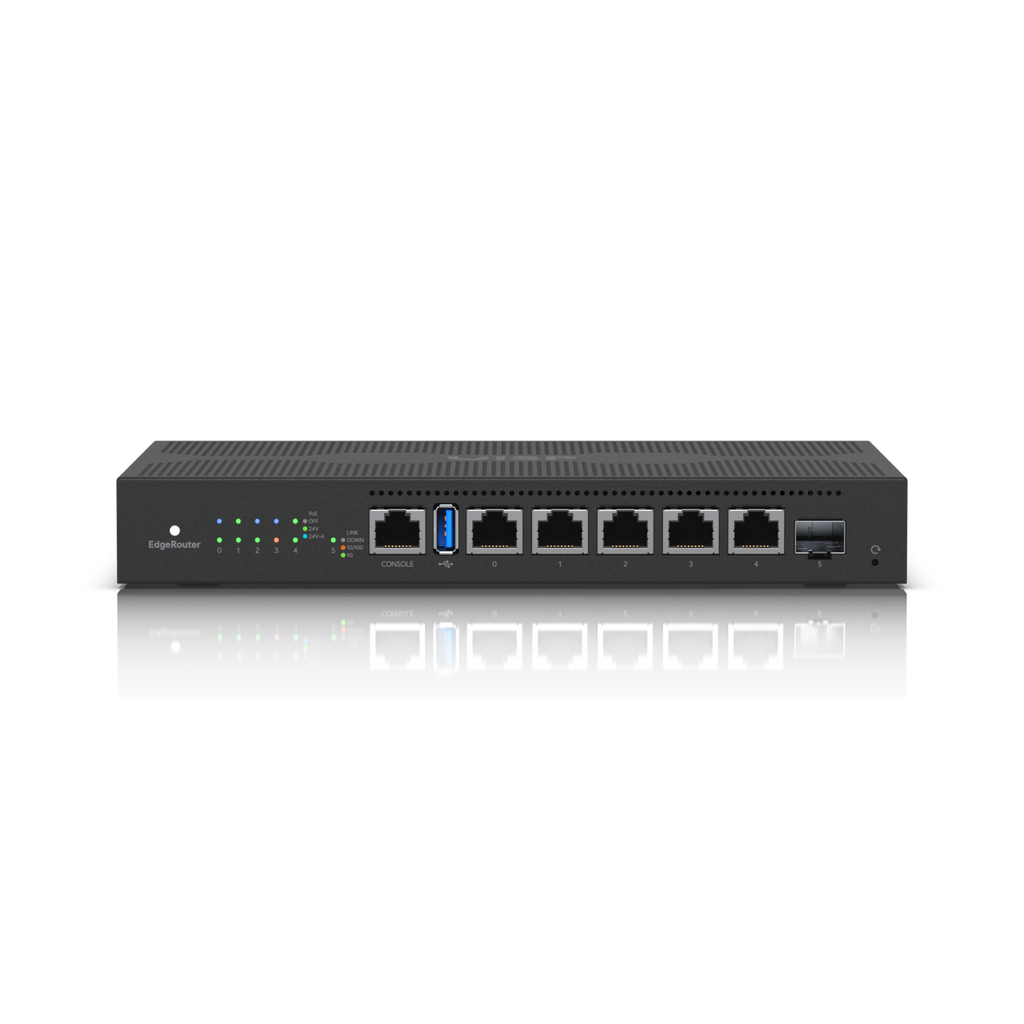

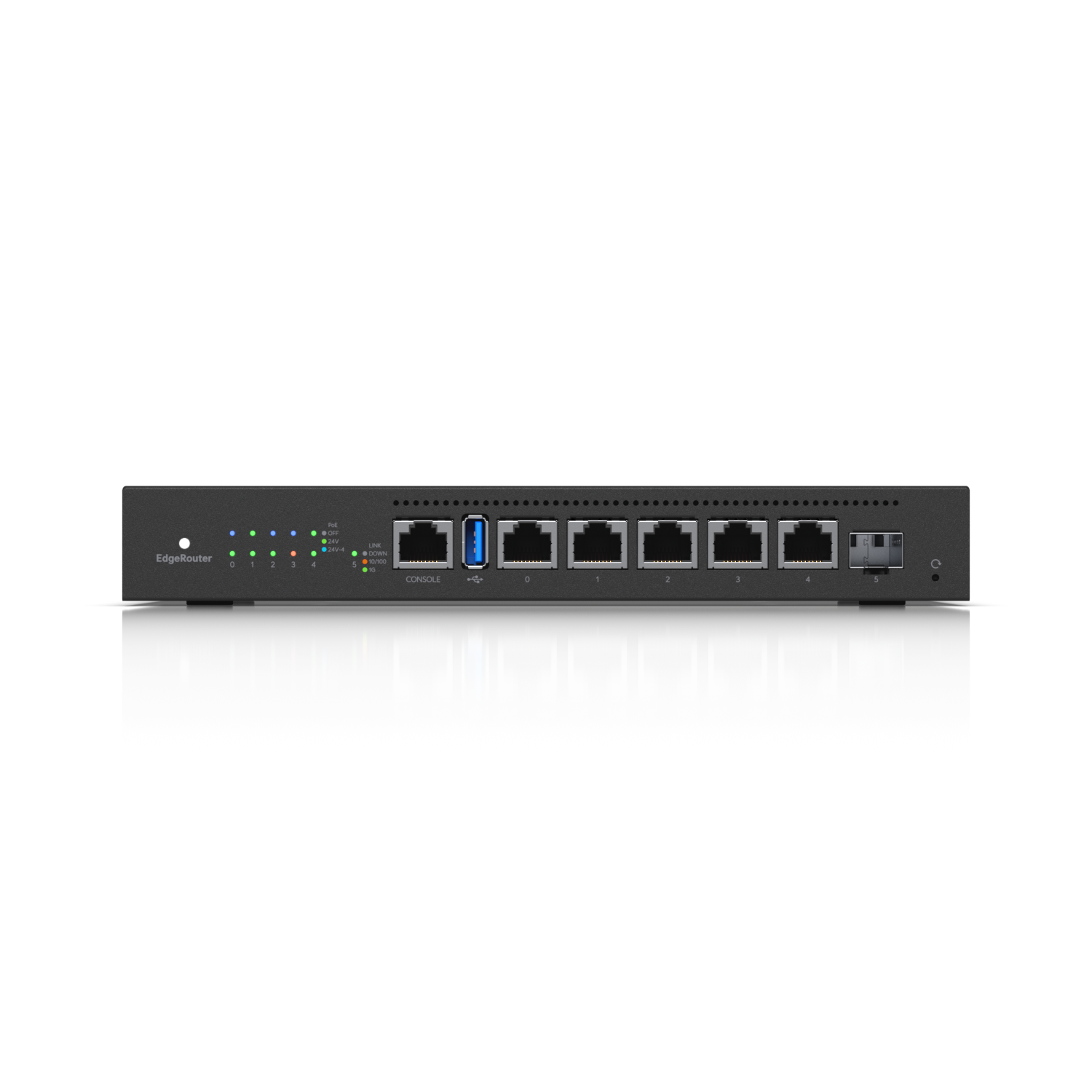

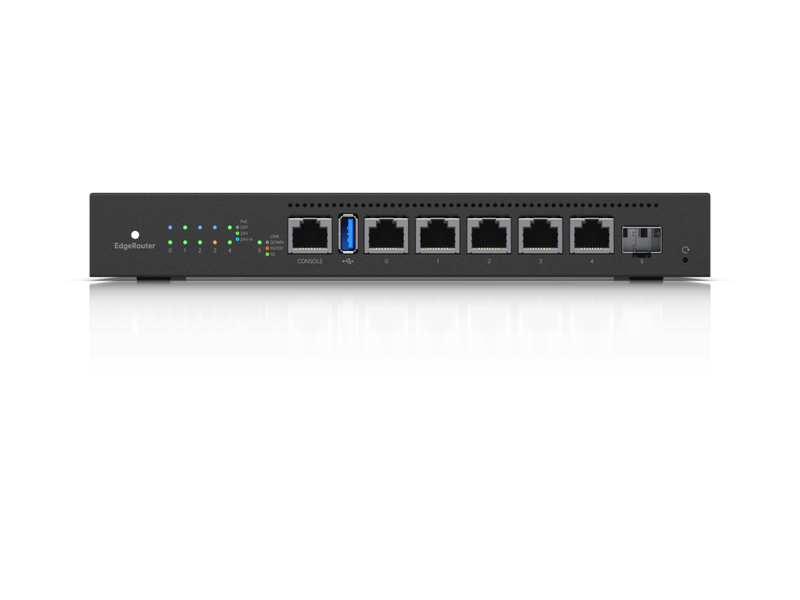

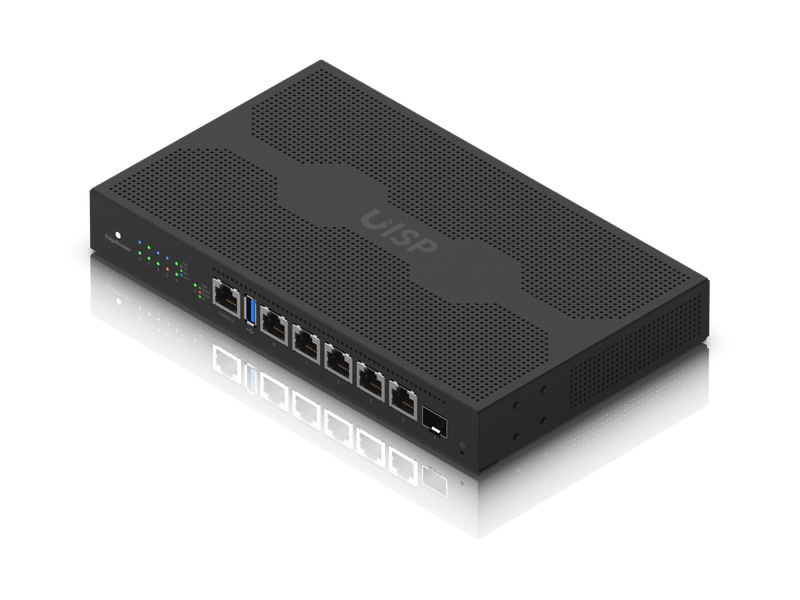

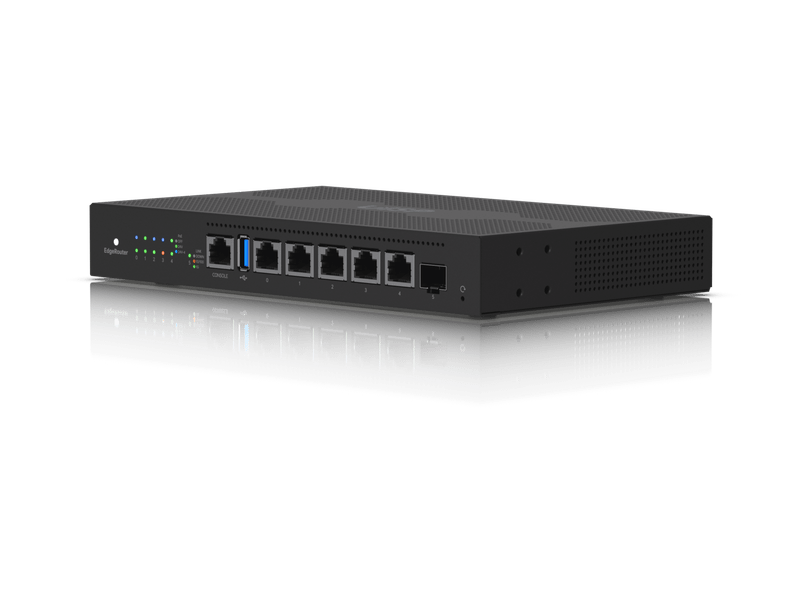

EdgeRouter 6 PoE
ER-6P
Fanless router with a four-core, 1 GHz MIPS64 processor, (5) Gigabit RJ45 ports, and an SFP port.
EdgeRouter 6 PoE
ER-6P
Fanless router with a four-core, 1 GHz MIPS64 processor, (5) Gigabit RJ45 ports, and an SFP port.
| ER-6P Specifications | |
|---|---|
| Product Type | Gigabit Router with Passive PoE Output |
| Application | Advanced routing with integrated PoE for airMAX and UISP devices |
| Routing Performance | 6 Gbps line rate |
| Interfaces | |
| Ethernet Ports | (5) Gigabit RJ45 with PoE (1) Gigabit SFP |
| PoE Output | 24V Passive PoE: – 4-pair: 24V, 1A (24W) – 2-pair: 24V, 0.5A (12W) |
| Serial Console | (1) RJ45 |
| Button | Factory Reset |
| LED Indicators | PoE, Link, Speed, Activity (per port) |
| System | |
| Processor | Quad-Core 1 GHz MIPS64 |
| Memory | 1 GB DDR3 RAM |
| Storage | 4 GB eMMC + 8 MB SPI NOR |
| Power | |
| Power Method | External AC/DC adapter (included) |
| Input Voltage | 24V DC, 2.5A |
| Voltage Range | 16–30V DC |
| Max Power Consumption | 16W (excluding PoE output) |
| Power Supply | 60W AC/DC adapter |
| Mechanical | |
| Dimensions | 229 × 136.5 × 31.1 mm (9 × 5.4 × 1.2") |
| Weight | 730 g (1.6 lb) |
| Enclosure Material | Metal |
| Cooling | Fanless |
| Mounting Options | Wall or optional rack mount (ER-RMKIT) |
| Environmental | |
| Operating Temperature | −10 to 50°C (14 to 122°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
