Description
Overview

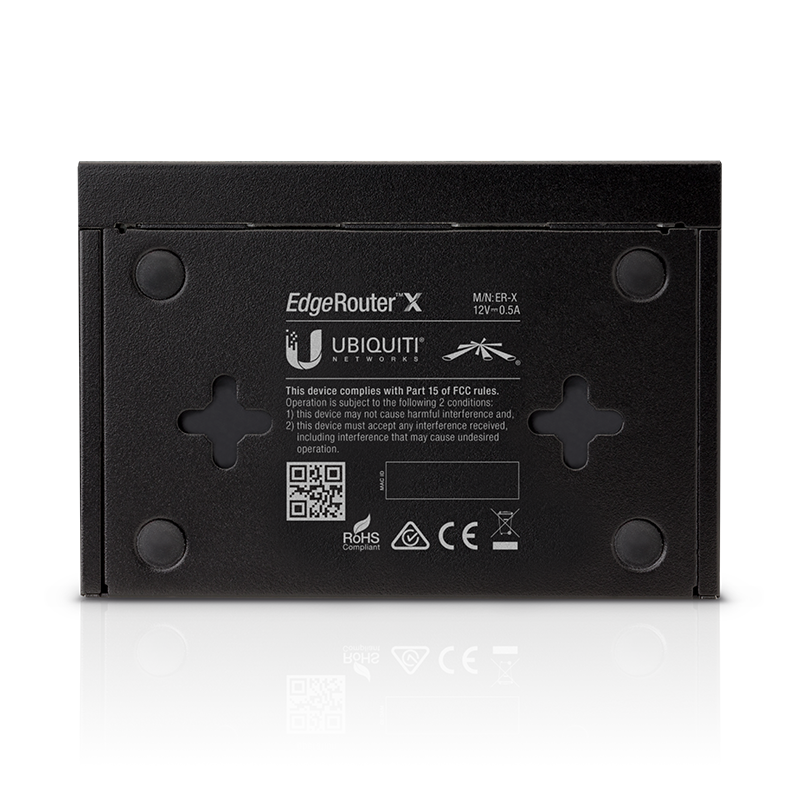

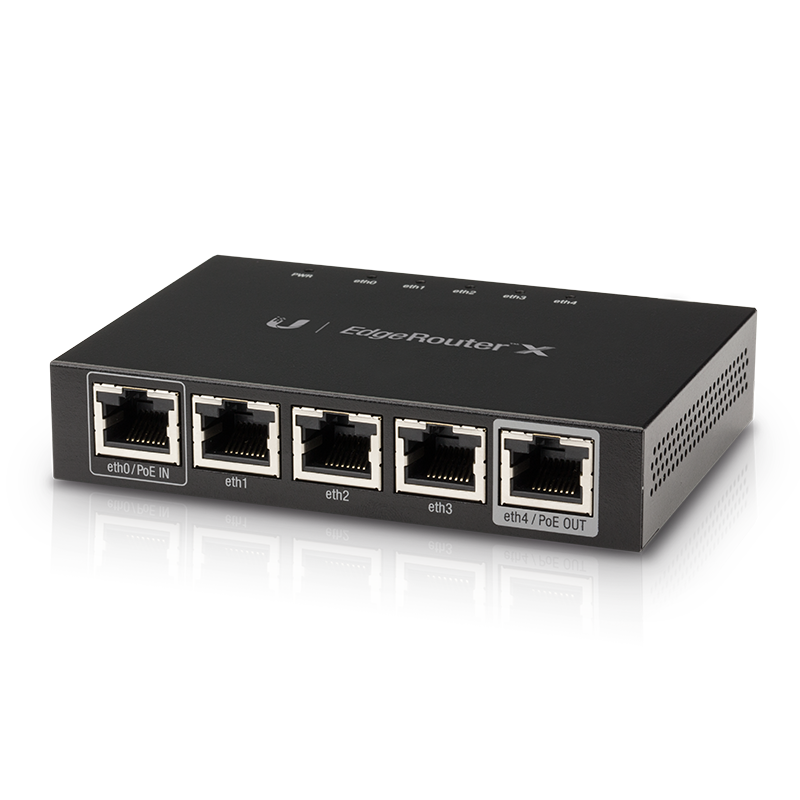

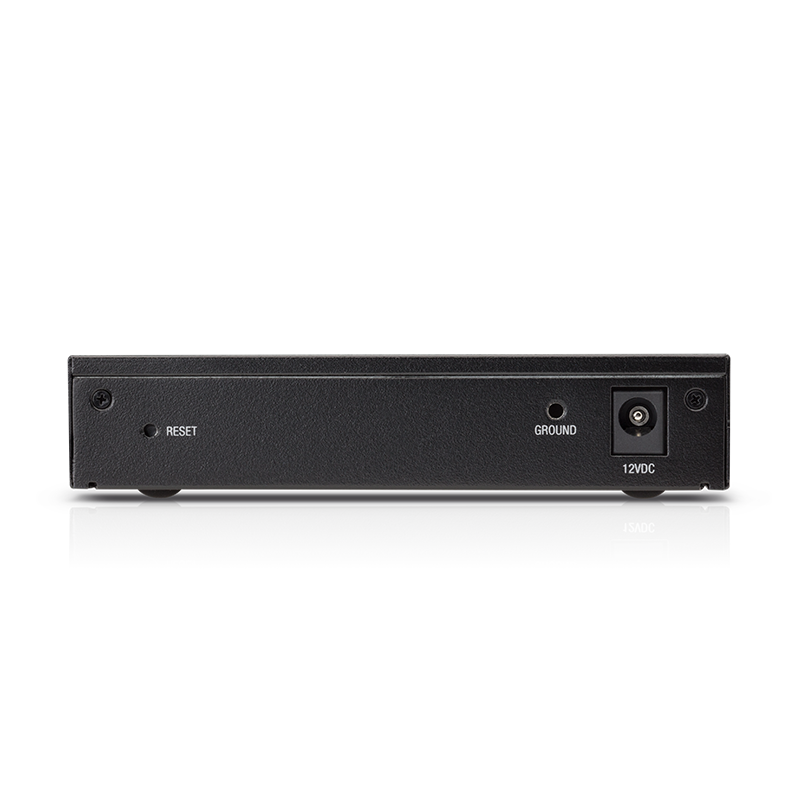

EdgeRouter X
ER-X
Gigabit router with advanced network management and security features.
EdgeRouter X
ER-X
Gigabit router with advanced network management and security features.
| ER-X Specifications | |
|---|---|
| Product Type | Gigabit Ethernet Router |
| Application | Advanced routing for SOHO and ISP networks |
| Routing Performance | 1 Gbps for 1518-byte packets |
| Packet Rate | 130,000 pps for 64-byte packets |
| Interfaces | |
| Ethernet Ports | (5) 10/100/1000 Mbps RJ45 |
| PoE Input | (1) Passive 24V PoE In |
| PoE Passthrough | (1) Passive 24V PoE Out |
| Console Port | None |
| LED Indicators | Power, Ethernet Link/Activity |
| Button | Factory Reset |
| System | |
| Processor | Dual-Core 880 MHz MIPS1004Kc |
| Memory | 256 MB DDR3 RAM |
| Storage | 256 MB NAND |
| Operating System | EdgeOS (with CLI and GUI) |
| Power | |
| Power Method | 12V DC, 0.5A power adapter (included) or 24V passive PoE |
| Voltage Range | 9–26V DC |
| Max Power Consumption | 5W |
| Mechanical | |
| Dimensions | 110 × 75 × 22 mm (4.3 × 3 × 0.9") |
| Weight | 175 g (6.2 oz) |
| Mounting | Wall mount |
| Enclosure Material | Plastic |
| Environmental | |
| Operating Temperature | −10 to 45°C (14 to 113°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
