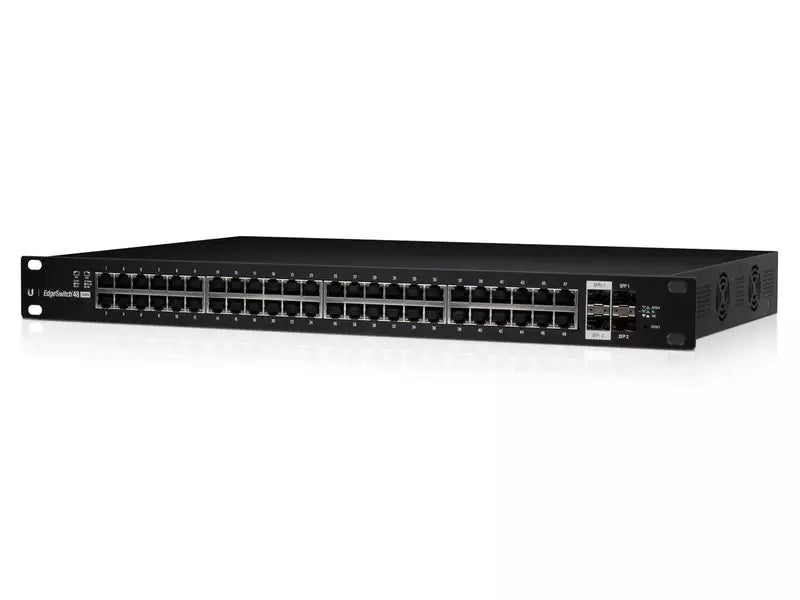

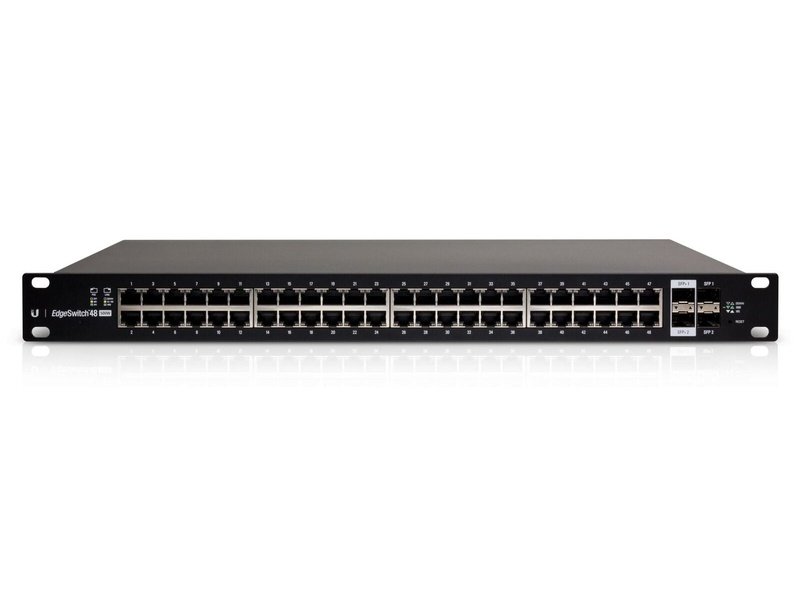

Ubiquiti EdgeSwitch 48 Ports Managed Gigabit Switch, PoE+

UbiquitiSKU: ES-48-500W

Ubiquiti EdgeSwitch Gigabit PoE+ Switch, 48x Gigabit PoE+ Ports, 2x SFP Ports, 2x SFP+ Ports, Up to Layer 3 Management, Total PoE Budget 500 Watt

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,294.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

Layer 2/3, PoE+ switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 500W power supply.
- (48) GbE RJ45 ports
- (2) SFP and (2) SFP+ ports
- 500W total PoE availability
- Rack-mountable, 1U

Specifications

Mechanical
Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Weight 6.1 kg (13.5 lb)
Hardware
Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Max. Power Consumption
Includes PoE Output
Excludes PoE Output

500W
64W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 500W DC
LEDs Per Port
RJ45 Data Ports
SFP+/SFP Data Ports

PoE, Speed/Link/Activity
Speed/Link/Activity
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
PoE Per Port
PoE Interfaces PoE/PoE+ (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range PoE+ Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
