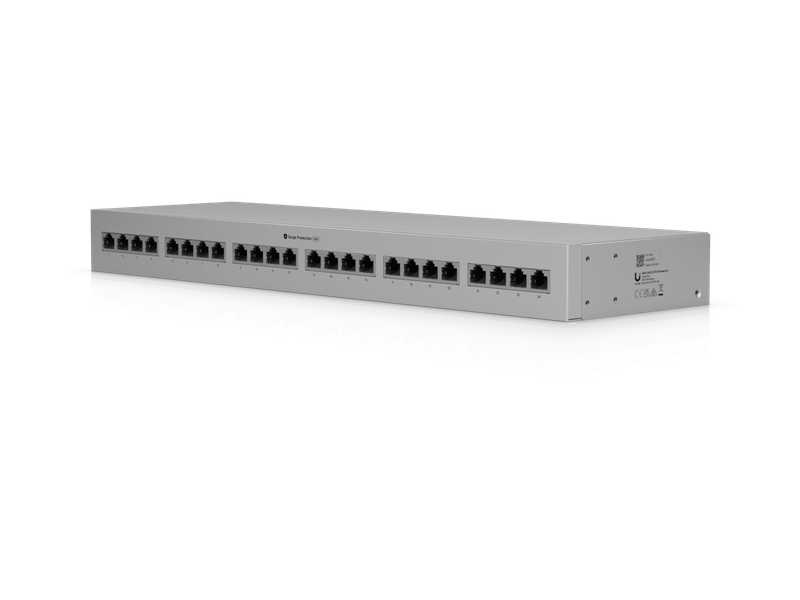

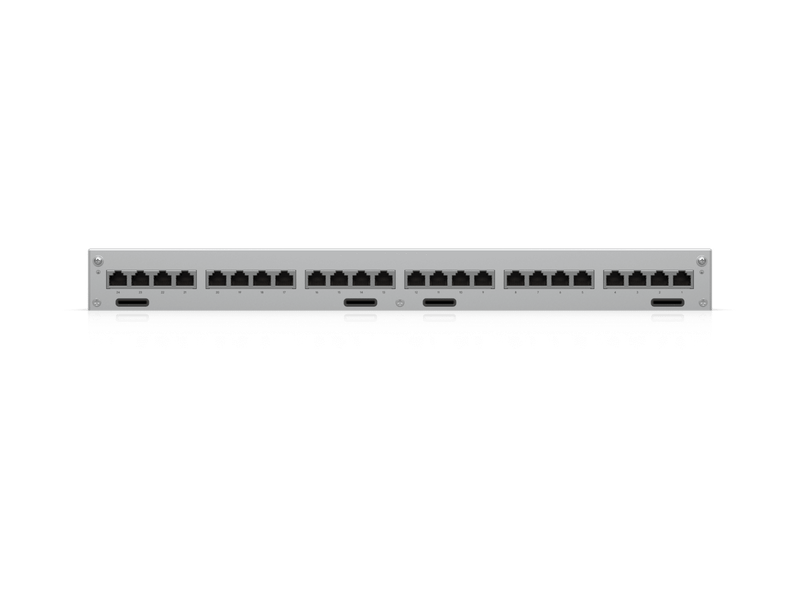

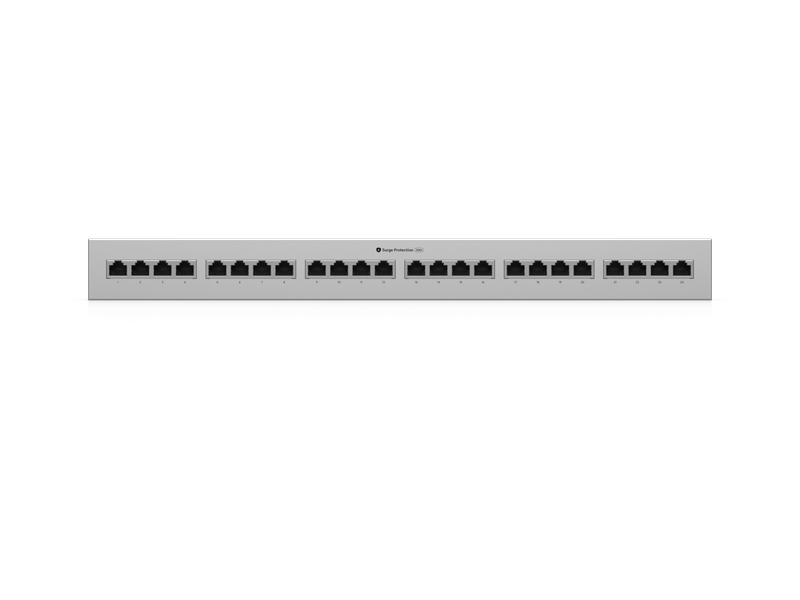

Ethernet Surge Protection
UACC-ETH-SP-Panel-24
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
Ethernet Surge Protection
UACC-ETH-SP-Panel-24
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
| UACC-ETH-SP-Panel-24 Specifications | |
|---|---|
| Dimensions | 442.4 × 134 × 43.7 mm (17.4 × 5.3 × 1.7") |
| Weight | 2 kg (4.4 lb) |
| Form Factor | 1U rack-mount |
| Enclosure Material | SGCC steel |
| Networking Interface | (48) RJ45 female connectors |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ (PoE++ compatible) |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation Resistance | ≥ 1 GΩ @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| ESD/EMP Protection | ✓ (Transient current absorption) |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
