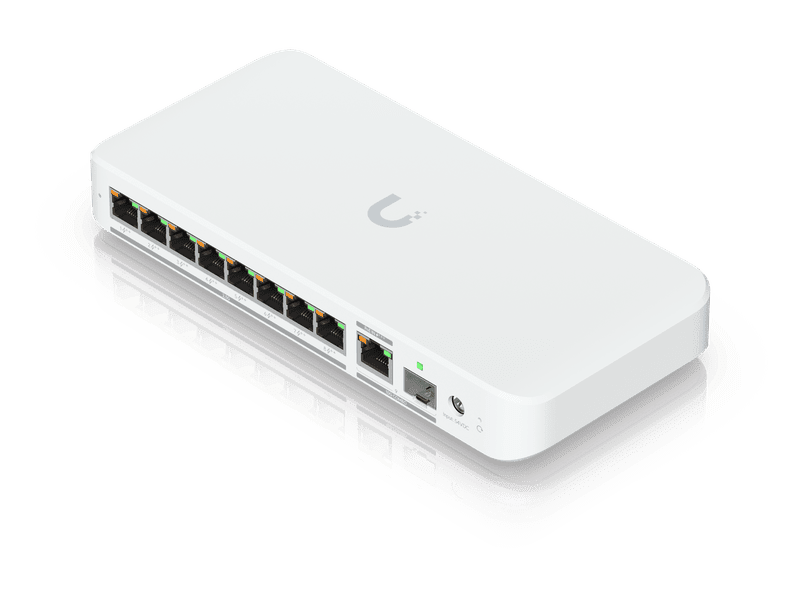

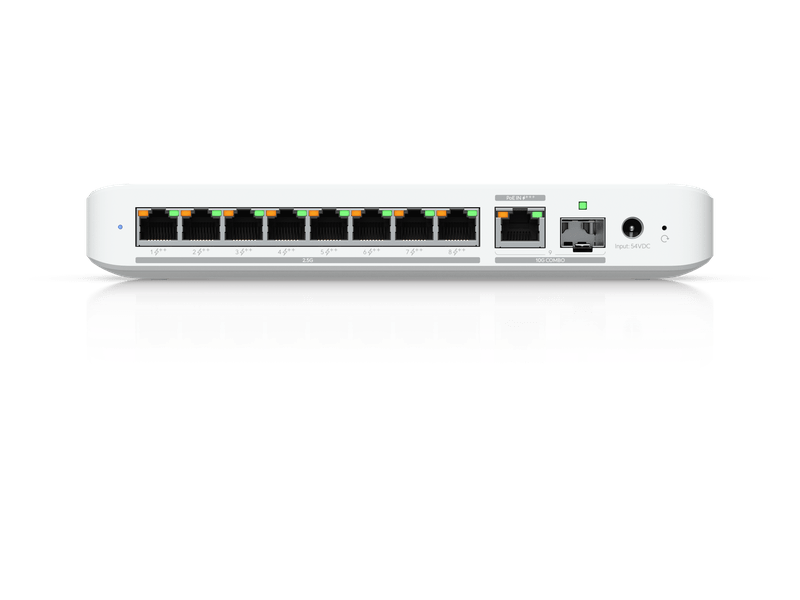

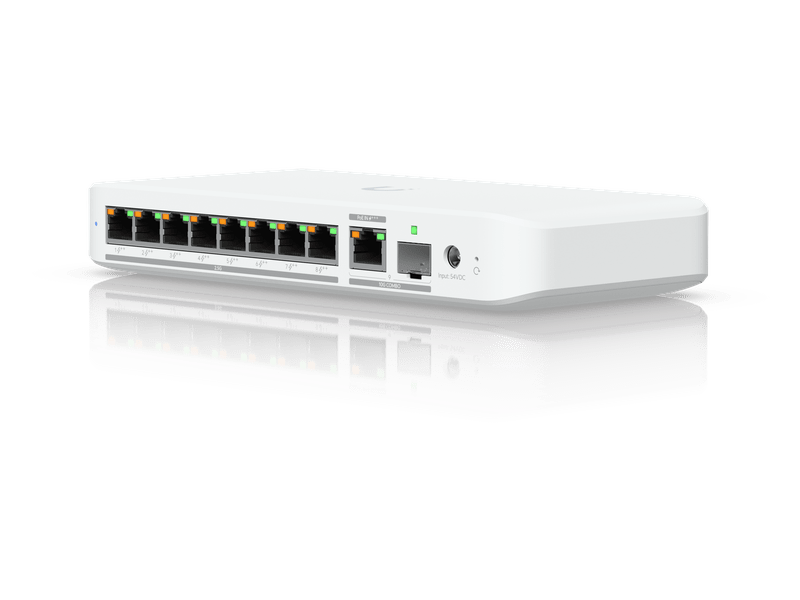

Flex 2.5G PoE
USW-Flex-2.5G-8-PoE
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.
Flex 2.5G PoE
USW-Flex-2.5G-8-PoE
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.
USW-Flex-2.5G-8-PoE Specifications | |
---|---|
Overview | |
Dimensions | 212.9 × 99.4 × 33.5 mm (8.4 × 3.9 × 1.3") |
Form Factor | Compact desktop, wall, DIN, magnetic |
Port Layout | 8 × 2.5 GbE RJ45 (PoE++) 1 × 10 GbE RJ45 (PoE+++) 1 × 10G SFP+ |
Max. PoE Output | Up to PoE++ |
Total PoE Availability | PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W AC adapter input: 196W |
Performance | |
Switching Capacity | 60 Gbps |
Non-Blocking Throughput | 30 Gbps |
Forwarding Rate | 45 Mpps |
Supported VLANs | 256 |
MAC Address Table Size | 4,000 entries |
Layer 2 Features | |
STP & RSTP | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
Loop Protection | ✓ |
Hardware | |
PoE Ports | 8 × PoE++ |
Max. PoE Wattage per Port | PoE: 15.4W PoE+: 32W PoE++: 64W |
Max. Power Consumption | 14W (excluding PoE, with PoE input) 17W (excluding PoE, with AC adapter) 210W (including PoE output) |
Power Method | (1) AC/DC adapter (excluded) (1) PoE+++ |
Power Input Method | DC input, PoE |
Supported Voltage Range | 50–57V DC / PoE |
Management | Ethernet |
Weight | 567 g (20 oz) |
Enclosure Material | Polycarbonate |
Mount Material | Polycarbonate |
Environmental | |
Operating Temperature | -20 to 45° C (-4 to 113° F) |
Operating Humidity | 10 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Application Requirements | UniFi Network version 9.0.114 and later |
