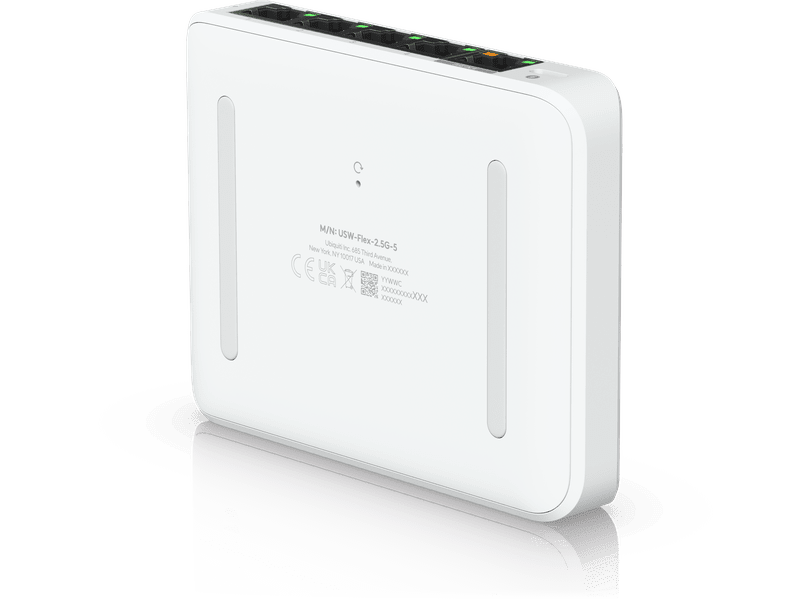

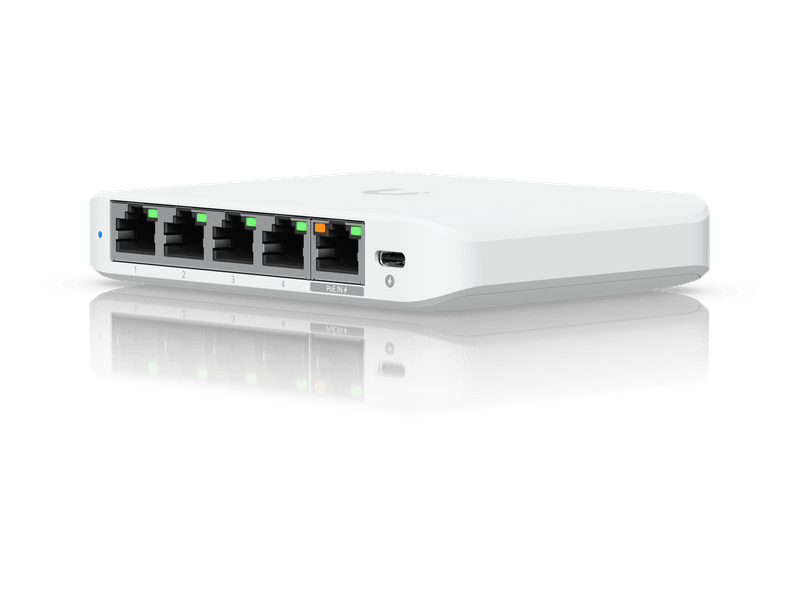

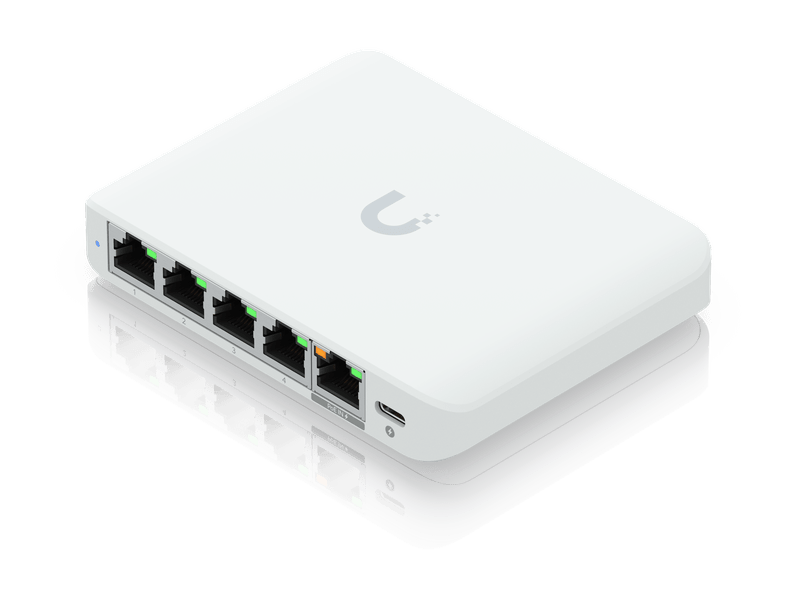

Flex Mini 2.5G
USW-Flex-2.5G-5
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
Flex Mini 2.5G
USW-Flex-2.5G-5
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
| USW-Flex-2.5G-5 Specifications | |
|---|---|
| Product Type | Layer 2 Managed Switch |
| Form Factor | Compact desktop |
| Mounting Options | Desktop, wall, pole |
| Outdoor Ready | ✓ |

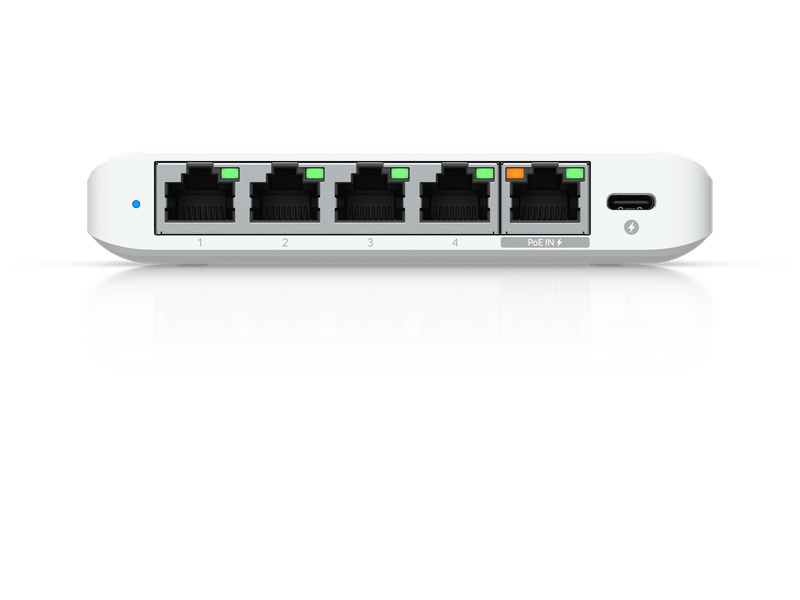

| Port Layout | (5) 2.5GbE RJ45 ports |
| PoE Input | (1) PoE-In port |
| Switching Capacity | 25 Gbps |
| Total Non-Blocking Throughput | 12.5 Gbps |
| Forwarding Rate | 18.6 Mpps |
| Power Method | PoE++ or USB-C (adapter included) |
| Supported Voltage Range | 50–57V DC |
| Max Power Consumption | 29W |
| Dimensions | 122.5 × 107.1 × 28 mm (4.8 × 4.2 × 1.1") |
| Weight | 230 g (8.1 oz) |
| Heat Dissipation | 17.06 BTU/hr (excluding PoE output) |
| ESD Protection | ±16kV air/contact |
| Operating Temperature | Up to 46W PoE output: -40 to 55° C (-40 to 131° F) Up to 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 entries |
| Jumbo Frames | ✓ |
| Port Mirroring | ✓ |
| Port Isolation | ✓ |
| Flow Control | ✓ |
| Egress Rate Limiting | ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 5.10.3 or later |
